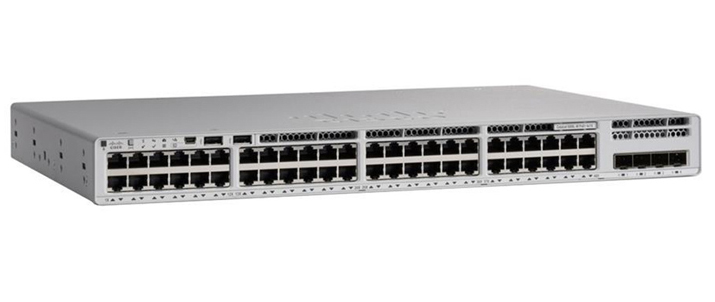

The Cisco Catalyst 9200L Series Switches (C9200L) are part of Cisco’s enterprise-grade switching solutions, providing reliable and scalable networking for businesses of all sizes. As powerful as they are, there are times when you might need to reset these switches to their factory default settings. Whether you're troubleshooting, reconfiguring for a new deployment, or preparing the switch for decommissioning, performing a factory reset can ensure a clean slate.

In this article, we will provide an in-depth guide on how to perform a factory reset on Cisco C9200L switches, covering multiple methods, best practices, and precautions.

What is a Factory Reset on a Cisco C9200L Switch?

A factory reset on a Cisco Catalyst 9200L switch essentially clears all configurations and restores the switch to its original out-of-the-box state. This action is often necessary when:

• You need to reconfigure the switch from scratch.

• The switch is being transferred to a new environment or user.

• Troubleshooting persistent issues that require a complete reset.

• The device is being decommissioned or repurposed.

A factory reset deletes all customized configurations and resets all settings, including the VLANs, IP configurations, and security parameters, reverting everything to default.

Important Considerations Before Performing a Factory Reset

Before proceeding with a factory reset on your Cisco C9200L switch, it’s critical to keep the following points in mind:

• Backup Configurations:Always create a backup of the switch’s current configuration. Once reset, the switch will lose all configurations, and if you want to restore them later, you will need a backup file.

• Understand the Purpose:Ensure that a factory reset is the necessary action. Sometimes, troubleshooting steps like rebooting the switch or reapplying certain configurations may resolve issues without wiping everything.

• Network Downtime:Performing a factory reset will take the switch offline, which may affect connected devices and network traffic. Schedule the reset during off-peak hours if necessary.

Methods for Performing a Factory Reset on Cisco C9200L

Method 1: Factory Reset via CLI (Command Line Interface)

The most common method to reset the Cisco C9200L switch is through the CLI. This method is efficient and allows for more control over the reset process. Here's how to perform the reset:

1. Connect to the Switch:

   • Use a console cable to connect your computer to the switch's console port.

   • Open a terminal emulator (such as PuTTY or Tera Term) and establish a connection using the appropriate COM port and settings (usually, a baud rate of 9600).

2. Enter Privileged EXEC Mode:

   • Log in to the switch via the terminal.

   • Typeenableto enter privileged EXEC mode. You'll need to provide the switch's enable password.

     Switch> enableSwitch#

3. Erase the Startup Configuration:

   • To remove the current configuration from the switch, run the following command:

     Switch# write erase

4. Reload the Switch:

   • Once the startup configuration has been erased, reload the switch to apply the reset. This will reboot the switch and apply the factory settings.

     Switch# reload

   • The switch will prompt for confirmation. PressEnteror typeyesto confirm.

5. Complete the Factory Reset:

   • Once the switch reboots, it will boot up with its default factory settings, similar to how it arrived from the manufacturer. You can now reconfigure the device from scratch or load a backup configuration if needed.

Method 2: Factory Reset via ROMMON Mode

The ROM Monitor (ROMMON) mode provides a lower-level recovery method for resetting the switch. This method is useful if you cannot access the CLI due to forgotten passwords or other issues.

1. Access ROMMON Mode:

   • Power off the switch.

   • While holding down theModebutton on the front panel, power the switch back on.

   • Continue holding the Mode button until theSystem LEDturns amber, indicating that the switch is in ROMMON mode.

2. Initialize the Switch:

   • In ROMMON mode, the switch provides basic command options. To initiate a factory reset, type the following command:

     flash_init

3. Delete the Configuration Files:

   • After initializing the flash file system, delete the configuration files from the switch’s storage:

     del flash:config.textdel flash:vlan.dat

4. Reset the Switch:

   • Once the configuration files have been deleted, reboot the switch to apply the factory reset:

     boot

   • The switch will now restart with all configurations cleared and will boot with factory default settings.

Method 3: Factory Reset via Web Interface

Some Cisco C9200L switches may offer a web-based management interface, depending on the firmware version and setup. If your switch has this feature enabled, you can perform a reset through the GUI:

1. Log in to the Web Interface:

   • Open a web browser and enter the switch's IP address in the address bar.

   • Log in with your admin credentials.

2. Navigate to System Settings:

   • Go to the system or administration settings in the web interface.

   • Look for an option to reset or restore the factory settings.

3. Initiate the Reset:

   • Confirm the reset process and allow the switch to reboot. This action will erase all configurations and reset the switch to its factory defaults.

Troubleshooting Common Issues During Factory Reset

While performing a factory reset is straightforward, issues can sometimes arise. Here are common problems and their solutions:

• Switch Doesn’t Reset Properly:Ensure that the reset commands are executed correctly. If you're using the CLI, confirm that thewrite erasecommand was followed by a successful reload.

• Cannot Access CLI or ROMMON Mode:If you can't access the switch via console or ROMMON mode, double-check the cabling and terminal settings. If the problem persists, a hardware failure may be to blame, and Cisco support might be needed.

• Forgotten Passwords:If you’re locked out of the switch, ROMMON mode is typically the best recovery method, as it allows you to bypass the current configuration and perform a reset.

Reconfiguring the Cisco C9200L After a Factory Reset

Once the switch has been reset, you will need to set it up again. The following steps outline the basic post-reset configuration:

1. Connect to the Switch:

   • Use a console cable and terminal emulator to access the switch's CLI.

2. Basic Setup:

   • When the switch boots up, you’ll be prompted with theInitial Configuration Dialog. You can choose to configure the switch manually by skipping this dialog.

3. Configure Hostname, IP Address, and Passwords:

   • Set a hostname:

     Switch(config)# hostname NewSwitchName

   • Configure the management interface (VLAN 1 by default):

     Switch(config)# interface vlan 1Switch(config-if)# ip address 192.168.1.1 255.255.255.0Switch(config-if)# no shutdown

   • Set enable password and user credentials:

     Switch(config)# enable secret yourpasswordSwitch(config)# username admin privilege 15 secret yourpassword

4. Save Configuration:

   • Once the basic setup is complete, save the configuration:

     Switch# write memory

Conclusion

Performing a factory reset on a Cisco C9200L switch can be an essential task for troubleshooting, reconfiguration, or redeployment. Whether using the CLI, ROMMON mode, or web interface, the process is relatively straightforward. However, always back up your configurations and ensure that a factory reset is necessary before proceeding.

By following the steps outlined above, you can successfully reset your Cisco C9200L switch to its factory default settings, ensuring a fresh start for future network configurations.
