Huawei CloudEngine S6730-H series full-featured 10 GE switches are Huawei's new-generation fixed switches ,to provide 10 GE downlink ports as well as 100 GE uplink ports.
Model | S6730-H48X6C |
Part Number | Bundle version: 02353FWL/02353FWL-003/02353FWL-005/02353FWL-006 Without bundle: 02352FSF/02352FSF -003/02352FSF-007/02352FSF-009/02352FSF-011 |
Memory | 4 GB |
Flash memory | 2 GB in total. To view the available flash memory size, run the display version command. |
PoE | Not supported |
Weight with packaging [kg(lb)] | 9.2 (20.28) |
Weight without packaging [kg(lb)] | 5.84 (12.87) |
Dimensions (W x D x H) | 442 mm x 420 mm x 43.6 mm |
Model | ||||
Part Number | 02353FWL | 02353FWL-003 | 02353FWL-005 | 02353FWL-006 |
Maximum input current [A] | The current specifications depend on the pluggable power modules in use. For details, see the related power module specifications. | The current specifications depend on the pluggable power modules in use. For details, see the related power module specifications. | The current specifications are related to the pluggable power module. For details, see Pluggable Power Modules. | The current specifications are related to the pluggable power module. For details, see Pluggable Power Modules.
|
Long-term operating temperature [°C(°F)] | –5°C to +45°C (23°F to 113°F) at an altitude of 0 to 1800 m (0 to 5905.51 ft.) | –5°C to +45°C (23°F to 113°F) at an altitude of 0 to 1800 m (0 to 5905.51 ft.) | –5°C to +45°C (23°F to 113°F) at an altitude of 0 to 1800 m (0 to 5905.51 ft.) | –5°C to +45°C (23°F to 113°F) at an altitude of 0 to 1800 m (0 to 5905.44 ft.) |

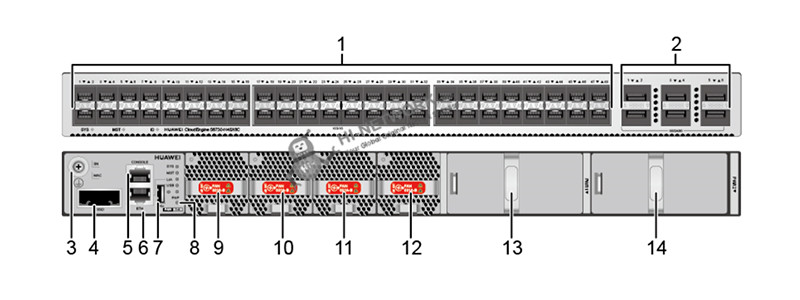

① | Forty-eight 10GE SFP+ ports |
② | Six 40GE/100GE QSFP28 optical ports |
③ | Ground screw |
④ | SSD card slot |
⑤ | One console port |
⑥ | One ETH management port |
⑦ | One USB port |
⑧ | One PNP button |
⑨ | Fan module slot 1 |
⑩ | Fan module slot 2 |
⑪ | Fan module slot 3 |
⑫ | Fan module slot 4 |
⑬ | Power module slot 1 |
⑭ | Power module slot 2 |
Models | Descriptions |
Optical Transceiver,eSFP,GE,Multi-mode Module(850nm,0.55km,LC) | |
Optical Transceiver,eSFP,GE,Single-mode Module(1310nm,10km,LC) | |
Optical Transceiver,eSFP,GE,Single-mode Module(1550nm,100km,LC) | |
Optical Transceiver,eSFP,GE,BIDI Single-mode Module(TX1310/RX1490,10km,LC) | |
Optical Transceiver,eSFP,GE,BIDI Single-mode Module(TX1490/RX1310,10km,LC) | |
Optical Transceiver,eSFP,GE,BIDI Single-mode Module(TX1310/RX1490,40km,LC) | |
Optical Transceiver,eSFP,GE,BIDI Single-mode Module(TX1490/RX1310,40km,LC) | |
SFP-GE-ZBXD1 | Optical Transceiver,eSFP,GE,BIDI Single-mode Module(1570nm(Tx)/1490nm(Rx),80km,LC) |
SFP-GE-ZBXU1 | Optical Transceiver,eSFP,GE,BiDi Single-mode Module(1490nm(Tx)/1570nm(Rx),80km,LC) |
1000Base,BIDI Optical Transceiver,SFP,GE,Single-mode Module(TX1490nm/RX1310nm,10km,SC) | |
CWDM Optical Transceiver,eSFP,2.5G,Single-mode Module(1551nm,80km,LC) | |
CWDM Optical Transceiver,eSFP,2.5G,Single-mode Module(1571nm,80km,LC) | |
CWDM Optical Transceiver,eSFP,2.5G,Single-mode Module(1591nm,80km,LC) | |
DWDM Optical Transceiver,eSFP,2.5G,Single-mode Module(1560.61nm,120km,LC) | |
Electrical Transceiver,SFP,GE,Electrical Interface Module(100m,RJ45) | |
10GBase-USR Optical Transceiver,SFP+,10G,Multi-mode Module(850nm,0.1km,LC) | |
Optical Transceiver,SFP+,10G,Multi-mode Module(850nm,0.3km,LC) | |
Optical Transceiver,SFP+,10G,Single-mode Module(1310nm,1.4km,LC) | |
Optical Transceiver,SFP+,10G,Single-mode Module(1310nm,10km,LC) | |
Optical Transceiver,SFP+,10G,Single-mode Module(1550nm,40km,LC) | |
SFP-10G-ER-1310 | Optical Transceiver,SFP+,10G,Single-mode Module(1310nm,40km,LC) |
10GBase-ZR Optical Transceiver,SFP+,10G,Single-mode Module(1550nm,80km,LC) | |
Optical Transceiver,SFP+,10G,Single-mode Module(CWDM,1551nm,70km,LC) | |
Optical Transceiver,SFP+,10G,Single-mode Module(CWDM,1571nm,70km,LC) | |
Optical Transceiver,SFP+,10G,Single-mode Module(CWDM,1591nm,70km,LC) | |
Optical Transceiver,SFP+,10G,Single-mode Module(CWDM,1611nm,70km,LC) | |
QSFP-40G-SR4 | 40GBase-SR4 Optical Transceiver,QSFP+,40G,Multi-mode (850nm,0.15km,MPO) |
QSFP-40G-iSR4 | 40GBase-iSR4 Optical Transceiver,QSFP+,40G,Multi-mode (850nm,0.15km,MPO)(Connect to four SFP+ Optical Transceiver) |
QSFP-40G-eSR4 | 40GBase-eSR4 Optical Transceiver,QSFP+,40G,Multi-mode (850nm,0.3km,MPO)(Connect to four SFP+ Optical Transceiver) |
Models | ||
Fixed ports | 24 x 10 Gig SFP+, 6 x 40/100 Gig QSFP28 | 48 x 10 Gig SFP+, 6 x 40/100 Gig QSFP28 |
Dimensions (W x D x H) | 442 mm x 420 mm x 43.6 mm | 442 mm x 420 mm x 43.6 mm |
Chassis height(U) | 1U | 1U |
Input voltage | • AC Power - Rated AC voltage: 100V to 240V AC; 50/60 Hz - Max. AC voltage: 90V to 290V AC; 45–65 Hz • DC Power - Rated DC voltage: –48V～–60V - Max. DC voltage：-38.4V DC～-72V DC | • AC Power - Rated AC voltage: 100V to 240V AC; 50/60 Hz - Max. AC voltage: 90V to 290V AC; 45–65 Hz • DC Power - Rated DC voltage: –48V～–60V - Max. DC voltage：-38.4V DC～-72V DC |
Input current | AC 600W：Max 8A DC 1000W：Max 30A | AC 600W：Max 8A DC 1000W：Max 30A |
Maximum power consumption | 231W | 274W |
Minimum power consumption | 97W | 97W |
Huawei CloudEngine S6730-H48X6C Bundle (48*10GE SFP+ ports, 6*40GE/100GE QSFP28 ports, with license, without power module)
Tip: Please add 2pcs of power supplies for switch
Model | S6730-H48X6C |
Part Number | Bundle version: 02353FWL/02353FWL-003/02353FWL-005/02353FWL-006 Without bundle: 02352FSF/02352FSF -003/02352FSF-007/02352FSF-009/02352FSF-011 |
Memory | 4 GB |
Flash memory | 2 GB in total. To view the available flash memory size, run the display version command. |
PoE | Not supported |
Weight with packaging [kg(lb)] | 9.2 (20.28) |
Weight without packaging [kg(lb)] | 5.84 (12.87) |
Dimensions (W x D x H) | 442 mm x 420 mm x 43.6 mm |
Model | |||||
Part Number | 02353FSF | 02353FSF-003 | 02353FSF-007 | 02353FSF-009 | 02353FSF-011 |
Long-term operating temperature [°C(°F)] | -5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.) | -5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.) | –5°C to +45°C (23°F to 113°F) at an altitude of 0 to 1800 m (0 to 5905.51 ft.) | –5°C to +45°C (23°F to 113°F) at an altitude of 0 to 1800 m (0 to 5905.44 ft.) | –5°C to +45°C (23°F to 113°F) at an altitude of 0 to 1800 m (0 to 5905.44 ft.) |
① | Forty-eight 10GE SFP+ ports |
② | Six 40GE/100GE QSFP28 optical ports |
③ | Ground screw |
④ | SSD card slot |
⑤ | One console port |
⑥ | One ETH management port |
⑦ | One USB port |
⑧ | One PNP button |
⑨ | Fan module slot 1 |
⑩ | Fan module slot 2 |
⑪ | Fan module slot 3 |
⑫ | Fan module slot 4 |
⑬ | Power module slot 1 |
⑭ | Power module slot 2 |
Models | Descriptions |
Optical Transceiver,eSFP,GE,Multi-mode Module(850nm,0.55km,LC) | |
Optical Transceiver,eSFP,GE,Single-mode Module(1310nm,10km,LC) | |
Optical Transceiver,eSFP,GE,Single-mode Module(1550nm,100km,LC) | |
Optical Transceiver,eSFP,GE,BIDI Single-mode Module(TX1310/RX1490,10km,LC) | |
Optical Transceiver,eSFP,GE,BIDI Single-mode Module(TX1490/RX1310,10km,LC) | |
Optical Transceiver,eSFP,GE,BIDI Single-mode Module(TX1310/RX1490,40km,LC) | |
Optical Transceiver,eSFP,GE,BIDI Single-mode Module(TX1490/RX1310,40km,LC) | |
SFP-GE-ZBXD1 | Optical Transceiver,eSFP,GE,BIDI Single-mode Module(1570nm(Tx)/1490nm(Rx),80km,LC) |
SFP-GE-ZBXU1 | Optical Transceiver,eSFP,GE,BiDi Single-mode Module(1490nm(Tx)/1570nm(Rx),80km,LC) |
1000Base,BIDI Optical Transceiver,SFP,GE,Single-mode Module(TX1490nm/RX1310nm,10km,SC) | |
CWDM Optical Transceiver,eSFP,2.5G,Single-mode Module(1551nm,80km,LC) | |
CWDM Optical Transceiver,eSFP,2.5G,Single-mode Module(1571nm,80km,LC) | |
CWDM Optical Transceiver,eSFP,2.5G,Single-mode Module(1591nm,80km,LC) | |
DWDM Optical Transceiver,eSFP,2.5G,Single-mode Module(1560.61nm,120km,LC) | |
Electrical Transceiver,SFP,GE,Electrical Interface Module(100m,RJ45) | |
10GBase-USR Optical Transceiver,SFP+,10G,Multi-mode Module(850nm,0.1km,LC) | |
Optical Transceiver,SFP+,10G,Multi-mode Module(850nm,0.3km,LC) | |
Optical Transceiver,SFP+,10G,Single-mode Module(1310nm,1.4km,LC) | |
Optical Transceiver,SFP+,10G,Single-mode Module(1310nm,10km,LC) | |
Optical Transceiver,SFP+,10G,Single-mode Module(1550nm,40km,LC) | |
SFP-10G-ER-1310 | Optical Transceiver,SFP+,10G,Single-mode Module(1310nm,40km,LC) |
10GBase-ZR Optical Transceiver,SFP+,10G,Single-mode Module(1550nm,80km,LC) | |
Optical Transceiver,SFP+,10G,Single-mode Module(CWDM,1551nm,70km,LC) | |
Optical Transceiver,SFP+,10G,Single-mode Module(CWDM,1571nm,70km,LC) | |
Optical Transceiver,SFP+,10G,Single-mode Module(CWDM,1591nm,70km,LC) | |
Optical Transceiver,SFP+,10G,Single-mode Module(CWDM,1611nm,70km,LC) | |
QSFP-40G-SR4 | 40GBase-SR4 Optical Transceiver,QSFP+,40G,Multi-mode (850nm,0.15km,MPO) |
QSFP-40G-iSR4 | 40GBase-iSR4 Optical Transceiver,QSFP+,40G,Multi-mode (850nm,0.15km,MPO)(Connect to four SFP+ Optical Transceiver) |
QSFP-40G-eSR4 | 40GBase-eSR4 Optical Transceiver,QSFP+,40G,Multi-mode (850nm,0.3km,MPO)(Connect to four SFP+ Optical Transceiver) |
Models | ||
Fixed ports | 24 x 10 Gig SFP+, 6 x 40/100 Gig QSFP28 | 48 x 10 Gig SFP+, 6 x 40/100 Gig QSFP28 |
Dimensions (W x D x H) | 442 mm x 420 mm x 43.6 mm | 442 mm x 420 mm x 43.6 mm |
Chassis height(U) | 1U | 1U |
Input voltage | • AC Power - Rated AC voltage: 100V to 240V AC; 50/60 Hz - Max. AC voltage: 90V to 290V AC; 45–65 Hz • DC Power - Rated DC voltage: –48V～–60V - Max. DC voltage：-38.4V DC～-72V DC | • AC Power - Rated AC voltage: 100V to 240V AC; 50/60 Hz - Max. AC voltage: 90V to 290V AC; 45–65 Hz • DC Power - Rated DC voltage: –48V～–60V - Max. DC voltage：-38.4V DC～-72V DC |
Input current | AC 600W：Max 8A DC 1000W：Max 30A | AC 600W：Max 8A DC 1000W：Max 30A |
Maximum power consumption | 231W | 274W |
Minimum power consumption | 97W | 97W |
