CloudEngine S6730-S series full-featured 10 GE switches are Huawei's new generation fixed switches ,to provide 10 GE downlink ports as well as 40 GE uplink ports.
CloudEngine S6730-S can be used to provide high-speed access for 10 Gbit/s access to high-density servers or function as a core/aggregation switch on a campus network to provide 40 Gbit/s rate. In addition, CloudEngine S6730-S provides a wide variety of services, comprehensive security policies, and various QoS features to help customers build scalable, manageable,reliable, and secure campus and data center networks.
For more datasheets, please go to the Download tab on each product details page, or search in the Datasheet Download Center.
Model | S6730-S24X6Q |
Part Number | 02353AJW/02353AJW-001/02353AJW-003/02353AJW-004 |
Memory | 4 GB |
Flash memory | 2 GB in total. To view the available flash memory size, run the display version command. |
PoE | Not supported |
Weight with packaging [kg(lb)] | 8.9 |
Weight without packaging [kg(lb)] | 5.62 (12.39) |
Dimensions (W x D x H) | 442 mm x 420 mm x 43.6 mm |
Model | ||||
Part Number | 02353AJW | 02353AJW-001 | 02353AJW-003 | 02353AJW-004 |
Remarks | / | Some models cannot be downgraded due to component upgrade. Therefore, you are advised to run the display system-software information command (supported in V200R021C00 and later versions) to check the software versions supported by the device before performing a downgrade. | / | / |
Heat dissipation mode | Heat dissipation with fan, intelligent fan speed adjustment | Heat dissipation with fan, intelligent fan speed adjustment | Air cooling for heat dissipation, intelligent fan speed adjustment | Air cooling for heat dissipation, intelligent fan speed adjustment |
Input voltage range [V] | - AC input: 90–290 V AC; 45–65 Hz - High-voltage DC input: 190 V DC to 290 V DC - DC input: -38.4 V DC to -72 V DC | - AC input: 90–290 V AC; 45–65 Hz - High-voltage DC input: 190 V DC to 290 V DC - DC input: -38.4 V DC to -72 V DC | - AC input: 90–290 V AC; 45–65 Hz - High-voltage DC input: 190 V DC to 290 V DC - DC input: -38.4 V DC to -72 V DC | - AC input: 90 V AC to 290 V AC; 45–65 Hz - High-voltage DC input: 190 V DC to 290 V DC - DC input: -38.4 V DC to -72 V DC |
Maximum input current [A] | The current specifications depend on the pluggable power modules in use. For details, see the related power module specifications. | The current specifications depend on the pluggable power modules in use. For details, see the related power module specifications. | The current specifications depend on the pluggable power modules in use. For details, see the related power module specifications. | The current specifications are related to the pluggable power module. For details, see Pluggable Power Modules. |
Long-term operating temperature [°C(°F)] | -5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.) | -5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.) | –5°C to +45°C (23°F to 113°F) at an altitude of 0 to 1800 m (0 to 5905.51 ft.) | –5°C to +45°C (23°F to 113°F) at an altitude of 0 to 1800 m (0 to 5905.44 ft.) |
Long-term operating relative humidity [RH] | 5% to 95%, noncondensing | 5% to 95%, noncondensing | 5% RH to 95% RH (non-condensing) | 5% RH to 95% RH (non-condensing) |

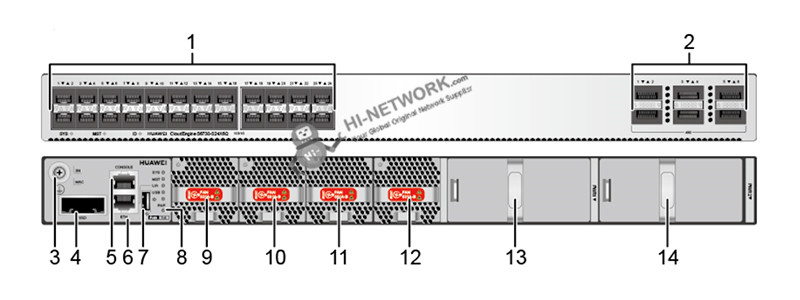

① | Twenty-four 10GE SFP+ ports Applicable modules and cables: · GE optical module · GE-CWDM optical module · GE-DWDM optical module · GE copper module · 10GE SFP+ optical module (OSXD22N00 not supported) · 10GE-CWDM optical module · 10GE-DWDM optical module · 1 m, 3 m, 5 m, and 10 m SFP+ high-speed copper cables · 3 m and 10 m SFP+ AOC cables 0.5 m and 1.5 m SFP+ dedicated stack cables (supported by the last 16 SFP+ ports and used only for zero-configuration stacking) |
② | Six 40GE QSFP+ optical ports Applicable modules and cables: · QSFP+ optical module · 1 m, 3 m, and 5 m QSFP+ to QSFP+ high-speed copper cables · 10 m QSFP+ to QSFP+ AOC cable 2 m QSFP28 dedicated stack cable (supported in V200R020C10 and later versions) |
③ | Ground screw |
④ | SSD card slot |
⑤ | One console port |
⑥ | One ETH management port |
⑦ | One USB port |
⑧ | One PNP button |
⑨ | Fan module slot 1 |
⑩ | Fan module slot 2 |
⑪ | Fan module slot 3 |
⑫ | Fan module slot 4 |
⑬ | Power module slot 1 |
⑭ | Power module slot 2 |
Models | Descriptions |
Optical Transceiver,eSFP,GE,Multi-mode Module(850nm,0.55km,LC) | |
Optical Transceiver,eSFP,GE,Single-mode Module(1310nm,10km,LC) | |
Optical Transceiver,eSFP,GE,Single-mode Module(1310nm,40km,LC) | |
Optical Transceiver,eSFP,GE,Single-mode Module(1550nm,40km,LC) | |
Optical Transceiver,eSFP,GE,Single-mode Module(1550nm,80km,LC) | |
Optical Transceiver,eSFP,GE,Single-mode Module(1550nm,100km,LC) | |
Optical Transceiver,eSFP,GE,BIDI Single-mode Module(TX1310/RX1490,10km,LC) | |
Optical Transceiver,eSFP,GE,BIDI Single-mode Module(TX1490/RX1310,10km,LC) | |
Optical Transceiver,eSFP,GE,BIDI Single-mode Module(TX1310/RX1490,40km,LC) | |
Optical Transceiver,eSFP,GE,BIDI Single-mode Module(TX1490/RX1310,40km,LC) | |
SFP-GE-ZBXD1 | Optical Transceiver,eSFP,GE,BIDI Single-mode Module(1570nm(Tx)/1490nm(Rx),80km,LC) |
SFP-GE-ZBXU1 | Optical Transceiver,eSFP,GE,BiDi Single-mode Module(1490nm(Tx)/1570nm(Rx),80km,LC) |
1000Base,BIDI Optical Transceiver,SFP,GE,Single-mode Module(TX1490nm/RX1310nm,10km,SC) | |
CWDM Optical Transceiver,eSFP,2.5G,Single-mode Module(1471nm,80km,LC) | |
CWDM Optical Transceiver,eSFP,2.5G,Single-mode Module(1491nm,80km,LC) | |
CWDM Optical Transceiver,eSFP,2.5G,Single-mode Module(1511nm,80km,LC) | |
CWDM Optical Transceiver,eSFP,2.5G,Single-mode Module(1531nm,80km,LC) | |
CWDM Optical Transceiver,eSFP,2.5G,Single-mode Module(1551nm,80km,LC) | |
CWDM Optical Transceiver,eSFP,2.5G,Single-mode Module(1571nm,80km,LC) | |
CWDM Optical Transceiver,eSFP,2.5G,Single-mode Module(1591nm,80km,LC) | |
CWDM Optical Transceiver,eSFP,2.5G,Single-mode Module(1611nm,80km,LC) | |
DWDM Optical Transceiver,eSFP,2.5G,Single-mode Module(1560.61nm,120km,LC) | |
Electrical Transceiver,SFP,GE,Electrical Interface Module(100m,RJ45) | |
10GBase-USR Optical Transceiver,SFP+,10G,Multi-mode Module(850nm,0.1km,LC) | |
Optical Transceiver,SFP+,10G,Multi-mode Module(850nm,0.3km,LC) | |
Optical Transceiver,SFP+,10G,Single-mode Module(1310nm,1.4km,LC) | |
Optical Transceiver,SFP+,10G,Single-mode Module(1310nm,10km,LC) | |
Optical Transceiver,SFP+,10G,Single-mode Module(1550nm,40km,LC) | |
SFP-10G-ER-1310 | Optical Transceiver,SFP+,10G,Single-mode Module(1310nm,40km,LC) |
10GBase-ZR Optical Transceiver,SFP+,10G,Single-mode Module(1550nm,80km,LC) | |
10GBase,BIDI Optical Transceiver,SFP+,10G,Single-mode Module(TX1270nm/RX1330nm,10km,LC) | |
10GBase,BIDI Optical Transceiver,SFP+,10G,Single-mode Module(TX1330nm/RX1270nm,10km,LC) | |
SFP-10G-ER-SM1330-BIDI | Optical Transceiver,SFP+,10G,BIDI Single-mode Module(TX 1330nm/RX 1270nm,40km,LC) |
SFP-10G-ER-SM1270-BIDI | Optical Transceiver,SFP+,10G,BIDI Single-mode Module(TX 1270nm/RX 1330nm,40km,LC) |
Optical Transceiver,SFP+,10G,Single-mode Module(CWDM,1471nm,70km,LC) | |
Optical Transceiver,SFP+,10G,Single-mode Module(CWDM,1491nm,70km,LC) | |
Optical Transceiver,SFP+,10G,Single-mode Module(CWDM,1511nm,70km,LC) | |
Optical Transceiver,SFP+,10G,Single-mode Module(CWDM,1531nm,70km,LC) | |
Optical Transceiver,SFP+,10G,Single-mode Module(CWDM,1551nm,70km,LC) | |
Optical Transceiver,SFP+,10G,Single-mode Module(CWDM,1571nm,70km,LC) | |
Optical Transceiver,SFP+,10G,Single-mode Module(CWDM,1591nm,70km,LC) | |
Optical Transceiver,SFP+,10G,Single-mode Module(CWDM,1611nm,70km,LC) | |
QSFP-40G-SR4 | 40GBase-SR4 Optical Transceiver,QSFP+,40G,Multi-mode (850nm,0.15km,MPO) |
QSFP-40G-iSR4 | 40GBase-iSR4 Optical Transceiver,QSFP+,40G,Multi-mode (850nm,0.15km,MPO)(Connect to four SFP+ Optical Transceiver) |
QSFP-40G-eSR4 | 40GBase-eSR4 Optical Transceiver,QSFP+,40G,Multi-mode (850nm,0.3km,MPO)(Connect to four SFP+ Optical Transceiver) |
QSFP-40G-iSM4 | 40GBase-iSM4 Optical Transceiver,QSFP+,40G,Single-mode Module (1310nm,1.4km,MPO)(Connect to four SFP+ Optical Transceiver) |
QSFP-40G-eSM4 | 40GBase-eSM4 Optical Transceiver,QSFP+,40G,Single-mode Module (1310nm,10km,MPO)(Connect to four SFP+ Optical Transceiver) |
Models | S6720-30C-EI-24S-AC | |
Switching Capacity | 2.56 Tbit/s | 960Gbps/2.4Tbps |
Forwarding Performance | 720 Mpps | 480 Mpps |
Fixed Ports | 24 x 10 GE SFP+, 2 x 40 GE QSFP+ ports | 24 x 10 Gig SFP+, 6 x 40 Gig QSFP+ |
Power Supply | AC Power Supply | AC/DC Power Supply |
Dimensions (W x D x H) | 442 mm x 420 mm x 44.4 mm | 442 mm x 420 mm x 43.6 mm |
Input Voltage | AC:Rated voltage range: 100V to 240V, 50 Hz/60 Hz Maximum voltage range: 90V to 264V, 50 Hz/60 Hz | AC Power • Rated AC voltage: 100V to 240V AC; 50/60 Hz • Max. AC voltage: 90V to 290V AC; 45–65 Hz DC Power • Rated DC voltage: –48V～–60V • Max. DC voltage：-38.4V DC～-72V DC |
