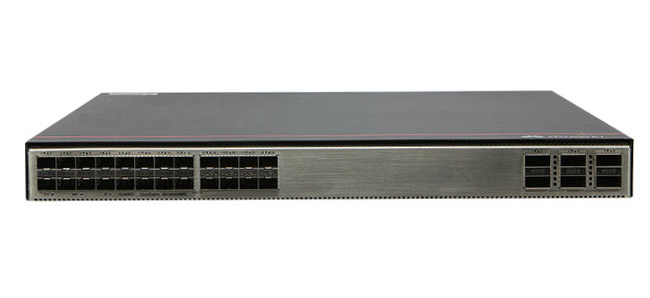

The Huawei S6730-H24X6C is a next-generation, high-performance switch designed to meet the demands of modern networking environments. Combining high-speed connectivity, scalability, energy efficiency, and advanced management capabilities, this switch stands as an ideal solution for data centers, enterprise networks, and campus environments. This guide explores the features, technical specifications, applications, and advantages of the Huawei S6730-H24X6C, providing a complete overview of why this product is a standout in its category.

Key Features of Huawei S6730-H24X6C

The Huawei S6730-H24X6C offers a suite of advanced features that make it a robust networking solution:

 ▪ High-Density 10 GE Access: 24 full line-rate 10 GE SFP+ ports provide exceptional speed and efficiency, supporting fast data transmission and server connectivity.

 ▪ High-Speed Uplinks: 6 QSFP28 uplink ports capable of handling 40 GE and 100 GE connections ensure seamless aggregation and core network integration.

 ▪ Comprehensive Wireless Management: Acts as a native Access Controller (AC) to manage up to 1,024 Access Points (APs), providing unified wired and wireless policy management.

 ▪ Advanced Cooling System: Pluggable fan modules with front-to-back airflow design improve heat dissipation, enhancing system stability and lifespan.

 ▪ Energy Efficiency: Designed to reduce power consumption, contributing to lower operating costs and environmental sustainability.

 ▪ Enhanced Security: Supports advanced security protocols, including encrypted data transmission, device authentication, and network protection mechanisms.

Detailed Technical Specifications

The Huawei S6730-H24X6C delivers impressive technical specifications that underline its performance capabilities:

 Fixed Ports:  24 x 10 GE SFP+ ports, 6 x 40/100 GE QSFP28 ports

 Switching Capacity:  1.68/2.4 Tbit/s

 Forwarding Performance:  420 Mpps

 Dimensions (W x D x H):  442 mm x 420 mm x 43.6 mm

 Chassis Height:  1U

 Input Voltage:

 - AC Power: 100V to 240V AC, 50/60 Hz

 - DC Power: –48V to –60V

 Maximum Power Consumption:  231W

 Minimum Power Consumption:  97W

 Operating Temperature:  0°C to 45°C

 Reliability: Redundant power supply options for high availability

Advanced Networking Features

The Huawei S6730-H24X6C excels in delivering advanced networking features, which enhance its functionality and usability in diverse scenarios:

 ▪ Virtualization Capabilities: Supports Virtual Extensible LAN (VXLAN) and Ethernet VPN (EVPN) technologies, enabling the creation of flexible and scalable Layer 2 and Layer 3 networks.

 ▪ Quality of Service (QoS): Implements advanced QoS policies, ensuring optimized traffic management and consistent performance for critical applications.

 ▪ Automation and Orchestration: Compatible with network automation tools for simplified deployment, monitoring, and configuration.

 ▪ Cloud Readiness: Designed to integrate seamlessly with private, hybrid, and public cloud environments.

Applications of Huawei S6730-H24X6C

The Huawei S6730-H24X6C is versatile and suited for a range of applications across different industries:

 ▪ Data Center Access: Provides high-speed server connectivity, reducing latency and improving overall data center performance.

 ▪ Campus Network Core: Functions as a core switch for campus networks, efficiently aggregating and distributing data across multiple endpoints.

 ▪ Wireless Network Integration: Acts as a central controller for wireless APs, simplifying the management of wired and wireless networks under a unified platform.

 ▪ Enterprise Network Scalability: Ideal for high-density environments such as corporate headquarters, research facilities, and multimedia production studios.

 ▪ Retail and Hospitality: Enhances operations in retail stores and hotels by supporting IoT devices and high-speed internet services.

Advantages of Huawei S6730-H24X6C

The Huawei S6730-H24X6C offers significant advantages that make it an attractive option for network operators:

 ▪ High Performance: Delivers line-rate switching with zero packet loss, even under heavy traffic loads.

 ▪ Future-Proof Technology: Supports next-generation networking standards, ensuring compatibility with evolving technologies.

 ▪ Scalable Architecture: Provides a flexible design that supports network growth and higher bandwidth requirements.

 ▪ Comprehensive Security: Implements a wide range of security features to safeguard networks from internal and external threats.

 ▪ Energy Efficiency: Combines advanced hardware design with intelligent power management, reducing operational costs.

 ▪ User-Friendly Management: Compatible with Huawei’s cloud-based management systems, simplifying network monitoring and control.

Comparison with Similar Switches

When compared to other switches in its category, the Huawei S6730-H24X6C demonstrates superior performance and feature integration:

 ▪ Higher Port Density: Offers 24 10 GE SFP+ ports, outpacing many competitors in terms of access port availability.

 ▪ Integrated Wireless Management: Supports up to 1,024 APs, providing unified management for wired and wireless networks—a feature not commonly found in similar models.

 ▪ Enhanced Cooling Design: Incorporates advanced cooling mechanisms to maintain optimal operating temperatures, even in high-density environments.

Deployment Scenarios

The Huawei S6730-H24X6C is designed for a variety of deployment scenarios:

 ▪ Hybrid Work Environments: Supports seamless connectivity for remote and on-site employees, ensuring high-speed access to enterprise resources.

 ▪ High-Density Campus Networks: Functions as a core switch, offering reliable data aggregation for universities and large institutions.

 ▪ Industrial Applications: Enables robust networking solutions for manufacturing facilities and energy sectors requiring real-time data processing.

Energy Efficiency and Sustainability

Energy efficiency is a critical aspect of the Huawei S6730-H24X6C. The switch is engineered to consume minimal power without sacrificing performance:

 ▪ Dynamic Power Adjustment: Intelligent power management adjusts energy consumption based on network traffic, reducing unnecessary waste.

 ▪ Low Power Components: Utilizes low-power hardware components to achieve greater energy savings.

 ▪ Compliance with Green Standards: Meets global energy efficiency certifications, reinforcing Huawei’s commitment to sustainability.

Why Choose Huawei S6730-H24X6C?

Organizations choose the Huawei S6730-H24X6C for its unique combination of performance, reliability, and feature set:

 ▪ Proven Reliability: Huawei’s reputation for delivering high-quality networking solutions ensures the switch operates consistently under demanding conditions.

 ▪ Cost-Effective Investment: Provides high-end features at a competitive price point, maximizing return on investment.

 ▪ Extensive Support Network: Backed by Huawei’s global customer support and comprehensive documentation for seamless deployment and maintenance.

Conclusion

The Huawei S6730-H24X6C is a powerful, feature-rich switch designed to address the growing demands of modern networks. Its high-density 10 GE ports, advanced security measures, energy efficiency, and scalability make it an ideal choice for data centers, enterprise networks, and campus environments. By integrating advanced wireless management capabilities and supporting future-ready technologies, the Huawei S6730-H24X6C ensures seamless connectivity, enhanced performance, and long-term value for organizations looking to optimize their network infrastructure.
