The Cisco Catalyst 9200L Series Switches are a powerful and cost-effective solution for enterprise-level networking needs, offering secure and scalable connectivity for businesses of all sizes. One of the most notable features of the Cisco Catalyst 9200L series is its stackability, which is facilitated by the Cisco C9200L stack kit. The ability to stack multiple switches into a single logical unit enhances network performance, simplifies management, and ensures reliability. This article will explore the Cisco C9200L stack kit in detail, its components, benefits, and installation process, as well as provide answers to frequently asked questions (FAQs) on the topic.

1. What is the Cisco C9200L Stack Kit?

The Cisco C9200L stack kit is an accessory designed specifically for the Cisco Catalyst 9200L series switches, allowing multiple switches to be interconnected and operated as a single unit. By stacking switches, network administrators can manage several devices as one, reducing complexity and streamlining maintenance.

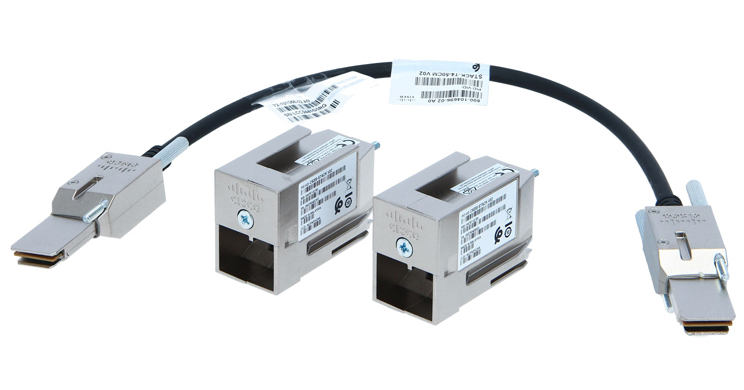

The stack kit typically includes the following components:

• StackWise-160 Module: A dedicated stacking module that is inserted into the back of the 9200L switch.

• Stacking Cables: High-speed cables used to connect multiple switches within the stack.

• Stacking Power Cables (Optional): These are used in some configurations to provide redundant power between switches in the stack.

The Cisco C9200L switches can stack up to eight switches using the StackWise-160 technology, allowing them to act as a unified system with a shared control plane and data plane.

2. Key Features of the Cisco Catalyst 9200L Series Switches

Before diving deeper into the stacking functionality, it’s important to understand the features of the Cisco Catalyst 9200L series switches:

• Enterprise-grade Security: These switches support advanced security protocols, including Cisco TrustSec, encrypted traffic analytics, and secure network segmentation.

• Scalability: The stacking capability allows for the expansion of the network as business needs grow, without the complexity of adding new individual switches.

• High Availability: Features such as redundant power supplies and StackWise technology ensure the network remains available with minimal downtime.

• Ease of Management: With Cisco DNA Center, IT administrators can manage, configure, and monitor network operations from a centralized dashboard, making the 9200L series easy to control.

3. How Stacking Enhances Network Efficiency

Stacking switches offers several benefits to a network, particularly in terms of efficiency and manageability. Some of the core advantages include:

• Simplified Management: When switches are stacked, they can be managed as a single device. This reduces the administrative overhead of configuring and maintaining each switch individually.

• Increased Port Density: By stacking switches, you can increase the number of available ports without needing additional management complexity. This is especially useful for businesses that need to scale rapidly.

• Improved Resilience: In the event of a switch failure, the remaining switches in the stack continue to operate, minimizing downtime and preventing disruption to network services.

• Optimized Performance: Cisco's StackWise-160 technology offers up to 160 Gbps of stacking bandwidth, ensuring fast and reliable interconnectivity between switches in the stack.

4. Components of the Cisco C9200L Stack Kit

As mentioned earlier, the Cisco C9200L stack kit includes several key components. Let's break down each component and its role in creating a stacked network configuration:

• StackWise-160 Module: This is the heart of the stacking system, enabling switches to interconnect and operate as a single logical unit. Each 9200L switch needs a StackWise-160 module installed for stacking to be possible. The module slots into the back of the switch.

• Stacking Cables: These are high-performance cables used to connect one switch to another within the stack. The cables come in different lengths depending on how the switches are arranged in the rack or cabinet. The stacking cables are designed to ensure seamless communication between switches with minimal latency.

• Power Stacking Cables (Optional): In addition to stacking data, some network administrators choose to use power stacking cables. These allow power to be shared between switches, providing redundancy and ensuring that in the event of a power supply failure, other switches can still provide power to keep the system running.

5. Cisco StackWise-160 Technology

StackWise-160 is a Cisco proprietary technology that is designed to facilitate high-speed stacking of switches, specifically for the Catalyst 9200L series. It supports stacking bandwidth of up to 160 Gbps, which ensures that data moves quickly and efficiently between stacked switches.

• Stacking Bandwidth: With 160 Gbps of bandwidth available, even large-scale data transfers and high-traffic environments can be handled without bottlenecks.

• Resilient Architecture: The StackWise-160 technology creates a loop-free architecture by using a ring topology, ensuring that even if one cable fails, data can still flow in the opposite direction, maintaining network uptime.

6. Installing and Configuring the Cisco C9200L Stack Kit

Setting up a stacked switch environment with the Cisco C9200L stack kit is a straightforward process, but it must be done with care to ensure optimal performance. Below is a step-by-step guide to installing the Cisco C9200L stack kit:

Step 1: Prepare the Switches

Ensure all switches are powered off before installation. Position them in the rack or cabinet according to your stacking layout, keeping in mind the length of the stacking cables and how you want the switches arranged.

Step 2: Install the StackWise-160 Modules

Insert a StackWise-160 module into the back of each Cisco Catalyst 9200L switch that you want to stack. These modules slot directly into dedicated ports on the switches.

Step 3: Connect the Stacking Cables

Using the stacking cables, connect the StackWise-160 modules between the switches. Typically, you would connect switch 1 to switch 2, switch 2 to switch 3, and so on, eventually forming a ring by connecting the last switch back to the first.

Step 4: Power On the Switches

Power on each switch one at a time. The switches will automatically recognize the stacking configuration and form a unified stack.

Step 5: Assign a Master Switch

In a stacked environment, one switch is designated as the master, which handles the management of the entire stack. The master switch can be selected manually or assigned automatically by the system.

Step 6: Verify the Stack Configuration

Once all switches are powered on and connected, use the command-line interface (CLI) or Cisco DNA Center to verify the stack configuration. You can check the status of the stack, the master switch, and the redundancy setup.

7. Managing a Stacked Cisco C9200L Network

Once the stack is set up, managing it is much easier than handling individual switches. All switches in the stack share a common IP address, which can be used for management purposes. The master switch oversees all configuration tasks, including VLAN setup, security policies, and software updates.

By using Cisco DNA Center, network administrators can gain insights into network traffic, apply configuration changes across the entire stack, and automate many routine tasks. This centralized management capability is one of the greatest advantages of using stacked switches in an enterprise network.

8. Troubleshooting Common Stacking Issues

While the Cisco C9200L stack kit is designed to simplify network management, occasional issues can arise, particularly if the stack is not properly configured. Here are a few common issues and how to troubleshoot them:

• Switches Not Detecting Each Other: Ensure that the StackWise-160 modules are properly seated in the switches and that the stacking cables are securely connected. Also, verify that all switches are running compatible software versions.

• Master Switch Failover: If the master switch fails, the stack automatically elects a new master. In some cases, the failover process may not occur smoothly. To avoid this, ensure that redundant power supplies are in place and that the stack is properly configured for high availability.

• Stacking Cable Failure: If a stacking cable fails, the StackWise-160 technology ensures that the stack remains operational by rerouting traffic through the remaining cables. However, it's crucial to replace failed cables promptly to maintain full redundancy.

9. FAQs

Q1. What is the maximum number of Cisco Catalyst 9200L switches that can be stacked?

You can stack up to eight Cisco Catalyst 9200L switches using the StackWise-160 technology.

Q2. Can different Cisco switch models be stacked together?

No, only Cisco Catalyst 9200L series switches can be stacked with each other. You cannot mix different models within the same stack.

Q3. How do I know which switch is the master in a stack?

You can identify the master switch using the Cisco CLI or DNA Center. The master switch is responsible for managing the entire stack.

Q4. What happens if the master switch fails?

If the master switch fails, another switch in the stack is automatically elected to take over as the new master.

Q5. Can power be shared between stacked switches?

Yes, using power stacking cables, power can be shared between switches, providing redundancy in case of a power supply failure.

Q6. Do I need to reboot the switches to add a new one to the stack?

Yes, when adding a new switch to the stack, it’s recommended to power down the stack, connect the new switch, and then power everything back on.

Conclusion

The Cisco C9200L stack kit plays a crucial role in enhancing the functionality and scalability of Cisco Catalyst 9200L Series switches. By enabling network administrators to stack multiple switches, businesses can enjoy simplified management, increased resilience, and improved performance. Whether you're expanding a small office network or managing a large enterprise, the Cisco C9200L stack kit offers the flexibility and reliability needed to meet modern networking demands.
