Introduction

The Cisco C1300-24T-4X, part of the Cisco Catalyst 1300 Series, is a versatile and robust network switch designed to provide high performance, security, and scalability for enterprise networks. As businesses continue to grow and expand their network infrastructure, the demand for reliable, secure, and efficient switches like the Cisco C1300-24T-4X has become increasingly important. This article delves into the various features, benefits, and use cases of the Cisco C1300-24T-4X, highlighting its value in modern networking environments.

1. Overview of Cisco Catalyst 1300 Series Switches

TheCisco Catalyst 1300 Seriesis a family of switches known for their flexibility, power, and advanced security features. These switches are designed to support a wide range of deployment options, from small to large enterprises. The series includes multiple models, with the Cisco C1300-24T-4X being one of the most popular due to its balance of features, performance, and cost-effectiveness.

Key Features of the Cisco Catalyst 1300 Series

• High Performance: Supports high throughput and low latency for demanding applications.

• Scalability: Offers flexible port configurations and stacking capabilities.

• Advanced Security: Provides robust security features, including secure boot, MACsec encryption, and TrustSec.

• Energy Efficiency: Equipped with Energy Efficient Ethernet (EEE) and advanced power management capabilities.

• Easy Management: Supports Cisco DNA Center for centralized network management and automation.

2. Cisco C1300-24T-4X: Specifications and Features

The  Cisco C1300-24T-4X model is specifically designed to provide high-density connectivity with 24 Gigabit Ethernet ports and 4 10-Gigabit Ethernet SFP+ ports. Here is a breakdown of its key specifications:

Technical Specifications

• Ports: 24 x 10/100/1000 Ethernet ports, 4 x 10-Gigabit SFP+ uplink ports.

• Performance: Up to 176 Gbps switching capacity and up to 130.95 Mpps forwarding rate.

• Stacking: Supports stacking of up to 8 switches with a bandwidth of 320 Gbps.

• PoE/PoE+ Support: Power over Ethernet (PoE) and PoE+ support for powering IP devices like phones, cameras, and access points.

• Redundant Power Supply: Dual redundant power supplies for high availability.

• Layer 3 Capabilities: Supports advanced Layer 3 routing protocols such as OSPF, EIGRP, BGP, and VRF-Lite.

Notable Features

1. Flexibility and Scalability: The switch’s 24-port Gigabit Ethernet configuration, combined with four 10-Gigabit uplink ports, provides ample flexibility for various network topologies, allowing for both current and future growth.

2. Enhanced Security: The Cisco C1300-24T-4X includes comprehensive security features like802.1Xauthentication,ACLs (Access Control Lists), andCisco TrustSec, which help protect the network against unauthorized access and attacks.

3. Energy Efficiency: With support forIEEE 802.3az Energy Efficient Ethernet (EEE), the switch reduces power consumption during periods of low network activity, which is ideal for energy-conscious organizations.

4. High Availability: Features likeStackWise Virtual,redundant power supplies, andhot-swappable componentsensure minimal downtime and increased network reliability.

3. Benefits of Using Cisco C1300-24T-4X in Enterprise Networks

A. Enhanced Network Performance

TheCisco C1300-24T-4Xoffers high-performance switching capabilities that are ideal for bandwidth-intensive applications such as video conferencing, large data transfers, and virtualized environments. The 10-Gigabit uplink ports ensure that the switch can handle high levels of traffic without bottlenecks, making it suitable for data centers and large enterprise networks.

B. Robust Security Features

Security is a critical concern in today’s networking environments, and the Cisco C1300-24T-4X does not disappoint. With features like  802.1X port security,DHCP snooping, and  Dynamic ARP Inspection (DAI), the switch helps prevent unauthorized access and potential attacks. Additionally,Cisco TrustSec simplifies the implementation of secure access policies across the network.

C. Simplified Network Management

Managing a large network can be complex, but the   Cisco Catalyst 1300 Series   simplifies this with  Cisco DNA Center integration. This allows for centralized management, automation, and analytics, making it easier for IT teams to deploy, configure, and monitor the network. The intuitive dashboard and real-time monitoring features provide deep visibility into network performance and health.

D. Cost-Effective Solution

The Cisco C1300-24T-4X offers a cost-effective solution for enterprises looking to expand their network capabilities without a substantial increase in expenditure. With its combination of advanced features, robust security, and high performance, theCisco C1300-24T-4Xswitch is not only a cost-effective solution but also a versatile tool that can be tailored to a wide range of network environments and use cases. Let's explore some of the specific scenarios where this switch excels and provides significant value.

4. Use Cases for Cisco C1300-24T-4X

A. Medium to Large Enterprise Networks

In medium to large enterprises, network demands are often high, with multiple departments requiring seamless connectivity and high data transfer rates. TheCisco C1300-24T-4Xis ideal in this environment due to its high port density, which allows for the connection of numerous devices, such as computers, printers, servers, and IP phones. The switch's ability to stack multiple units into a single logical switch enables scalability, allowing enterprises to expand their network infrastructure without significant overhauls or additional complexity.

B. Data Centers

Data centers require switches that can handle significant data loads while maintaining low latency and high availability. TheC1300-24T-4Xis well-suited for this purpose due to its high-performance 10-Gigabit uplink ports, which provide the bandwidth necessary to support large-scale data operations and high-speed interconnections between servers and storage systems. The advanced Layer 3 routing capabilities ensure optimal traffic management and minimize congestion, which is crucial in a data center environment.

C. Educational Institutions

Educational institutions, such as universities and large schools, often need to manage extensive networks that support both administrative and educational needs. The  Cisco C1300-24T-4X  can provide robust connectivity solutions for such institutions, supporting a range of devices and services like digital learning platforms, smart classrooms, and research labs. Additionally, the security features, including  802.1X authentication  and access control lists (ACLs), help protect sensitive student and staff data while providing guest access for visitors.

D. Retail Chains and Branch Networks

For retail chains and branch networks, maintaining consistent and reliable network performance across multiple locations is critical. TheCisco C1300-24T-4XsupportsVirtual Local Area Networks (VLANs), enabling segmenting the network into different sections for better management and security. This is particularly useful for separating point-of-sale systems from general internet usage, which can reduce the risk of security breaches and ensure smooth operations in each retail location.

5. Configuration and Management of Cisco C1300-24T-4X

A. Initial Setup and Configuration

Setting up theCisco C1300-24T-4Xis straightforward, thanks to its user-friendly interface and comprehensive documentation provided by Cisco. The switch can be configured through various methods, including:

• Command Line Interface (CLI): For advanced users familiar with Cisco’s command syntax, the CLI provides powerful control over all aspects of the switch’s configuration.

• Web-Based Interface: A more user-friendly approach, the web interface allows for graphical management of the switch's features and settings, ideal for less experienced administrators.

• Cisco DNA Center: Provides a centralized platform for managing multiple switches and other network devices, offering automation and policy-based management capabilities.

B. Integration with Cisco DNA Center

TheCisco DNA Centerintegration allows for advanced network management capabilities, including automation, monitoring, and policy enforcement. This integration helps reduce the complexity of managing large networks by providing a single pane of glass for visibility and control. It also supportssoftware-defined access (SD-Access), which enables automated policy enforcement and segmentation within the network, enhancing both security and performance.

C. Firmware Updates and Maintenance

Regular firmware updates are crucial for maintaining the security and performance of the switch. TheCisco C1300-24T-4Xsupports seamless updates through the Cisco Smart Software Manager, which ensures that all devices are up-to-date with the latest security patches and feature enhancements. Routine maintenance is also simplified with features likehot-swappable componentsanddual redundant power supplies, which minimize downtime during repairs or upgrades.

6. Advanced Security Features

A. Threat Defense and Compliance

TheCisco C1300-24T-4Xis equipped with a range of security features designed to protect against various threats, including:

• Dynamic ARP Inspection (DAI): Prevents ARP spoofing attacks by ensuring only valid ARP requests and responses are processed.

• IP Source Guard: Blocks IP spoofing attacks by dynamically maintaining the binding table of IP-MAC-address to ports.

• Access Control Lists (ACLs): Allow administrators to define rules that control traffic flow through the network, helping to block unauthorized users and traffic types.

B. Secure Network Access

To ensure only authorized devices and users can access the network, the switch supports:

• 802.1X Authentication: Provides port-based access control, ensuring that only authenticated devices can connect to the network.

• MACsec Encryption: Offers Layer 2 encryption for data confidentiality and integrity, protecting traffic flows within the network from eavesdropping and tampering.

• TrustSec: Simplifies the implementation of security policies across the network using software-defined segmentation, which enhances protection against lateral threats.

C. Visibility and Analytics

With the integration ofCisco DNA Assurance, network administrators gain comprehensive visibility into the network's performance and security posture. This tool provides deep insights into network anomalies, helping quickly identify and mitigate potential threats or performance issues. The real-time analytics and reporting capabilities ensure that the network remains secure and operates optimally.

7. Conclusion

TheCisco C1300-24T-4Xswitch stands out as a powerful and versatile option within the Cisco Catalyst 1300 Series, offering a blend of high performance, advanced security, and scalability. Its robust feature set, including 10-Gigabit uplinks, extensive security measures, and simplified management options, makes it suitable for various applications across different industries. Whether for large enterprise networks, data centers, educational institutions, or retail chains, theCisco C1300-24T-4Xdelivers reliable and secure connectivity to meet the ever-evolving needs of modern businesses.

For organizations looking to future-proof their network infrastructure, theCisco C1300-24T-4Xprovides a compelling choice that balances performance, security, and ease of use. Its ability to integrate seamlessly with Cisco's broader ecosystem of networking products and management tools further enhances its value, ensuring a cohesive and manageable network environment.

Cisco Catalyst 1300 Series Switches

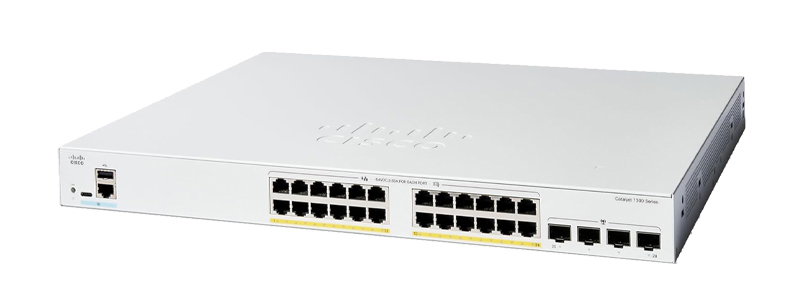

Cisco C1300-24T-4X
