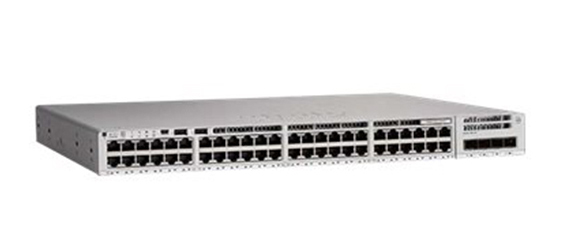

The Cisco C9200L-48P-4X-E is part of the Cisco Catalyst 9200L Series, which is designed to provide enterprise-level networking solutions with reliability, simplicity, and security. As businesses increasingly demand seamless connectivity, high availability, and scalable performance, switches like the Cisco C9200L-48P-4X-E become essential components in modern network infrastructure.

In this article, we'll explore the Cisco C9200L-48P-4X-E in depth, discussing its features, benefits, technical specifications, deployment scenarios, and more.

1. Introduction to Cisco Catalyst 9200L Series

The Cisco Catalyst 9200L Series is designed to extend the power of intent-based networking to businesses of all sizes. This series of switches delivers enterprise-class intent-based networking capabilities, making it possible to automate tasks, reduce operational complexity, and ensure enhanced security.

The Cisco C9200L-48P-4X-E, a member of this series, stands out as an ideal choice for small to medium-sized businesses or branch offices looking to upgrade their networks with Power over Ethernet (PoE) capability and Layer 3 routing options.

2. Key Features of the Cisco C9200L-48P-4X-E

The Cisco C9200L-48P-4X-E switch comes with a host of features that make it suitable for various network environments. Below are some of its most notable attributes:

• 48 PoE+ Ports: The switch supports 48 10/100/1000 PoE+ Ethernet ports, allowing the seamless connection of a wide range of devices, including IP phones, wireless access points, cameras, and IoT devices, all powered by the network without needing separate power adapters.

• Uplinks: The C9200L-48P-4X-E comes with four 10 Gigabit Ethernet SFP+ uplink ports, providing high-speed connectivity to the core network and helping ensure smooth data transfer even during peak traffic hours.

• Layer 3 Routing: It offers essential Layer 3 routing functionality such as static routing and RIP, allowing for more intelligent data flow management and improved network performance.

• Security Features: With advanced security features like 802.1x authentication, port security, and access control lists (ACLs), the switch helps prevent unauthorized access and ensures data integrity across the network.

• Stacking Capability: This switch supports Cisco's StackWise-160 technology, enabling the stacking of up to eight switches, which allows for unified management and increased redundancy.

• Advanced Software: The switch runs on Cisco IOS XE, a modern operating system designed to power the next generation of enterprise networks with programmability and security.

3. Technical Specifications

Understanding the technical specifications of the Cisco C9200L-48P-4X-E is essential for planning its deployment. Below are the key technical specifications of the switch:

The switch supports up to 740W of PoE power, which is ideal for powering various devices like wireless access points, security cameras, and VoIP phones.

4. Benefits of Deploying the Cisco C9200L-48P-4X-E

Switches like the Cisco C9200L-48P-4X-E offer several key benefits, making them integral to efficient network operations.

4.1. Enhanced Network Performance

With 48 PoE+ ports and a switching capacity of 256 Gbps, the C9200L-48P-4X-E is engineered to handle heavy traffic loads without compromising performance. The switch’s high-speed uplinks and ability to stack up to eight switches mean that businesses can scale their networks without bottlenecks.

4.2. Simplified Management

The Cisco C9200L-48P-4X-E is managed through Cisco DNA Center, which offers an intuitive, centralized interface to manage multiple network devices. It includes automation and assurance features that simplify day-to-day operations, including network configuration and troubleshooting.

4.3. Security and Segmentation

Cybersecurity threats are a growing concern for modern networks. The C9200L-48P-4X-E addresses this with robust security measures such as MACsec encryption, TrustSec, and segmentation capabilities, which allow network administrators to control access and safeguard sensitive data.

4.4. Power over Ethernet (PoE)

The switch's support for PoE+ (Power over Ethernet Plus) is a significant advantage for businesses deploying large numbers of powered devices. The 740W PoE budget ensures that even high-power devices such as advanced IP cameras and access points can be connected without the need for additional power supplies.

5. Typical Use Cases

The Cisco C9200L-48P-4X-E is versatile and suitable for a variety of applications, including:

• Corporate Offices: In environments with a large number of employees, the 48-port configuration is ideal for connecting computers, VoIP phones, and wireless access points, offering reliable data and power delivery.

• Educational Institutions: Schools and universities benefit from the switch's PoE+ support, as it can provide power and network connectivity to a wide range of devices, from smartboards to surveillance cameras, all over a single cable.

• Retail and Hospitality: Retail outlets and hotels that rely on surveillance, IP-based communications, and wireless services can use the Cisco C9200L-48P-4X-E to centralize their network infrastructure while ensuring devices are powered and connected securely.

• Healthcare Facilities: The switch provides healthcare organizations with the robust, secure, and high-performance networking they need to connect medical devices, patient records systems, and other critical infrastructure.

6. Setting Up and Configuring the Cisco C9200L-48P-4X-E

Deploying and configuring the Cisco C9200L-48P-4X-E is a relatively straightforward process for network administrators familiar with Cisco IOS. Below is a basic outline of the steps involved:

1. Physical Installation: Mount the switch in a rack using the included brackets, and connect it to the power source.

2. Initial Configuration: Use the console port or USB for initial configuration. Assign the switch an IP address, configure VLANs, and enable Layer 3 routing as needed.

3. PoE Configuration: Set up PoE settings to allocate power to connected devices according to their requirements.

4. Security Setup: Implement security features like 802.1x, ACLs, and port security to ensure that unauthorized devices cannot access the network.

5. Stacking (Optional): If using multiple switches in a stack, connect them using Cisco StackWise cables and configure them as a unified stack for centralized management.

For more complex setups, network administrators can use Cisco DNA Center to automate the process and configure multiple devices simultaneously.

7. Comparison with Other Cisco Catalyst Switches

The Cisco Catalyst 9200L series is often compared with other switch series from Cisco, such as the Catalyst 9300 and 2960 series. Here's how the C9200L-48P-4X-E stacks up:

The C9200L-48P-4X-E offers a good balance of performance, scalability, and features for small to mid-sized businesses at a lower cost compared to the more advanced Cisco Catalyst 9300 series.

8. Conclusion

The Cisco C9200L-48P-4X-E is a robust and scalable switch that brings enterprise-class features to smaller networks. It excels in providing PoE+ support, security, and stackable architecture, making it a perfect fit for growing businesses. Whether you're looking to power IoT

devices, streamline network management, or enhance security, this switch delivers high performance and reliability. By investing in the Cisco C9200L-48P-4X-E, businesses can future-proof their networks and ensure smooth, secure connectivity for years to come.

FAQs

1. What is the main advantage of the Cisco C9200L-48P-4X-E switch?
The Cisco C9200L-48P-4X-E offers 48 PoE+ ports, Layer 3 routing capabilities, and StackWise-160 stacking technology, making it ideal for small to mid-sized businesses that need scalable, secure, and high-performing network solutions.

2. How many devices can be powered by the Cisco C9200L-48P-4X-E switch?
The switch supports up to 48 PoE+ devices with a total power budget of 740W, which allows for the connection of high-power devices such as IP phones, wireless access points, and security cameras.

3. Does the Cisco C9200L-48P-4X-E support Layer 3 routing?
Yes, the switch supports basic Layer 3 routing functions, including static routing and RIP, which help in optimizing data flow within the network.

4. Can I stack multiple Cisco C9200L-48P-4X-E switches?
Yes, you can stack up to eight switches using Cisco StackWise-160 technology, which provides unified management and improved redundancy.

5. What kind of security features does the Cisco C9200L-48P-4X-E offer?
The switch offers several advanced security features, including 802.1x authentication, port security, access control lists (ACLs), and DHCP snooping to protect the network from unauthorized access.

6. What is the uplink capacity of the Cisco C9200L-48P-4X-E?
The switch is equipped with four 10 Gigabit Ethernet SFP+ uplinks for high-speed connectivity to the network core or data center.
