The Cisco C9200L-24P-4X is part of the Cisco Catalyst 9200L Series switches, designed to provide enterprise-level networking solutions with a focus on simplicity, security, and flexibility. As organizations evolve to meet the demands of modern networking environments, such as cloud connectivity, security concerns, and increasing bandwidth needs, Cisco’s Catalyst 9200L series offers a robust platform for growing businesses.

This article delves into the specific features, benefits, and technical specifications of the Cisco C9200L-24P-4X switch, offering insight into how this model contributes to reliable and scalable network performance.

1. Overview of Cisco Catalyst 9200L Series

The Cisco Catalyst 9200L series represents an extension of the popular Catalyst 9000 family of switches. The 9200L series is designed to provide many of the same enterprise-level features found in the Catalyst 9300 series but at a lower cost, making it an ideal choice for small and medium-sized businesses.

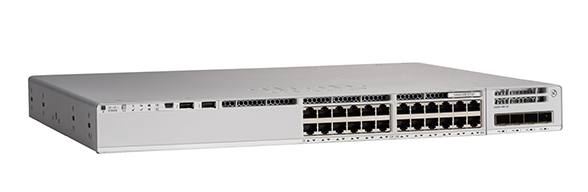

The Cisco C9200L-24P-4X is a specific model within this series, characterized by 24 ports of Gigabit Ethernet and four 10-Gigabit Ethernet SFP+ uplinks. This switch provides a perfect balance of features and performance for businesses looking to modernize their networks without overspending.

2. Key Features of Cisco C9200L-24P-4X

The Cisco C9200L-24P-4X boasts several key features that make it stand out in the market. These include its support for Power over Ethernet (PoE), advanced security measures, and flexibility in deployment.

• 24 PoE Ports: The Cisco C9200L-24P-4X model supports Power over Ethernet, with 24 ports that provide up to 370W of total PoE power. This capability allows businesses to power devices such as IP cameras, VoIP phones, and wireless access points directly through the network cables, reducing the need for separate power supplies and simplifying installation.

• Four 10-Gigabit SFP+ Uplinks: With the inclusion of four 10G SFP+ uplinks, the Cisco C9200L-24P-4X offers the ability to connect to high-speed backbone networks, improving data transfer rates and enhancing network performance. This is particularly useful for organizations that need to handle large amounts of data or support high-bandwidth applications.

• Layer 3 Switching: The C9200L-24P-4X supports Layer 3 switching, which means it can route traffic between different subnets. This feature is critical for businesses that require segmentation of network traffic for security or performance reasons.

• Advanced Security: The Catalyst 9200L series is equipped with Cisco's advanced security features, including TrustSec, which helps enforce security policies throughout the network. Additionally, the switch offers features like encrypted traffic analytics, which monitors for malicious activity, and network segmentation, ensuring that sensitive data is protected.

• Energy Efficiency: Cisco has also incorporated energy-saving features into the C9200L-24P-4X, such as Energy Efficient Ethernet (EEE), which reduces power consumption during low traffic periods. This aligns with the growing need for environmentally friendly solutions in IT infrastructure.

3. Benefits of the Cisco C9200L-24P-4X Switch

Implementing the Cisco C9200L-24P-4X switch offers several key advantages to businesses looking to improve their network infrastructure. These benefits include scalability, security, and simplified management, among others.

• Scalability: The 24 Gigabit Ethernet ports with PoE, coupled with the four 10G uplinks, make this switch highly scalable. Businesses can easily add new devices or increase bandwidth capacity without needing to replace the switch. This makes the Cisco C9200L-24P-4X an ideal solution for organizations that expect growth.

• Simplified Management: The Cisco C9200L series supports Cisco DNA (Digital Network Architecture), which enables network automation and simplified management. Using Cisco DNA Center, administrators can easily configure and manage switches from a centralized interface, reducing the time spent on manual configurations and troubleshooting.

• Enhanced Security: In today’s networking environments, security is paramount. The Cisco C9200L-24P-4X switch offers multiple layers of security to protect data and devices. Features like TrustSec, Secure Boot, and MACsec encryption help safeguard the network from internal and external threats.

• Reliability: As with all Cisco products, the C9200L-24P-4X switch is built to be reliable. It includes features such as redundant power supply options and hot-swappable fans, which ensure the switch can remain operational even in the event of component failures. This high availability is essential for organizations that rely on uninterrupted network access.

• Cost-Effectiveness: Despite offering a wide range of enterprise-grade features, the Cisco C9200L-24P-4X is a cost-effective solution for small to medium-sized businesses. Its combination of PoE support, high-speed uplinks, and advanced security make it a versatile switch for a range of applications.

4. Technical Specifications

Understanding the technical specifications of the Cisco C9200L-24P-4X switch is crucial for businesses that want to ensure it meets their needs. Below is a summary of the main specifications:

• Ports: 24 Gigabit Ethernet PoE+ ports, four 10-Gigabit SFP+ uplinks

• PoE Power Budget: 370W total power for PoE devices

• Switching Capacity: 128 Gbps

• Forwarding Rate: 190.4 Mpps (million packets per second)

• Layer 2 and Layer 3 Support: Supports VLANs, static routing, and dynamic routing protocols (OSPF, EIGRP, RIP)

• Security Features: MACsec encryption, TrustSec, Secure Boot

• Stacking: Supports Cisco StackWise, with up to 80 Gbps stack bandwidth

• Energy Efficiency: Energy Efficient Ethernet (EEE), intelligent power management

• Dimensions: 1.73 x 17.5 x 11.3 inches (H x W x D)

• Weight: 10.8 pounds

5. Use Cases for Cisco C9200L-24P-4X

The versatility of the Cisco C9200L-24P-4X switch makes it suitable for a variety of business applications. Below are some common use cases:

• Small to Medium-Sized Offices: For offices that require a robust, scalable networking solution with PoE support for devices such as IP phones and access points, the C9200L-24P-4X is an excellent choice. Its easy manageability and scalability make it perfect for growing businesses.

• Education: Schools and universities can benefit from the Cisco C9200L-24P-4X due to its ability to support multiple devices, from security cameras to interactive learning technologies, all while maintaining high-speed connectivity. The PoE feature simplifies the deployment of networked devices across campuses.

• Healthcare: In healthcare settings, where both data security and uptime are critical, the C9200L-24P-4X provides encrypted traffic analytics and redundancy options. It can easily support high volumes of data from medical devices, patient management systems, and VoIP communication.

• Retail Environments: Retail stores with high device density—such as point-of-sale terminals, surveillance systems, and customer Wi-Fi—can leverage the Cisco C9200L-24P-4X to maintain reliable and secure network connectivity.

6. How the Cisco C9200L-24P-4X Enhances Network Security

Security is a cornerstone of the Cisco C9200L-24P-4X design. Cisco has integrated numerous security features to address the growing concerns of cyber threats and data breaches.

• TrustSec: This technology simplifies the implementation of security policies across the network, ensuring consistent enforcement of access controls.

• MACsec: Media Access Control Security (MACsec) provides layer 2 encryption, ensuring that data remains secure as it travels across the network, preventing unauthorized access.

• Encrypted Traffic Analytics (ETA): This feature allows administrators to detect malicious activity, even in encrypted traffic. ETA uses machine learning algorithms to identify threats without the need to decrypt the traffic itself.

7. Simplified Network Management with Cisco DNA Center

One of the standout features of the Cisco C9200L-24P-4X switch is its compatibility with Cisco DNA Center. Cisco DNA simplifies network management by offering automation, centralized control, and real-time analytics. Some of the benefits include:

• Network Automation: Cisco DNA Center enables IT teams to automate the configuration of switches, reducing human error and speeding up deployment times.

• Centralized Management: Administrators can monitor and manage multiple switches from a single dashboard, simplifying network oversight and troubleshooting.

• Analytics and Insights: DNA Center provides detailed insights into network performance and potential issues, allowing for proactive management and optimization.

8. Conclusion

The Cisco C9200L-24P-4X switch is a powerful and versatile solution for businesses that need reliable, scalable, and secure networking. With features like PoE support, high-speed uplinks, advanced security protocols, and simplified management via Cisco DNA, it stands out as an ideal choice for small to medium-sized organizations looking to enhance their network infrastructure.

Whether deployed in a corporate office, school, healthcare facility, or retail environment, the Cisco C9200L-24P-4X offers the performance and flexibility required to meet the demands of today’s connected world.
