Cisco 9300 Switches Dimensions

Dec, 10, 2024 Hi-network.com

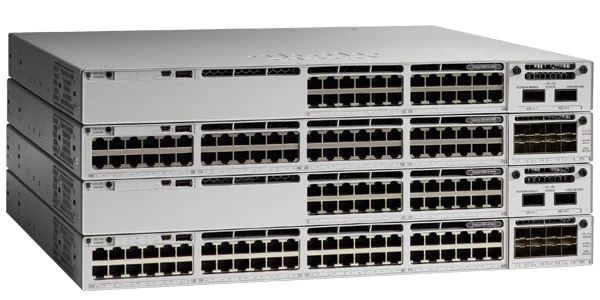

cisco 9300 switch dimensions

Cisco Catalyst 9300 Seriesswitches are Cisco’s lead stackable enterprise access switching platform and as part of the Catalyst 9000 family, are built to transform your network to handle a hybrid world where the workplace is anywhere, endpoints could be anything, and applications are hosted all over the place.


The Catalyst 9300 Series, including the new Catalyst 9300Xmodels, continues to shape the future with continued innovation that helps you reimagine connections, reinforce security and redefine the experience for your hybrid workforce big and small. With Catalyst 9300 switches, you choose how you want to manage your network – on-premises, virtual or from the cloud.

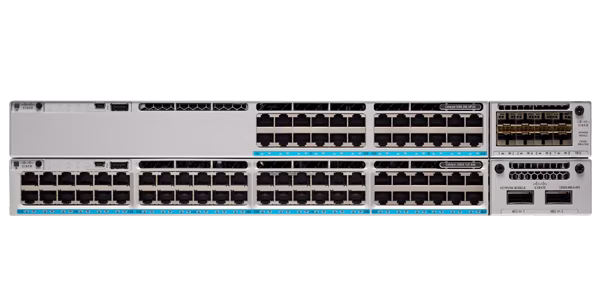

cisco 9300 switch dimensions

Dimensions, Weight, Acoustic, Mean time between failures

The table below shows the dimensions, weights, acoustic and mean time between failures of all models of Cisco Catalyst 9300 Series switches.


General Specifications

Dimensions (H x W x D) inches

Model

Chassis only

W/ Default Power Supply

W/ 1100W Power Supply

C9300X-48HX

1.73 x 17.5 x 19

1.73 x 17.5 x 22.03

1.73 x 17.5 x 22.03

C9300X-48TX

1.73 x 17.5 x 19

1.73 x 17.5 x 20.56

1.73 x 17.5 x 22.03

C9300X-48HXN

1.73 x 17.5 x 17.57

1.73 x 17.5 x 20.63

1.73 x 17.5 x 20.63

C9300X-24HX

1.73 x 17.5 x 17.57

1.73 x 17.5 x 20.63

1.73 x 17.5 x 20.63

C9300X-12Y

1.73 x 17.5 x 16.1

1.73 x 17.5 x 17.6

1.73 x 17.5 x 19.2

C9300X-24Y

1.73 x 17.5 x 17.6

1.73 x 17.5 x 19.2

1.73 x 17.5 x 20.7

C9300-24T

1.73 x 17.5 x 16.1

1.73 x 17.5 x 17.7

1.73 x 17.5 x 19.2

C9300-24P

1.73 x 17.5 x 16.1

1.73 x 17.5 x 17.7

1.73 x 17.5 x 19.2

C9300-24U

1.73 x 17.5 x 16.1

1.73 x 17.5 x 19.2

1.73 x 17.5 x 19.2

C9300-24UX

1.73 x 17.5 x 17.1

1.73 x 17.5 x 20.2

1.73 x 17.5 x 20.2

C9300-24UB

1.73 x 17.5 x 16.1

1.73 x 17.5 x 19.2

1.73 x 17.5 x 19.2

C9300-24UXB

1.73 x 17.5 x 17.1

1.73 x 17.5 x 20.2

1.73 x 17.5 x 20.2

C9300-24H

1.73 x 17.5 x 16.1

1.73 x 17.5 x 19.2

1.73 x 17.5 x 19.2

C9300-48T

1.73 x 17.5 x 16.1

1.73 x 17.5 x 17.7

1.73 x 17.5 x 19.2

C9300-48P

1.73 x 17.5 x 16.1

1.73 x 17.5 x 17.7

1.73 x 17.5 x 19.2

C9300-48U

1.73 x 17.5 x 16.1

1.73 x 17.5 x 19.2

1.73 x 17.5 x 19.2

C9300-48UXM

1.73 x 17.5 x 19.1

1.73 x 17.5 x 22.2

1.73 x 17.5 x 22.2

C9300-48UN

1.73 x 17.5 x 19.1

1.73 x 17.5 x 22.2

1.73 x 17.5 x 22.2

C9300-48UB

1.73 x 17.5 x 16.1

1.73 x 17.5 x 19.2

1.73 x 17.5 x 19.2

C9300-48H

1.73 x 17.5 x 16.1

1.73 x 17.5 x 19.2

1.73 x 17.5 x 19.2

C9300-24S

1.73 X 17.5 X 17.7

1.73 X 17.5 X 19.2

1.73 X 17.5 X 20.7

C9300-48S

1.73 X 17.5 X 17.7

1.73 X 17.5 X 19.2

1.73 X 17.5 X 20.7

C9300LM-48UX-4Y

1.73’’ x 17.50’’x 13.03’’

1.73 x 17.50 x 13.17

1.73 x 17.50 x 13.03
(w/ DC power supply)

C9300LM-48U-4Y

1.73’’ x 17.50’’x 13.03’’

1.73 x 17.50 x 13.17

1.73 x 17.50 x 13.03
(w/ DC power supply)

C9300LM-24U-4Y

1.73’’ x 17.50’’x 13.03’’

1.73 x 17.50 x 13.17

1.73 x 17.50 x 13.03
(w/ DC power supply)

C9300LM-48T-4Y

1.73’’ x 17.50’’x 10.84’’

1.73 x 17.50 x 12.39

1.73 x 17.50 x 11.86
(w/ DC power supply)

C9300L-24T-4G

1.73 X 17.5 X 16.1

1.73 X 17.5 X 17.7

1.73 X 17.5 X 19.2

C9300L-24T-4X

1.73 X 17.5 X 16.1

1.73 X 17.5 X 17.7

1.73 X 17.5 X 19.2

C9300L-48T-4G

1.73 X 17.5 X 16.1

1.73 X 17.5 X 17.7

1.73 X 17.5 X 19.2

C9300L-48T-4X

1.73 X 17.5 X 16.1

1.73 X 17.5 X 17.7

1.73 X 17.5 X 19.2

C9300L-24P-4G

1.73 X 17.5 X 16.1

1.73 X 17.5 X 17.7

1.73 X 17.5 X 19.2

C9300L-24P-4X

1.73 X 17.5 X 16.1

1.73 X 17.5 X 17.7

1.73 X 17.5 X 19.2

C9300L-48P-4G

1.73 X 17.5 X 16.1

1.73 X 17.5 X 17.7

1.73 X 17.5 X 19.2

C9300L-48P-4X

1.73 X 17.5 X 16.1

1.73 X 17.5 X 17.7

1.73 X 17.5 X 19.2

Dimensions (H x W x D) Cms

C9300X-48HX

4.4 x 44.5 x 48.3

4.4 x 44.5 x 56.0

4.4 x 44.5 x 56.0

C9300X-48TX

4.4 x 44.5 x 48.3

4.4 x 44.5 x 52.2

4.4 x 44.5 x 56.0

C9300X-48HXN

4.4 x 44.5 x 44.6

4.4 x 44.5 x 52.4

4.4 x 44.5 x 52.4

C9300X-24HX

4.4 x 44.5 x 44.6

4.4 x 44.5 x 52.4

4.4 x 44.5 x 52.4

C9300X-12Y

4.4 x 44.5 x 40.9

4.4 x 44.5 x 44.7

4.4 x 44.5 x 48.8

C9300X-24Y

4.4 x 44.5 x 44.7

4.4 x 44.5 x48.8

4.4 x 44.5 x 52.6

C9300-24T

4.4 x 44.5 x 40.9

4.4 x 44.5 x 44.9

4.4 x 44.5 x 48.8

C9300-24P

4.4 x 44.5 x 40.9

4.4 x 44.5 x 44.9

4.4 x 44.5 x 48.8

C9300-24U

4.4 x 44.5 x 40.9

4.4 x 44.5 x 48.8

4.4 x 44.5 x 48.8

C9300-24UX

4.4 x 44.5 x 43.4

4.4 x 44.5 x 51.3

4.4 x 44.5 x 51.3

C9300-24H

4.4 x 44.5 x 40.9

4.4 x 44.5 x 48.8

4.4 x 44.5 x 48.8

C9300-48T

4.4 x 44.5 x 40.9

4.4 x 44.5 x 44.9

4.4 x 44.5 x 48.8

C9300-48P

4.4 x 44.5 x 40.9

4.4 x 44.5 x 44.9

4.4 x 44.5 x 48.8

C9300-48U

4.4 x 44.5 x 40.9

4.4 x 44.5 x 48.8

4.4 x 44.5 x 48.8

C9300-48UXM

4.4 x 44.5 x 48.5

4.4 x 44.5 x 56.4

4.4 x 44.5 x 56.4

C9300-48UN

4.4 x 44.5 x 48.5

4.4 x 44.5 x 56.4

4.4 x 44.5 x 56.4

C9300-48H

4.4 x 44.5 x 40.9

4.4 x 44.5 x 48.8

4.4 x 44.5 x 48.8

C9300-24S

4.3 x 44.4 x 44.9

4.3 x 44.4 x 48.8

4.3 x 44.4 x 52.6

C9300-48S

4.3 x 44.4 x 44.9

4.3 x 44.4 x 48.8

4.3 x 44.4 x 52.6

C9300LM-48UX-4Y

4.3 x 44.4 x 33.1

4.3 x 44.4 x 33.4

4.3 x 44.4 x 32.5
(w/ DC power supply)

C9300LM-48U-4Y

4.3 x 44.4 x 33.1

4.3 x 44.4 x 33.4

4.3 x 44.4 x 32.5
(w/ DC power supply)

C9300LM-24U-4Y

4.3 x 44.4 x 33.1

4.3 x 44.4 x 33.4

4.3 x 44.4 x 32.5
(w/ DC power supply)

C9300LM-48T-4Y

4.3 x 44.4 x 27.5

4.3 x 44.4 x 27.5

4.3 x 44.4 x 29.7
(w/ DC power supply)

C9300L-24T-4G

4.4 x 44.5 x 40.9

4.4 x 44.5 x 44.9

4.4 x 44.5 x 48.8

C9300L-24T-4X

4.4 x 44.5 x 40.9

4.4 x 44.5 x 44.9

4.4 x 44.5 x 48.8

C9300L-48T-4G

4.4 x 44.5 x 40.9

4.4 x 44.5 x 44.9

4.4 x 44.5 x 48.8

C9300L-48T-4X

4.4 x 44.5 x 40.9

4.4 x 44.5 x 44.9

4.4 x 44.5 x 48.8

C9300L-24P-4G

4.4 x 44.5 x 40.9

4.4 x 44.5 x 44.9

4.4 x 44.5 x 48.8

C9300L-24P-4X

4.4 x 44.5 x 40.9

4.4 x 44.5 x 44.9

4.4 x 44.5 x 48.8

C9300L-48P-4G

4.4 x 44.5 x 40.9

4.4 x 44.5 x 44.9

4.4 x 44.5 x 48.8

C9300L-48P-4X

4.4 x 44.5 x 40.9

4.4 x 44.5 x 44.9

4.4 x 44.5 x 48.8

C9300L-48PF-4G

4.4 x 44.5 x 40.9

4.4 x 44.5 x 48.8

4.4 x 44.5 x 48.8

C9300L-48PF-4X

4.4 x 44.5 x 40.9

4.4 x 44.5 x 48.8

4.4 x 44.5 x 48.8

C9300L-24UXG-4X

4.4 x 44.5 x 40.9

4.4 x 44.5 x 48.8

4.4 x 44.5 x 48.8

C9300L-24UXG-2Q

4.4 x 44.5 x 40.9

4.4 x 44.5 x 48.8

4.4 x 44.5 x 48.8

C9300L-48UXG-4X

4.4 x 44.5 x 40.9

4.4 x 44.5 x 48.8

4.4 x 44.5 x 48.8

C9300L-48UXG-2Q

4.4 x 44.5 x 40.9

4.4 x 44.5 x 48.8

4.4 x 44.5 x 48.8

Weight (with default power supply)

Model

Pounds

Kilograms

C9300X-48HX

14.6

6.62

C9300X-48TX

14.6

6.62

C9300X-48HXN

14.2

6.44

C9300X-24HX

13.8

6.25

C9300X-12Y

15.0

6.80

C9300X-24Y

16.2

7.35

C9300-24T

16.03

7.27

C9300-24P

16.33

7.4

C9300-24U

16.63

7.54

C9300-24UX

18.18

8.25

C9300-24UB

16.63

7.54

C9300-24UXB

18.18

8.25

C9300-24H

16.63

7.54

C9300-48T

16.43

7.45

C9300-48P

16.73

7.59

C9300-48U

17.03

7.72

C9300-48UXM

20.50

9.34

C9300-48UN

20.05

9.09

C9300-48UB

17.03

7.72

C9300-48H

17.03

7.72

C9300-24S

16.84

7.64

C9300-48S

17.32

7.86

C9300LM-48UX-4Y

12

5.45

C9300LM-48U-4Y

12

5.45

C9300LM-24U-4Y

11.5

5.21

C9300LM-48T-4Y

11

4.99

C9300L-24T-4G

14.93

6.78

C9300L-24T-4X

14.93

6.78

C9300L-48T-4G

15.41

7.0

C9300L-48T-4X

15.41

7.0

C9300L-24P-4G

14.99

6.81

C9300L-24P-4X

14.99

6.81

C9300L-48P-4G

15.46

7.03

C9300L-48P-4X

15.46

7.03

C9300L-48PF-4G

15.48

7.03

C9300L-48PF-4X

15.48

7.03

C9300L-24UXG-4X

15.73

7.13

C9300L-24UXG-2Q

16.01

7.26

C9300L-48UXG-4X

16.86

7.65

C9300L-48UXG-2Q

16.86

7.65

Mean Time Between Failures – MTBF (hours)

C9300X-48HX

185,420

C9300X-48TX

206,480

C9300X-48HXN

188,200

C9300X-24HX

220,250

C9300X-12Y

265,650

C9300X-24Y

249,350

C9300-24T

314,790

C9300-24P

299,000

C9300-24U

238,410

C9300-24UX

214,760

C9300-24UB

354,300

C9300-24UXB

288.520

C9300-24H

238,410

C9300-48T

305,870

C9300-48P

277,770

C9300-48U

227,410

C9300-48UXM

202,160

C9300-48UN

198,647

C9300-48UB

337,170

C9300-48H

227,410

C9300-24S

284,130

C9300-48S

281,920

C9300L-24T-4G

395,800

C9300L-24T-4X

387,700

C9300L-48T-4G

387,860

C9300L-48T-4X

380,080

C9300L-24P-4G

346,940

C9300L-24P-4X

340,710

C9300L-48P-4G

314,140

C9300L-48P-4X

309,020

C9300L-48PF-4G

303,660

C9300L-48PF-4X

298,880

C9300L-24UXG-4X

332,640

C9300L-24UXG-2Q

291,670

C9300L-48UXG-4X

273,820

C9300L-48UXG-2Q

275,010

C9300LM-24U-4Y

357,350

C9300LM-48U-4Y

304,970

C9300LM-48T-4Y

408,710

C9300LM-48UXG-4Y

292,410

PWR-C1-350WAC-P

1,335,012 (ranges from 1.3M to 3.1M depending on temperature, input voltage and vendor)

PWR-C1-715WAC-P

1,054,881 (ranges from 1.05M to 2.6M depending on temperature, input voltage and vendor)

PWR-C1-1100WAC-P

1,217,904 (ranges from 1.2M to 2.8M depending on temperature, input voltage and vendor) (investigating an anomaly in MTBF data received from 1 Power Supply vendor – Artesyn)

PWR-C1-1900WAC-P


PWR-C1-715WDC

1,812,103 (-48V input at 40C and vendor Delta)

PWR-C6-600WAC

1,600,060

PWR-C6-1000WAC

1,600,060

PWR-C6-715WDC

1,712,103

C9300-NM-2Q

10,778,230

C9300-NM-2Y

7,568,820

C9300-NM-4G

8,953,570

C9300-NM-4M

10,549,060

C9300-NM-8X

7,151,930

C9300X-NM-8Y


C9300X-NM-2C


FAN-T2

4,521,330

Environmental ranges

Acoustic noise

Measured per ISO 7779 and declared per ISO 9296

Bystander positions operating to an ambient temperature of 25°C

With AC power supply (with 24 PoE+ ports loaded for C9300 SKUs)

  LpA: 45dB typical, 48 dB max  LwA: 5.6B typical, 5.9B max

With AC power supply (with half the number of PoE+ ports loaded for C9300L SKUs)

  LpA: 44dB typical, 47 dB max  LwA: 5.5B typical, 5.8B max

Typical: Noise emission for a typical configuration

Maximum: Statistical maximum to account for variation in production


Read more by downloading the Cisco Catalyst 9300 Series Switches Data Sheet: Cisco Catalyst 9300 Series Switches Data Sheet.pdf

For more datasheets, please go to the Download tab on each product details page, or search in the Datasheet Download Center.
