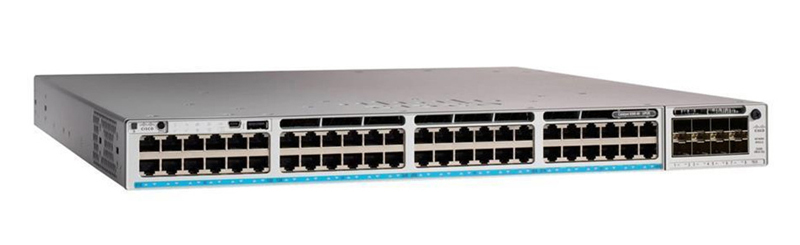

Overview of the Cisco Catalyst 9300 Series

The Cisco Catalyst 9300 Series is a cutting-edge family of enterprise-class switches designed to provide unparalleled performance, scalability, and advanced networking capabilities. Among these, the Cisco 9300 48 port switch stands out for its robust design and efficiency, making it a preferred choice for modern enterprise networks.

Key Features of the Cisco 9300 48 Port Switch

 ▪High Port Density:48 ports to support large-scale deployments.

 ▪Modular Uplinks:Options for 1G, 10G, and 40G uplinks.

 ▪PoE+ Support:Enables power delivery to connected devices, such as IP phones and cameras.

 ▪Advanced Security:Incorporates Cisco TrustSec and MACsec encryption.

 ▪Stacking Capability:Up to eight switches in a single stack.

 ▪Cloud Integration:Full support for Cisco DNA Center for network automation and analytics.

Technical Specifications

Model Number:  C9300-48P or C9300-48U, depending on variant.
Ports: 48 x 1GbE ports, supporting data, PoE+, or UPOE depending on model.
Uplink Modules: Modular options include 4 x 10G, 2 x 40G, or 8 x 10G uplinks.
Power Budget: Up to 1440W for PoE models.
Stacking Bandwidth: 480 Gbps using Cisco StackWise-480 technology.
Performance: Up to 2.6 Tbps forwarding capacity.
Switching Capacity: 960 Gbps for non-blocking operations.
Software Support: Powered by Cisco IOS XE with full programmability.

Benefits of Using the Cisco 9300 48 Port Switch

▪Enhanced Scalability:Seamlessly expands with modular uplinks and stacking options.
▪Energy Efficiency:Designed to reduce power consumption with intelligent features.
▪Future-Ready Architecture:Supports IoT, cloud, and SD-Access use cases.
▪Security at Scale:Advanced encryption and segmentation for secure networking.
▪Operational Efficiency:Simplifies management through automation tools like Cisco DNA Center.

Deployment Scenarios for Cisco 9300 48 Port Switch

Enterprise Networks

The Cisco 9300 is ideal for core and distribution layers in enterprise networks, where scalability and performance are paramount.

Campus Networks

Its high-density port design, combined with PoE+ capabilities, makes it perfect for deploying large-scale campus networks, supporting access points, IP cameras, and VoIP devices.

Small to Medium Businesses (SMBs)

SMBs can leverage the switch's flexibility and security features to build cost-effective and secure networks.

Data Centers

With its robust stacking and modular uplinks, the Cisco 9300 can also serve as a top-of-rack switch in data centers.

Advanced Security Features

▪MACsec Encryption:Protects traffic between switches with 256-bit encryption.
▪TrustSec Integration:Simplifies security policy enforcement across the network.
▪Secure Boot:Prevents unauthorized modifications to the switch firmware.
▪Advanced Threat Defense:Includes features like Cisco Stealthwatch and Network Admission Control (NAC).

Stacking and High Availability

The Cisco 9300 48 port switch supports Cisco StackWise-480 technology, enabling up to 480 Gbps of stacking bandwidth. High availability is ensured through redundant power supplies, hot-swappable fans, and advanced failover mechanisms.

Power Over Ethernet (PoE) Capabilities

▪PoE+ (802.3at):Provides up to 30W per port for connected devices.
▪UPOE:Delivers up to 60W per port, ideal for demanding devices like PTZ cameras and video phones.
▪Energy Management:Intelligent power allocation based on device needs.

Software and Management Features

▪IOS XE Operating System:Enables programmability with APIs and app hosting.
▪Cisco DNA Center:Facilitates network automation, assurance, and insights.
▪WebUI:Intuitive web-based interface for easy configuration.
▪CLI Support:Traditional Command-Line Interface for advanced configurations.

Comparison with Other Models

Cisco 9300vs.Cisco 9200

The 9300 series offers higher scalability, better performance, and advanced features compared to the 9200 series, which is aimed at smaller deployments.

Cisco 9300 vs.Cisco 9500

While the 9500 series is optimized for core and aggregation layers with higher throughput, the 9300 series focuses on access layer deployments with a balanced feature set.

Licensing Options

The Cisco 9300 48 port switch offers multiple licensing tiers, including:

▪Network Essentials:Basic network services and features.
▪Network Advantage:Advanced routing and security capabilities.
▪DNA Essentials:Basic automation and analytics capabilities.
▪DNA Advantage:Full-featured automation, analytics, and security tools.

How to Choose the Right Model

Consider the following factors when selecting a Cisco 9300 switch model:

▪Port Requirements:Ensure the model meets your port and uplink needs.
▪PoE Budget:Choose PoE, PoE+, or UPOE models based on connected device power demands.
▪Future Scalability:Look for modular uplinks and stacking options for future growth.
▪Licensing Needs:Match software features with operational requirements.

Conclusion

The Cisco 9300 48 port switch is a highly versatile and feature-rich networking solution tailored for modern enterprise environments. With its robust performance, advanced security features, and scalability, it addresses the demands of growing networks while enabling future-proofing and efficient management. Whether for a campus network, enterprise, or data center, this switch delivers exceptional value and reliability.
