Huawei Interface Card ES1D2S24SX2S (03031YFH) for S7703/S7706/S7712

The ES1D2S24SX2S provides twenty-four 10GE optical ports and eight GE optical ports for data transmission and switching.

Quick Specification

Table 1 shows the quick specification.

Model	ES1D2S24SX2S
Part Number	03031YFH
Description	24-Port 10GE SFP+ Interface and 8-Port GE SFP Interface Card (X2S, SFP+)
Dimensions without packaging (H x W x D) [mm(in.)]	35.1 mm x 397.2 mm x 430.4 mm (1.38 in. x 15.64 in. x 16.95 in.)
Weight without packaging [kg(lb)]	3.2
Typical power consumption [W]	160.1
Memory	1 GB
Basic functions	Provides twenty-four 10GE optical ports and eight GE optical ports for data transmission and switching.
Distributed forwarding	Performs concurrent data forwarding using a distributed data plane.
Hot swapping	The ES1D2S24SX2S is hot swappable.

Figure 1 shows the appearance of ES1D2S24SX2S.

front-es1d2s24sx2s-datasheet

Product Details

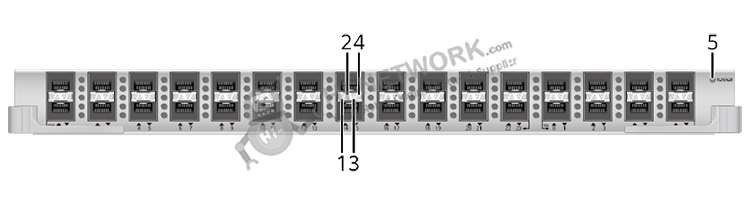

Figure 2 show the indicators on the ES1D2S24SX2S panel.

indicators-es1d2s24sx2s-datasheet

Note:

Number	Indicator	Color	Description
(1)	ACT indicator of a lower optical port	Yellow	Blinking: The port is transmitting and receiving data.
(2)	ACT indicator of an upper optical port	Yellow	Blinking: The port is transmitting and receiving data.
(3)	LINK indicator of a lower optical port	Green	Steady on: A link has been established on the port.
(4)	LINK indicator of an upper optical port	Green	Steady on: A link has been established on the port.
(5)	RUN/ALM: running status indicator	Green	Steady on: The card is powered on. If the indicator is steady green for no more than 30 seconds, the CPU is being started. If the indicator is steady green for more than 30 seconds, the software is not running. Slow blinking: The card software is running properly. Fast blinking: The card software is starting.
		Red	Steady on: The card has failed and the fault requires manual intervention.
		Yellow	Steady on: The card is powered off. (For example, the card has been forcibly powered off using the power off command or is about to start.)

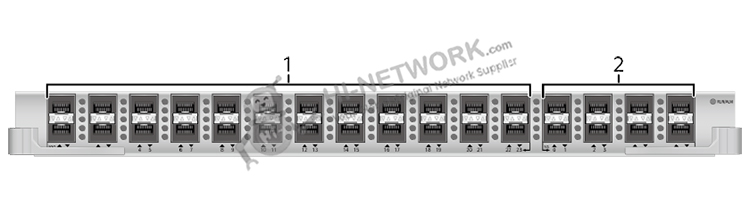

Figure 3 show the ports on the ES1D2S24SX2S panel.

ports-es1d2s24sx2s-datasheet

Note:

(1)	Twenty-four 10GBASE SFP+/1000BASE-X ports
(2)	Eight 1000BASE-X ports

Get more information

Do you have any question about the ES1D2S24SX2S (03031YFH)?

Specific Data Sheet:

ES1D2S24SX2S Specification
Basic Information
Model	ES1D2S24SX2S
Part Number	03031YFH
Description	24-Port 10GE SFP+ Interface and 8-Port GE SFP Interface Card (X2S, SFP+)
Level-1 category	Interface card
Technical Specifications
Dimensions without packaging (H x W x D) [mm(in.)]	35.1 mm x 397.2 mm x 430.4 mm (1.38 in. x 15.64 in. x 16.95 in.)
Weight without packaging [kg(lb)]	3.2
Typical power consumption [W]	160.1
Typical heat dissipation [BTU/hour]	546.28
Maximum power consumption [W]	192.3
Maximum heat dissipation [BTU/hour]	656.15
Memory	1 GB
