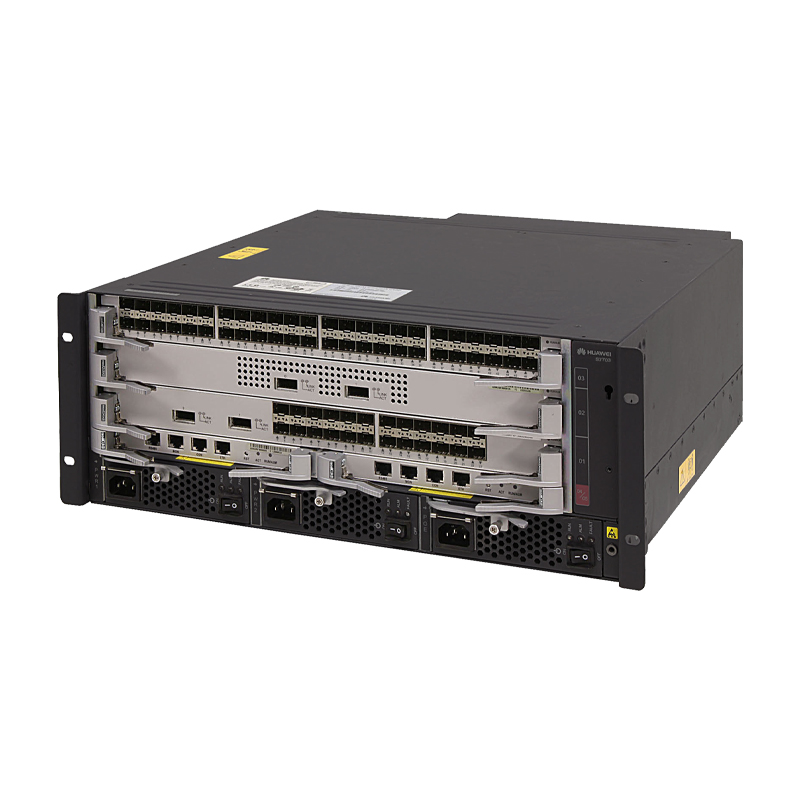

Huawei Switch S7703 (02113304)


ES0B00770300 is the Huawei S7703 Assembly Chassis. The S7700 series switches (S7700 for short) are high-end smart routing switches designed for next-generation enterprise networks. The S7700 design is based on Huawei’s intelligent multi-layer switching technology to provide intelligent service optimization methods, such as MPLS VPN, traffic analysis, comprehensive HQoS policies, controllable multicast, load balancing, and security, in addition to high-performance Layer 2 to Layer 4 switching services. The S7700 also features super scalability and reliability.



Quick Specification


Table 1 shows the quick specification.

Model

S7703

Part Number

02113304

Product Code

ES0B00770300

Forwarding Performance

1440 Mpps/3600 Mpps

Switching Capacity

1.92 Tbps/4.8 Tbps

Service Slots

3

Redundancy Design

Supervisors, Power modules, CMUs, Fans trays

MPU Slots

2

LPU slots

3

System power supply slots

2

Fan slots

1

PoE power supply slots

1

Maximum PoE Power

2,200W

Maximum power consumption (fully loaded)

1000 W

Working Voltage

DC: –38.4V to –72V
AC: 90V to 290V

Dimensions (W x D x H, excluding rack-mounting brackets)

With cable management frames: 442 mm x 585 mm x 175 mm (17.4 in. x 23.0 in. x 6.9 in. (4 U))
Without cable management frames: 442 mm x 489 mm x 175 mm (17.4 in. x 19.3 in. x 6.9 in. (4 U))

Weight (empty/fully loaded)

10 kg/22 kg (22.0 lb/48.5 lb)

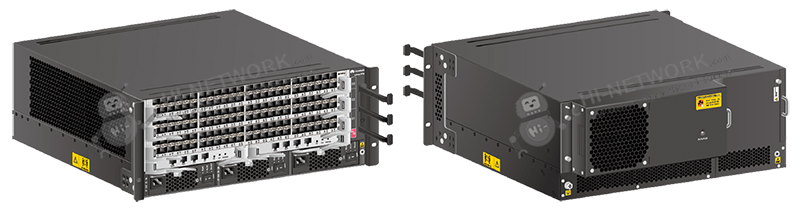

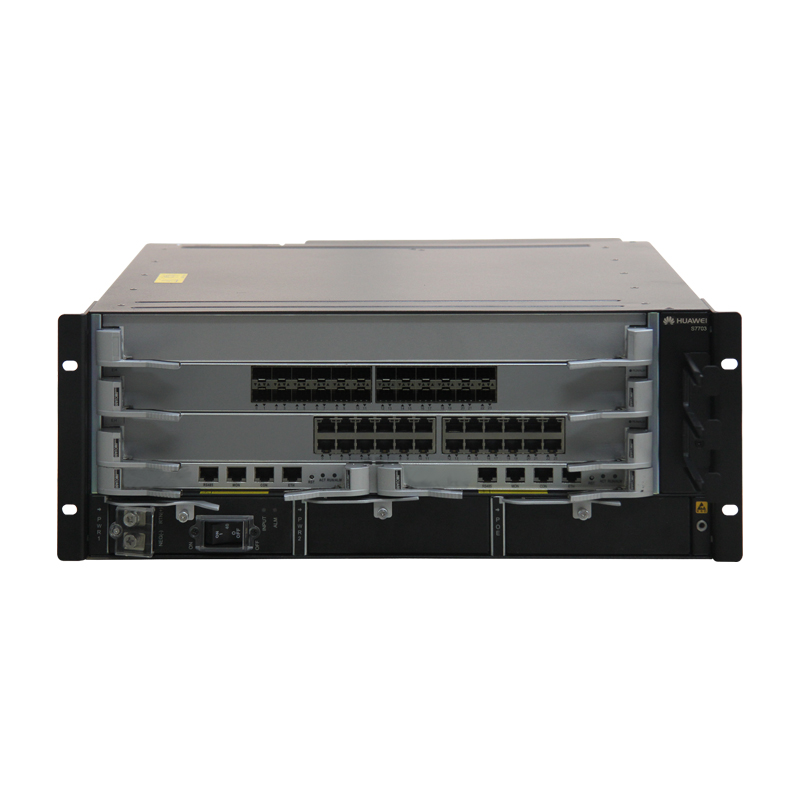

Figure 1 shows the S7703 chassis appearance.


appearance-s7703-datasheet


Product Details

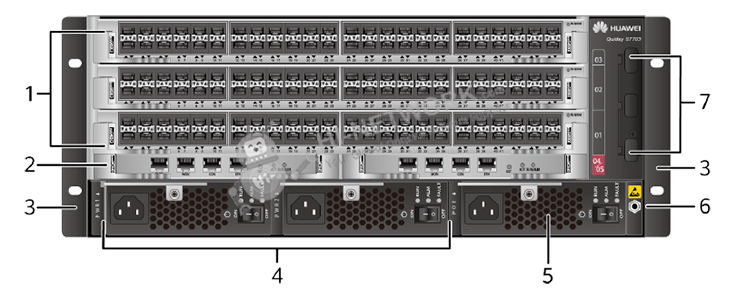

Figure 2 shows the S7703 chassis structure (front view).

front-structure-s7703-datasheet

Note:

(1)

Three of the following service cards can be installed:
● Value-Added Service Unit
● Open Service Platform Unit
● 100M Interface Card
● 1000M Interface Card
● GE/10GE Interface Card
● 10GE Interface Card
● 40GE Interface Card
● 40GE/100GE Interface Card
● 100GE Interface Card

(2)

Two MPUs

(3)

A pair of mounting brackets

(4)

Two power modules

(5)

One PoE power modules
● 2200 W AC Power Module
● 800 W AC Power Module
● 2200 W DC Power Module (Supported in V200R006C00 and later versions)
● 3000 W AC Power Module (Supported in V200R012C00 and later versions)

(6)

Front ESD jack

(7)

Cable management frames

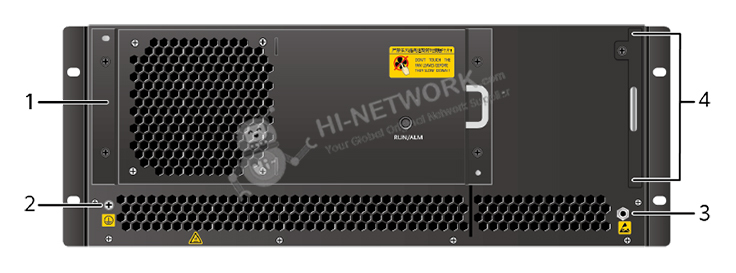

Figure 3 shows the S7703 chassis structure (rear view).

rear-structure-s7703-datasheet


Note:

(1)

One Fan Module

(3)

Rear ESD jack

(2)

Ground screw

(4)

Air filter


The Modules, Cards


Table 2 shows the recommended elements.

Model

Description

FE-SFP optical transceiver

SFP-FE-SX-MM1310

Optical Transceiver, SFP, 100M/155M, Multi-mode Module (1310nm, 2km, LC)

eSFP-FE-LX-SM1310

Optical Transceiver, eSFP, 100M/155M, Single-mode Module (1310nm, 15km, LC)

S-SFP-FE-LH40-SM1310

Optical Transceiver, eSFP, FE, Single-mode Module (1310nm, 40km, LC)

GE-SFP optical transceiver

eSFP-GE-SX-MM850

Optical Transceiver, eSFP, GE, Multi-mode Module (850nm, 0.55km, LC)

SFP-GE-LX-SM1310

Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC)

S-SFP-GE-LH40-SM1310

Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 40km, LC)

S-SFP-GE-LH40-SM1550

Optical Transceiver, eSFP, GE, Single-mode Module (1550nm, 40km, LC)

10G-SFP+ optical transceiver

SFP-10G-USR

10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module (850nm, 0.1km, LC)

OMXD30000

Optical Transceiver, SFP+, 10G, Multi-mode Module (850nm, 0.3km, LC)

OSX010000

Optical Transceiver, SFP+, 10G, Single-mode Module (1310nm, 10km, LC)

40GE CFP optical transceiver

CFP-40G-SR4

High Speed Transceiver CFP-40G-SR4, CFP, 40G, Multimode Module (850nm, 4*10G, 0.1km, MPO)

CFP-40G-LR4

High Speed Transceiver, CFP, 40G, Single-mode Module (1310nm band, 41.25G, 10km, stright LC)

CFP-40G-ER4

High Speed Transceiver, CFP, 40G, Single-mode Module (1310nm band, 41.25G, 40km, stright LC)

40GE QSFP+ optical transceiver

QSFP-40G-eSR4

40GBase-eSR4 Optical Transceiver, QSFP+, 40G, Multi-mode (850nm, 0.3km, MPO) (Connect to four SFP+ Optical Transceiver)

QSFP-40G-ER4

40GBase-ER4 Optical Transceiver, QSFP+, 40G, Single-mode Module (1310nm, 40km, LC)

100GE CFP optical transceiver

CFP-100G-SR10

High Speed Transceiver, CFP, 100G, Multimode Module (850nm, 10*10G, 0.1km, MPO)

CFP-100G-LR4

CFP, 100G, Single-mode Module (1310nm band, 4*25G, 10km, stright LC)

CFP-100G-ER4

High Speed Transceiver, CFP, 100G, Single-mode Module (1310nm band, 4*25G, 40km, stright LC)

GE copper transceiver

SFP-1000BaseT

Electrical Transceiver, SFP, GE, Electrical Interface Module (100m, RJ45)

100GE interface card

ET1D2C02FEE0

2-Port 100GBASE-X Interface Card (EE, CFP) ET1D2C02FEE0series)

10GE interface card

ET1D2X32SSC0

32-Port 10GBASE-X Interface Card (SC, SFP+)

ET1D2X12SSA0

12-Port 10GBASE-X Interface Card (SA, SFP+)

40GE interface card

ET1D2L08QSC0

8-Port 40GBASE-X Interface Card (SC, QSFP+)

ET1D2L02QSC0

2-Port 40GBASE-X Interface Card (SC, QSFP+)

Centralized monitoring unit

EH1D200CMU00

Centralized Monitoring Board

Cluster switching system unit

EH1D2VS08000

8-Port 10G Cluster Switching System Service Unit (SFP+)

Firewall module

ET1D2FW00S02

NGFW Module C, with HW General Security Platform Software

ET1D2FW00S01

NGFW Module B, with HW General Security Platform Software

GE/10GE interface card

ET1D2S08SX1E

8-Port 10GBASE-X and 8-Port 100/1000BASE-X and 8-Port 10/100/1000BASE-T Combo Interface Card (X1E, RJ45/SFP/SFP+)

ET1D2S04SX1E

4-Port 10GBASE-X and 24-Port 100/1000BASE-X and 8-Port 10/100/1000BASE-T Combo Interface Card (X1E, RJ45/SFP/SFP+)

Intrusion prevention system module

ET1D2IPS0S00

IPS Module A, with HW General Security Platform Software

Main processing unit

ET1D2MPUA000

S12708/S12712, Main Processing Unit A (Optional clock)

Switch fabric unit

ET1D2SFUD000

S12708/S12712, Switch Fabric Unit D

ET1D2SFUA000

S12708/S12712, Switch Fabric Unit A

Wireless access controller unit

ACU2

WLAN ACU2 Access Controller Unit (128 AP Control Resource Included)

GE interface card

ET1D2T36SEA0

36-Port 10/100/1000BASE-T and 12-Port 100/1000BASE-X Interface Card (EA, RJ45/SFP)

ET1D2G48SX1E

48-Port 100/1000BASE-X Interface Card (X1E, SFP)


Compare to Similar Items


Table 3 shows the comparison of S7703 and S7712 PoE.

Model

S7703

S7712 PoE

Part Number

02113304

02113308

Product Code

ES0B00770300

ES0B017712P0

Forwarding Performance

1,440 Mpps

2,880 Mpps

Switching Capacity

1.92 Tbit/s

3.84 Tbit/s

Service Slots

3

12

Redundancy Design

Supervisors, Power modules, CMUs, Fans trays

Supervisors, Power modules, CMUs, Fans trays

MPU Slots

2

2

LPU slots

3

12

System power supply slots

2

4

Fan slots

1

4

PoE power supply slots

1

4

Maximum PoE Power

2,200W

8,800W

Maximum power consumption (fully loaded)

1000 W

4200 W


Get More Information


Do you have any question about the S7703 (02113304)?

Contact us now via [email protected].



Specific Data Sheet:


S7703 Specification

Basic Information

Model

S7703

Part Number

02113304

Description

S7703 Assembly Chassis

First supported version

V100R003C01

Technical Specifications

Dimensions without packaging (H x W x D) [mm(in.)]

- With cable management frames: 175 mm x 442 mm x 585 mm (6.89 in. x 17.40 in. x 23.03 in.)
- Without cable management frames: 175 mm x 442 mm x 517.4 mm (6.89 in. x 17.40 in. x 20.37 in.)

Chassis height [U]

4

Cabinet installation standards

N66E/N68E

Weight without packaging [kg(lb)]

10 kg (22.05 lb)

Weight without packaging (full configuration) [kg(lb)]

31.6

Maximum power consumption [W]

1000

Maximum heat dissipation [BTU/hour]

3412.1

MTBF [year]

33.8

MTTR [hour]

2

Availability

0.9999964

Noise at normal temperature (acoustic power) [dB(A)]

≤ 72

Number of MPU slots

2

Number of SFU slots

NA

Number of service board slots

3

Number of power slots

3

Number of system power slots

2

Number of PoE power slots

1

Number of fans modules

1

LPU slot direction

Horizontal

Redundant MPUs

The control units can work in hot standby mode.

Redundant CMUs

Not supported

Redundant power supply

System power supply area: 2 (1:1)
PoE power supply area: 1 (no backup)

Redundant fans

1 fan tray

Long-term operating temperature [°C(°F)]

0°C to +45°C (32°F to 113°F) at an altitude of -60 m to +1800 m (-197 ft. to 5906 ft.)

Restriction on the operating temperature variation rate [°C(°F)]

When the altitude is 1800-4000 m (5906-13123 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).

Storage temperature [°C(°F)]

-40°C to +70°C (-40°F to +158°F)

Long-term operating relative humidity [RH]

5% to 95%, noncondensing

Long-term operating altitude [m(ft.)]

-60 m to + 4000 m (-197 ft. to 13123 ft.)

Storage altitude [m(ft.)]

< 5000 m (16404 ft.)

Rated input voltage [V]

- DC input: –48 V DC or –60 V DC
- AC input: 110 V AC/220 V AC, 50/60 Hz
- High-voltage DC input (3000 W AC power module): 240 V DC

Input voltage range [V]

- DC input:
1600 W DC power module: -38.4 V DC to -72 V DC
2200 W DC power module: -40 V DC to -72 V DC
- AC input:
90 V AC to 290 V AC, 47 Hz to 63 Hz (The maximum output power reduces by a half when the input voltage ranges from 90 V AC to 175 V AC.)
- High-voltage DC input (3000 W AC power module): 190 V DC to 290 V DC

Power supply surge protection [kV]

- 800 W AC power module, AC power port: ±4 kV in common mode and ±2 kV in differential mode
- 2200 W AC power module, AC power port: ±4 kV in common mode and ±2 kV in differential mode
- 3000 W AC power module, AC power port: ±6 kV in common mode and ±6 kV in differential mode
- 2200 W DC power module, DC power port: ±4 kV in common mode and ±2 kV in differential mode
- 1600 W DC power module, DC power port: ±2 kV in common mode and ±1 kV in differential mode

Heat dissipation mode

Absorb air

Airflow direction

Left-to-right back airflow

PoE

Supported

Relationship between PoE and system power modules [W]

PoE power modules are independent from system power modules

Maximum PoE output power per slot [W]

Versions earlier than V200R013C00: 1440 W
V200R013C00 and later versions: 1776 W

Maximum number of PoE ports per slot

48

Maximum PoE output power [W]

3000W

Maximum power output capability (including the system power output and PoE power output) [W]

System power supply area:
2*800 W AC: 800 W (220 V input);
400 W (110 V input)
2*2200 W AC: 2200 W (220 V input);
1100 W (110 V input)
2*3000 W AC: 3000 W (220 V input);
1500 W (110 V input)
2*2200 W DC: 2200 W
PoE power supply area:
1*800 W AC: 800 W (220 V input);
400 W (110 V input)
1*2200 W AC: 2200 W (220 V input);
1100 W (110 V input)
1*3000 W AC: 3000 W (220 V input);
1500 W (110 V input)
1*2200 W DC: 2200 W

Certification

EMC certification
Safety certification
Manufacturing certification


Customer Reviews

5
4.7
(36 reviews)
5 Stars
4
4 Stars
0
3 Stars
0
2 Stars
0
1 Stars
0
Posted on 06/16/2020
Verified Buyer
4.8
item is as expected

Do you have other questions or feedback? You may write here:

*Question:
*Use your name:
*Email:

What is Guaranteed.

After receiving your order, take a full month to try it out. If you find quality is not good , we'll take it back and refund your money. Your complete satisfaction is GUARANTEED or your money back. That's guaranteed.


After your order items which are available. We will use most fast delivery way to global countries. Normally we will ship out cargos during 3 -5 days. And international delivery will take about 3- 10 days according to your location.


Service Never Ends.

Hardwares Warrany Time:

Original New Sealed Hardware: 3 Years
Refurbished/Used Original Devices: 1 Year

After warranty time, you also can contact us to return back for repair service. Everything you purchase from HI-NETWORK.COM. We will offer lifetime online service support for your any possible questions.


Resources Downloads

Support and Resources

Related Products

Copyright © 2014-2024 Hi-Network.com | HAILIAN TECHNOLOGY CO., LIMITED | All Rights Reserved.
