Huawei Switch S7712 (02113306)


ES0B00771200 is the Huawei S7712 Assembly Chassis. The S7700 series switches (S7700 for short) are high-end smart routing switches designed for next-generation enterprise networks. The S7700 design is based on Huawei’s intelligent multi-layer switching technology to provide intelligent service optimization methods, such as MPLS VPN, traffic analysis, comprehensive HQoS policies, controllable multicast, load balancing, and security, in addition to high-performance Layer 2 to Layer 4 switching services. The S7700 also features super scalability and reliability.



Quick Specification


Table 1 shows the quick specification.

Model

S7712

Part Number

02113306

Product Code

ES0B00771200

Forwarding Performance

3480 Mpps

Switching Capacity

4.64 Tbps

Service Slots

12

Redundancy Design

Supervisors, Power modules, CMUs, Fans trays

MPU Slots

2

LPU slots

12

System power supply slots

4

Fan slots

4

PoE power supply slots

4

Maximum PoE Power

8,800 W

Maximum power consumption (fully loaded)

4200 W

Working Voltage

DC: –38.4V to –72V
AC: 90V to 290V

Dimensions (W x D x H, excluding rack-mounting brackets)

With cable management frames (15 U high): 663.9 mm x 442 mm x 585 mm (26.1 in. x 17.4 in. x 23.0 in.)

Without cable management frames (15 U high): 663.9 mm x 442 mm x 517.4 mm (26.1 in. x 17.4 in. x 20.37 in.)

Weight (empty/fully loaded)

25 kg/97 kg (55.1 lb/213.8 lb)

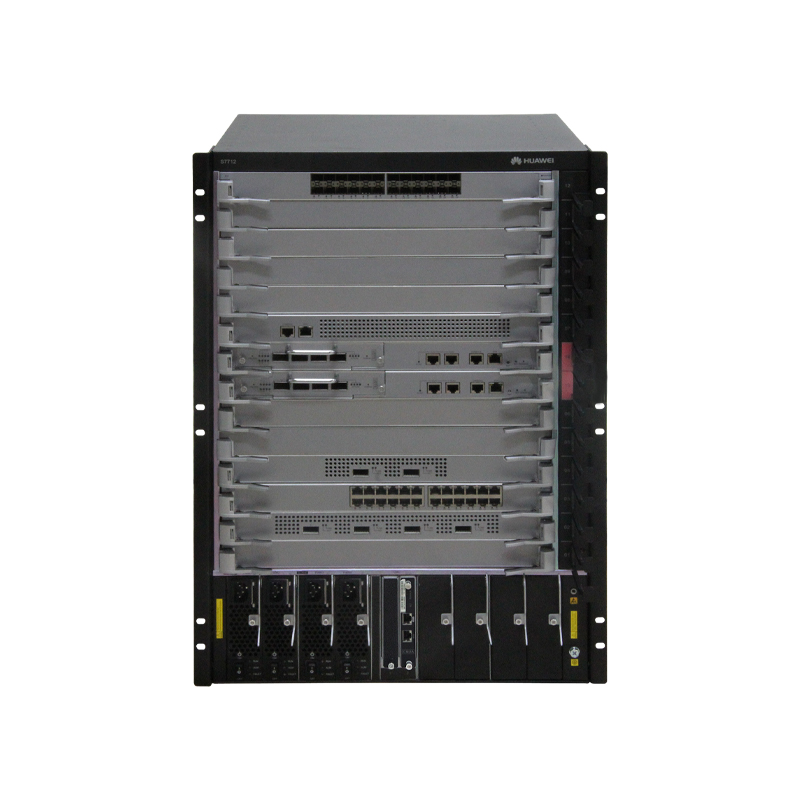

Figure 1 shows the S7712 chassis appearance.


appearance-s7712-datasheet


Product Details

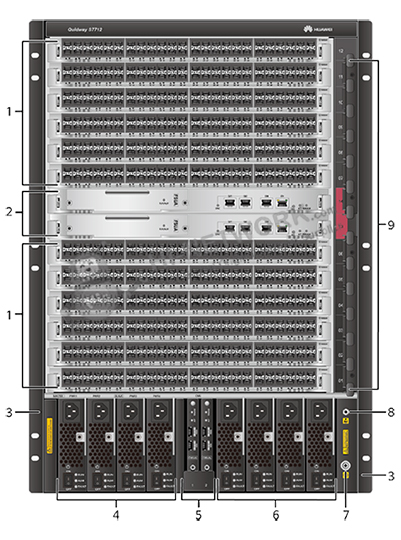

Figure 2 shows the S7712 chassis structure (front view).

front-structure-s7712-datasheet

Note:

(1)

Twelve of the following service cards can be installed:

● Value-Added Service Unit

● Open Service Platform Unit

● 100M Interface Card

● 1000M Interface Card

● GE/10GE Interface Card

● 10GE Interface Card

● 40GE Interface Card

● 40GE/100GE Interface Card

● 100GE Interface Card

(2)

Two MPUs

(3)

A pair of mounting brackets

(4)

Four power modules

(5)

Two EH1D200CMU00-Centralized Monitoring Unit

(6)

Four PoE power module

● 2200 W AC Power Module

● 800 W AC Power Module

● 2200 W DC Power Module (Supported in V200R006C00 and later versions)

● 3000 W AC Power Module (Supported in V200R012C00 and later versions)

(7)

Ground screw

(8)

Front ESD jack

(9)

Cable management frames

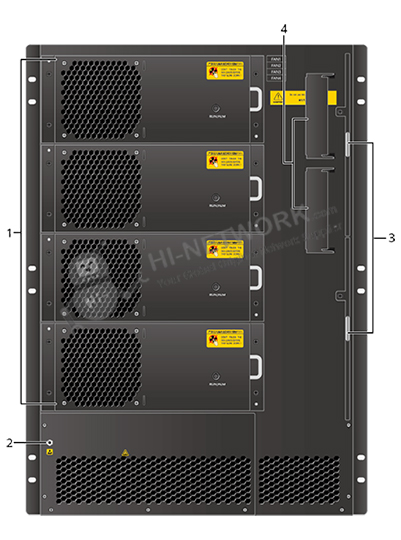

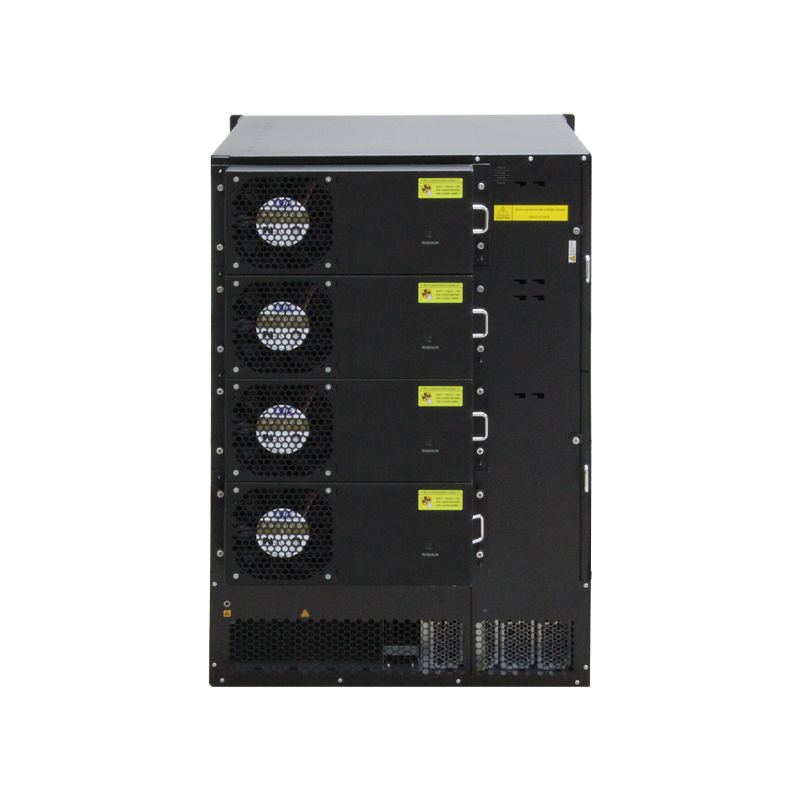

Figure 3 shows the S7712 chassis structure (rear view).

rear-structure-s7712-datasheet


Note:

(1)

Four Fan Module

(3)

Air filter

(2)

Rear ESD jack

(4)

A pair of removable handles


Get More Information


Do you have any question about the S7712 (02113306)?

Contact us now via [email protected].



Specific Data Sheet:


S7712 Specification

Model

S7712

Part Number

02113306

Product Code

ES0B00771200

Description

S7712 Assembly Chassis

First supported version

V100R003C01

Dimensions without packaging (H x W x D) [mm(in.)]

- With cable management frames: 663.9 mm x 442 mm x 585 mm (26.14 in. x 17.40 in. x 23.03 in.)

- Without cable management frames: 663.9 mm x 442 mm x 517.4 mm (26.14 in. x 17.40 in. x 20.37 in.)

Chassis height [U]

15

Cabinet installation standards

N66E/N68E

Weight without packaging [kg(lb)]

25 kg (55.12 lb)

Weight without packaging (full configuration) [kg(lb)]

97

Maximum power consumption [W]

4200

Maximum heat dissipation [BTU/hour]

14330.82

MTBF [year]

24.1

MTTR [hour]

2

Availability

0.9999959

Noise at normal temperature (acoustic power) [dB(A)]

≤ 72

Number of MPU slots

2

Number of SFU slots

NA

Number of service board slots

12

Number of power slots

8

Number of system power slots

4

Number of PoE power slots

4

Number of fans modules

4

LPU slot direction

Horizontal

Redundant MPUs

The control unit works in hot standby mode, and the switching unit works in 1 + 1 load sharing mode.

Redundant CMUs

Active-standby redundancy

Redundant power supply

System power supply area: 4 (2:2)

PoE power supply area: 4(M+N)/PoE switch

0/non-PoE switch
