Huawei Main Control Unit LSS7SRUHX101 (03034HXQ, 03034HXQ-001) for S7706/S7712

LSS7SRUHX101 is the Huawei S7706/S7712 Main Control Unit. The LSS7SRUHX101 can be installed in: Slots 07 and 08 in an S7706 chassis, Slots 13 and 14 in an S7712 chassis.

Quick Specification

Table 1 shows the quick specification.

Model	LSS7SRUHX101
Part Number	03034HXQ, 03034HXQ-001
Description	S7706/S7712 main control unit H (X1)
Basic functions	Huawei S7706/S7712 Main Control Unit
Memory	4 GB (not expandable)
Storage	NAND flash: 2 GB, built-in
Dimensions without packaging (H x W x D) [mm(in.)]	35.1 mm x 397.2 mm x 430.4 mm (1.38 in. x 15.64 in. x 16.94 in.)
Dimensions with packaging (H x W x D) [mm(in.)]	160.0 mm x 510.0 mm x 570.0 mm (6.30 in. x 20.08 in. x 22.44 in.)
Weight without packaging [kg(lb)]	3.20 (7.05)
Weight with packaging [kg(lb)]	4.35 (9.59)
Maximum power consumption [W]	105

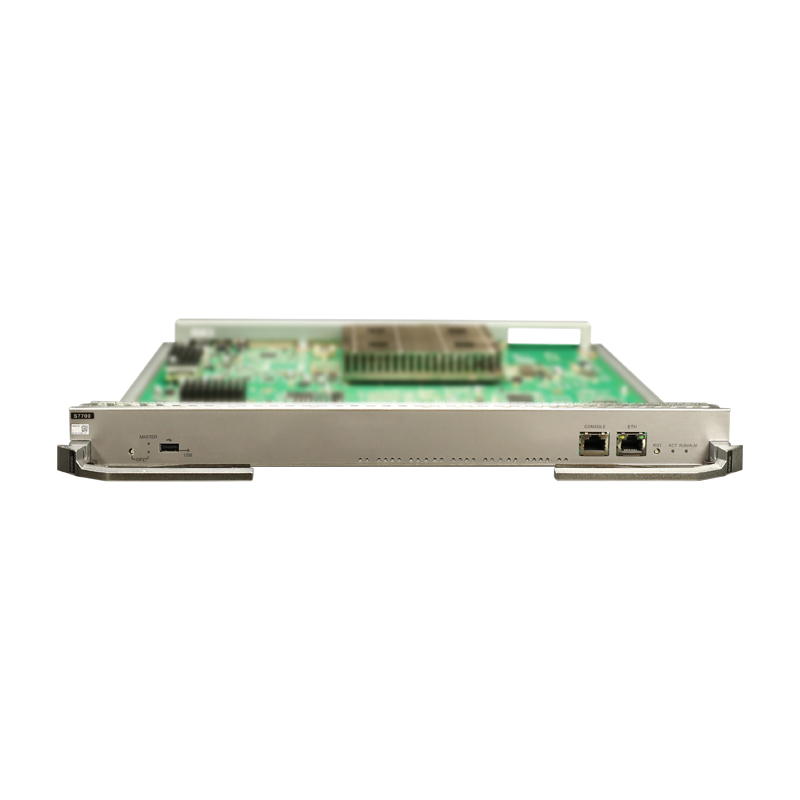

Figure 1 shows the appearance of LSS7SRUHX101.

front-lss7sruhx101-datasheet

Product Details

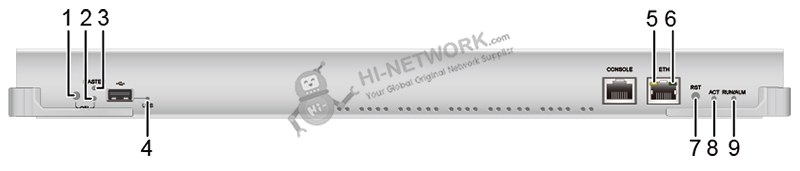

Figure 2 show the indicators and buttons on the LSS7SRUHX101 panel.

indicators-lss7sruhx101-datasheet

Note:

(1)	OFL button	(6)	LINK indicator of the ETH port
(2)	OFL indicator	(7)	RST button
(3)	MASTER: master/standby status indicator	(8)	ACT: active/standby status indicator
(4)	USB indicator	(9)	RUN/ALM: running status indicator
(5)	ACT indicator of the ETH port

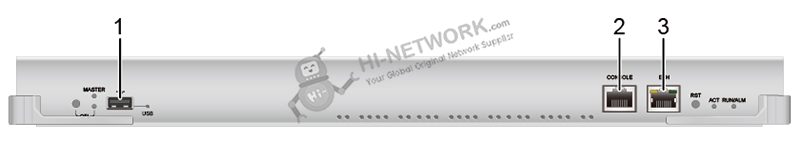

Figure 3 show the ports on the LSS7SRUHX101 panel.

ports-lss7sruhx101-datasheet

Note:

(1)	One USB port	(3)	One ETH management port
(2)	One console port

Get more information

Do you have any question about the LSS7SRUHX101 (03034HXQ, 03034HXQ-001)?

Specific Data Sheet:

LSS7SRUHX101 Specification
Basic Information
Model	LSS7SRUHX101
Part Number	03034HXQ, 03034HXQ-001
Description	S7706/S7712 main control unit H (X1)
Level-1 category	MPU
Technical Specifications
Dimensions without packaging (H x W x D) [mm(in.)]	35.1 mm x 397.2 mm x 430.4 mm (1.38 in. x 15.64 in. x 16.94 in.)
Dimensions with packaging (H x W x D) [mm(in.)]	160.0 mm x 510.0 mm x 570.0 mm (6.30 in. x 20.08 in. x 22.44 in.)
Weight without packaging [kg(lb)]	3.20 (7.05)
Weight with packaging [kg(lb)]	4.35 (9.59)
Typical power consumption [W]	103
Typical heat dissipation [BTU/hour]	351.45
Maximum power consumption [W]	105
Maximum heat dissipation [BTU/hour]	358.27
Memory	4 GB (not expandable)
Storage	NAND flash: 2 GB, built-in
