Model

S7706

Part Number

02113305

Product Code

ES0B00770600

Description

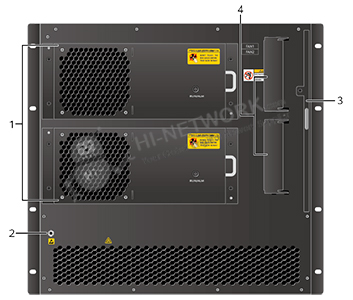

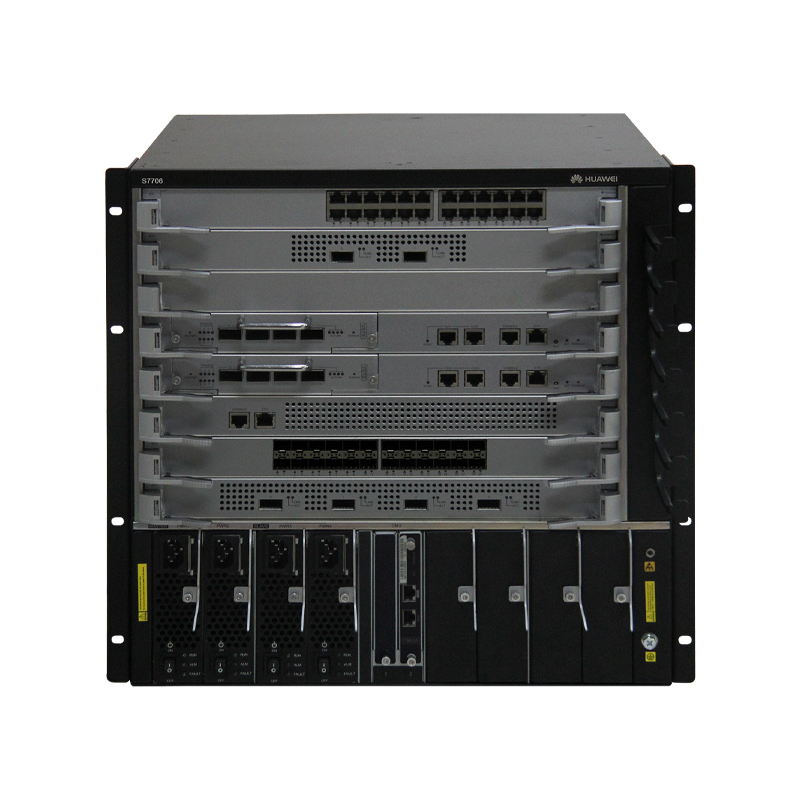

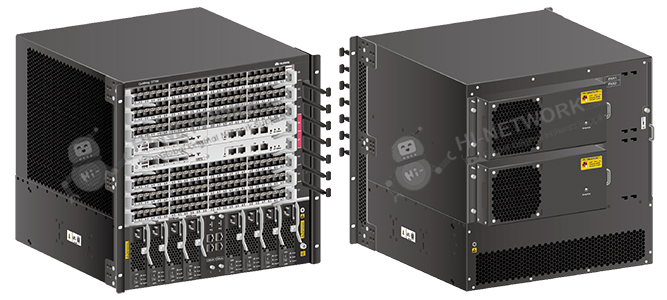

S7706 Assembly Chassis

First supported version

V100R003C01

Dimensions without packaging (H x W x D) [mm(in.)]

- With cable management frames: 441.7 mm x 442 mm x 585 mm (17.39 in. x 17.40 in. x 23.03 in.)
- Without cable management frames: 441.7 mm x 442 mm x 517.4 mm (17.39 in. x 17.40 in. x 20.37 in.)

Chassis height [U]

10

Cabinet installation standards

N66E/N68E

Weight without packaging [kg(lb)]

15 kg (33.07 lb)

Weight without packaging (full configuration) [kg(lb)]

61.8

Maximum power consumption [W]

2200

Maximum heat dissipation [BTU/hour]

7506.62

MTBF [year]

24.2

MTTR [hour]

2

Availability

0.9999959

Noise at normal temperature (acoustic power) [dB(A)]

≤ 72

Number of MPU slots

2

Number of SFU slots

NA

Number of service board slots

6

Number of power slots

8

Number of system power slots

4

Number of PoE power slots

4

Number of fans modules

2

LPU slot direction

Horizontal

Redundant MPUs

The control unit works in hot standby mode, and the switching unit works in 1 + 1 load sharing mode.

Redundant CMUs

Active-standby redundancy

Redundant power supply

System power supply area: 4 (2:2)
PoE power supply area: 4(M+N)/PoE switch
0/non-PoE switch

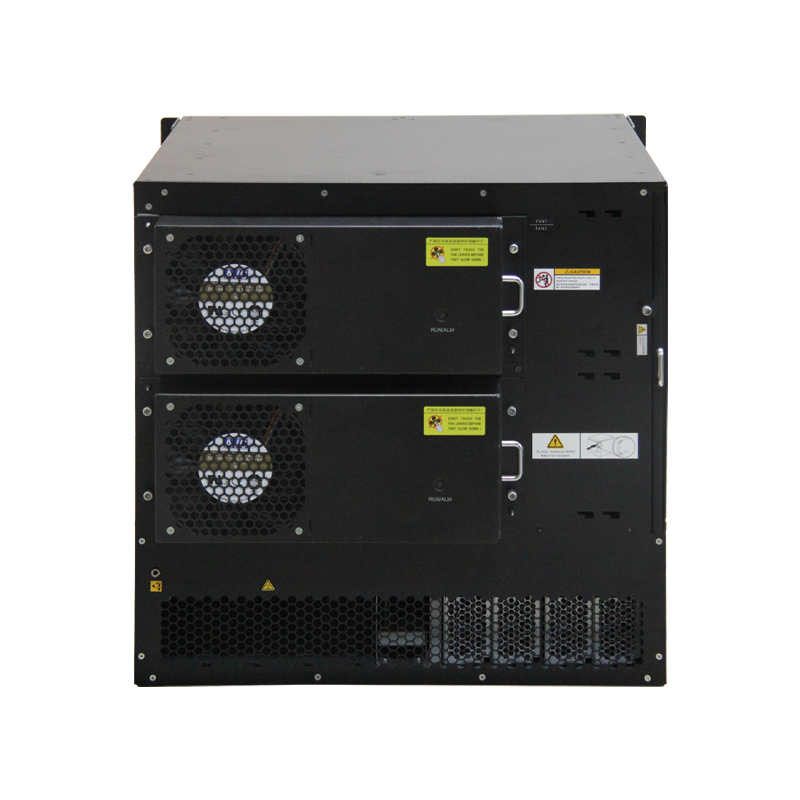

Redundant fans

2 fan trays

Long-term operating temperature [°C(°F)]

0°C to +45°C (32°F to 113°F) at an altitude of -60 m to +1800 m (-197 ft. to 5906 ft.)

Restriction on the operating temperature variation rate [°C(°F)]

When the altitude is 1800-4000 m (5906-13123 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).

Storage temperature [°C(°F)]

-40°C to +70°C (-40°F to +158°F)

Long-term operating relative humidity [RH]

5% to 95%, noncondensing

Long-term operating altitude [m(ft.)]

-60 m to + 4000 m (-197 ft. to 13123 ft.)

Storage altitude [m(ft.)]

< 5000 m (16404 ft.)

Rated input voltage [V]

- DC input: –48 V DC or –60 V DC
- AC input: 110 V AC/220 V AC, 50/60 Hz
- High-voltage DC input (3000 W AC power module): 240 V DC

Input voltage range [V]

- DC input:
1600 W DC power module: -38.4 V DC to -72 V DC
2200 W DC power module: -40 V DC to -72 V DC
- AC input:
90 V AC to 290 V AC, 47 Hz to 63 Hz (The maximum output power reduces by a half when the input voltage ranges from 90 V AC to 175 V AC.)
- High-voltage DC input (3000 W AC power module): 190 V DC to 290 V DC

Power supply surge protection [kV]

- 800 W AC power module, AC power port: ±4 kV in common mode and ±2 kV in differential mode
- 2200 W AC power module, AC power port: ±4 kV in common mode and ±2 kV in differential mode
- 3000 W AC power module, AC power port: ±6 kV in common mode and ±6 kV in differential mode
- 2200 W DC power module, DC power port: ±4 kV in common mode and ±2 kV in differential mode
- 1600 W DC power module, DC power port: ±2 kV in common mode and ±1 kV in differential mode

Heat dissipation mode

Absorb air

Airflow direction

Left-to-right back airflow

PoE

Supported

Relationship between PoE and system power modules [W]

PoE power modules are independent from system power modules

Maximum PoE output power per slot [W]

PoE chassis:
Versions earlier than V200R013C00: 1440 W
V200R013C00 and later versions: 1776 W
Non-PoE chassis: 0 W

Maximum number of PoE ports per slot

48

Maximum PoE output power [W]

PoE switch: 9000 W
Non-PoE switch: 0 W

Maximum power output capability (including the system power output and PoE power output) [W]

System power supply area:
4*800 W AC: 1600 W (220 V input);
800 W (110 V input)
4*2200 W AC: 4400 W (220 V input);
2200 W (110 V input)
4*3000 W AC: 4400 W (220 V input);
3000 W (110 V input)
4*2200 W DC: 4400 W
PoE power supply area:
4*800 W AC: 3200 W (220 V input);
1600 W (110 V input)
4*2200 W AC: 8800 W (220 V input);
4400 W (110 V input)
4*3000 W AC: 9000 W (220 V input);
6000 W (110 V input)
4*2200 W DC: 8800 W

Certification

EMC certification
Safety certification
Manufacturing certification
