Part Number

03030XYD

Model

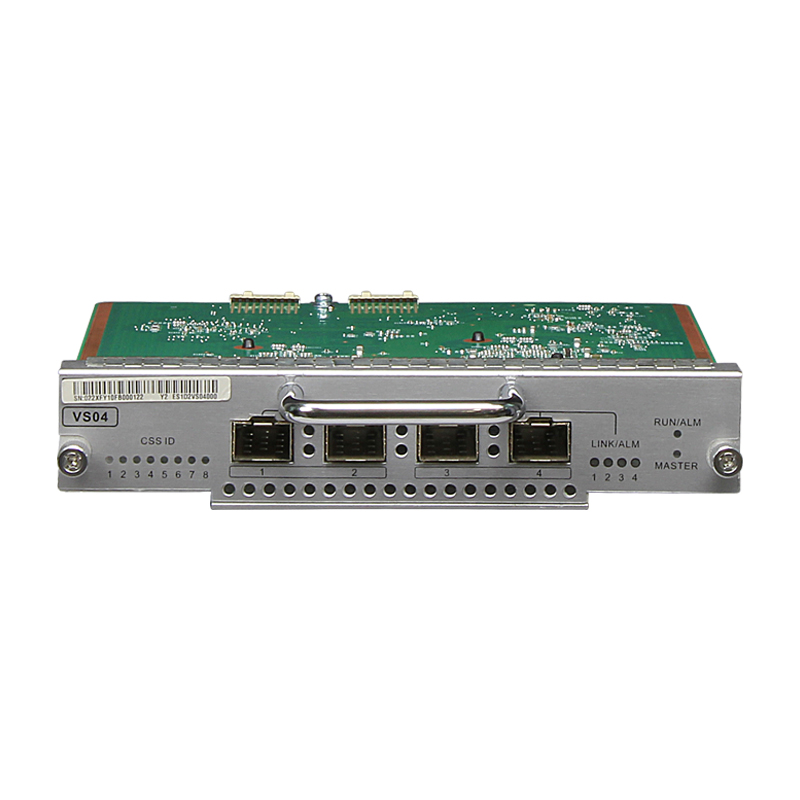

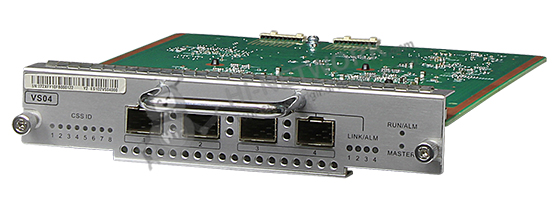

4-Port 10G Cluster Switching System Service Unit (SFP+, for SRUE/SRUH)

Dimensions without packaging (H x W x D) [mm(in.)]

35.1 mm x 213.0 mm x 151.8 mm (1.38 in. x 8.39 in. x 5.98 in.)

Weight without packaging [kg(lb)]

0.34

Maximum power consumption [W]

12

(1)

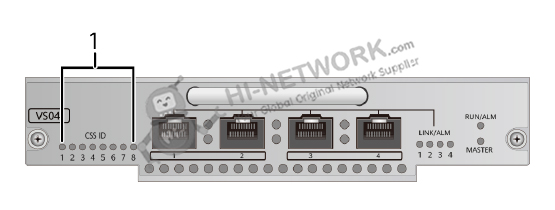

CSS ID: CSS ID indicator

Green

The indicator that is steady on shows the CSS ID of the local switch in a cluster. For example, if indicator 1 is steady on, the CSS ID of the switch is 1.

(2)

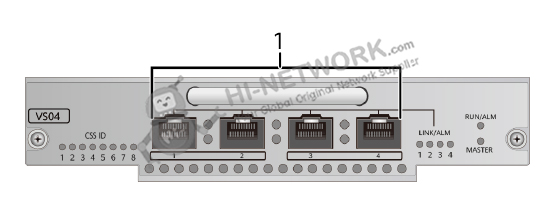

LINK/ALM

Green

Steady on: The corresponding CSS port is in link-Up state.

Red

Steady on: The port is incorrectly connected or an exception occurs on the port.

-

Off: The CSS port is in link-Down state.

(3)

RUN/ALM: running status indicator

Green

Steady on: The card is powered on. If the indicator is steady green for no more than 30 seconds, the CPU is being started. If the indicator is steady green for more than 30 seconds, the software is not running.
Slow blinking: The card software is running properly.
Fast blinking: The card software is starting.

Red

Steady on: The card has failed and the fault requires manual intervention.

Yellow

Steady on: The card is powered off.

(4)

MASTER: master/standby status indicator

Green

Steady on: The main control unit with this CSS card installed is the active main control unit of the cluster.
Off: The main control unit with this CSS card installed is not the active main control unit of the cluster.
