Huawei Switch S5700S-52P-LI-AC (02353835)


The S5700S-52P-LI-AC gigabit enterprise switch is next-generation energy-saving switch developed by Huawei. With 48 Ethernet ports, 4 GE SFP ports, it provides a large switching capacity and high-density GE ports to implement 10 Gbit/s upstream transmissions, widely used in various application scenarios like enterprise park access, convergence, gigabit access of data center application scenarios. Using advanced energy conservation technology, the S5700S-52P-LI-AC is dedicated to helping enterprise customers build a reliable and secure next-generation IT network.



Quick Specification


Table 1 shows the quick specification.

Model

S5700S-52P-LI-AC

Part Number

02353835

Fixed Ports

48 x 10/100/1,000 Base-T Ethernet ports, 4 x GE SFP ports

MAC Address Table Size

16 MAC

Voltage Required

AC:
Rated voltage range: 100V to 240V AC, 50/60 Hz
Maximum voltage range: 90V to 264V AC, 47/63 Hz

Power Device

AC power supply, supporting RPS

Power Consumption Operational

 < 48.4W

Forwarding Performance

78 Mpps

Switching Capacity

256 Gbit/s

Dimensions (W x D x H)

442 mm x 310 mm x 43.6 mm

Weight

4.7 kg

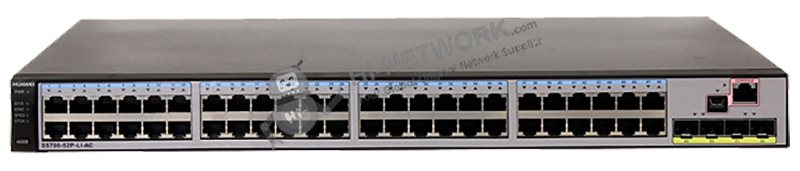

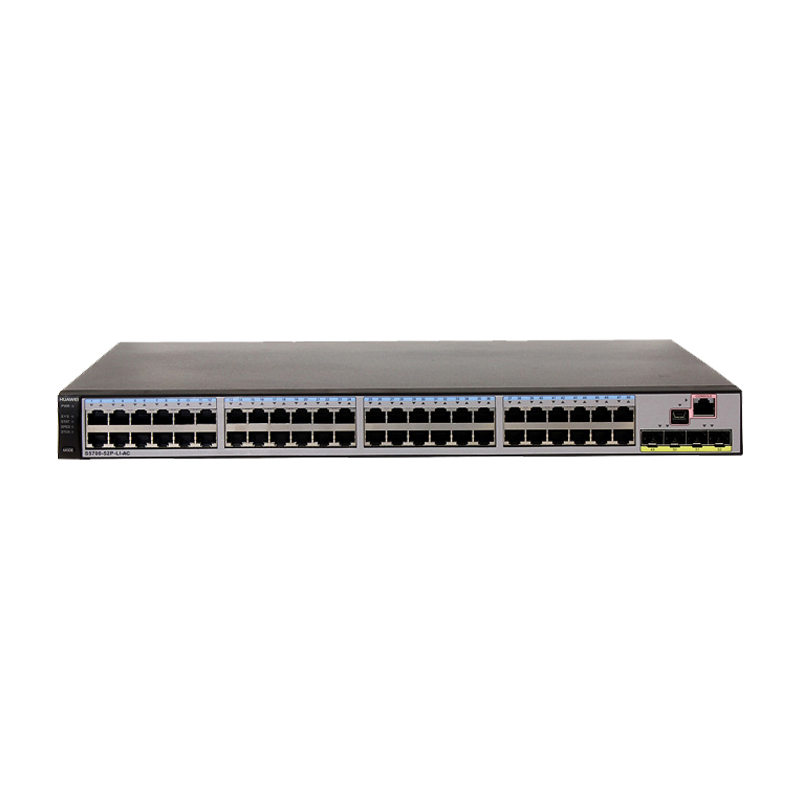

Figure 1 shows the appearance of S5700S-52P-LI-AC.


front-s5700s-52p-li-ac-datasheet

Product Details

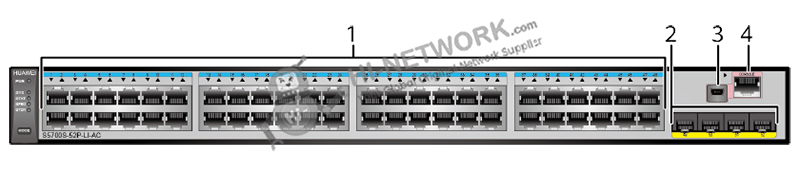

Figure 2 shows the front panel of S5700S-52P-LI-AC.

front-panel-s5700s-52p-li-ac-datasheet

Note:

(1)

Forty-eight 10/100/1000BASE-T ports

(3)

One mini USB port

(2)

Four 1000BASE-X ports

(4)

One console port

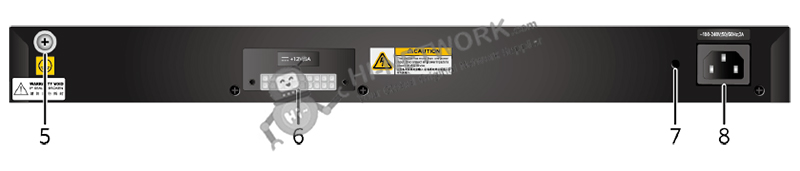

Figure 3 shows the back panel of S5700S-52P-LI-AC.

back-panel-s5700s-52p-li-ac-datasheet

Note:

(5)

Ground screw

(7)

Jack for AC power cable locking strap

(6)

RPS socket

(8)

AC socket

* The ground screw is used with a ground cable.

*RPS socket is used with an RPS cable, which is not hot swappable.

*The AC terminal locking latch is not delivered with the switch.

*AC socket is used with an AC power cable.


Optical Modules


Table 2 shows the recommended optical modules.

Model

Description

GE-SFP Optical Transceiver

eSFP-GE-SX-MM850

Optical Transceiver, eSFP, GE, Multi-mode Module (850nm, 0.55km, LC)

SFP-GE-LX-SM1310

Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC)

S-SFP-GE-LH40-SM1310

Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 40km, LC)

S-SFP-GE-LH40-SM1550

Optical Transceiver, eSFP, GE, Single-mode Module (1550nm, 40km, LC)

GE copper transceiver

SFP-1000BaseT

Electrical Transceiver, SFP, GE, Electrical Interface Module (100m, RJ45)


Compare to Similar Items


Table 3 shows the comparison of Huawei S5700S-52P-LI-AC and S5700-52P-PWR-LI-AC.

Models

S5700S-52P-LI-AC

S5700-52P-PWR-LI-AC

Fixed Ports

48 x 10/100/1,000 Base-T Ethernet ports, 4 x GE SFP ports

48 x 10/100/1,000 Base-T Ethernet ports, 4 x GE SFP ports

Power Supply

AC

AC

PoE

Not supported

Supported

Forwarding Performance

78 Mpps

78 Mpps

Switching Capacity

256 Gbit/s

256 Gbit/s

Power Consumption

< 48.4W

< 464.5W (PoE: 370W)


Get More Information


Do you have any question about the S5700S-52P-LI-AC (02353835)?

Contact us now via [email protected].

Specific Data Sheet:


S5700S-52P-LI-AC Specification

MAC address table

IEEE 802.1d compliance

MAC address learning and aging

Static, dynamic, and blackhole MAC address entries

Packet filtering based on source MAC addresses

MAC address entries:

S5700S-LI series: 8K, S5700-LI/S5700-SI series: 16K, S5700-EI series: 32K, S5720-EI series: 64K, S5700-HI series: S5700-HI: 32K, S5710-HI: 456K, S5720-HI: 128K

VLAN

4K VLANs

Guest VLAN and voice VLAN

GVRP

MUX VLAN

VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports

1:1 and N:1 VLAN Mapping

SuperVLAN (supported by the S5700-SI/S5700-EI/S5700-HI series)

Ring protection

RRPP ring topology and RRPP multi-instance

Smart Link tree topology and Smart Link multi-instance, providing the millisecond-level protection switchover

SEP

ERPS (G.8032) (supported by the S5700-LI/S5700-SI/S5700-EI/S5700-HI series)

STP, RSTP, and MSTP

BPDU protection, root protection, and loop protection

BPDU Tunnel

Reliability

Ethernet OAM (IEEE 802.3ah and 802.1ag)

ITU-Y.1731

DLDP

LACP

E-Trunk (supported by the S5700-SI/S5700-EI/S5700-HI series)

BFD for OSPF, BFD for IS-IS, BFD for VRRP, and BFD for PIM (supported by the S5700-EI/S5700-HI series)

MPLS features

MPLS L3VPN

MPLS L2VPN(VPWS/VPLS)

MPLS-TE

MPLS QoS

Notes: supported by S5710-EI, S5700-HI and S5710-HI

IP routing

Static routing

RIPv1, RIPv2 and RIPng, ECMP (supported by the S5700-SI/S5700-EI/S5700-HI series)

OSPF, OSPFv3, IS-IS, IS-ISv6, BGP and BGP4+ (supported by the S5700-EI/S5700-HI series)

IPv6 features

Neighbor Discovery (ND)

Path MTU (PMTU)

IPv6 ping, IPv6 tracert, and IPv6 Telnet

ACLs based on the source IPv6 address, destination IPv6 address, Layer 4 ports, or protocol type

MLD v1/v2 snooping

6to4 tunnel, ISATAP tunnel, and manually configured tunnel (supported by the S5700-SI/S5700-EI/S5700-HI series)

Multicast

IGMP v1/v2/v3 snooping and IGMP fast leave

Multicast forwarding in a VLAN and multicast replication between VLANs

Multicast load balancing among member ports of a trunk

Controllable multicast

Port-based multicast traffic statistics

IGMP v1/v2/v3, PIM-SM, PIM-DM, PIM-SSM, MSDP (supported by the S5700-EI/S5700-HI series)

QoS/ACL

Rate limiting on packets sent and received by an interface

Packet redirection

Port-based traffic policing and two-rate three-color CAR

Eight queues on each port

WRR, DRR, SP, WRR+SP, and DRR+SP queue scheduling algorithms

WRED (supported by the S5710-EI and S5700-HI)

Re-marking of the 802.1p priority and DSCP priority

Packet filtering at Layers 2 through 4, filtering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination IP address, TCP/UDP port number, protocol type, and VLAN ID

Rate limiting in each queue and traffic shaping on ports

Security

User privilege management and password protection

DoS attack defense, ARP attack defense, and ICMP attack defense

Binding of the IP address, MAC address, interface, and VLAN

Port isolation, port security, and sticky MAC

MFF

Blackhole MAC address entries

Limit on the number of learned MAC addresses

802.1x authentication and limit on the number of users on an interface

AAA authentication, RADIUS authentication, HWTACACS authentication, and NAC

SSH v2.0

Hypertext Transfer Protocol Secure (HTTPS)

CPU defense

Blacklist and whitelist

Access Security

DHCP Relay, DHCP Server, DHCP Snooping, DHCP Security

Management and maintenance

Virtual cable test

Port mirroring and RSPAN (remote port mirroring)

Remote configuration and maintenance using Telnet

SNMP v1/v2c/v3

RMON

Web NMS

HGMP

System logs and alarms of different levels

802.3az EEE (supported by the S5700(S)-LI, S5710-EI, S5700-HI and S5710-HI)

Dying gasp (supported by the S5700-HI, S5710-HI and S5700(S)-LI(except battery LAN switches)

NetStream (supported by the S5710-EI, S5700-HI and S5710-HI)

sFlow (supported by the S5700(S)-LI/S5700-EI/S5700-HI series)

Interoperability

Supports VBST (Compatible with PVST/PVST+/RPVST)

Supports LNP (Similar to DTP)

Supports VCMP (Similar to VTP)

Operating environment

Operating temperature: 0°C–50°C
Relative humidity: 10%–90% (non-condensing)

Input voltage

AC:
Rated voltage range: 100 V to 240 V AC, 50/60 Hz
Maximum voltage range: 90 V to 264 V AC, 47/63 Hz
DC:
Rated voltage range: –48 V to –60 V, DC
Maximum voltage range: –36 V to –72 V DC
Note: PoE-support switches do not use DC power supplies.
