Huawei Switch S5700S-52X-LI-AC (02350HED)


Huawei S5700 Series Switch, 48 Ethernet 10/100/1000 ports, 4 10 Gig SFP+, AC 110/220V.



Quick Specification


Table 1 shows the quick specification.

Model

S5700S-52X-LI-AC

Part Number

02350HED

Description

S5700S-52X-LI-AC (48 Ethernet 10/100/1000 ports, 4 10 Gig SFP+, AC 110/220V)

Memory (RAM)

512 MB

Flash

512 MB in total. To view the available flash memory size, run the display version command.

Service port surge protection

Common mode: ±6 kV

Power supply surge protection

±6 kV in differential mode, ±6 kV in common mode

Dimensions (H x W x D)

43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.7 in.)

Stack ports

Four uplink 10GE SFP+ ports

PoE

Not supported


Figure 1 shows the appearance of S5700S-52X-LI-AC.


front-s5700s-52x-li-ac-datasheet

Product Details


Figure 2 shows the front panel of S5700S-52X-LI-AC.

front-panel-s5700s-52x-li-ac-datasheet

Note:

(1)

Forty-eight 10/100/1000BASE-T ports

(4)

One console port

(2)

Four 10GE SFP+ ports

(5)

One USB port

(3)

One ETH management port

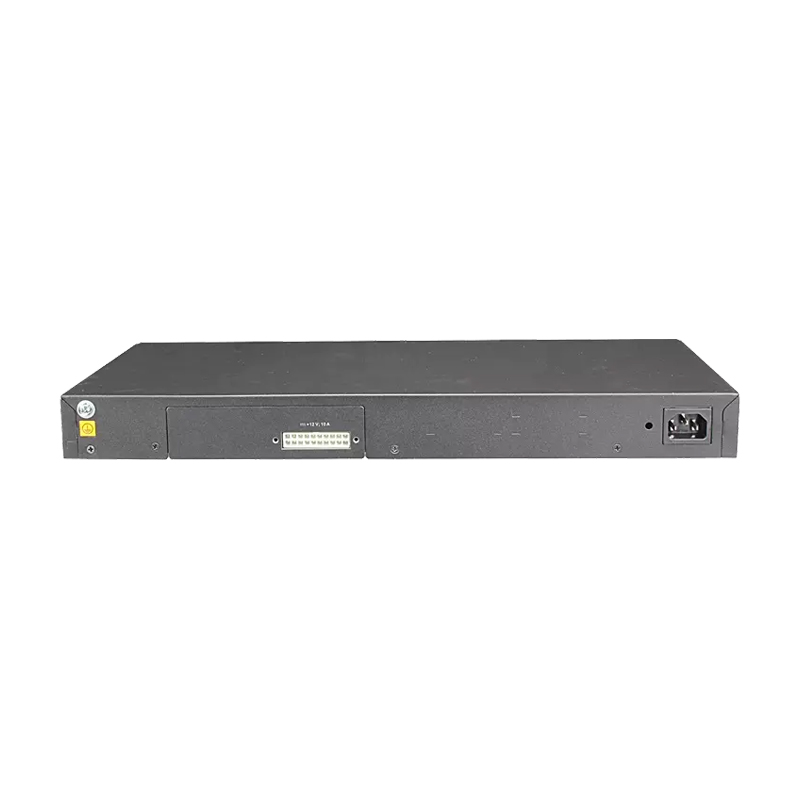

Figure 3 shows the back panel of S5700S-52X-LI-AC.

back-panel-s5700s-52x-li-ac-datasheet

Note:

(6)

Ground screw

(8)

Jack for AC power cable locking strap

(7)

RPS socket

(9)

AC socket


Get More Information


Do you have any question about the S5700S-52X-LI-AC (02350HED)?

Contact us now via [email protected].

Specific Data Sheet:


S5700S-52X-LI-AC Specification

Model

S5700S-52X-LI-AC

Part Number

02350HED

Description

S5700S-52X-LI-AC (48 Ethernet 10/100/1000 ports, 4 10 Gig SFP+, AC 110/220V)

Memory (RAM)

512 MB

Flash

512 MB in total. To view the available flash memory size, run the display version command.

Mean time between failures (MTBF)

86.64 years

Mean time to repair (MTTR)

2 hours

Availability

> 0.99999

Service port surge protection

Common mode: ±6 kV

Power supply surge protection

±6 kV in differential mode, ±6 kV in common mode

Dimensions (H x W x D)

43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.7 in.)

Weight (with packaging)

5 kg (11.02 lb)

Stack ports

Four uplink 10GE SFP+ ports

RTC

Supported

RPS

Supported

PoE

Not supported

Rated voltage range

100 V AC to 240 V AC, 50/60 Hz

Maximum voltage range

90 V AC to 264 V AC, 47 Hz to 63 Hz

Maximum power consumption (100% throughput, full speed of fans)

54.7 W

Typical power consumption (30% of traffic load)
Tested according to ATIS standard
EEE enabled
No PoE power consumption

34.4 W

Operating temperature

0°C to 45°C (32°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)
NOTE:
When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).

Storage temperature

-40°C to +70°C (-40°F to +158°F)

Noise under normal temperature (27°C, sound power)

< 50.2 dB(A)

Relative humidity

5% to 95%, noncondensing

Operating altitude

0-5000 m (0-16404 ft.)

Certification

EMC certification
Safety certification
Manufacturing certification
