| Detail: | Huawei OptiXstar P813E XGS-GPON terminal, 8G (POE/POE+) |
| Model: | OptiXstar P813E (98031075) |
| Condition: | Factory Sealed New |
| Related: | Huawei OptiXstar P802E XGS-GPON ONU 4GE Huawei OptiXstar P803E XGS-GPON ONU 8 GE Huawei OptiXstar P812E (98031076) XGS-GPON ONU 4 x GE 1 x 2.5GE PoE |
| Warranty: |
3-Year Warranty
100% Money-back
Free After-Sales Service
|
| Shipping: |
Air Shipping to
United States
, Most Customers Receive during 5-7 Days
?
If you finish the payment today,
your order will arrive within the estimated delivery time. |
| Ships to:
1.03
|
2-7 Days
US$
|
| Payment: |
More
|

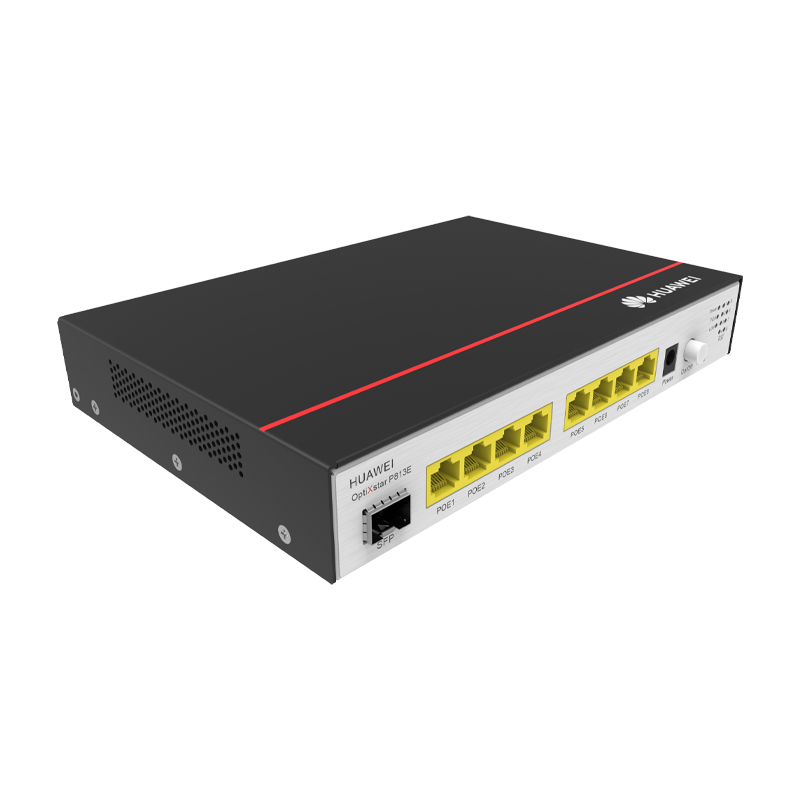

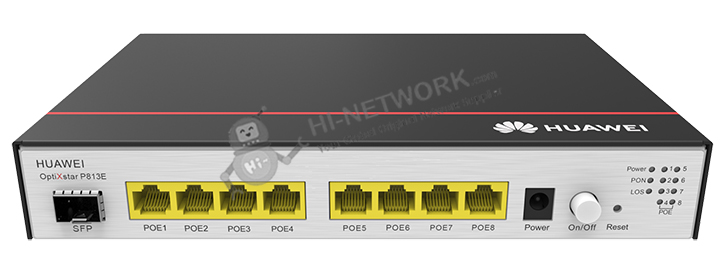

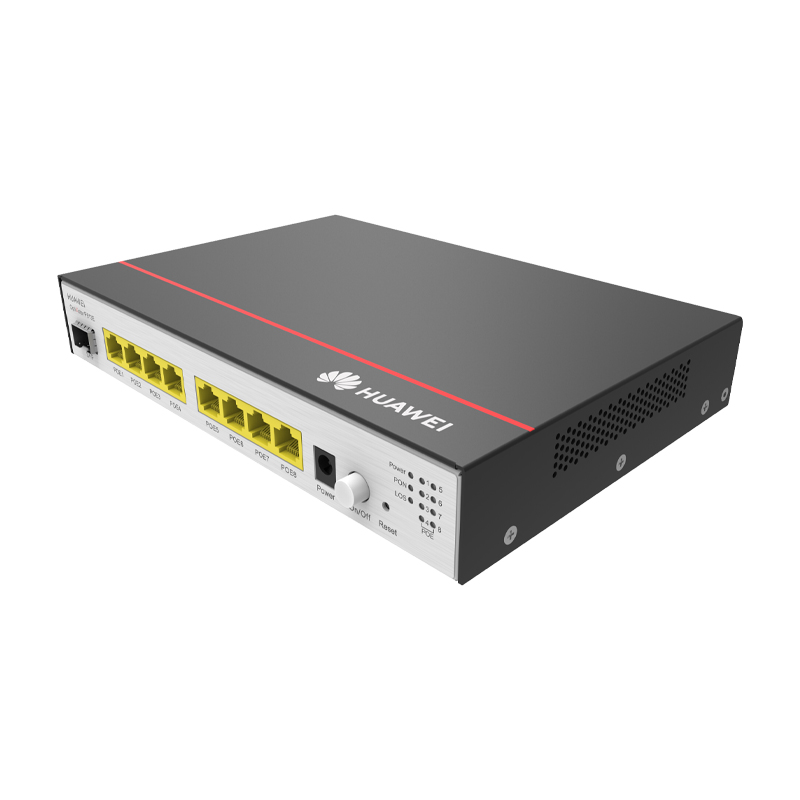

The OptiXstar P813E is an ONU designed for scenarios such as enterprise campus and video backhaul. It provides 8 GE ports with PoE/PoE+ to provide high-quality voice, data, and HD video services.
Model | OptiXstar P813E |
Dimensions (W x D x H) | 220mm x 150mm x 35mm (Without floor mat) |
Weight | About 1030g |
Operating Temperature | –5°C to 45°C |
Operating Humidity | 5% to 95% RH (non-condensing) |
Power Adapter Input | 100-240 V AC, 50/60 Hz |
System Power Supply | 56 V DC, 2.6A |
NNI | XGS-PON |
UNI | 8*GE (PoE/PoE+) |
Static Power Consumption | 8 W |
Maximum PoE Output Power | Gross power 120W (up to 30W for one GE port) |
SFP | ● XGS-PON optical module, port type: SC/UPC ● XGS-PON; − Class N1/N2; − Receiver sensitivity: -28dBm; − Overload optical power: -9dBm; − Transmission rate: upstream 9.953 Gbit/s, downstream 9.953 Gbit/s ● Type B single-homing ● Type B dual-homing (supported in Layer 2 forwarding) |
GE | ● PoE and PoE+, complying with IEEE 802.3af and IEEE 802.3at ● Port type: RJ-45 ● Auto ports speed (10/100/1000 Mbit/s) ● Auto-MDI/MDIX ● Configuration of the number of MAC addresses learned ● VLAN transparent transmission/VLAN filtering |
Automatic Service Provisionin | ● Authenticati on exemption ● XML/OMCI/TR069 |
Smart O&M | ● XML/Web UI ● Rogue ONT detection and self-regulation ● Ring network detection/PPPoE/DHCP simulation testing |
Layer 3 Features | ● Default/Static/Policy/Service routes ● VLAN binding ● ALG/UPnP/ARP ● DDNS/DMZ/DNS/NAPT ● PPPoE/Static IP/DHCP ● Port mapping/Port trigger ● IPv6 |
Layer 2 Management | ● DHCP Option82 ● PITP ● BPDU transparent transmission ● LLDP/LLDP-MED |
Multicast | ● IGMP v2/v3 snooping ● Dynamic controllable multicast ● IGMP proxy ● MLDv1/MLDv2 snooping |
QoS | ● Ethernet port rate limitation ● 802.1p priority ● SP/WRR/SP+WRR |
Security | ● 802.1x ● IPv6/IPv4 firewalls ● Filtering based on MAC/IP/URL ● DoS/ARP anti-attacks ● Static MAC address binding ● Device access control ● Web session number restriction |
Model | OptiXstar P813E | |||
NNI | XGS-PON | XGS-PON | XGS-PON | XGS-PON |
UNI | 4*GE | 8*GE | 4*GE+1*2.5GE NOTE: Both the GE and 2.5GE ports support PoE/PoE+ | 8*GE (PoE/PoE+) |
Do you have any question about the OptiXstar P813E?
Contact us now via [email protected].
Specific Data Sheet:
OptiXstar P813E Specification | |
Dimensions (W x D x H) | 220mm x 150mm x 35mm (Without floor mat) |
Weight | About 1030g |
Operating Temperature | –5°C to 45°C |
Operating Humidity | 5% to 95% RH (non-condensing) |
Power Adapter Input | 100-240 V AC, 50/60 Hz |
System Power Supply | 56 V DC, 2.6A |
NNI | XGS-PON |
UNI | 8*GE (PoE/PoE+) |
Static Power Consumption | 8 W |
Maximum Power Consumption | 12 W (POE port without PD) 143 W (POE port with PD having the maximum power consumption) |
Maximum PoE Output Power | Gross power 120W (up to 30W for one GE port) |
Surge Protection Specifications | GE: common mode 4 kV; differential mode 0.5 kV. AC power: common mode 6 kV; differential mode 6 kV. |
SFP | ● XGS-PON optical module, port type: SC/UPC ● XGS-PON; − Class N1/N2; − Receiver sensitivity: -28dBm; − Overload optical power: -9dBm; − Transmission rate: upstream 9.953 Gbit/s, downstream 9.953 Gbit/s ● Type B single-homing ● Type B dual-homing (supported in Layer 2 forwarding) |
GE | ● PoE and PoE+, complying with IEEE 802.3af and IEEE 802.3at ● Port type: RJ-45 ● Auto ports speed (10/100/1000 Mbit/s) ● Auto-MDI/MDIX ● Configuration of the number of MAC addresses learned ● VLAN transparent transmission/VLAN filtering |
Installation Mode | Support indoor desktop installation, wall mounting, or network box installation. |
