Overview


The OptiXstar P802E is an ONU designed for scenarios such as enterprise campus and video backhaul. It supports XGS-PON uplink access and provides 4 GEports to provide high-quality voice, data, and HD video services.


Quick Specification


Table 1 shows the Quick Specification.

Model

OptiXstar P802E

Dimensions (W x D x H)

160mm x 110mm x 30mm (Without floor mat)

Weight

About 480g

Operating Temperature

-40°C to +55°C

Operating Humidity

5%RH to 95%RH (non-condensing)

Power Adapter Input

100V to 240V AC, 50/60Hz

System Power Supply

11V to 14V (typical 12 V), 1A

NNI

XGS-PON

UNI

4*GE

Static Power Consumption

4.5 W

Maximum Power Consumption

6 W

Surge Protection Specifications

GE: common mode 6 kV; differential mode 1.5 kV.

AC power: common mode 6 kV; differential mode 6 kV.

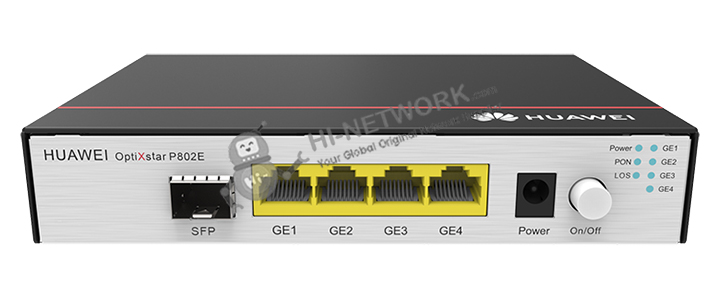

Figure 1 shows the appearance of OptiXstar P802E.

front-top-optixstar-p802e-datasheet

Product Highlights

● Compact design, plug and play, flexible and easy to install.

● 802.1x and IPv6/IPv4 firewalls ensure device access security and network security.

● Supports XGS-PON uplink access.

● Supports –40°C to +55°C wide temperature range with strong environment adaptability.

● Features high reliability, 6 kV surge protection in common mode, and type B dual-homing service protection.


Product Details


Port Parameters

SFP

● Support XGS-PON optical module

● Class N1/N2;

● Receiver sensitivity: -28dBm;

● Overload optical power: -9dBm;

● Transmission rate: upstream 9.953 Gbit/s, downstream 9.953 Gbit/s

● Type B single-homing

● Type B dual-homing (supported in Layer 2 forwarding)

GE

● Port type: RJ-45

● Auto ports speed (10/100/1000 Mbit/s)

● Auto-MDI/MDIX

● Configuration of the number of MAC addresses learned

● VLAN transparent transmission/VLAN filtering


Function List

Automatic Service Provisioning

● Authentication exemption

● XML/OMCI/TR069

Smart O&M

● XML/Web UI

● Rogue ONT detection and self-regulation

● Ring network detection/PPPoE/DHCP simulation testing

Layer 3 Features

● Default/Static/Policy/Service routes

● VLAN binding

● ALG/UPnP/ARP

● DDNS/DMZ/DNS/NAPT

● PPPoE/Static IP/DHCP

● Port mapping/Port trigger

● IPv6

Layer 2 Management

● DHCP Option82

● PITP

● BPDU transparent transmission

● LLDP/LLDP-MED

Multicast

● IGMP v2/v3 snooping

● Dynamic controllable multicast

● IGMP proxy

● MLDv1/MLDv2 snooping

QoS

● Ethernet port rate limitation

● 802.1p priority

● SP/WRR/SP+WRR

Security

● 802.1x

● IPv6/IPv4 firewalls

● Filtering based on MAC/IP/URL

● DoS/ARP anti-attacks

● Static MAC address binding

● Device access control

● Web session number restriction


Compare to Similar Items


Table 2 shows the comparison.

Model

OptiXstar P802E

OptiXstar P803E

OptiXstar P812E

OptiXstar P813E

NNI

XGS-PON

XGS-PON

XGS-PON

XGS-PON

UNI

4*GE

8*GE

4*GE+1*2.5GE

NOTE: Both the GE and 2.5GE ports support PoE/PoE+

8*GE (PoE/PoE+)


Get More Information

Do you have any question about the OptiXstar P802E?

Contact us now via [email protected].

Specific Data Sheet:


OptiXstar P802E Specification

Dimensions (W x D x H)

160mm x 110mm x 30mm (Without floor mat)

Weight

About 480g

Operating Temperature

-40°C to +55°C

Operating Humidity

5%RH to 95%RH (non-condensing)

Power Adapter Input

100V to 240V AC, 50/60Hz

System Power Supply

11V to 14V (typical 12 V), 1A

NNI

XGS-PON

UNI

4*GE

Static Power Consumption

4.5 W

Maximum Power Consumption

6 W

Surge Protection Specifications

GE: common mode 6 kV; differential mode 1.5 kV.

AC power: common mode 6 kV; differential mode 6 kV.

SFP

● Support XGS-PON optical module

● Class N1/N2;

● Receiver sensitivity: -28dBm;

● Overload optical power: -9dBm;

● Transmission rate: upstream 9.953 Gbit/s, downstream 9.953 Gbit/s

● Type B single-homing

● Type B dual-homing (supported in Layer 2 forwarding)

GE

● Port type: RJ-45

● Auto ports speed (10/100/1000 Mbit/s)

● Auto-MDI/MDIX

● Configuration of the number of MAC addresses learned

● VLAN transparent transmission/VLAN filtering

Installation Mode

Support outdoor network box installation and indoor desktop installation, wall mounting, or network box installation.
