| Detail: | Huawei OptiXstar P803E XGS-GPON terminal, 8GE |
| Model: | OptiXstar P803E |
| Condition: | Factory Sealed New |
| Related: | Huawei OptiXstar P813E (98031075) XGS-GPON ONU 8GE PoE Huawei OptiXstar P802E XGS-GPON ONU 4GE Huawei OptiXstar P812E (98031076) XGS-GPON ONU 4 x GE 1 x 2.5GE PoE |
| Warranty: |
3-Years Warrranty
100% Money-back
Free After-Sales Service
|
| Shipping: |
Air Shipping to
United States
, Most Customers Receive during 5-7 Days
?
If you finish the payment today,
your order will arrive within the estimated delivery time. |
| Ships to:
1.03
|
2-7 Days
US$
|
| Payment: |
More
|

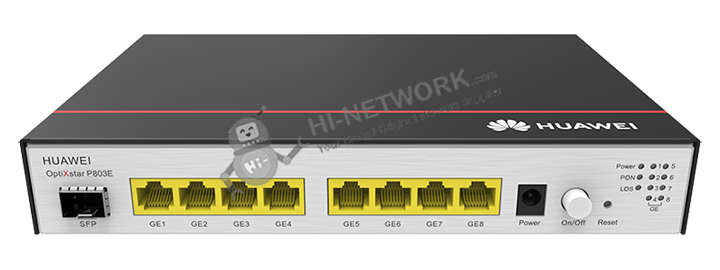

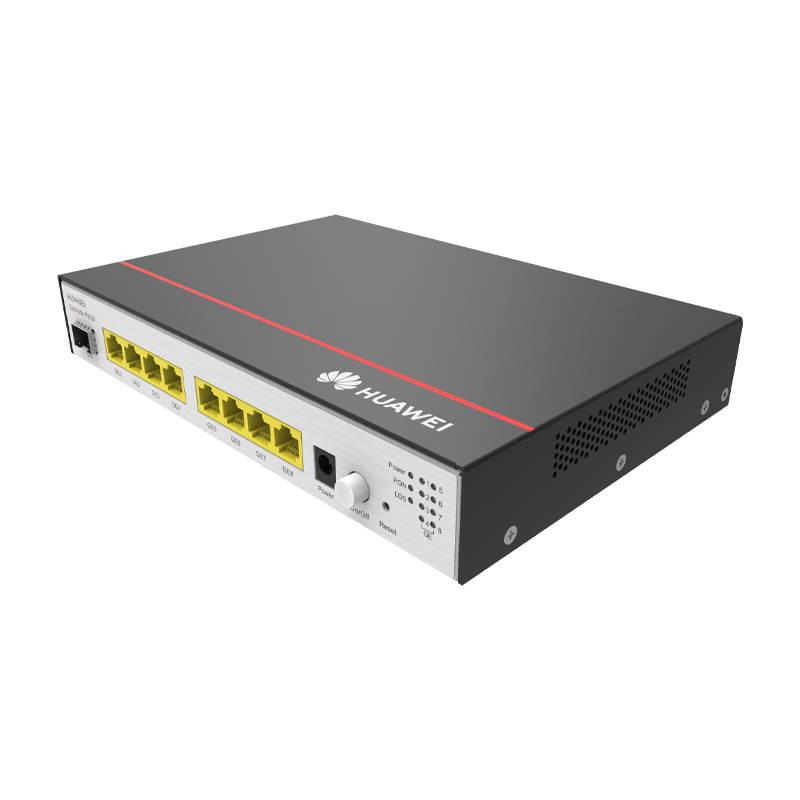

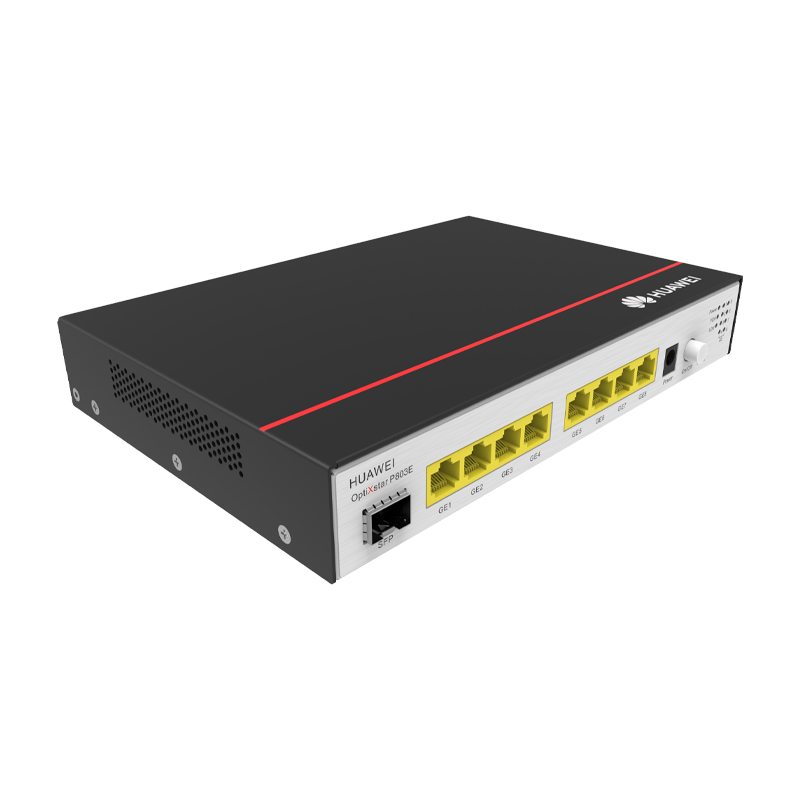

The Huawei OptiXstar P803E is an Optical Network Unit (ONU) with 8 x Gigabit Ethernet (GE) ports for high-quality transmission of voice, data, and High Definition (HD) video services. With 10 Gbit/s symmetric uplink and downlink bandwidth that supports multiple 4K cameras, OptiXstar P803E excels in enterprise campus and video backhaul scenarios.
Model | OptiXstar P803E |
Dimensions (H x W x D) | 220 x 150 x 35 mm (without base) |
Weight (Without Power Adapter) | Approximately 1030 g |
Operating Temperature | –40–55°C |
Operating Humidity | 5–95% RH (noncondensing) |
Power Adapter Input | 100–240 V AC, 50/60 Hz |
NNI | 1 x XGS-PON |
UNI | 8 x GE |
Maximum Power Consumption | 6.96 W |
Surge Protection | GE: common mode 4 kV; differential mode 0.5 kV. AC power: common mode 6 kV; differential mode 6 kV. |
● 802.1x and IPv6/IPv4 firewalls ensure device access security and network security.
● Support XGS-PON uplink access.
● Supports – 40° C to +55° C wide temperature range with strong environment adaptability.
● Supports secure boot.
● Features high reliability, and type B dual-homing service protection.
PON Port | ● XGS-PON optical module, port type: SC/UPC ● XGS-PON − Class N1/N2 − Receiver sensitivity: –28 dBm − Overload optical power: –9 dBm − Transmission rate: upstream 9.953 Gbit/s, downstream 9.953 Gbit/s ● Type B single-homing ● Type B dual-homing (supported in Layer 2 forwarding) |
Ethernet Electrical Port | ● Port type: RJ-45 ● Auto port speeds (10/100/1000 Mbit/s) ● Auto-MDI/MDIX ● Configuration of the number of MAC addresses learned ● VLAN transparent transmission/VLAN filtering |
Automatic Service Provisioning | ● Authentication exemption ● XML/OMCI/TR069 |
Multicast | ● IGMP v2/v3 snooping ● Dynamic controllable multicast ● IGMP proxy ● MLDv1/MLDv2 snooping |
Smart O&M | ● XML/Web UI ● Rogue ONT detection and self-regulation ● Ring network detection/PPPoE/DHCP simulation testing |
QoS | ● Ethernet port rate limitation ● 802.1p priority ● SP/WRR/SP+WRR |
Layer 3 Features | ● Default/Static/Policy/Service routes ● VLAN binding ● ALG/UPnP/ARP ● DDNS/DMZ/DNS/NAPT ● PPPoE/Static IP/DHCP ● Port mapping/Port trigger ● IPv6 |
Layer 2 Management | ● DHCP Option82 ● PITP ● BPDU transparent transmission ● LLDP/LLDP-MED |
Security | ● 802.1x ● IPv6/IPv4 firewalls ● Filtering based on MAC/IP/URL ● DoS/ARP anti-attacks ● Static MAC address binding ● Device access control ● Web session number restriction |
Model | OptiXstar P803E | |||
NNI | XGS-PON | XGS-PON | XGS-PON | XGS-PON |
UNI | 4*GE | 8*GE | 4*GE+1*2.5GE NOTE: Both the GE and 2.5GE ports support PoE/PoE+ | 8*GE (PoE/PoE+) |
Do you have any question about the OptiXstar P803E?
Contact us now via [email protected].
Specific Data Sheet:
OptiXstar P803E Specification | |
Dimensions (H x W x D) | 220 x 150 x 35 mm (without base) |
Weight (Without Power Adapter) | Approximately 1030 g |
Operating Temperature | –40–55°C |
Operating Humidity | 5–95% RH (non-condensing) |
Power Adapter Input | 100–240 V AC, 50/60 Hz |
NNI | 1 x XGS-PON |
UNI | 8 x GE |
Maximum Power Consumption | 6.96 W |
Surge Protection | GE: common mode 4 kV; differential mode 0.5 kV. AC power: common mode 6 kV; differential mode 6 kV. |
PON Port | ● XGS-PON optical module, port type: SC/UPC ● XGS-PON − Class N1/N2 − Receiver sensitivity: –28 dBm − Overload optical power: –9 dBm − Transmission rate: upstream 9.953 Gbit/s, downstream 9.953 Gbit/s ● Type B single-homing ● Type B dual-homing (supported in Layer 2 forwarding) |
Ethernet Electrical Port | ● Port type: RJ-45 ● Auto port speeds (10/100/1000 Mbit/s) ● Auto-MDI/MDIX ● Configuration of the number of MAC addresses learned ● VLAN transparent transmission/VLAN filtering |
Installation Mode | Support indoor desktop, wall mounting, or network box installation. |
What is Guaranteed.
After receiving your order, take a full month to try it out. If you find quality is not good , we'll take it back and refund your money. Your complete satisfaction is GUARANTEED or your money back. That's guaranteed.
After your order items which are available. We will use most fast delivery way to global countries. Normally we will ship out cargos during 3 -5 days. And international delivery will take about 3- 10 days according to your location.
Service Never Ends.
Hardwares Warrany Time:
Original New Sealed Hardware: 3 Years
Refurbished/Used Original Devices: 1 Year
After warranty time, you also can contact us to return back for repair service. Everything you purchase from HI-NETWORK.COM. We will offer lifetime online service support for your any possible questions.
