Huawei OptiXstar P812E (98031076) XGS-GPON ONU 4 x GE 1 x 2.5GE PoE

USD

5 5/5.0 Reviews Q/A 11 Sold/Mon
Detail:	Huawei OptiXstar P812E XGS-GPON terminal, 4GE+1*2.5GE(POE/POE+)
Model:	OptiXstar P812E (98031076)
Condition:	Factory Sealed New
Related:	Huawei OptiXstar P813E (98031075) XGS-GPON ONU 8GE PoE Huawei OptiXstar P802E XGS-GPON ONU 4GE Huawei OptiXstar P803E XGS-GPON ONU 8 GE
Warranty:	3-Years Warranty 100% Money-back Free After-Sales Service
Shipping:	Air Shipping to United States , Most Customers Receive during 5-7 Days ? If you finish the payment today, your order will arrive within the estimated delivery time.
Ships to: 1.03	2-7 Days US$
Payment:	Pay by wire transfer. Pay with your paypal. Pay with your Visa credit card. Pay with your Mastercard credit card. Pay with your Discover Card. Pay by Western Union. More

Description
Specification
Reviews
Q&A
Warranty
Download

Overview

The OptiXstar P812E is an ONU designed for scenarios such as enterprise campus and video backhaul. It provides 4 GE ports and 1 2.5GE port to provide high-quality voice, data, and HD video services.

Quick Specification

Table 1 shows the Quick Specification.

Model	OptiXstar P812E
Dimensions (W x D x H)	220mm x 150mm x 35mm (Without floor mat)
Weight	About 1030g
Operating Temperature	–5°C to 45°C
Operating Humidity	5% to 95% RH (non-condensing)
Power Adapter Input	100-240 V AC, 50/60 Hz
System Power Supply	56 V DC, 1.42A
NNI	1 x XGS-PON
UNI	4 x GE and 1 x 2.5 GE NOTE: Both the GE and 2.5GE ports support PoE/PoE+.
Static Power Consumption	8.5 W
Maximum PoE Output Power	Gross power 60 W (up to 30 W per GE port)

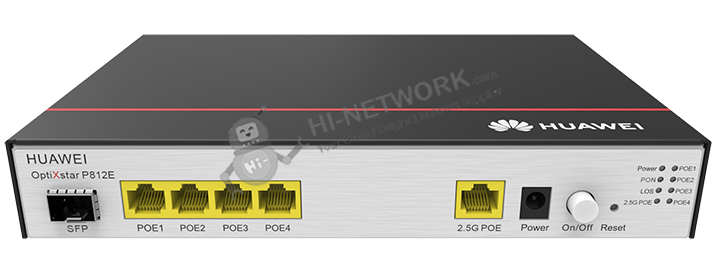

Figure 1 shows the appearance of OptiXstar P812E.

front-top-optixstar-p812e-datasheet

Product Details

Port Parameters

SFP

● XGS-PON optical module, port type: SC/UPC

● XGS-PON;

− Class N1/N2;

− Receiver sensitivity: -28dBm;

− Overload optical power: -9dBm;

− Transmission rate: upstream 9.953 Gbit/s, downstream 9.953 Gbit/s

● Type B single-homing

● Type B dual-homing (supported in Layer 2 forwarding)

GE/2.5GE

● PoE and PoE+, complying with IEEE 802.3af and IEEE 802.3at

● Port type: RJ-45

● GE ports: Auto ports speed (1 0/100/1000 Mbit/s)

● 2.5GE ports: Auto ports speed (1000/2500 Mbit/s)

● Auto-MDI/MDIX

● Configuration of the number of MAC addresses learned

● VLAN transparent transmission/VLAN filtering

Product Function

Automatic Service Provisionin	● Authenticati on exemption ● XML/OMCI/TR069
Smart O&M	● XML/Web UI ● Rogue ONT detection and self-regulation ● Ring network detection/PPPoE/DHCP simulation testing
Layer 3 Features	● Default/Static/Policy/Service routes ● VLAN binding ● ALG/UPnP/ARP ● DDNS/DMZ/DNS/NAPT ● PPPoE/Static IP/DHCP ● Port mapping/Port trigger ● IPv6
Layer 2 Management	● DHCP Option82 ● PITP ● BPDU transparent transmission ● LLDP/LLDP-MED
Multicast	● IGMP v2/v3 snooping ● Dynamic controllable multicast ● IGMP proxy ● MLDv1/ML
QoS	● Ethernet port rate limitation ● 802.1p priority ● SP/WRR/SP+WRR
Security	● 802.1x ● IPv6/IPv4 firewalls ● Filtering based on MAC/IP/URL ● DoS/ARP anti-attacks ● Static MAC address binding ● Device access control ● Web session number restriction

Compare to Similar Items

Table 2 shows the comparison.

Model

OptiXstar P802E

OptiXstar P803E

OptiXstar P812E

OptiXstar P813E

NNI

XGS-PON

UNI

4*GE

8*GE

4*GE+1*2.5GE

NOTE: Both the GE and 2.5GE ports support PoE/PoE+

8*GE (PoE/PoE+)

Get More Information

Do you have any question about the OptiXstar P812E (98031076)?

Specific Data Sheet:

OptiXstar P812E Specification
Dimensions (W x D x H)	220mm x 150mm x 35mm (Without floor mat)
Weight	About 1030g
Operating Temperature	-5°C to +45°C
Operating Humidity	5%RH to 95%RH (non-condensing)
Power Adapter Input	100V to 240V AC, 50/60Hz
System Power Supply	56 V DC, 1.42A
NNI	XGS-PON
UNI	4GE+12.5GE NOTE: Both the GE and 2.5GE ports support PoE/PoE+.
Static Power Consumption	8.5 W
Typical Power Consumption	14 W (PoE port without PD)
Maximum Power Consumption	12 W (POE port without PD) 78 W (POE port with PD having the maximum power consumption)
Maximum PoE Output Power	Gross power 60W (up to 30W for one GE port)
Surge Protection Specifications	GE: common mode 4 kV; differential mode 0.5 kV. AC power: common mode 6 kV; differential mode 6 kV.
SFP	● XGS-PON optical module, port type: SC/UPC ● XGS-PON; − Class N1/N2; − Receiver sensitivity: -28dBm; − Overload optical power: -9dBm; − Transmission rate: upstream 9.953 Gbit/s, downstream 9.953 Gbit/s ● Type B single-homing ● Type B dual-homing (supported in Layer 2 forwarding)
GE/2.5GE	● PoE and PoE+, complying with IEEE 802.3af and IEEE 802.3at ● Port type: RJ-45 ● GE ports: Auto ports speed (10/100/1000 Mbit/s) ● 2.5GE ports: Auto ports speed (1000/2500 Mbit/s) ● Auto-MDI/MDIX ● Configuration of the number of MAC addresses learned ● VLAN transparent transmission/VLAN filtering
Installation Mode	Support indoor desktop installation, wall mounting, or network box installation.
