Huawei Interface card LSS7M24BX6E0 (03034DGQ, 03034DGQ-001, 03034DGQ-003) for S7703/S7706/S7712


The LSS7M24BX6E0 provides twenty-four 100M/1000M/2.5GE/5GE/10GE BASE-T ports and twenty-four 100/1000BASE-T ports for data transmission and switching.



Quick Specification


Table 1 shows the quick specification.

Description

LSS7M24BX6E0

Part Number

03034DGQ, 03034DGQ-001, 03034DGQ-003

Model

24-port 100M/1G/2.5G/5G/10G and 24-port 100M/1G interface card (X6E, RJ45)

Dimensions without packaging (H x W x D) [mm(in.)]

35.1 mm x 397.2 mm x 430.4 mm (1.38 in. x 15.64 in. x 16.95 in.)

Dimensions with packaging (H x W x D) [mm(in.)]

160 mm x 510 mm x 570 mm (6.3 in. x 20.1 in. x 22.44 in.)

Weight without packaging [kg(lb)]

3.70 kg (8.16 lb)

Weight with packaging [kg(lb)]

5.75 kg (12.68 lb)

Maximum power consumption [W]

192

Memory

1 GB

Basic function

The card provides twenty-four 100M/1000M/2.5GE/5GE/10GE BASE-T ports and twenty-four 100/1000BASE-T ports for data transmission and switching.

Distributed forwarding

Performs concurrent data forwarding using a distributed data plane.

Hot swapping

Supported

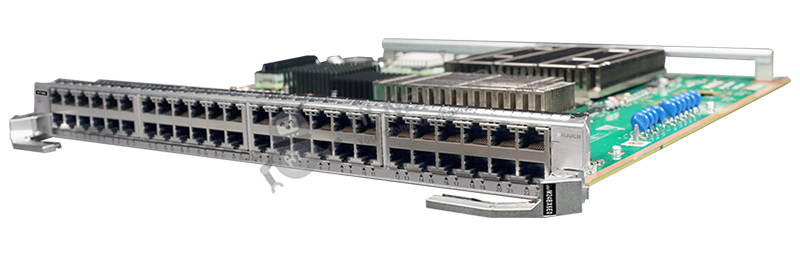

Figure 1 shows the appearance of LSS7M24BX6E0.


front-lss7m24bx6e0-datasheet

Product Details

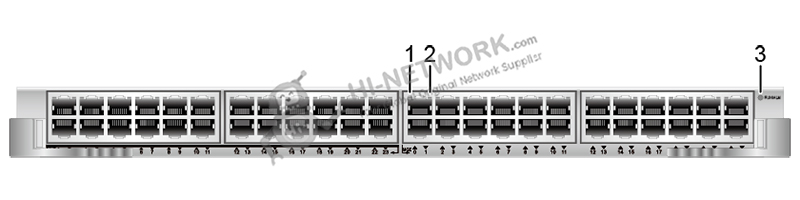

Figure 2 show the indicators on the LSS7M24BX6E0 panel.

indicators-lss7m24bx6e0-datasheet


Note:

(1)

LINK/ACT indicator of an upper electrical port

(2)

LINK/ACT indicator of a lower electrical port

(3)

RUN/ALM: running status indicator


Figure 3 show the ports on the LSS7M24BX6E0 panel.

ports-lss7m24bx6e0-datasheet


Note:

(1)

Twenty-four 100/1000BASE-T ports

(2)

Twenty-four 100M/1000M/2.5GE/5GE/10GE BASE-T ports (multi-GE ports)


Get more information


Do you have any question about the LSS7M24BX6E0 (03034DGQ, 03034DGQ-001, 03034DGQ-003)?

Contact us now via [email protected].


Specific Data Sheet:


LSS7M24BX6E0 Specification

Basic Information

Model

LSS7M24BX6E0

Part Number

03034DGQ, 03034DGQ-001, 03034DGQ-003

Description

24-port 100M/1G/2.5G/5G/10G and 24-port 100M/1G interface card (X6E, RJ45)

Level-1 category

Interface card

Technical Specifications

Dimensions without packaging (H x W x D) [mm(in.)]

35.1 mm x 397.2 mm x 430.4 mm (1.38 in. x 15.64 in. x 16.95 in.)

Dimensions with packaging (H x W x D) [mm(in.)]

160 mm x 510 mm x 570 mm (6.3 in. x 20.1 in. x 22.44 in.)

Weight without packaging [kg(lb)]

3.70 kg (8.16 lb)

Weight with packaging [kg(lb)]

5.75 kg (12.68 lb)

Typical power consumption [W]

168

Typical heat dissipation [BTU/hour]

573.23

Maximum power consumption [W]

192

Maximum heat dissipation [BTU/hour]

655.12

Memory

1 GB
