Huawei DC Power Module ES02PSD16 (02310NKX) for S7703/S7706/S7712

1600 W DC Power Module

Quick Specification

Table 1 shows the quick specification.

Model	ES02PSD16
Part Number	02310NKX
Description	1600W DC Power Module (Black)
Attributes	Hardware
Category	Outsourcing
Product Line	Networking
Product Family	Switch
Product Category	Power Module
Sub Product Family	Campus Switch
Product Series	S7700
EAN	6901443042999
UOM	PCS
Pack Weight (kg)	1.5
Pack Volume (m^3)	0.002239
Pack Dimension (DWH mm)	42013041

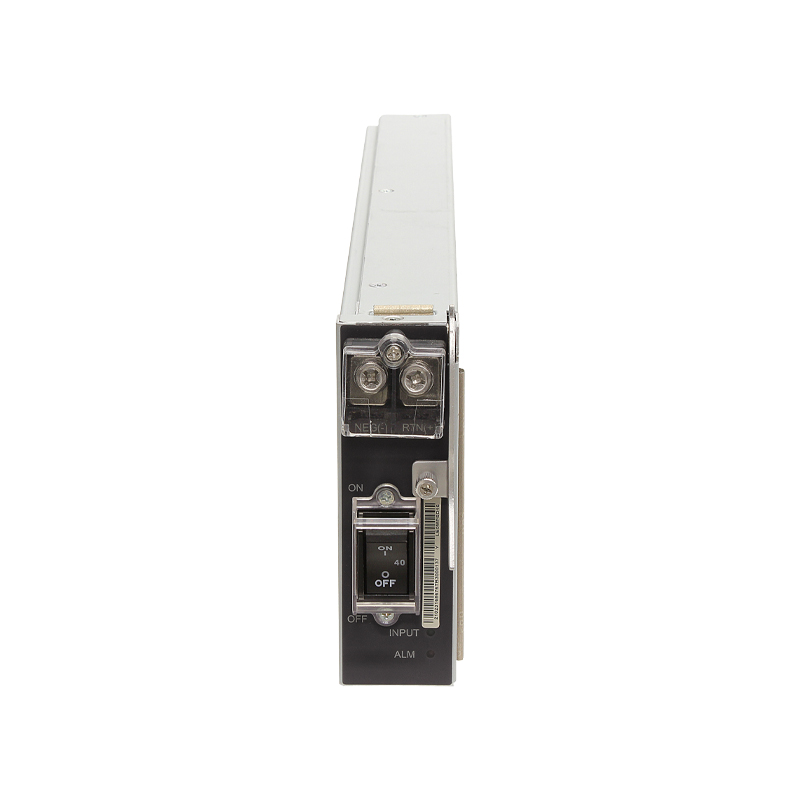

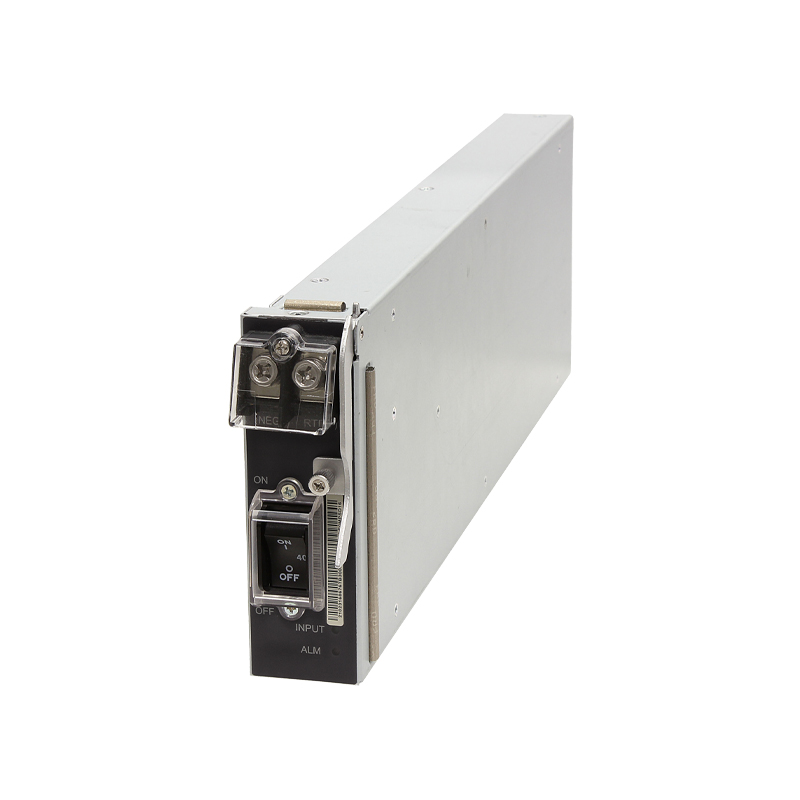

Figure 1 shows the appearance of ES02PSD16.

front-es02psd16-datasheet

Product Details

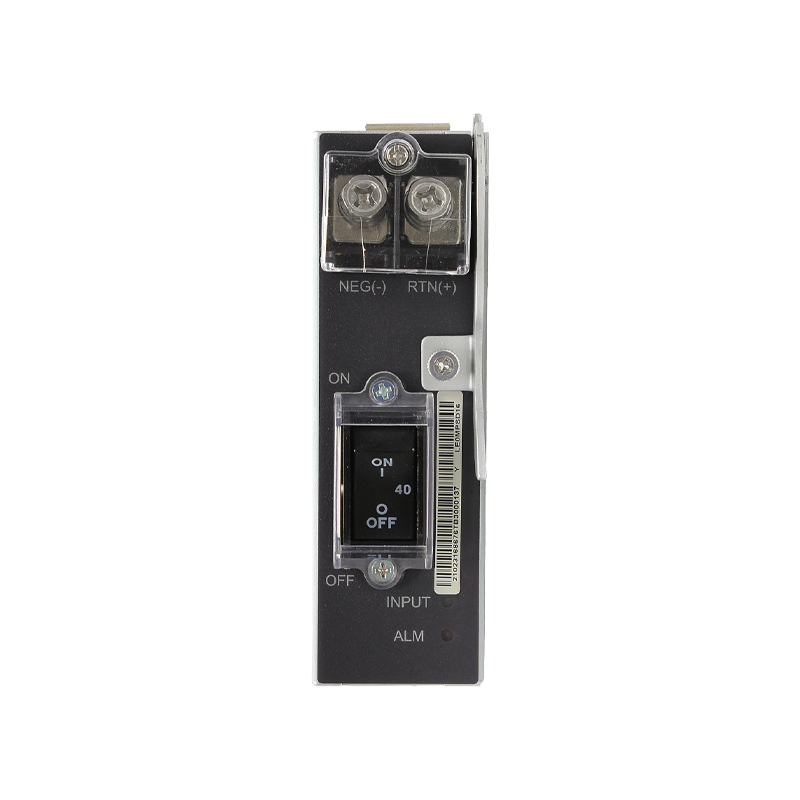

Figure 2 show the ES02PSD16 panel.

panel-es02psd16-datasheet

Note:

(1)	NEG terminal	(5)	INPUT indicator
(2)	Power switch	(6)	Ejector lever
(3)	ALARM indicator	(7)	RTN terminal
(4)	OUTPUT indicator

Table 2 shows the Indicators on the ES02PSD16.

Silkscreen	Name	Color	Status	Description
INPUT	INPUT indicator	-	Steady off	The power module receives no power input or its power cables are reversely connected.
INPUT	INPUT indicator	Green	Steady on	The input power is normal.
OUTPUT	OUTPUT indicator	-	Steady off	The power module provides no output power.
OUTPUT	OUTPUT indicator	Green	Steady on	The output power of the power module is in the normal range.
ALARM	ALARM indicator	-	Steady off	The protection circuit is working properly.
ALARM	ALARM indicator	Red	Steady on	The protection circuit has failed.

Get more information

Do you have any question about the ES02PSD16 (02310NKX)?

Specific Data Sheet:

ES02PSD16 Specification
Basic Information
Model	ES02PSD16
Part Number	02310NKX
Description	1600 W DC Power Module
Level-1 category	DC power module
Technical Specifications
Dimensions without packaging (H x W x D) [mm(in.)]	130 mm x 41 mm x 393 mm (5.1 in. x 1.6 in. x 15.5 in.)
Weight without packaging [kg(lb)]	< 2.5 kg
Number of inputs	1
Rated input voltage [V]	-48 V DC to -60 V DC
Input voltage range [V]	-38.4 V DC to -72 V DC
Maximum input current [A]	40 A
Rated output voltage [V]	53.5 V DC
Rated output current [A]	40 A
Rated output power [W]	1600 W
Hot swapping	Supported
