Sealed New ISR4321-VSEC/K9 UC Voice and SEC license Bundle Router

USD

3104 ~~$4095~~ (24.2% OFF)

4.4 4.4/5.0 Reviews Q/A 31 sold/Mon
Detail:	Cisco ISR 4321 Bundle w/UC & SEC License. CUBE-10
Model:	ISR4321-VSEC/K9
Condition:	Factory Sealed New, In stock
Related:	Sealed New ISR4321/K9 Cisco Routers 4 GE ports Rack Mountable Genuine New GLC-LH-SMD CISCO 1310nm 10KM LC Duplex SFP Module Genuine New GLC-SX-MMD CISCO 850nm 550m Duplex LC MMF SFP Genuine New GLC-ZX-SMD CISCO 1000BASE SFP 1550nm 80KM Module
Warranty:	3 Years-Warranty 100% Money-back Free After-Sales Service
Shipping:	Air Shipping to United States , Most Customers Receive during 5-7 Days ? If you finish the payment today, your order will arrive within the estimated delivery time.
Ships to: 9.2	2-7 Days US$
Payment:	Pay by wire transfer. Pay with your paypal. Pay with your Visa credit card. Pay with your Mastercard credit card. Pay with your Discover Card. Pay by Western Union. More

Description
Specification
Reviews
Q&A
Warranty
Download

Sealed New ISR4321-VSEC/K9 UC Voice and SEC license Bundle Router

(Note: Cisco discount always changed, we will try most effort to follow it but can not ensure every web price was changed accordingly. So Our Products Service will contact you after order if meet such special condition.)

Cisco 4321 Integrated Services router is design to deliver advanced services to the small enterprise branch environment. It delivers 50Mbps thoughtput by default. ISR4321-VSEC/K9 is the Cisco ISR 4321 router with Bundle w/UC & SEC License, and CUBE-10.

Quick Specification

Table 1 shows the quick spec.

Product Code	ISR4321-VSEC/K9
Aggregate Throughput	50 Mbps to 100 Mbps
Total onboard WAN or LAN 10/100/1000 ports	2
RJ-45-based ports	2
SFP-based ports	1
NIM (Network Interface Modules) slots	2
Onboard ISC slot	1
Memory	4 GB (default) / 8 GB (maximum)
Flash Memory	4 GB (default) / 8 GB (maximum)
Power-supply options	External: AC and PoE
Rack height	1 RU
Dimensions (H x W x D)	44.55 x 369.57 x 294.64 mm
Package Weight	9.19 Kg

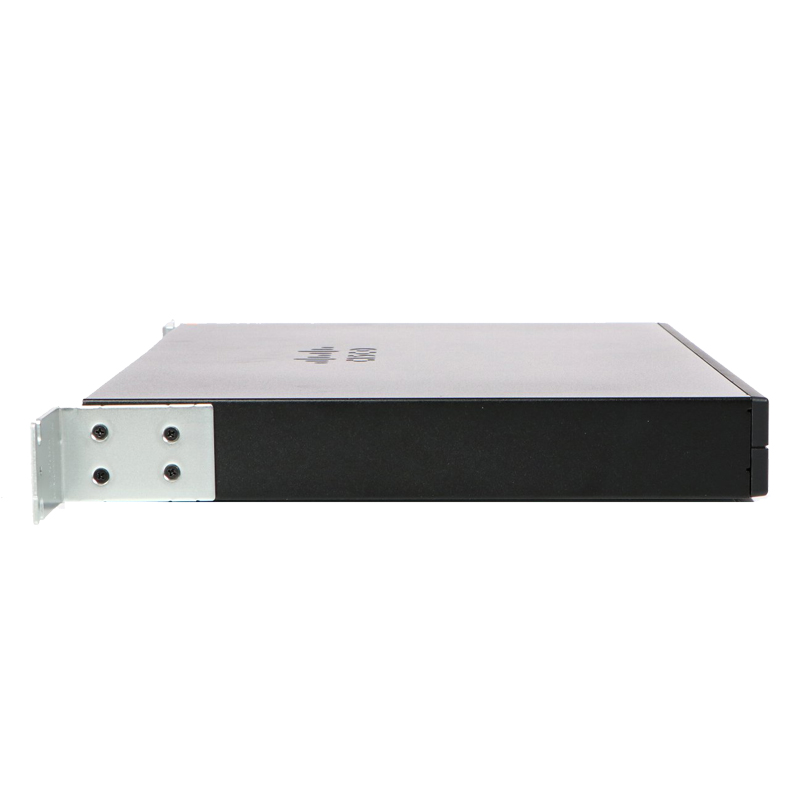

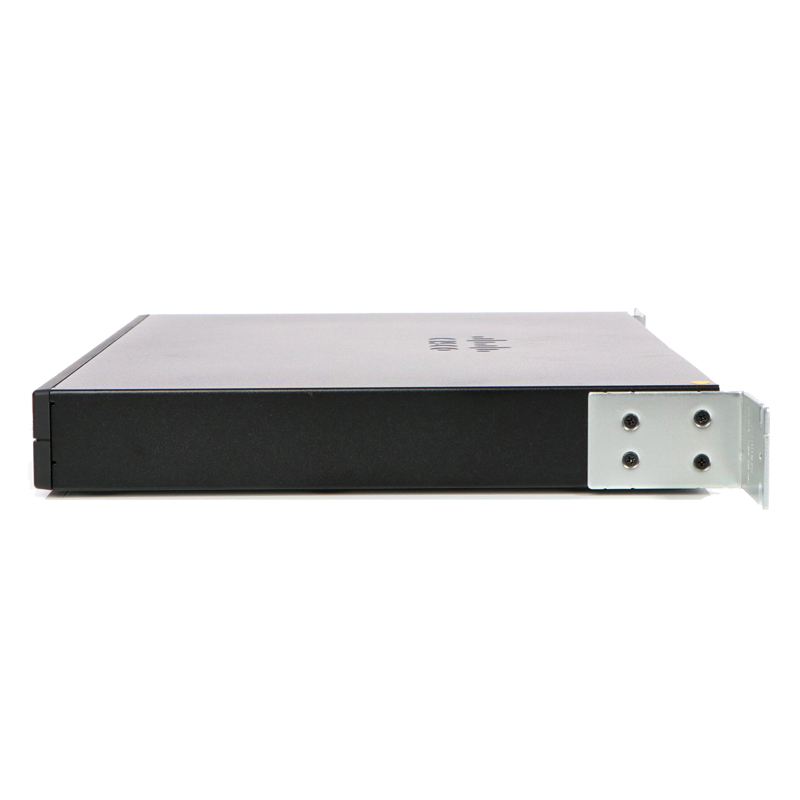

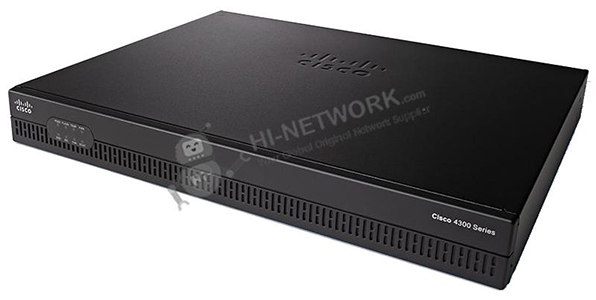

Figure 1 shows the appearance of ISR4321-VSEC/K9.

Product Details

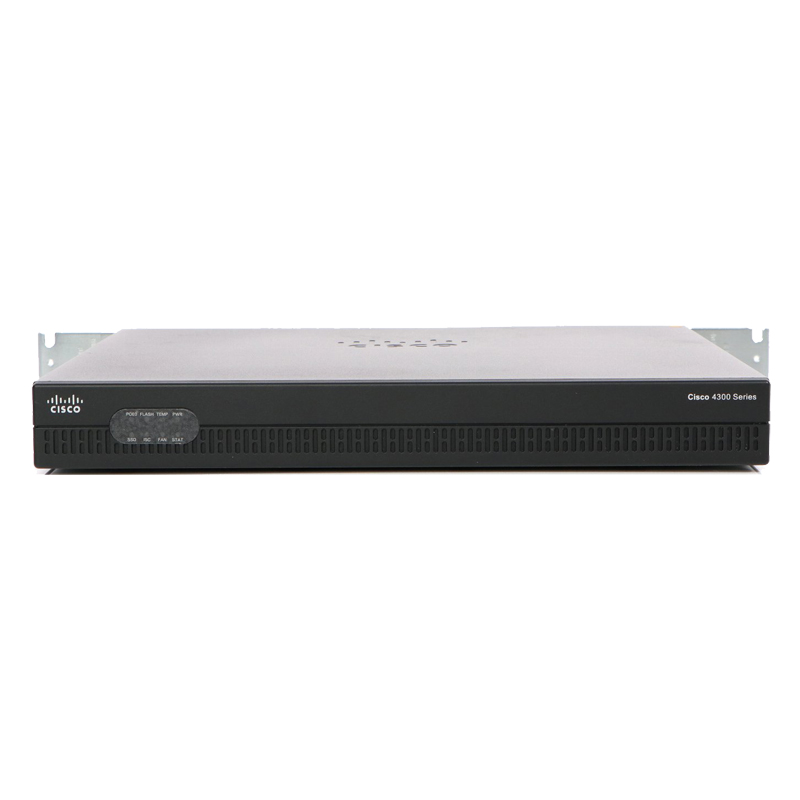

Figure 2 shows the LEDs on the front panel of the Cisco ISR4321-VSEC/K9.

· There are eight LEDs on the front panel.

Table 2 shows the description of these LEDs.

LEDs	Represents	Color	Description
POE0	POE PSU	Green	PoE is on and providing power.
		Amber	PoE is in a failed condition.
		Off	PoE supply is not present.
FLASH	System Flash Status	Blinking Green	Compact flash/eUSB flash is present and currently being accessed.
TEMP	Temperature Status	Solid green	All temperature sensors in the system are within acceptable range.
		Amber	One or more temperature sensors in the system are outside the acceptable range.
		Off	Temperature is not being monitored.
PWR	System Power	Green	System power is on and functioning correctly.
		Green blinking	System power is in the process of shutting down.
		Amber	System power is up, but low level initialization failed.
		Amber blinking	System power is up, but the system failed to come out of reset.
		Off	System power is off.
SSD	mSATA Slot Status	Green	SSD mSATA is present and enabled.
		Amber	Initialized with error.
		Off	Not present.
ISC	ISC Slot Status	Green	PVDM4 is present and enabled.
		Amber	Initialized with error.
		Off	Not present.
FAN	Fan Status	Green	All fans are operating.
		Amber	One fan has stopped working.
		Blinking Amber	Two or more fans have stopped working, or the fan tray has been removed.
		Off	Fans are not being monitored.
STAT	System Status	Solid green	System operating normally.
		Blinking amber	BIOS/Rommon is booting.
		Amber	BIOS/Rommon has completed booting, and system is at Rommon prompt or booting platform software.
		Off	System is not out of reset or BIOS image is not loadable.

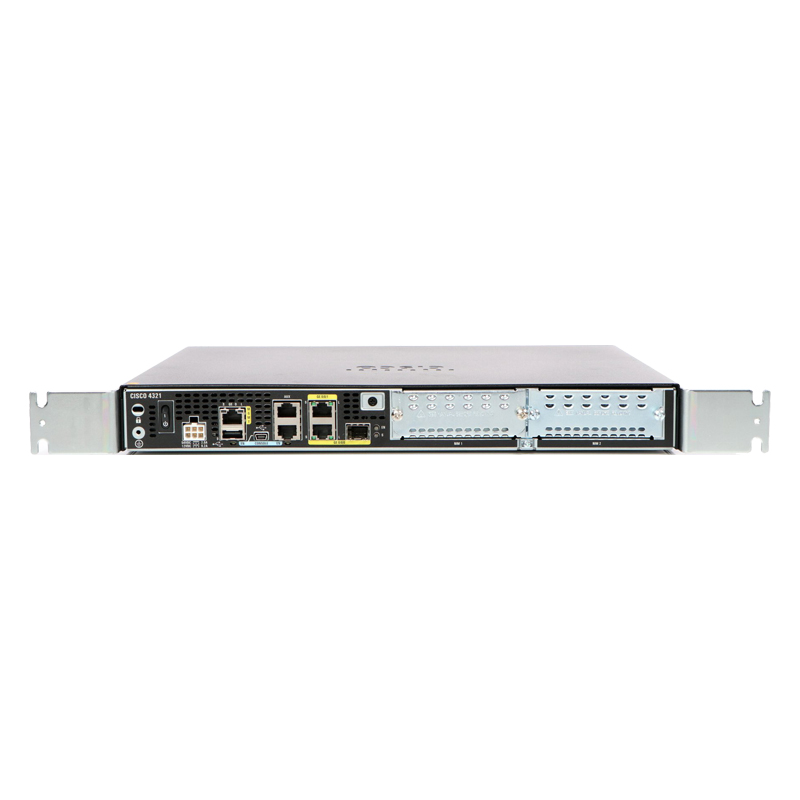

Figure 3 shows the back panel of Cisco ISR4321-VSEC/K9.

Note:

(1)	Grounding	(7)	GE 0/0/1 (copper cable) port
(2)	Power switch	(8)	GE 0/0/0 SFP (fiber-optic) port
(3)	Power input connector	(9)	NIM slots
(4)	GE “MGMT” port (with USB port below)	(10)	GE 0/0/0 RJ-45 (copper cable) port
(5)	USB Type B mini port	(11)	Auxiliary port
(6)	Console port

· The NIMs support 2 single-wide or 1 double-wide.

Table 3 shows Voice Security Bundle Features.

Authentication and Encryption Features	• Media encryption of voice RTP streams using SRTP • Exchange of RTP Control Protocol (RTCP) information using secure RTCP • SRTP to RTP fallback for calls between secure and insecure endpoints • Secure calls supported in Cisco Unified Survivable Remote Site Telephony (SRST) mode during WAN failover • Compressed RTP (CRTP) supported with media encrypted calls using SRTP
Authentication and Encryption Algorithm	• Supports AES-128 encryption algorithm • Supports the HMAC secure hash authentication algorithm (SHA 1)
Signaling Authentication and Encryption Features	• Gateway to Cisco Unified Communications Manager signaling and encryption uses IPSec for Media Gateway Control Protocol (MGCP), H.323 and SIP gateways • IP phone to Cisco Unified Survivable Remote Site Telephony router signaling and encryption uses TLS (Transport Layer Security)
Protocol Support	• MGCP 0.1 (supports MGCP gateways with Cisco Unified Communications Manager) • H.323 (supported on H.323 gateways and CUBE; Cisco Unified Communications Manager interoperability is optional) • Session Initiation Protocol (SIP) • SCCP (Cisco Unified IP Phone) in SRST mode
Module Support	• Any module that has PVDM2, PVDM3 and/or built-in DSP
Codec Support	• G.711, G.729A, and G.729

The Modules, Cards, Licenses & Accessories

Table 4 shows some recommended modules, cards, licenses and several cables.

Items	Models	Description
License	L-SL-4320-APP-K9=	Cisco AppX license L-SL-4320-APP-K9= with 200 conns/ISRWAAS or 750 conns/vWAAS
Console and Auxillary Cables	CAB-CONSOLE-RJ45	Cisco CAB-CONSOLE-RJ45 Console Cable 6ft with RJ45 and DB9F
Console and Auxillary Cables	CAB-CONSOLE-USB	Cisco CAB-CONSOLE-USB Console Cable 6 ft with USB Type A and mini-B
Network Interface Modules	NIM-2CE1T1-PRI	Cisco Multiflex Trunk Voice and WAN network interface module
	NIM-1MFT-T1/E1	Cisco Fourth-Generation Multiflex Trunk Voice and WAN network interface module
	NIM-4E/M	Analog voice network interface card (ear and mouth)
	NIM-2FXS	Cisco Analog voice network interface card NIM-2FXS
	NIM-2FXS/4FXO	Cisco Analog voice network interface card NIM-2FXS/4FXO
SFPs for On-Board GE Ports	GLC-LH-SMD	Cisco GLC-LH-SMD 1000BASE-LX/LH SFP transceiver module, MMF/SMF, 1310nm, DOM
	GLC-ZX-SMD	Cisco GLC-ZX-SMD 1000BASE-ZX SFP transceiver module, SMF, 1550nm, DOM
	GLC-SX-MMD	Cisco GLC-SX-MMD 1000BASE-SX SFP transceiver module, MMF, 850nm, DOM

Compare to Similar Items

Table 5 shows the comparison chart.

Models	ISR4321-VSEC/K9	ISR4321/K9
Description	Cisco ISR 4321 Bundle w/UC & SEC License. CUBE-10	Cisco ISR 4321 (2GE, 2NIM, 4G FLASH, 4G DRAM, IP Base)
Aggregate Throughput	50 Mbps to 100 Mbps	50 Mbps to 100 Mbps
Total onboard WAN or LAN 10/100/1000 ports	2	2
RJ-45-based ports	2	2
SFP-based ports	1	1
Enhanced service-module slots	0	0
NIM slots	2	2
Onboard ISC slot	1	1
Rack height	1	1

Get More Information

Do you have any question about the ISR4321-VSEC/K9?

Specific Data Sheet:

ISR4321-VSEC/K9 Specification
Description	Cisco ISR 4321 Bundle w/UC & SEC License. CUBE-10
Aggregate Throughput	50 Mbps to 100 Mbps
Total onboard WAN or LAN 10/100/1000 ports	2
RJ-45-based ports	2
SFP-based ports	1
Enhanced service-module slots	0
Doublewide service-module slots	0
NIM slots	2
OIR (all I/O modules)	Yes
Onboard ISC slot	1
Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM (Combined control/services/data planes)	4 GB
Maximum memory DDR3 ECC DRAM (Combined control/services/data planes)	8 GB
Default memory DDR3 ECC DRAM (data plane)	NA
Maximum memory DDR3 ECC DRAM (data plane)	NA
Default memory DDR3 ECC DRAM (control/services plane)	NA
Maximum memory DDR3 ECC DRAM (control/services plane)	NA
Default flash memory	4 GB
Maximum flash memory	8 GB
External USB 2.0 slots (type A)	1
USB console port -type B mini (up to 115.2 kbps)	1
Serial console port - RJ45 (up to 115.2 kbps)	1
Serial auxiliary port - RJ45 (up to 115.2 kbps)	1
Power-supply options	External: AC and PoE
Redundant power supply	N/A
AC input voltage	100 to 240 VAC autoranging
AC input frequency	47 to 63 Hz
AC input current range, AC power supply (maximum)	1.5 to 0.6A
AC input surge current	90 A peak and less than 3 Arms per half cycle
Typical power (no modules) (watts)	36
Maximum power with AC power supply (watts)	125
Maximum power with PoE power supply (platform only) (watts)	260
