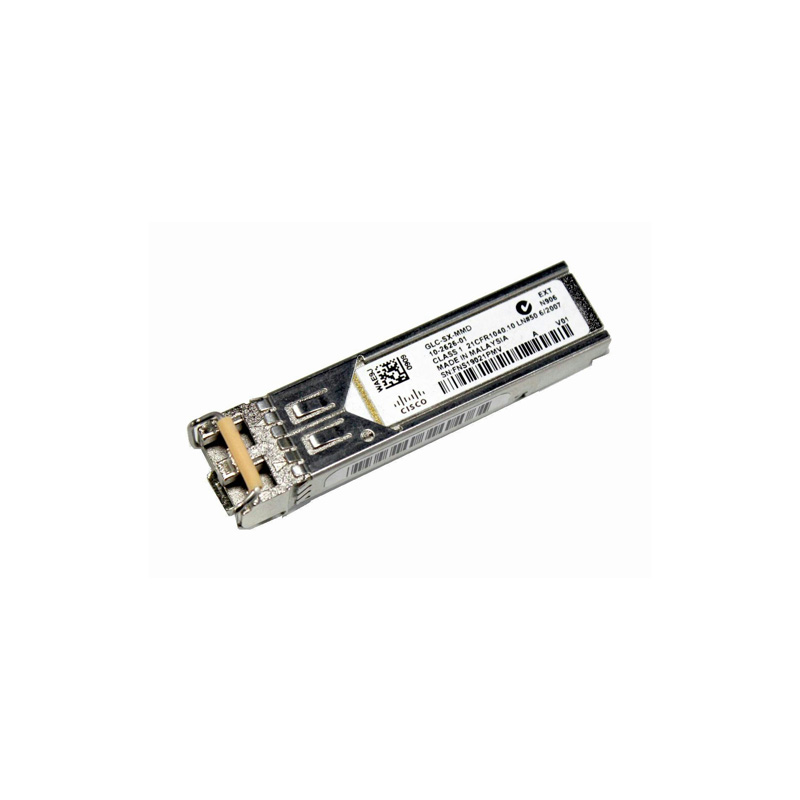

Genuine New GLC-SX-MMD CISCO 850nm 550m Duplex LC MMF SFP

USD

102 ~~$613~~ (83% OFF)

5 5/5.0 Reviews Q/A 19 Sold/Mon
Detail:	Cisco GLC-SX-MMD 1000BASE-SX SFP transceiver module, MMF, 850nm, DOM
Model:	GLC-LH-SX-MMD
Condition:	Factory Sealed New Cisco; In Stock
Related:
Warranty:	3 Years-Warranty 100% Money-back Free After-Sales Service
Shipping:	Air Shipping to United States , Most Customers Receive during 5-7 Days ? If you finish the payment today, your order will arrive within the estimated delivery time.
Ships to: 0.2	2-7 Days US$
Payment:	Pay by wire transfer. Pay with your paypal. Pay with your Visa credit card. Pay with your Mastercard credit card. Pay with your Discover Card. Pay by Western Union. More

Description
Specification
Reviews
Q&A
Warranty
Download

Genuine New GLC-SX-MMD CISCO 850nm 550m Duplex LC MMF SFP

(Note: Cisco discount and Stock always changed, we will try most effort to follow it but can not ensure every web was changed accordingly. So Our Products Service will contact you after order if meet such special condition.)

The GLC-SX-MMD 1000BASE-SX SFP is made for Multimode Fiber only.
The 1000BASE-SX SFP, compatible with the IEEE 802.3z 1000BASE-SX standard, operates on legacy 50 μm multimode fiber links up to 550 m and on 62.5 μm Fiber Distributed Data Interface (FDDI)-grade multimode fibers up to 220 m. It can support up to 1km over laser-optimized 50 μm multimode fiber cable. 850-nm wavelength, extended operating temperature range and DOM support, dual LC/PC connector.

Quick Specification

Cisco Compatible	GLC-SX-MMD
Form Factor	SFP
Wavelength	850nm
Connector	Duplex LC
Media	MMF
TX Power	-9.5 ~ - 3dBm
Industrial Temperature Range	-40 to 85°C (-40 to 185°F)
Vendor Name	FS
Max. Data Rate	1.25Gbps
Max. Cable Distance	550m over OM2 MMF
Optical Components	VCSEL 850nm
DOM Support	Yes
Receiver Sensitivity	< -17dBm
Protocols	IEEE 802.3z, SFF-8472, FC-PI, SFP MSA (INF-8074i) Compliant

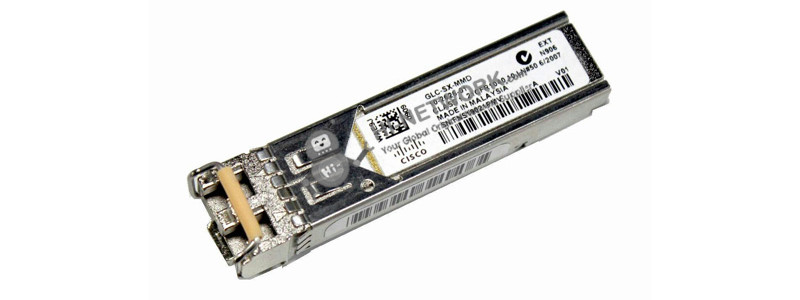

The Front Panel:

glc-sx-mmd-datasheet

Get more information:

Do you have any question about the GLC-LH-SX-MMD?

Specific Data Sheet:

The industry-standard Cisco Small Form-Factor Pluggable (SFP) Gigabit Interface Converter is a hot-swappable input/output device that plugs into a Gigabit Ethernet port or slot, linking the port with the network (Figures 1, 2 and 3). SFPs can be used and interchanged on a wide variety of Cisco products and can be intermixed in combinations of 1000BASE-T, 1000BASE-SX, 1000BASE-LX/LH, 1000BASE-EX, 1000BASE-ZX, or 1000BASE-BX10-D/U on a port-by-port basis.

Product	Wavelength (nm)	Fiber Type	Core Size (μm)	Modal Bandwidth (MHz* Km)***	Operating Distance (m)
1000BASE-SX	850	MMF	62.5	160 (FDDI-grade)	220 (722 ft)
			62.5	200 (OM1)	275 (902 ft)
			50	400 (400/400)	500 (1,640 ft)
			50	500 (OM2)	550 (1,804 ft)
			50	2000 (OM3)	1000 (3281 ft)
1000BASE-LX/LH	1310	MMF*	62.5	500	550 (1,804 ft)
			50	400	550 (1,804 ft)
			50	500	550 (1,804 ft)
		SMF	-**	-	10,000 (32,821 ft)
1000BASE-EX	1310	SMF	-**	-	40,000 (131,234 ft)
1000BASE-ZX (GLC-ZX-SMD)	1550	SMF	-	-	Approximately 70 km depending on link loss
1000BASE-BX-U	1310	SMF	-**	-	10,000 (32,821 ft)
1000BASE-BX-D	1490	SMF	-**	-	10,000 (32,821 ft)
