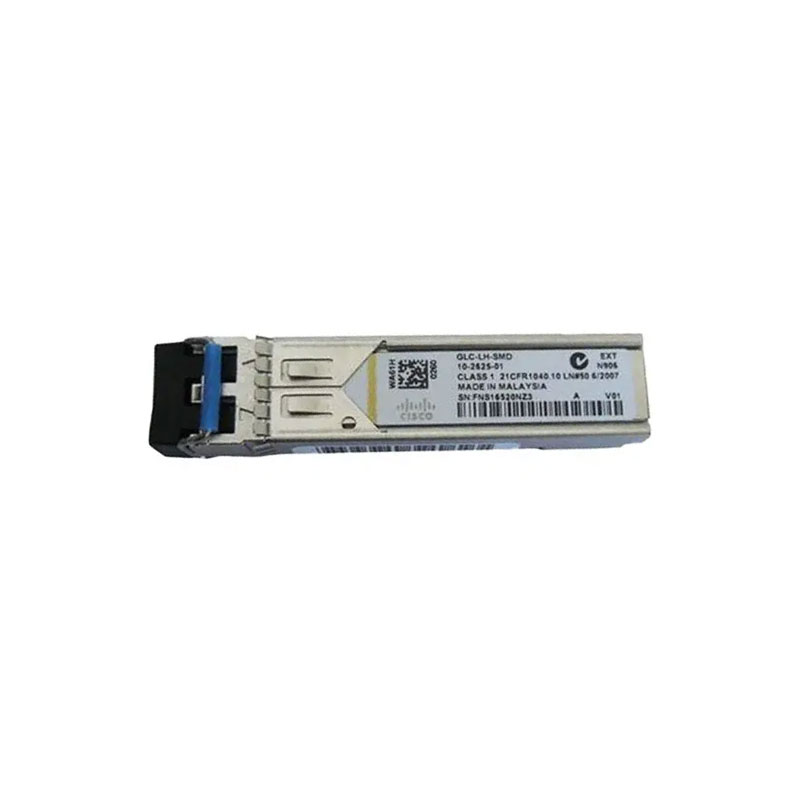

Genuine New GLC-LH-SMD CISCO 1310nm 10KM LC Duplex SFP Module

(Note:  Cisco discount and Stock always changed, we will try most effort to follow it but can not ensure every web was  changed accordingly.  So Our Products Service will contact you after order if meet such special condition.)

Cisco GLC-LH-SMD 1000BASE-LX/LH SFP is made for Both Multimode and Single-Mode Fibers.

The 1000BASE-LX/LH SFP, compatible with the IEEE 802.3z 1000BASE-LX standard, operates on standard single-mode fiber-optic link spans of up to 10 km and up to 550 m on any multimode fibers. When used over legacy multimode fiber type, the transmitter should be coupled through a mode conditioning patch cable. 1300-nm wavelength, extended operating temperature range and DOM support, dual LC/PC connector.

Quick Specification:

The table provides cabling specifications for the SFPs that you install in the Gigabit Ethernet port.

Note that all SFP ports have LC-type connectors, and the minimum cable distance for all SFPs listed (multimode and single-mode fiber) is 6.5 feet (2 m).

*A mode-conditioning patch cord, as specified by the IEEE standard, is required regardless of the span length. Note how the mode conditioning patch cord for 62.5-μm fibers has a different specification from the mode-conditioning patch cord for 50-μm fibers.
**ITU-T G.652 SMF as specified by the IEEE 802.3z standard.
***Specified at transmission wavelength.

The Front Panel:
