Sealed New ISR4221-Sec/K9 Security License Router 35Mbps-75Mbps

2109 $3009 (29.9% OFF)
4.7
4.7/5.0
Q/A
5 sold/Mon
Detail: Cisco ISR 4221 SEC Bundle with SEC lic (35Mbps-75Mbps system throughput, 2 WAN/LAN ports, 1 SFP port, multi-Core CPU,2 NIM, SEC Bundle with SEC lic)
Model: ISR4221-SEC/K9
Condition: Factory Sealed New, In stock
Related: Sealed New ISR4221/K9 Cisco Routers Rack Mountable 35Mbps-75Mbps Genuine New GLC-LH-SMD CISCO 1310nm 10KM LC Duplex SFP Module Genuine New GLC-SX-MMD CISCO 850nm 550m Duplex LC MMF SFP Genuine New GLC-ZX-SMD CISCO 1000BASE SFP 1550nm 80KM Module
Warranty:
3 Years-Warranty
100% Money-back
Free After-Sales Service
Shipping:
Air Shipping to United States
, Most Customers Receive during 5-7 Days
?
If you finish the payment today,
your order will arrive within the
estimated delivery time.
Ships to:
5.3
2-7 Days US$
Payment:
  • Pay by wire transfer.
  • Pay with your paypal.
  • Pay with your Visa credit card.
  • Pay with your Mastercard credit card.
  • Pay with your Discover Card.
  • Pay by Western Union.
More
Quantity
- +
add to Cart quick quote
add to Cart quick quote
  • Description
  • Specification
  • Reviews
  • Q&A
  • Warranty
  • Download

Sealed New ISR4221-Sec/K9 Security License Router 35Mbps-75Mbps


(Note: Cisco discount and Stock always changed, we will try most effort to follow it but can not ensure every web was changed accordingly. So Our Products Service will contact you after order if meet such special condition.)


ISR4221-SEC/K9 is the Cisco 4221 Integrated Services router is design to deliver advanced services to the small enterprise branch environment. It bundles Security Bundle with Security License.


Quick Specification

Table 1 shows the quick spec.

Product Code

Cisco ISR4221-SEC/K9

Bundle

Cisco ISR 4221 SEC Bundle with SEC lic

Aggregate Throughput

35 Mbps to 75 Mbps

Total onboard WAN or LAN 10/100/1000 ports

2

RJ-45-based ports

2

SFP-based ports

1

NIM (Network Interface Modules) slots

2

Onboard ISC slot

No

Default memory double-data-rate 3 (DDR3) error-correction-code (ECC)

DRAM (Combined control/services/data planes)

4 GB

Flash Memory

8 GB

Power-supply options

External AC only

Rack height

1 RU

Dimensions (H x W x D)

1.72 x 12.7 x 10 in (43.7 x 322.6 x 254 mm)

Weight with AC PS (no modules)

7.1 lb (3.22 kg)


Product Details

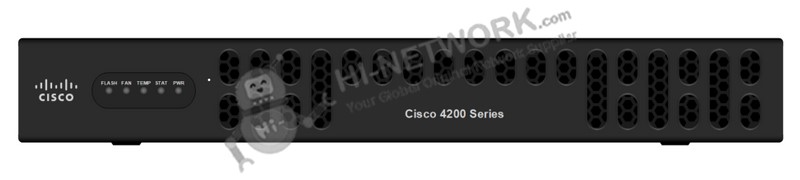

Figure 1 shows the LEDs on the front panel of the Cisco ISR4221-SEC/K9.


· There are 4 LEDs on the front panel.

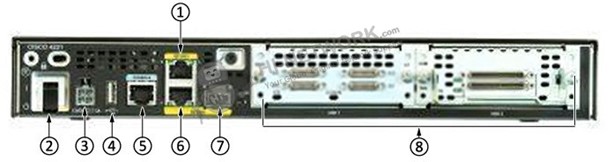

Figure 2 shows the back panel of Cisco ISR4221-SEC/K9.

Note:

(1)

GE 0/0/0 RJ-45 (copper cable) port

(5)

Console port

(2)

Power switch

(6)

GE 0/0/1 (copper cable) port

(3)

Power input connector

(7)

GE 0/0/0 SFP (fiber-optic) port

(4)

GE “MGMT” port (with USB port below)

(8)

NIM slots Note:

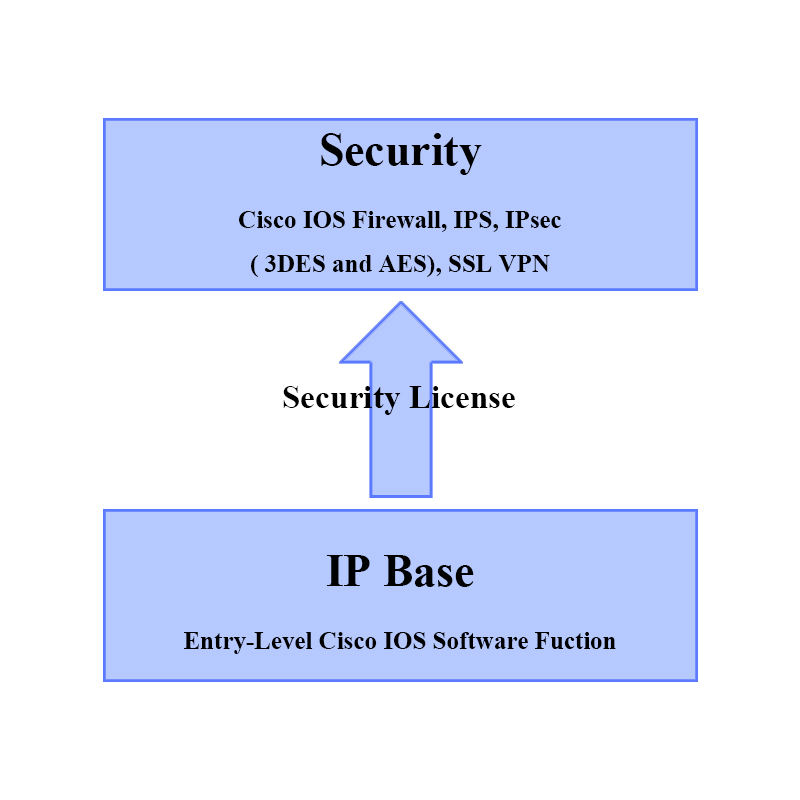

Figure 3 shows the Security License function.

The Modules & Cards

Table 2 shows some recommended modules and cards.

Items

Models

Description

Console and Auxillary Cables

CAB-CONSOLE-RJ45

Cisco CAB-CONSOLE-RJ45 Console Cable 6ft with RJ45 and DB9F

Network Interface Modules

NIM-1MFT-T1/E1

Cisco Fourth-Generation Multiflex Trunk Voice and WAN network interface module

NIM-ES2-4

Cisco 4000 Series Integrated Services Router 4-Port Gigabit Ethernet Switch Module layer 2

NIM-ES2-8

Cisco 4000 Series Integrated Services Router 8-Port Gigabit Ethernet Switch Module NIM

SFPs for On-Board GE Ports

GLC-LH-SMD

Cisco GLC-LH-SMD 1000BASE-LX/LH SFP transceiver module, MMF/SMF, 1310nm, DOM

GLC-ZX-SMD

Cisco GLC-ZX-SMD 1000BASE-ZX SFP transceiver module, SMF, 1550nm, DOM

GLC-SX-MMD

Cisco GLC-SX-MMD 1000BASE-SX SFP transceiver module, MMF, 850nm, DOM


Compare to Similar Items

Table 3 shows the comparison.

Models

ISR4221/K9

ISR4221-SEC/K9

Bundle

N/A

Cisco ISR 4221 SEC Bundle with SEC lic

Aggregate Throughput

35 Mbps to 75 Mbps

35 Mbps to 75 Mbps

Total onboard WAN or LAN 10/100/1000 ports

2

2

RJ-45-based ports

2

2

SFP-based ports

1

1

NIM slots

2

2

Rack height

1

1


Get More Information

Do you have any question about the ISR4221-SEC/K9?

Contact us now via [email protected].

Specific Data Sheet:


Cisco ISR4221-SEC/K9 Specification

Bundle

Cisco ISR 4221 SEC Bundle with SEC lic

Aggregate Throughput

35 Mbps to 75 Mbps

Total onboard WAN or LAN 10/100/1000 ports

2

RJ-45-based ports

2

SFP-based ports

1

Enhanced service-module slots

0

Doublewide service-module slots

0

NIM slots

2

OIR (all I/O modules)

No

Onboard ISC slot

No

Default memory double-data-rate 3 (DDR3) error-correction-code (ECC)

DRAM (Combined control/services/data planes)

4 GB

Maximum memory DDR3 ECC DRAM (Combined control/services/data planes)

4 GB

Default memory DDR3 ECC DRAM (data plane)

NA

Maximum memory DDR3 ECC DRAM (data plane)

NA

Default memory DDR3 ECC DRAM (control/services plane)

NA

Maximum memory DDR3 ECC DRAM (control/services plane)

NA

Default flash memory

8 GB

Maximum flash memory

8 GB

External USB 2.0 slots (type A)

1

USB console port -type B mini (up to 115.2 kbps)

0

Serial console port - RJ45 (up to 115.2 kbps)

1 (combo CON/AUX port)

Serial auxiliary port - RJ45 (up to 115.2 kbps)

1 (combo CON/AUX port)

Power-supply options

External: AC Only

Redundant power supply

N/A

AC input voltage

100 to 240 VAC autoranging

AC input frequency

47 to 63 Hz

AC input current range, AC power supply (maximum)

1.5 to 0.6A

AC input surge current

90 A peak and less than 3 Arms per half cycle

Typical power (no modules) (watts)

24

Maximum power with AC power supply (watts)

90

Maximum power with PoE power supply (platform only) (watts)

NA (no PoE support)

Maximum endpoint PoE power available from PoE power supply (watts)

NA (no PoE support)
