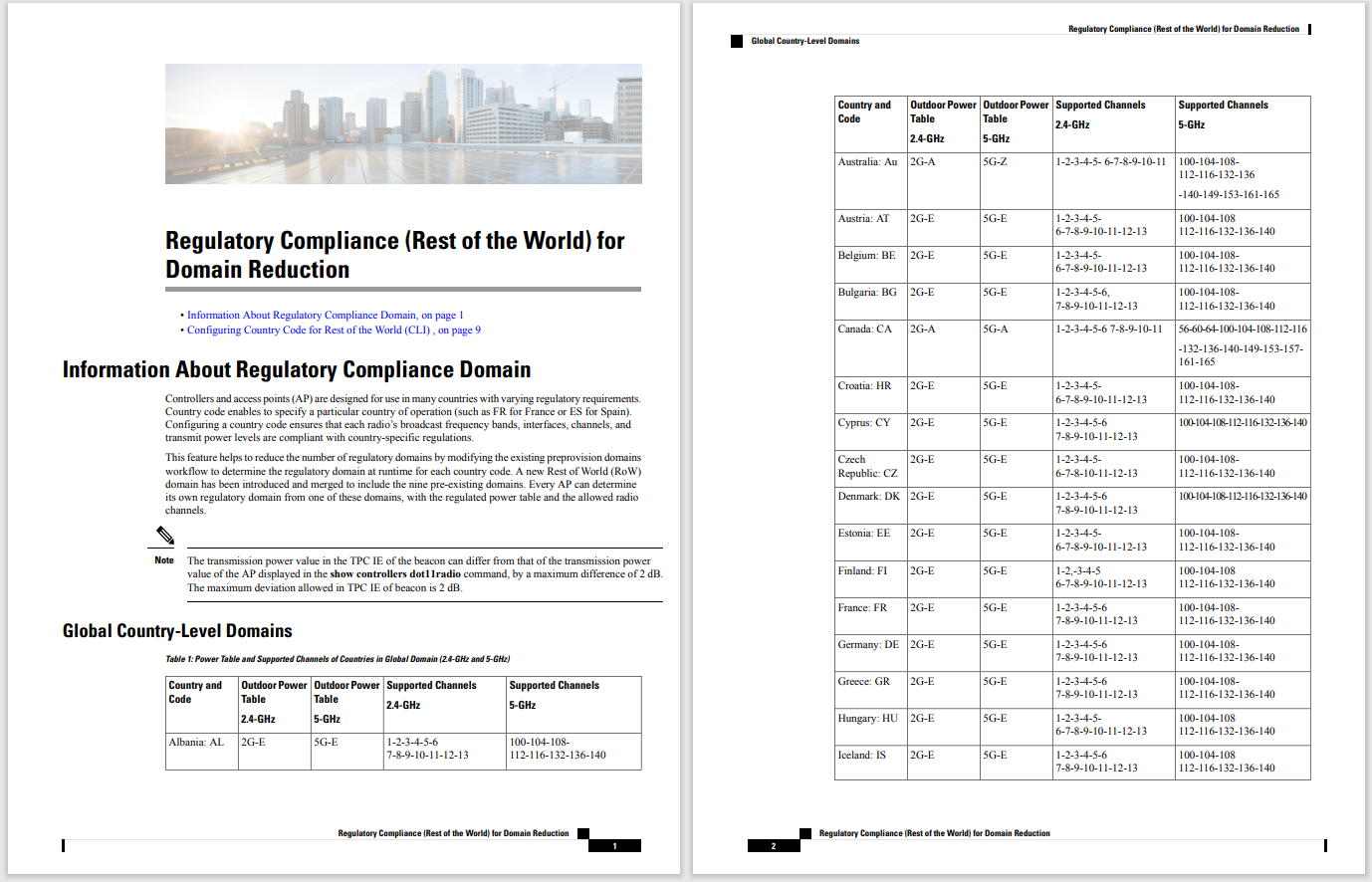

Regulatory Compliance (Rest of the World) for Domain Reduction

Dec, 11, 2024 Hi-network.com

Information About Regulatory Compliance Domain

Controllers and access points (AP)are designed for use in many countries with varying regulatory requirements. Country code enables to specify a particular country of operation (such as FR for France or ES for Spain). Configuring a country code ensures that each radio’s broadcast frequency bands, interfaces, channels, and transmit power levels are compliant with country-specific regulations.


This feature helps to reduce the number of regulatory domains by modifying the existing preprovision domains workflow to determine the regulatory domain at runtime for each country code. A new Rest of World (RoW) domain has been introduced and merged to include the nine pre-existing domains. Every AP can determine its own regulatory domain from one of these domains, with the regulated power table and the allowed radio channels.


Note: The transmission power value in the TPC IE of the beacon can differ from that of the transmission power value of the AP displayed in the show controllers dot11radio command, by a maximum difference of 2 dB. The maximum deviation allowed in TPC IE of beacon is 2 dB.


Global Country-Level Domains

Global Country-Level Domains

Table 1. Power Table and Supported Channels of Countries in Global Domain (2.4-GHz and 5-GHz)

Country and Code

Outdoor Power Table

2.4-GHz

Outdoor Power Table

5-GHz

Supported Channels

2.4-GHz

Supported Channels

5-GHz

Albania: AL

2G-E5G-E

1-2-3-4-5-6 7-8-9-10-11-12-13

100-104-108- 112-116-132-136-140

Australia: Au

2G-A5G-Z

1-2-3-4-5- 6-7-8-9-10-11

100-104-108- 112-116-132-136

-140-149-153-161-165

Austria: AT

2G-E5G-E

1-2-3-4-5- 6-7-8-9-10-11-12-13

100-104-108 112-116-132-136-140

Belgium: BE

2G-E5G-E

1-2-3-4-5- 6-7-8-9-10-11-12-13

100-104-108- 112-116-132-136-140

Bulgaria: BG

2G-E5G-E

1-2-3-4-5-6, 7-8-9-10-11-12-13

100-104-108- 112-116-132-136-140

Canada: CA

2G-A5G-A

1-2-3-4-5-6 7-8-9-10-11

56-60-64-100-104-108-112-116

-132-136-140-149-153-157- 161-165

Croatia: HR

2G-E5G-E

1-2-3-4-5- 6-7-8-9-10-11-12-13

100-104-108- 112-116-132-136-140

Cyprus: CY

2G-E5G-E

1-2-3-4-5-6 7-8-9-10-11-12-13

100-104-108-112-116-132-136-140

Czech Republic: CZ

2G-E5G-E

1-2-3-4-5- 6-7-8-10-11-12-13

100-104-108- 112-116-132-136-140

Denmark: DK

2G-E5G-E

1-2-3-4-5-6 7-8-9-10-11-12-13

100-104-108-112-116-132-136-140

Estonia: EE

2G-E5G-E

1-2-3-4-5- 6-7-8-9-10-11-12-13

100-104-108- 112-116-132-136-140

Finland: FI

2G-E5G-E

1-2,-3-4-5 6-7-8-9-10-11-12-13

100-104-108 112-116-132-136-140

France: FR

2G-E5G-E

1-2-3-4-5-6 7-8-9-10-11-12-13

100-104-108- 112-116-132-136-140

Germany: DE

2G-E5G-E

1-2-3-4-5-6 7-8-9-10-11-12-13

100-104-108- 112-116-132-136-140

Greece: GR

2G-E5G-E

1-2-3-4-5-6 7-8-9-10-11-12-13

100-104-108- 112-116-132-136-140

Hungary: HU

2G-E5G-E

1-2-3-4-5- 6-7-8-9-10-11-12-13

100-104-108 112-116-132-136-140

Iceland: IS

2G-E5G-E

1-2-3-4-5-6 7-8-9-10-11-12-13

100-104-108 112-116-132-136-140

Indonesia: ID

2G-F5G-F

1-2-3-4-5-6 7-8-9-10-11-12-13

149-153-157-161

Italy: IT

2G-E5G-E

1-2-3-4-5- 6-7-8-9-10-11-12-13

100-104-108 112-116-132-136-140

Japan: JP

2G-Q5G-Q

1-2-3-4-5-6 7-8-9-10-11-12-13

100-104-108- 112-116-120-124-128-132-

136-140-144

Latvia: LV

2G-E5G-E

1-2-3-4-5- 6-7-8-9-10-11-12-13

100-104-108 112-116-132-136-140

Liechtenstein: LI

2G-E5G-E

1-2-3-4-5- 6-7-8-9-10-11-12-13

100-104-108- 112-116-132-136-140

Lithuania: LT

2G-E5G-E

1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, and 13

100-104-108-112-116-132-136-140

Luxembourg: LU

2G-E5G-E

1-2-3-4-5-6 7-8-9-10-11-12-13

100-104-108 112-116-132-136-140

Malta: MT

2G-E5G-E

1-2-3-4-5- 6-7-8-9-10-11-12-13

100-104-108- 112-116-132-136-140

Netherlands: NL

2G-E5G-E

1-2-3-4-5- 6-7-8-9-10-11-12-13

100-104-108- 112-116-132-136-140

New Zealand: NZ

2G-A5G-E

1-2-3-4-5- 6-7-8-9-10-11

100-104-108-112-116-132-136-140- 149-153-161-165

Norway: NO

2G-E5G-E

1-2-3-4-5-6 7-8-9-10-11-12-13

100-104-108- 112-116-132-136-140

Poland: PL

2G-E5G-E

1-2-3-4-5- 6-7-8-9-10-11-12-13

100-104-108- 112-116-132-136-140

Portugal: PT

2G-E5G-E

1-2-3-4-5- 6-7-8-9-10-11-12-13

100-104-108- 112-116-132-136-140

Puerto Rico: PR

2G-A5G-B

1-2-3-4-5- 6-7-8-9-10-11

36-40-44-48- 52-56-60-64-100-104- 108-112-116-120-128-132-140-

144-149-153- 157-161-165

Romania: RO

2G-E5G-E

1-2-3-4-5-6-7-8-9-10-11- 12-13

100-104-108-112-116-132-136-140

Russian Federation: RU

2G-R5G-R

1-2-3-4-5- 6-7-8-9-10-11-12-13

36-40-44-48- 52-56-60-64-136-140- 144-149-153-157-161-165

Slovak Republic: SK

2G-E5G-E

1-2,-3-4-5- 6-7-8-9-10-11-12-13

100-104-108-112-116-132-136-140

Slovenia: SI

2G-E5G-E

1-2-3-4-5- 6-7-8-9-10-11-12-13

100-104-108- 112-116-132-136-140

Spain: ES

2G-E5G-E

1-2-3-4-5- 6-7-8-9-10-11-12-13

100-104-108- 112-116-132-136-140

Sweden: SE

2G-E5G-E

1-2-3-4-5- 6-7-8-9-10-11-12-13

100-104-108- 112-116-132-136-140

Switzerland: CH

2G-E5G-E

1-2-3-4-5- 6-7-8-9-10-11-12-13

100-104-108- 112-116-132-136-140

United States of America: US

2G-A5G-B

1-2-3-4-5- 6-7-8-9-10-11

36-40-44-48-52-56-60-64-

100-104-108-112-116-120-128-

132-140-144-149-153 157-161-165

Restrictions on Regulatory Compliance Domain

  • Cisco Catalyst 9124 AXE APs (9124AXE-F) are not supported in Indonesia. The AP radios are operationally down.

Rest of World Domain

The following APs support RoW domain:

  • Cisco Catalyst 9124AX outdoor Access Points

  • Cisco Catalyst 9136 Access Points

  • Cisco Catalyst 9164 Series Access Points

  • Cisco Catalyst 9166 Series Access Points

Table 2. Power Table and Supported Channels of Countries in RoW Domain

Country and Code

Outdoor Power Table

2.4-GHz

Outdoor Power Table

5-GHz

Supported Channels

2.4 GHz

Supported Channels

5 GHz

Algeria: DZ

2G-E

5G-C1

1-2-3-4-5-6-7-8-9-10-11-12-13

52-56-60-64-100-104-

108-112-116-132

Argentina: AR

2G-Z

5G-A1

1-2-3-4-5-6-7-8-9-10- 11

36-40-44-48-52-56-60- 64-100-104-108-112-

116-132-136-140 149-153-157-161-165

Bahamas: BS

2G-A

5G-B1

1-2-3-4-5-6-7-8-9-10-11

36-40-44-48-52-56-60- 64-149-153-157-161-165

Bahrain: BH

2G-E

5G-C1

1-2-3-4-5-6-7-8-9-10 11-12-13

149-153-157-161-165

Bangladesh: BD

2G-A

5G-A2

1-2-3-4-5-6-7-8-9-10- 11

149-153-157-161-165

Barbados: BB

2G-A

5G-B1

1-2-3-4-5-6-7-8-9-10- 11

36-40-44-48-52-56-60-64 149-153-157-161-165

Bolivia: BO

2G-A

5G-A10

1-2-3-4-5-6-7-8-9-10- 11

149-153-157-161-165

Bosnia: BA

2G-E5G-E

1-2-3-4-5- 6-7-8-9-0-11-12-13

100-104-108- 112-116-132-136-140

Brazil: BR

2G-Z

5G-Z1

1-2-3-4-5-6-7-8-9-10- 11-12-13

100- 104-112-116-120 124-128-132-136-

140-149-153-157- 161-165

Brunei: BN

2G-V1

5G-M3

1-2-3-4-5-6-7-8-9-10 11-12-13

36-40-44-48-52-56-60-64-

116-120-124-128-132-136-140-

149-153-157-161-165

Cameroon: CM

2G-E

5G-E

1-2-3-4-5-6-7-8-9-10 11-12-13

100-104-108-112-116-132-136-140

Chile: CL

2G-A

5G-A3

1-2-3-4-5-6-7-8-9-10- 11

52-56-60-64-100-104- 108-112-116-120-124-128-132-

136 140-149-153-157-161-165

China: CN

2G-E

5G-H1

1-2-3-4-5-6-7-8-9-10 11-12-13

149-153-157-161-165

Colombia: CO

2G-A

5G-B2

1-2-3- 4-5-6-7-8-9-10- 11

36-40-44-48-52-56-60-64-100-108-112-116-120-124-128-

132 136-140-149-153-157-161-165

Cost Rica: CR

2G-A

5G-A4

1-2-3-4-5-6-7-8-9-10- 11

36-40-44-48-52-56-60-64-

100-104-108-112-116-120-124-

128-132-136-140-149-153-157-161-165

Dominican Republic: DO

2G-A

5G-A5

1-2-3-4-5-6-7-8-9-10- 11

36-40-44-48-52-58-60-64-

100-104-108-112-

116-120-124-128- 132-136-140-149-153-157-161-165

Ecuador: EC

2G-A

5G-A4

1-2-3-4-5-6-7-8-9-10-11

36-40-44-48-52-56-60-64- 100-104-108-112-

116-120-124-128- 132-136-140-149-153-157-161-165

Egypt: EG

2G-E

5G-C1

1-2-3-4-5-6-7-8-9-10- 11-12-13

36-40-44-48-52-56-60-64

El Salvador: SV

2G-A

5G-A

1-2-3-4-5-6-7-8-9-10- 11

52-56-60-64-149-153- 157-161-165

Ghana: GH

2G-E

5G-E

1-2-3-4-5-6-7-8-9-10- 11-12-13

100-104-108-112-116- 132-136-140

Gibraltar: GI

2G-E5G-E

1-2-3-4-5- 6-7-8-9-10-11-12-13

100-104-108 112-116-132-136-140

Hong Kong: HK

2G-Z

5G-Z1

1-2-3-4-5-6-7-8-9-10- 11

100-104-108-112-116- 120-124-128-132-136-

140-149-153-157-161-165

India: IN

2G-Z

5G-D1

1-2-3-4-5-6-8-9-10-11

36-40-44-48-52-56-60- 100- 104-108-112-

116-124-128-132 136-140-144-153-157-161-165-169

Israel: IL

2G-E

5G-E

1-2-3-4-5-6-7-8-9-10 11-12-13

—

Jamaica: JM

2G-E

5G-Z

1-2-3-4-5-6-7-8-9-10- 11

52-56-60-64-100-104-

108-112-116-120-124-128-

132-136-140-153-161-165

Jordan: JO

2G-E5G-E

1-2-3-4-5- 6-7-8-9-10-11-12-13

100-104-108-112-116-132-136-140

Kenya: KE

2G-E

5G-E

1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, and 13

100-104-108-112-116-132-136-140

Korea: KR

2G-E

5G-K1

1-2-3-4-5-6-7-8-9-10- 11-12-13

36-40-44-48-52-56-60 64-

100-104-108-112-116-120-

124-128-132-136-140-149-

153-157-161-165

Lebanon: LB

2G-E5G-E

1-2-3-4-5-6 7-8-9-10-11-12-13

100-104-108 112-116-132-136-140

Macedonia: MK

2G-E5G-E

1-2-3-4-5-6 7-8-9-10-11-12-13

100-104-108 112-116-132-136-140

Macao: MO

2G-V1

5G-M3

1- 2-3-4-5-6-7-8-9-10 11-12-13

36-40-44-48-52-56-60-64 116-120-124-128-

132-140-149-153 157-161-165

Malaysia: MY

2G-F

5G-C2

1-2-3-4-5-6-7-8-9-10 11-12-13

100-104-108-112-116- 120-124-128-149-153-

157-161-165

Mexico: MX

2G-A1

5G-A6

1-2-3-4-5-6-7-8-9-10 11-12-13

36-40-44-48-52-56-60- 64-149-153-157-161-165

Mongolia: MN

2G-E1

5G-E6

1-2-3-4-5-6-7-8-9-10 11-12-13

36-40-44-48-52-56-60-64 116-120-124-128-

132-140-149-153 157-161-165

Monaco: MC

2G-E5G-E

1-2-3-4-5- 6-7-8-9-10-11-12-13

100-104-108 112-116-132-136-140

Montenegro: ME

2G-E5G-E

1-2-3-4-5- 6-7-8-9-10-11-12-13

100-104-108 112-116-132-136-140

Oman: OM

2G-E5G-E

1-2-3-4-5-6 7-8-9-10-11-12-13

100-104-108- 112-116-132-136-140

Pakistan: PK

2G-A1

5G-E7

1-2-3-4-5-6-7-8-9-10- 11

149-153-157-161

Panama: PA

2G-A

5G-B2

1-2-3-4-5-6-7-8-9-10-11

36-40-44-48-52-56-60- 64-100-104-108-112-

116-120-124-128 132-136-140-149-153-157-161-165

Paraguay: PY

2G-A

5G-Z1

1-2-3-4-5-6-7-8-9-10- 11

36-40-44-48-52-56-60- 64-100-104-108-112-

116-120-124-128- 132-136-140-149-153-157-161-165

Peru: PE

2G-A

5G-A

1-2-3-4-5-6-7-8-9-10- 11

56-60-64-100-104-108 112-116-132-136-140-

149-153-157 161-165

Philippines: PH

2G-E

5G-A7

1-2-3-4-5-6-7-8-9-10- 11

36-40-44-48-52-56-60-64 100-104-108-112-116-120-128-136 140-149-153-157-161-165

Rest of the World (Default)

2G-RW

5G-RW

1-2-3-4-5-6-7-8-9-10 11-12-13

—

Saudi Arabia: SA

2G-E

5G-M1

1-2-3-4-5-6-7-8-9-10 11-12-13

100-104-108-112-116 120-124-128-132-136-140

Serbia: RS

2G-E5G-E

1-2-3-4-5- 6-7- 8-9-10-11-12-13

100-104-108- 112-116-132-136-140

Singapore: SG

2G-V1

5G-M3

1-2-3-4-5-6-7-8-9-10 11-12-13

36-40-44-48-52-56-60-64 116-120-124-128-

132-136-140-144 149-153-157-161-165

Slovak Republic: SK

2G-E

5G-E

1-2-3-4-5-6-7-8-9-10 11-12-13

100-104-108-112-116- 132-136-140

South Africa: ZA

2G-E

5G-Z

1-2-3-4-5-6-7-8-9-10- 11-12-13

100-104-108-112-116- 132-136-140-149-153-

157-161-165

Taiwan: TW

2G-Z

5G-B

1-2-3-4-5-6-7-8-9-10- 11

36-40-44-48-52-56-60-64- 100-104-108-112-

116-120-128-132 140-144-149-153-157-161-165

Thailand: TH

2G-E

5G-M3

1-2-3-4-5-6-7-8-9-10 11-12-13

36-40-44-48-52-56-60- 64-

116-120-124-128-132-136-

140-149- 153-157-161-165

Trinidad: TI

2G-A1

5G-M2

1-2-3-4-5-6-7-8-9-10- 11-12-13

100-104-108-112-116 124-128-132-136-140

Tunisia: TN

2G-E

5G-C1

1-2-3-4-5-6-7-8-9-10- 11-12-13

100-104-108-112-116- 132-136-140

Turkey: TR

2G-E5G-E

1-2-3-4-5- 6-7-8-9-10-11-12-13

100-104-108- 112-116-132-136-140

United Arab Emirates: AE

2G-E5G-E

1-2-3-4-5- 6-7-8 9-10-11-12-13

100-104-108- 112-116-132-136-140

United Kingdom: GB

2G-E

5G-E1

1-2-3-4-5-6-7-8-9-10- 11-12-13

100-104-108-112-116- 132-136-140

Venezuela: VE

2G-A

5G-A8

1-2-3-4-5-6-7-8-9-10- 11

36-40-44-48-52-56-60-64-

149-153-157-161-165

Vietnam: VN

2G-V1

5G-M2

1-2-3-4-5-6-7-8-9-10- 11-12-13

52-56-60-64-100-104-

112-116-124-128-132-136-

140-153- 157-161-165

Configuring Country Code for Rest of the World (CLI)

This configuration is mandatory for the RoW.

Follow the procedure given below to configure the country code.

Before you begin

  • Before configuring the country code in the AP profile, ensure that the country is present in the global country list. If the configured country code is not present in the global list, the AP retains the previous country code configuration. In addition, the misconfigured operation triggers a default flag and brings the radio operations down.

  • If the configured country code does not match with the regulatory domain of one or more radio slots, the AP retains the previous country code configuration. In addition, the misconfigured operation triggers a default flag and brings the radio operations down.

Procedure

 Command or ActionPurpose

Step 1

configure terminal

Example:

Device# configure terminal

Enters global configuration mode.

Step 2

ap profile ap-profile

Example:

Device(config)# ap profile default-ap-profile

Configures an AP profile and enters AP profile configuration mode.

Note



The Cisco Embedded Wireless Controller (EWC) supports only the default AP profile.

Step 3

country code

Example:

Device(config-ap-profile)# country IN

Sets the country code. Use the no form of this command to delete the country code.

Note



From Cisco IOS XE Bengaluru 17.6.1, the ap country code command was modified. The ap keyword was removed. The modified command is country code .

Step 4

end

Example:

Device(config-ap-profile)# end

Returns to privileged EXEC mode.

Step 5

show ap profile name default-ap-profile detailed

Example:

Device# show ap profile name default-ap-profile detailed
AP Profile Name               : default-ap-profile
Description                   : default ap profile
.
.
.
Country code                  : IN

Displays the AP country code for the AP join profile.

If a country is not configured in the AP join profile, the country code will be displayed as “Not configured”.

The regulatory domain of RoW APs will be displayed as ROW.



cisco wireless ap regulatory domain

Download: Regulatory Compliance (Rest of the World) for Domain Reduction.pdf

Cisco Wireless AP and Controllers

For Cisco product list and quote, please visit: https://www.hi-network.com/categories/cisco or contact us at www.hi-network.com  (Email: [email protected])


tag-icon Hot Tags :

Register Email now for Weekly Promotion Stock

100% free, Unsubscribe any time!
Copyright © 2014-2024 Hi-Network.com | HAILIAN TECHNOLOGY CO., LIMITED | All Rights Reserved.
