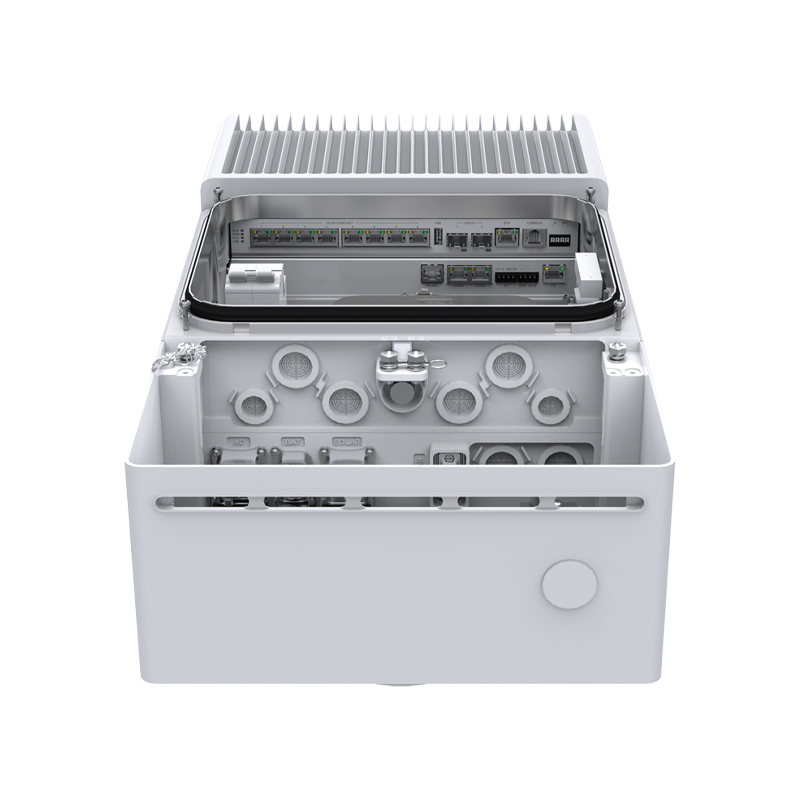

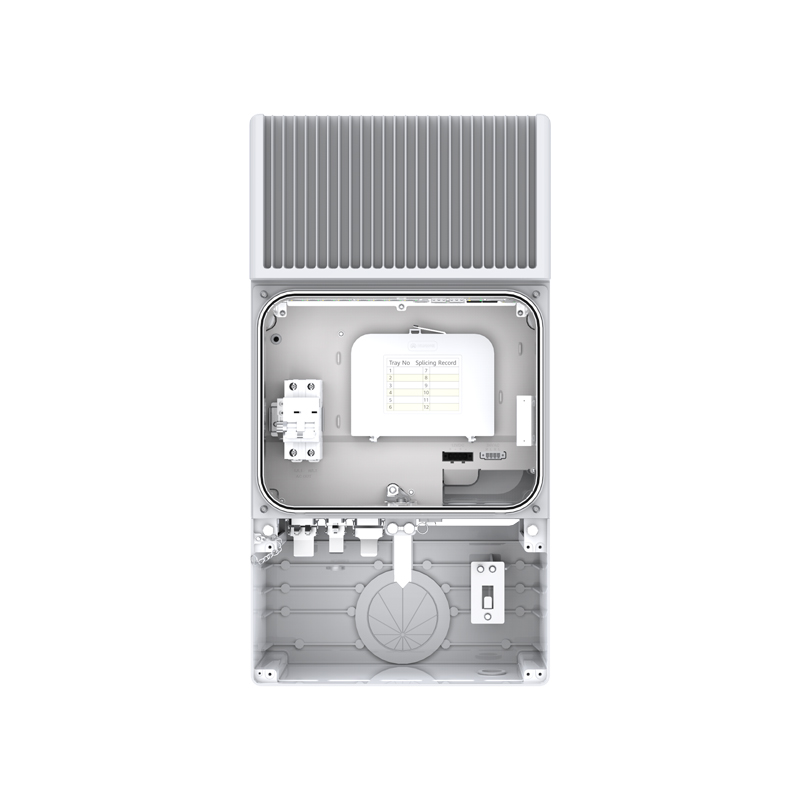

Model

S5735-S8P2X-IA200H1

Part Number

02313CMQ

Description

Function Module, S5735-S8P2X-IA200H1, Single-Phase Or Dual-Live Wire Or PV Input, PoE 53Vdc/3.8A, 12Vdc/6A, 24Vac/4A, Natural Heat Dissipation

First supported version

V200R020C10

Dimensions without packaging (H x W x D) [mm(in.)]

Including the protruding portions: 582 mm x 300 mm x 165.5 mm (22.91 in. x 11.81 in. x 6.52 in.)
Excluding the protruding portions: 570 mm x 300 mm x 150 mm (22.44 in. x 11.81 in. x 5.91 in.)

Dimensions with packaging (H x W x D) [mm(in.)]

270 mm x 450 mm x 670 mm (10.63 in. x 17.72 in. x 26.38 in.)

Weight without packaging [kg(lb)]

14.5 kg (31.97 lb)

Weight with packaging [kg(lb)]

17.6 kg (38.8 lb)

Typical power consumption [W]

38

Typical heat dissipation [BTU/hour]

129.66

Maximum power consumption [W]

- With no output power: 45 W
- With output power: 269 W (device power consumption: 69 W; output power: 200 W)

Maximum heat dissipation [BTU/hour]

- With no output power: 153.55
- With output power: 917.86

MTBF [year]

41.85

MTTR [hour]

2

Availability

>0.99999

Noise at normal temperature (acoustic power) [dB(A)]

Noise-free (no fans)

Noise at normal temperature (acoustic pressure) [dB(A)]

Noise-free (no fans)

Number of card slots

0

Number of power slots

0

Number of fans modules

0

Redundant power supply

The S5735-S8P2X-IA200H1 has a built-in AC power module and can be directly connected to the AC mains or an external PV system. External lithium batteries can also be connected to the switch for power backup.

Long-term operating temperature [°C(°F)]

-40°C to +55°C (-40°F to 131°F)
 NOTE:
–35ºC to +55ºC (–31ºF to +131ºF): sunshade needed; no requirement on the air velocity; GPON optical modules supported
–35ºC to +45ºC (–31ºF to +113ºF): 1120 W/m2 solar radiation (maximum); no requirement on the air velocity
–40ºC to –35ºC (–40ºF to –31ºF): Stable port performance can be achieved only when at least four Ethernet electrical ports go Up.

Restriction on the operating temperature variation rate [°C(°F)]

When the altitude is 2000-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 200 m (656 ft.).

Storage temperature [°C(°F)]

-40°C to +85°C (-40°F to +185°F)

Long-term operating relative humidity [RH]

5% to 95%, noncondensing

Long-term operating altitude [m(ft.)]

-150 m to 5000 m (-492 to 16404 ft.)

Storage altitude [m(ft.)]

-150 m to 5000 m (-492 to 16404 ft.)

Power supply mode

AC built-in,Solar power supply,Lithium battery power supply

Rated input voltage [V]

AC input: 100 V AC to 240 V AC, 50/60 Hz
PV input: 72 V DC
Battery input: 53.5 V DC

Input voltage range [V]

AC input: 85 V AC to 290 V AC, 45 Hz to 65 Hz
PV input: 36 V DC to 120 V DC

Memory

1 GB

Flash memory

512 MB in total. To view the available flash memory size, run the display version command.

Console port

RJ45

Eth Management port

RJ45

USB

Supported

RTC

Not supported

RPS input

Not supported

Service port surge protection [kV]

±1.5 kV in differential mode, ±6 kV in common mode

Power supply surge protection [kV]

Surge current:
- AC input: 20 kA
- PV input: ±3 kA in differential mode; ±5 kA in common mode
- Battery input: ±3 kA in differential mode; ±5 kA in common mode
Surge:
- AC input: ±6 kV in differential mode; ±6 kV in common mode
- PV input: ±2 kV in differential mode; ±4 kV in common mode
- Battery input: ±2 kV in differential mode; ±4 kV in common mode
- 12 V DC output: ±2 kV in differential mode; ±4 kV in common mode
- 24 V AC output: ±2 kV in differential mode; ±6 kV in common mode

Types of fans

None

Heat dissipation mode

Natural heat dissipation without fans

Airflow direction

-

PoE

Supported

Certification

EMC certification
Safety certification
Manufacturing certification
