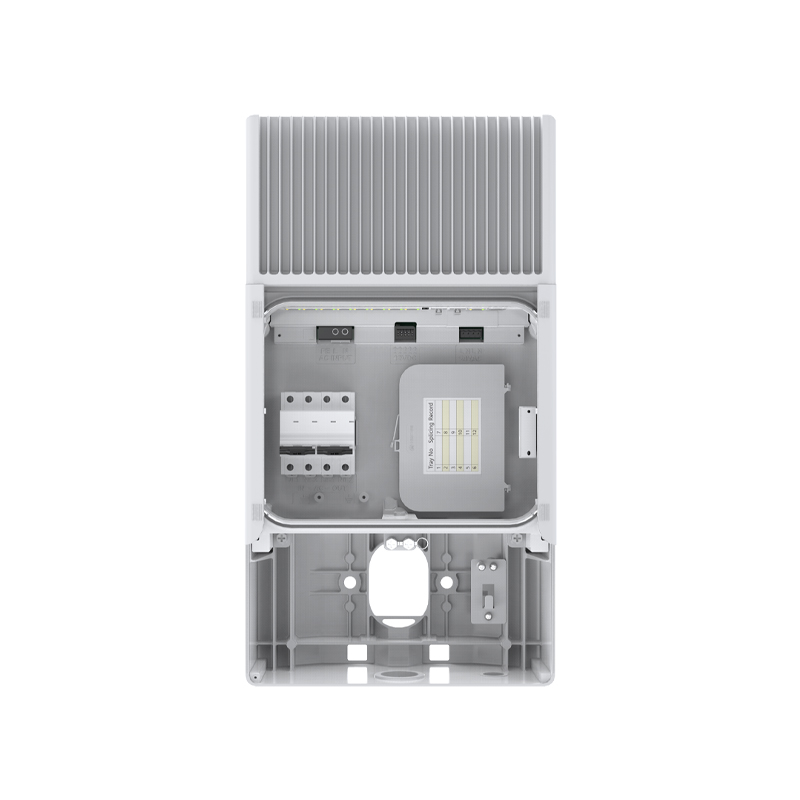

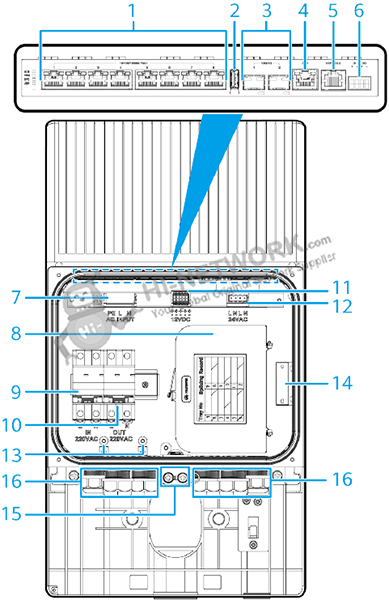

Model

S5735-S8P2X-IA200G1

Part Number

02312NTA-001

Description

Function Module, S5735-S4T2X-IA150G1, 220Vac Single-Phase Input, 144W Max Combined Output Power (12Vdc/24Vac), Natural Heat Dissipation

First supported version

V200R019C10

Dimensions without packaging (H x W x D) [mm(in.)]

550 mm x 300 mm x 135 mm (21.65 in. x 11.81 in. x 5.31 in.)

Weight without packaging [kg(lb)]

9.2

Weight without packaging (full configuration) [kg(lb)]

9.2

Weight with packaging [kg(lb)]

12.2

Typical power consumption [W]

31

Typical heat dissipation [BTU/hour]

105.78

Maximum power consumption [W]

- With no output power: 34 W
- With output power: 209 W (device power consumption: 49 W; output power: 160 W)

Maximum heat dissipation [BTU/hour]

- With no output power: 111
- With output power: 713.13

MTBF [year]

57.28

MTTR [hour]

2

Availability

>0.99999

Noise at normal temperature (acoustic power) [dB(A)]

Noise-free (no fans)

Noise at normal temperature (acoustic pressure) [dB(A)]

Noise-free (no fans)

Number of card slots

0

Number of power slots

0

Number of fans modules

0

Redundant power supply

Not supported

Long-term operating temperature [°C(°F)]

-40°C to +75°C (-40°F to 167°F)
 NOTE:
–25ºC to +75ºC (–13ºF to +167ºF): sunshade needed; 400 LFM air velocity (minimum); GPON optical modules not supported
–25ºC to +70ºC (–13ºF to +158ºF): sunshade needed; 200 LFM air velocity (minimum); GPON optical modules supported
–30ºC to +60ºC (–22ºF to +140ºF): sunshade needed; 40 LFM air velocity (minimum); GPON optical modules supported
–35ºC to +55ºC (–31ºF to +131ºF): sunshade needed; no requirement on the air velocity; GPON optical modules supported
–35ºC to +45ºC (–31ºF to +113ºF): 1120 W/m2 solar radiation (maximum); no requirement on the air velocity
–40ºC to –35ºC (–40ºF to –31ºF): Stable port performance can be achieved only when at least four Ethernet electrical ports go Up.

Restriction on the operating temperature variation rate [°C(°F)]

When the altitude is 1800-4000 m (5906-13123 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).

Storage temperature [°C(°F)]

-40°C to +85°C (-40°F to +185°F)

Long-term operating relative humidity [RH]

5% to 95%, noncondensing

Long-term operating altitude [m(ft.)]

0-4000 m (0-13123 ft.)

Storage altitude [m(ft.)]

0-4000 m (0-13123 ft.)

Power supply mode

AC built-in

Rated input voltage [V]

220 V AC to 240 V AC, 50/60 Hz

Input voltage range [V]

176 V AC to 264 V AC, 45 Hz to 66 Hz

Memory

1 GB

Flash memory

512 MB in total. To view the available flash memory size, run the display version command.

Console port

RJ45

Eth Management port

RJ45

USB

Supported

RTC

Not supported

RPS input

Not supported

Service port surge protection [kV]

±1.5 kV in differential mode, ±6 kV in common mode

Power supply surge protection [kV]

Surge current:
- AC input: 20 kA
Surge:
- AC input: ±6 kV in differential mode; ±6 kV in common mode
- 12 V DC output: ±2 kV in differential mode; ±4 kV in common mode
- 24 V AC output: ±2 kV in differential mode; ±6 kV in common mode

Types of fans

None

Heat dissipation mode

Natural heat dissipation without fans

Airflow direction

-

PoE

Supported

Certification

EMC certification
Safety certification
Manufacturing certification
