OEM SFP-10G-BXU1 (02310QBJ) Huawei Compatible 10GBASE-BX10-U BiDi SFP+ 1270nm-TX/1330nm-RX 10km DOM Simplex LC SMF Transceiver Module

10GBase, BIDI Optical Transceiver, SFP+, 10G, Single-mode Module (TX1270nm/RX1330nm, 10km, LC)

Quick Specification

Table 1 shows the quick specification.

Model	SFP-10G-BXU1
Part Number	02310QBJ
Description	10GBase, BIDI Optical Transceiver, SFP+, 10G, Single-mode Module (TX1270nm/RX1330nm, 10km, LC)
Level-1 category	10GE SFP+ Optical Modules, Industrial Optical Modules
Form factor	SFP+
Application standard	10GBASE-BX
Connector type	LC
Optical fiber type	SMF
Working case temperature [°C(°F)]	-40°C to +85°C (-40°F to +185°F)
Transmission rate [bit/s]	10 Gbit/s
Target transmission distance [km]	Single-mode fiber: 10 km
Center wavelength [nm]	1330 nm (RX) 1270 nm (TX)
Maximum Tx optical power [dBm]	0.5
Minimum Tx optical power [dBm]	-8.2
Minimum extinction ratio [dB]	3.5
Rx sensitivity [dBm]	-14.4
Overload power [dBm]	0.5
Note	Supports the single-fiber bidirectional function. Single-fiber bidirectional (BIDI) optical modules must be used in pairs. For example, SFP-10G-BXU1 must be used with SFP-10G-BXD1.

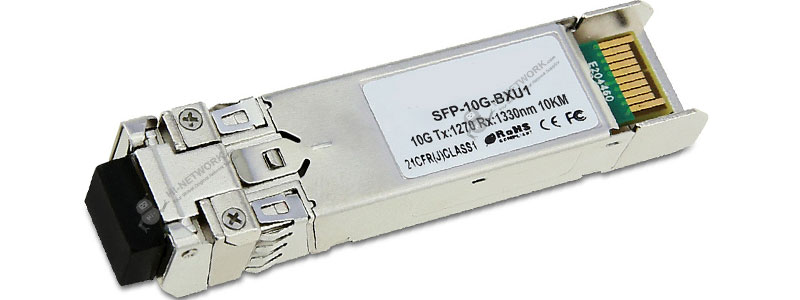

Figure 1 shows the appearance.

huawei-sfp-10g-bxu1-main-datasheet

Product Details

The Supported Switches

Table 2 shows the Huawei hot switches which support SFP-10G-BXU1.

Model	Description
S5700-28P-LI-AC	24 x Ethernet 10/100/1000 ports, 4 Gig SFP, AC 110/220V
S5700-28TP-LI-AC	24 x Ethernet 10/100/1000ports,2 Gig SFP and 2 dual-purpose 10/100/1000 or SFP, AC 110/220V
S5700S-52P-LI-AC	48 x Ethernet 10/100/1000 ports, 4 Gig SFP, AC 110/220V
S5700-28P-PWR-LI-AC	24 x Ethernet 10/100/1000 PoE+ ports, 4 Gig SFP, AC 110/220V
S5700-10P-PWR-LI-AC	8 x Ethernet 10/100/1000 PoE+ ports, 2 Gig SFP, AC 110/220V
S5720-36C-EI-AC	28 x Ethernet 10/100/1000 ports,4 of which are dual-purpose 10/100/1000 or SFP,4 10 Gig SFP+, 1 interface slot, with 150W AC
S5700-28C-EI-AC	24 x Ethernet 10/100/1000 ports, with 1 interface slot, with 150W AC power supply
S5720-56C-HI-AC	48 x Ethernet 10/100/1000 ports, 4 10 Gig SFP+, with 2 interface slots, with 600W AC power supply
S5720-56PC-EI-AC	48 x Ethernet 10/100/1000 ports,4 Gig SFP, with 1 interface slot, with 150W AC power supply
S5720-56C-PWR-HI-AC	48 x Ethernet 10/100/1000 POE+ ports,4 10 Gig SFP+, with 2 interface slots, with 1150W AC power supply

Compare to Similar Items

Table 3 shows the comparison of SFP-10G-USR and SFP-10G-BXU1.

Model	SFP-10G-USR	SFP-10G-BXU1
Transceiver form factor	SFP+	SFP+
Transmission speed	10 Gbit/s	10 Gbit/s
Center wavelength (nm)	850	1330
Standard compliance	10Gbase-USR	10GBASE-BX
Connector type	LC	LC
Applicable cable and maximum transmission distance	Multimode fiber (OM3): 0.1 km	Single-mode fiber: 10 km
Transmit power (dBm)	-7.3 to -1.0	-8.2 to +0.5
Maximum receiver sensitivity (dBm)	-10.7	-14.4
Overload power (dBm)	0.5	0.5
Extinction ratio (dB)	3.0	3.5
Operating temperature	0°C to 70°C (32°F to 158°F)	-40°C to +85°C (-40°F to +185°F)

Get More Information

Do you have any question about the SFP-10G-BXU1 (02310QBJ)?

Specific Data Sheet:

SFP-10G-BXU1 Specification
Basic Information
Model	SFP-10G-BXU1
Part Number	02310QBJ
Description	10GBase, BIDI Optical Transceiver, SFP+, 10G, Single-mode Module (TX1270nm/RX1330nm, 10km, LC)
Level-1 category	10GE SFP+ Optical Modules, Industrial Optical Modules
Technical Specifications
Connector type	LC
Optical fiber type	SMF
Form factor	SFP+
Transmission rate [bit/s]	10 Gbit/s
Target transmission distance [km]	Single-mode fiber: 10 km
Application standard	10GBASE-BX
Working case temperature [°C(°F)]	-40°C to +85°C (-40°F to +185°F)
Center wavelength [nm]	1330 nm (RX) 1270 nm (TX)
Maximum Tx optical power [dBm]	0.5
Minimum Tx optical power [dBm]	-8.2
Overload power [dBm]	0.5
Minimum extinction ratio [dB]	3.5
Rx sensitivity [dBm]	-14.4
