Huawei Switch S5700-52C-PWR-SI (02354135)


The S5700-52C-PWR-SI is gigabit Layer 3 Ethernet switch based on new generation of high-performance hardware and Huawei Versatile Routing Platform (VRP). With 48 GE ports(10/100/1000Base-T), it provides a large switching capacity and constant power supply for users based on special PoE function, applicable to various scenarios. Besides, the device can be equipped with multiple card modules to satisfy customers' different needs. The S5700-52C-PWR-SI integrates many advanced technologies in terms of reliability, security, and energy conservation in order to help enterprise customers build a next-generation IT network.



Quick Specification


Table 1 shows the quick specification.

Model

S5700-52C-PWR-SI

Part Number

02354135

Ports

48 × 10/100/1,000 Base-T

Extended Slots

2 extended slots, one for an uplink subcard and the other for a stack card.

Memory (RAM)

256 MB

Flash

32 MB

MAC Address Table Size

16 MAC

Subcard Supported

4 x 1,000 Base-X SFP subcard
2 x 10 GE SFP+ subcard
4 x 10 GE SFP+ subcard

Voltage Required

AC:
Rated voltage range: 100V to 240V, 50/60 Hz Maximum voltage range: 90V to 264V, 50/60 Hz

Power Device

Do double hot-swappable AC power supplies

Power Consumption Operational

<917W (PoE: 740W)

Forwarding performance

132 Mpps

Switching capacity

256 Gbit/s

Dimensions (W x D x H)

442 mm x 420 mm x 43.6 mm

Weight

6.2 kg

PoE

Supported

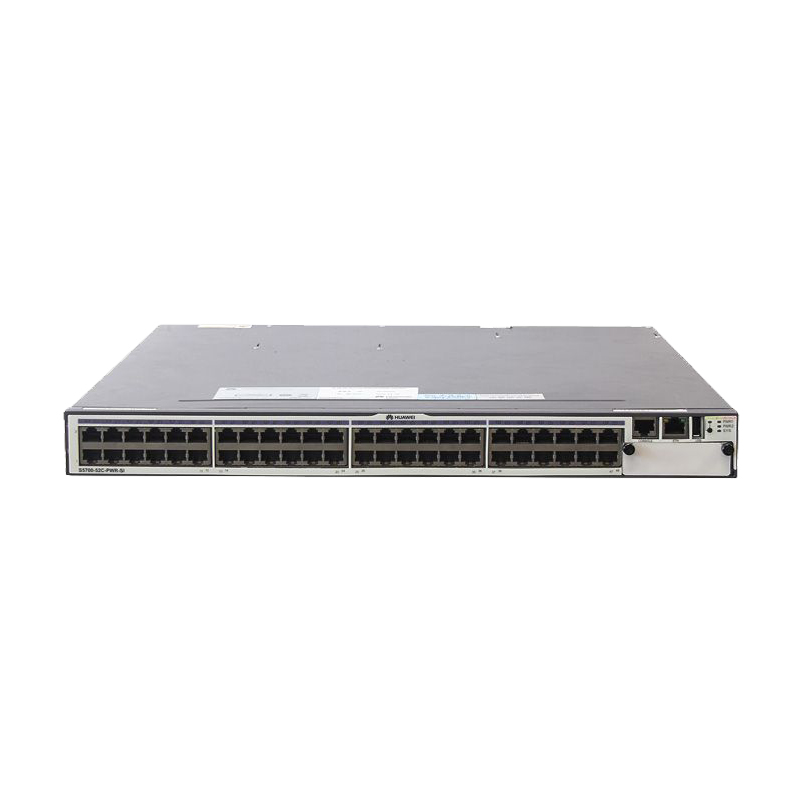

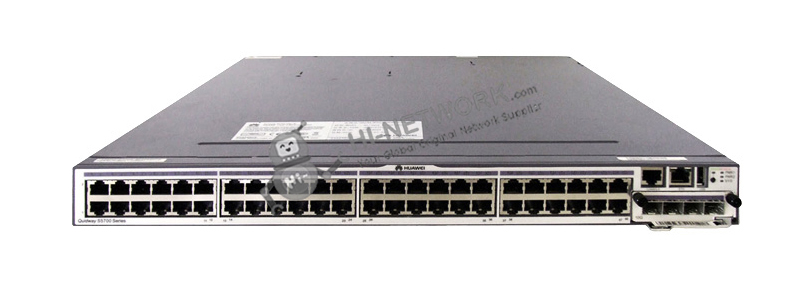

Figure 1 shows the appearance of S5700-52C-PWR-SI.


front-s5700-52c-pwr-si-datasheet


Product Details


Figure 2 shows the front panel of S5700-52C-PWR-SI.

front-panel-s5700-52c-pwr-si-datasheet


Note:

(1)

Forty-eight PoE+ 10/100/1000BASE-T ports

(4)

ETH management port

(2)

Front card slot

(5)

One console port

(3)

USB port

* The front card slot is equipped with the card module, but the card module should be purchased separately.

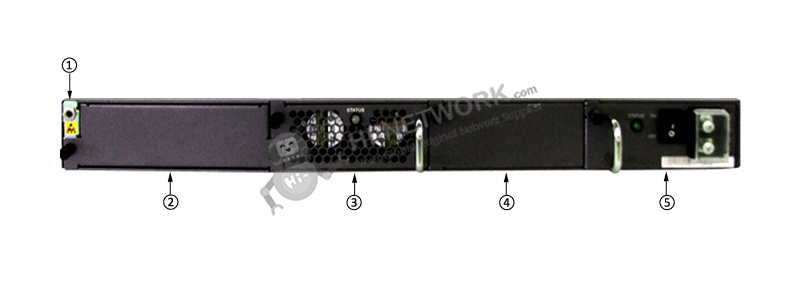

Figure 3 shows the back panel of S5700-52C-PWR-SI.

back-panel-s5700-52c-pwr-si-datasheet

Note:

(1)

ESD jack

(4)

Power module slot 2

(2)

Rear card slot

(5)

Power module slot 1

(3)

Fan slot

* Ventilating fan, cards and power modules have been installed in the diagram, but they should be purchased alone.

* Before installing or maintaining a switch, wear an ESD wrist strap and insert the other end of the ESD wrist strap into this ESD jack.


Recommended Modules


Table 2 shows the recommended modules.

Model

Description

Power module

W0PSA5000

500W AC Power Module (gray)

Optical Transceivers

OMXD30000

Optical Transceiver, SFP+, 10G, Multi-mode Module (850nm, 0.3km, LC)

OSX010000

Optical Transceiver, SFP+, 10G, Single-mode Module (1310nm, 10km, LC)

SFP-10G-USR

10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module (850nm, 0.1km, LC)

eSFP-GE-SX-MM850

Optical Transceiver, eSFP, GE, Multi-mode Module (850nm, 0.5km, LC)

eSFP-GE-ZX100-SM1550

eSFP, GE, Single-mode Module (1550nm, 100km, LC)

Copper Transceivers

SFP-1000BaseT

1000BASE-T (RJ45) SFP Electrical Module, Auto Negotiate, 100m

Card

ES5D000X2S00

2 10 Gig SFP+ interface card (used in S5700SI and S5700EI series


Compare to Similar Items


Table 3 shows the comparison of Huawei S5700-52C-SI, 5700-52C-SI-AC and S5700-52C-PWR-SI.

Models

S5700-52C-SI

S5700-52C-SI-AC

S5700-52C-PWR-SI

Fixed Ports

48 x 10/100/1,000 Base-T

48 x 10/100/1,000 Base-T

48 x 10/100/1,000 Base-T

Extended Slots

2 extended slots, one for an uplink subcard and the other for a stack card

2 extended slots, one for an uplink subcard and the other for a stack card

2 extended slots, one for an uplink subcard and the other for a stack card

Power Supply

Double hot-swappable AC/DC

Double hot-swappable AC/DC

Double hot-swappable AC, PoE+

Forwarding Performance

132 Mpps

 132 Mpps

132 Mpps

Switching Capacity

256 Gbit/s

  256 Gbit/s

256 Gbit/s

Power Consumption

< 78W

< 78W

< 917W (PoE: 740W)


Get More Information


Do you have any question about the S5700-52C-PWR-SI (02354135)?

Contact us now via [email protected].

Specific Data Sheet:


S5700-52C-PWR-SI Specification

MAC address table

IEEE 802.1d compliance

MAC address learning and aging

Static, dynamic, and blackhole MAC address entries

Packet filtering based on source MAC addresses

MAC address entries:

S5700S-LI series: 8K, S5700-LI/S5700-SI series: 16K, S5700-EI series: 32K, S5720-EI series: 64K, S5700-HI series: S5700-HI: 32K, S5710-HI: 456K, S5720-HI: 128K

VLAN

4K VLANs

Guest VLAN and voice VLAN

GVRP

MUX VLAN

VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports

1:1 and N:1 VLAN Mapping

SuperVLAN (supported by the S5700-SI/S5700-EI/S5700-HI series)

Ring protection

RRPP ring topology and RRPP multi-instance

Smart Link tree topology and Smart Link multi-instance, providing the millisecond-level protection switchover

SEP

ERPS (G.8032) (supported by the S5700-LI/S5700-SI/S5700-EI/S5700-HI series)

STP, RSTP, and MSTP

BPDU protection, root protection, and loop protection

BPDU Tunnel

Reliability

Ethernet OAM (IEEE 802.3ah and 802.1ag)

ITU-Y.1731

DLDP

LACP

E-Trunk (supported by the S5700-SI/S5700-EI/S5700-HI series)

BFD for OSPF, BFD for IS-IS, BFD for VRRP, and BFD for PIM (supported by the S5700-EI/S5700-HI series)

MPLS features

MPLS L3VPN

MPLS L2VPN(VPWS/VPLS)

MPLS-TE

MPLS QoS

Notes: supported by S5710-EI, S5700-HI and S5710-HI

IP routing

Static routing

RIPv1, RIPv2 and RIPng, ECMP (supported by the S5700-SI/S5700-EI/S5700-HI series)

OSPF, OSPFv3, IS-IS, IS-ISv6, BGP and BGP4+ (supported by the S5700-EI/S5700-HI series)

IPv6 features

Neighbor Discovery (ND)

Path MTU (PMTU)

IPv6 ping, IPv6 tracert, and IPv6 Telnet

ACLs based on the source IPv6 address, destination IPv6 address, Layer 4 ports, or protocol type

MLD v1/v2 snooping

6to4 tunnel, ISATAP tunnel, and manually configured tunnel (supported by the S5700-SI/S5700-EI/S5700-HI series)

Multicast

IGMP v1/v2/v3 snooping and IGMP fast leave

Multicast forwarding in a VLAN and multicast replication between VLANs

Multicast load balancing among member ports of a trunk

Controllable multicast

Port-based multicast traffic statistics

IGMP v1/v2/v3, PIM-SM, PIM-DM, PIM-SSM, MSDP (supported by the S5700-EI/S5700-HI series)

QoS/ACL

Rate limiting on packets sent and received by an interface

Packet redirection

Port-based traffic policing and two-rate three-color CAR

Eight queues on each port

WRR, DRR, SP, WRR+SP, and DRR+SP queue scheduling algorithms

WRED (supported by the S5710-EI and S5700-HI)

Re-marking of the 802.1p priority and DSCP priority

Packet filtering at Layers 2 through 4, filtering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination IP address, TCP/UDP port number, protocol type, and VLAN ID

Rate limiting in each queue and traffic shaping on ports

Security

User privilege management and password protection

DoS attack defense, ARP attack defense, and ICMP attack defense

Binding of the IP address, MAC address, interface, and VLAN

Port isolation, port security, and sticky MAC

MFF

Blackhole MAC address entries

Limit on the number of learned MAC addresses

802.1x authentication and limit on the number of users on an interface

AAA authentication, RADIUS authentication, HWTACACS authentication, and NAC

SSH v2.0

Hypertext Transfer Protocol Secure (HTTPS)

CPU defense

Blacklist and whitelist

Access Security

DHCP Relay, DHCP Server, DHCP Snooping, DHCP Security

Management and maintenance

Virtual cable test

Port mirroring and RSPAN (remote port mirroring)

Remote configuration and maintenance using Telnet

SNMP v1/v2c/v3

RMON

Web NMS

HGMP

System logs and alarms of different levels

802.3az EEE (supported by the S5700(S)-LI, S5710-EI, S5700-HI and S5710-HI)

Dying gasp (supported by the S5700-HI, S5710-HI and S5700(S)-LI (except battery LAN switches)

NetStream (supported by the S5710-EI, S5700-HI and S5710-HI)

sFlow (supported by the S5700(S)-LI/S5700-EI/S5700-HI series)

Interoperability

Supports VBST (Compatible with PVST/PVST+/RPVST)

Supports LNP (Similar to DTP)

Supports VCMP (Similar to VTP)

Operating environment

Operating temperature: 0°C–50°C
Relative humidity: 10%–90% (non-condensing)

Input voltage

AC:
Rated voltage range: 100 V to 240 V AC, 50/60 Hz
Maximum voltage range: 90 V to 264 V AC, 47/63 Hz
DC:
Rated voltage range: –48 V to –60 V, DC
Maximum voltage range: –36 V to –72 V DC
Note: PoE-support switches do not use DC power supplies.
