SFP-10G-USR (02313URN 02310MNW)
  • SFP-10G-USR (02313URN 02310MNW)

Genuine New SFP-10G-USR (02313URN 02310MNW) Huawei 850nm,0.1KM DOM Duplex LC MMF 10GBase-USR SFP+ Optical Transceiver

96
4.7
4.7/5.0
Q/A
21 Sold/Mon
Detail: 10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module (850nm, 0.1km, LC)
Model: SFP-10G-USR (02313URN 02310MNW)
Condition: Factory Sealed New
Related: Huawei Switch S2700-9TP-EI-AC (02352340) Huawei Switch S2700-26TP-EI-AC (02352302)
Warranty:
1 Years-Warranty
100% Money-back
Free After-Sales Service
Shipping:
Air Shipping to United States
, Most Customers Receive during 5-7 Days
?
If you finish the payment today,
your order will arrive within the
estimated delivery time.
Ships to:
0.3
2-7 Days US$
Payment:
  • Pay by wire transfer.
  • Pay with your paypal.
  • Pay with your Visa credit card.
  • Pay with your Mastercard credit card.
  • Pay with your Discover Card.
  • Pay by Western Union.
More
Quantity
- +
add to Cart quick quote
add to Cart quick quote
  • Description
  • Specification
  • Reviews
  • Q&A
  • Warranty
  • Download

Genuine New SFP-10G-USR (02313URN 02310MNW) Huawei 850nm,0.1KM DOM Duplex LC MMF 10GBase-USR SFP+ Optical Transceiver Module


Huawei SFP-10G-USR is a 10GBase-USR Optical Transceiver. It’s a Multi-mode Module.



Quick Specification


Table 1 show the quick specification

Model

SFP-10G-USR

Part Number

02313URN 02310MNW

Description

10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module (850nm, 0.1km, LC)

Level-1 category

10GE SFP+ Optical Modules

Transceiver form factor

SFP+

Transmission speed

10 Gbit/s

Center wavelength (nm)

850

Standard compliance

10Gbase-USR

Connector type

LC

Applicable cable and maximum transmission distance

Multimode fiber (OM3): 0.1 km

Transmit power (dBm)

-7.3 to -1.0

Maximum receiver sensitivity (dBm)

-10.7

Overload power (dBm)

0.5

Extinction ratio (dB)

3.0

Operating temperature

0°C to 70°C (32°F to 158°F)

Net Dimension (D x W x H mm)

145 x 80 x 35

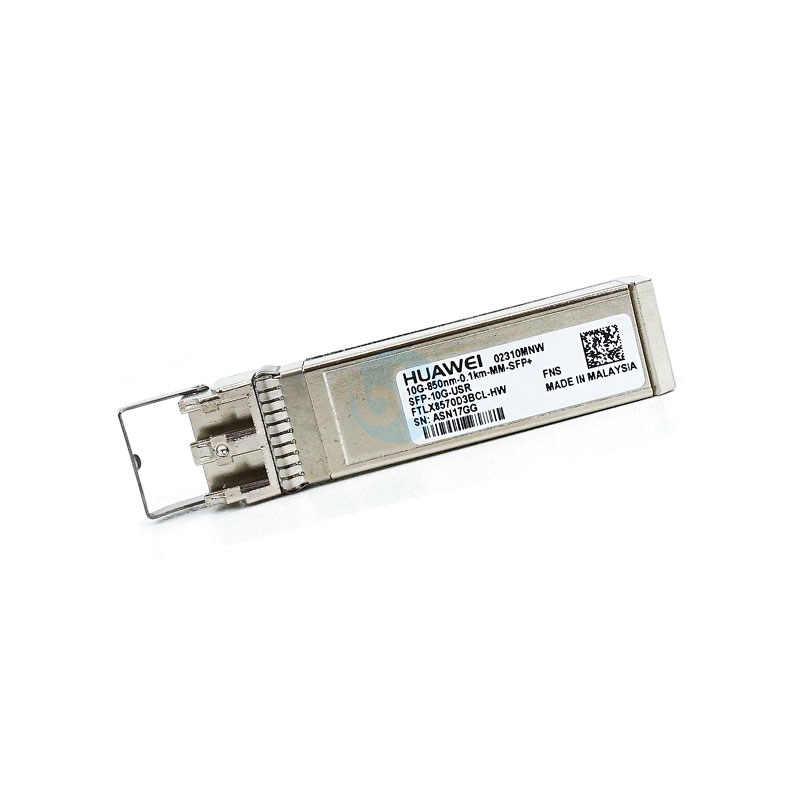

Figure 1 shows the appearance.


huawei-sfp-10g-usr-main-datasheet


Product Details


The Supported Switches


Table 2 shows the Huawei hot switches which support SFP-10G-USR.

Model

Description

S5700-28P-LI-AC

24 x Ethernet 10/100/1000 ports, 4 Gig SFP, AC 110/220V

S5700-28TP-LI-AC

24 x Ethernet 10/100/1000ports,2 Gig SFP and 2 dual-purpose 10/100/1000 or SFP, AC  110/220V

S5700S-52P-LI-AC

48 x Ethernet 10/100/1000 ports, 4 Gig SFP, AC 110/220V

S5700-28P-PWR-LI-AC

24 x Ethernet 10/100/1000 PoE+ ports, 4 Gig SFP, AC 110/220V

S5700-10P-PWR-LI-AC

8 x Ethernet 10/100/1000 PoE+ ports, 2 Gig SFP, AC 110/220V

S5720-36C-EI-AC

28 x Ethernet 10/100/1000 ports,4 of which are dual-purpose 10/100/1000 or SFP,4 10 Gig SFP+, 1 interface slot, with 150W AC

S5700-28C-EI-AC

24 x Ethernet 10/100/1000 ports, with 1 interface slot, with 150W AC power supply

S5720-56C-HI-AC

48 x Ethernet 10/100/1000 ports, 4 10 Gig SFP+, with 2 interface slots, with 600W AC power supply

S5720-56PC-EI-AC

48 x Ethernet 10/100/1000 ports,4 Gig SFP, with 1 interface slot, with 150W AC power supply

S5720-56C-PWR-HI-AC

48 x Ethernet 10/100/1000 POE+ ports,4 10 Gig SFP+, with 2 interface slots, with 1150W AC power supply


Compare to Similar Items


Table 3 shows the comparison of SFP-10G-USR and OSX010000.

Model

SFP-10G-USR

OSX010000

Transceiver form factor

SFP+

SFP+

Transmission speed

10 Gbit/s

10 Gbit/s

Center wavelength (nm)

850

1310

Standard compliance

10Gbase-USR

10Gbase-LR

Connector type

LC

LC

Applicable cable and maximum transmission distance

Multimode fiber (OM3): 0.1 km

Single-mode fiber: 10 km

Transmit power (dBm)

-7.3 to -1.0

-8.2 to +0.5

Maximum receiver sensitivity (dBm)

-10.7

-12.6

Overload power (dBm)

0.5

0.5

Extinction ratio (dB)

3.0

3.5

Operating temperature

0°C to 70°C (32°F to 158°F)

0°C to 70°C (32°F to 158°F)



Get More Information


Do you have any question about the SFP-10G-USR (02313URN 02310MNW)?

Contact us now via [email protected].


Specific Data Sheet:


SFP-10G-USR Specification

Basic Information

Model

SFP-10G-USR

Part Number

02313URN 02310MNW

Description

10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module (850nm, 0.1km, LC)

Level-1 category

10GE SFP+ Optical Modules

Technical Specifications

Connector type

LC

Optical fiber type

MMF

Form factor

SFP+

Transmission rate [bit/s]

10G

Target transmission distance [km]

Multimode fiber (OM2) (with diameter of 50 μm): 30 m
Multimode fiber (OM3) (with diameter of 50 μm): 100 m
Multimode fiber (OM4) (with diameter of 50 μm): 150 m

Application standard/Type

10GBASE-USR

Working case temperature [°C(°F)]

0°C to 70°C (32°F to 158°F)

Type of the end face of the fiber ceramic ferrule

PC or UPC

Modal bandwidth [MHz*km]

Multimode fiber (OM2): 500 MHz*km
Multimode fiber (OM3): 2000 MHz*km
Multimode fiber (OM4): 4700 MHz*km

Center wavelength [nm]

850

Overload power (AVG) [dBm]

0.5

Maximum Tx optical power (AVG) [dBm]

-1.0

Minimum Tx optical power (AVG) [dBm]

-7.3

Minimum extinction ratio [dB]

3.0

Rx sensitivity (OMA) [dBm]

-10.7
