Huawei Switch S5700-28C-HI-24S (02353631)


The S5700-28C-HI-24S is advanced Ethernet switch based on new generation of high-performance hardware and Huawei Versatile Routing Platform (VRP). With 24 Base-T ports, it provides a large switching capacity, high-density GE interfaces for users, besides, it can be equipped with multiple types of card modules and power modules to meet the different demands of users. All these features make the S5700-28C-HI-24S the best choice as an access switch on large and medium-sized campus networks or data centers and aggregation switch on small campus networks. The S5700-28C-HI-24S integrates many advanced technologies in terms of reliability, security, and energy conservation in order to help enterprise customers build a next-generation IT network.



Quick Specification


Table 1 shows the quick specification.

Model

S5700-28C-HI-24S

Part Number

02353631

Ports

24 ×100/1,000 Base-X ports

Extended Slots

1 extended slot

Memory (RAM)

512 MB

Flash

64 MB

MAC Address Table Size

32 MAC

Subcard Supported

4 x 1000 Base-X SFP subcard
2 x 10 GE SFP+ subcard
4 x 10 GE SFP+ subcard

Voltage Required

AC:
Rated voltage range: 100V to 240V, 50/60 Hz Maximum voltage range: 90V to 264V, 50/60 Hz
DC:
Rated voltage range: –48V to –60V, DC Maximum voltage range: –36V to –72V, DC

Power Device

Do double hot-swappable AC/DC power supplies

Power Consumption Operational

<80 W

Forwarding performance

96 Mpps

Switching capacity

256 Gbit/s

Dimensions (W x D x H)

442 mm x 220 mm x 43.6 mm

Package Weight

4.2 kg

PoE

Not supported

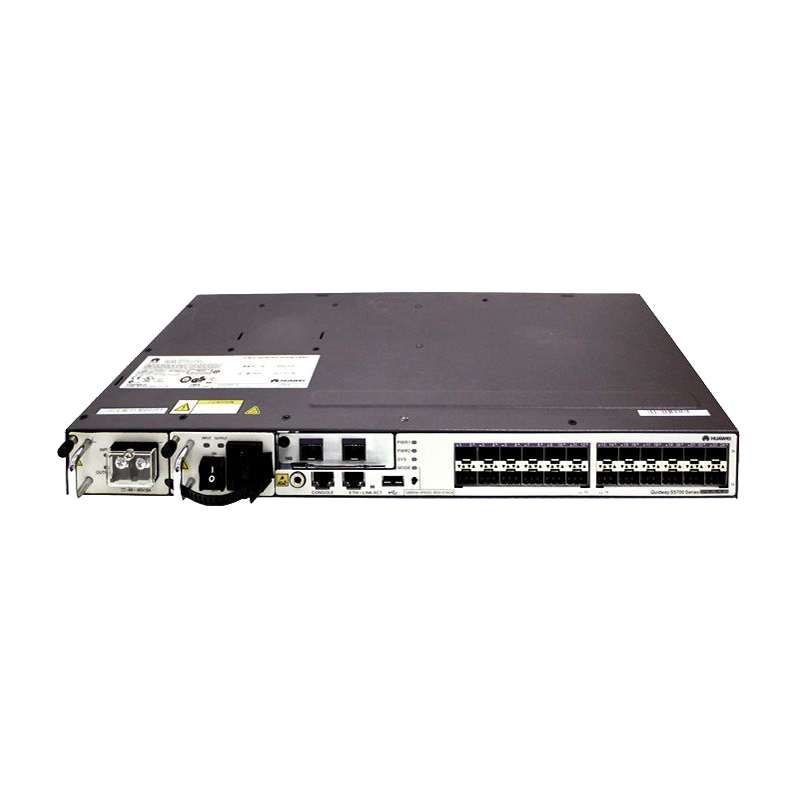

Figure 1 shows the appearance of S5700-28C-HI-24S.


front-s5700-28c-hi-24s-datasheet

Product Details


Figure 2 shows the front panel of S5700-28C-HI-24S.

front-panel-s5700-28c-hi-24s-datasheet

Note:

(1)

Power module slot 1

(5)

ETH management port

(2)

Power module slot 2

(6)

USB port

(3)

ESD jack

(7)

Twenty-four 100/1000BASE-X ports

(4)

One console port

(8)

Front card slot

* The front card slot is equipped with the card module, but the card module should be purchased separately.

* Before installing or maintaining a switch, wear an ESD wrist strap and insert the other end of the ESD wrist strap into this ESD jack.

* The power module slot 1 has been installed with the DC power module.

* The power module slot 2 has been installed with the AC power module.


Figure 3 shows the back panel of S5700-28C-HI-24S.

back-panel-s5700-28c-hi-24s-datasheet

Note:

(1)

Ground screw

(2)

Monitoring port

* The ground screw is used with a ground cable. The switch has two ground screws, any of which can be used to install a ground table.

* The monitoring port monitors the cabinet door, power module, battery power, and power supply of the air conditioner.


Recommended Modules


Table 2 shows the recommended modules.

Model

Description

Power Module

W0PSA1701

170W AC Power Module (Used In HI Series)

ES5M0PSD1700

170W DC power module (Used In HI Series)

Optical Transceivers

OMXD30000

Optical Transceiver, SFP+, 10G, Multi-mode Module (850nm, 0.3km, LC)

OSX010000

Optical Transceiver, SFP+, 10G, Single-mode Module (1310nm, 10km, LC)

SFP-10G-USR

10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module (850nm, 0.1km, LC)

eSFP-GE-SX-MM850

Optical Transceiver, eSFP, GE, Multi-mode Module (850nm, 0.5km, LC)

SFP-GE-LX-SM1310

Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC)

S-SFP-GE-LH40-SM1310

Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 40km, LC)

S-SFP-GE-LH40-SM1550

Optical Transceiver, eSFP, GE, Single-mode Module (1550nm, 40km, LC)

Copper Transceivers

SFP-1000BaseT

1000BASE-T (RJ45) SFP Electrical Module, Auto Negotiate, 100m

Card

ES5D00X2SA00

2 10 Gig SFP+ interface card (used in S5700HI series)

ES5D00X4SA00

4 10 Gig SFP+ interface card (used in S5700HI series)

ES5D00G4SC00

4 Gig SFP interface card (used in S5700HI series)


Compare to Similar Items


Table 3 shows the comparison of Huawei S5700-28C-HI, S5700-28C-HI-AC and S5700-28C-HI-24S.

Models

S5700-28C-HI

S5700-28C-HI-AC

S5700-28C-HI-24S

Fixed Ports

24 x 10/100/1,000 Base-T

24 x 10/100/1,000 Base-T

24 x 100/1,000 Base-X

Extended Slots

1 extended slot

1 extended slot

1 extended slot

Power Supply

Double hot-swappable AC/DC

Double hot-swappable AC/DC

Double hot-swappable AC

Forwarding Performance

96 Mpps

 96 Mpps

96 Mpps

Switching Capacity

256 Gbit/s

  256 Gbit/s

256 Gbit/s

Power Consumption

<76W

<76W

<80W


Get more information


Do you have any question about the S5700-28C-HI-24S (02353631)?

Contact us now via [email protected].

Specific Data Sheet:


S5700-28C-HI-24S Specification

MAC address table

IEEE 802.1d compliance

MAC address learning and aging

Static, dynamic, and blackhole MAC address entries

Packet filtering based on source MAC addresses

MAC address entries:

S5700S-LI series: 8K, S5700-LI/S5700-SI series: 16K, S5700-EI series: 32K, S5720-EI series: 64K, S5700-HI series: S5700-HI: 32K, S5710-HI: 456K, S5720-HI: 128K

VLAN

4K VLANs

Guest VLAN and voice VLAN

GVRP

MUX VLAN

VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports

1:1 and N:1 VLAN Mapping

SuperVLAN (supported by the S5700-SI/S5700-EI/S5700-HI series)

Ring protection

RRPP ring topology and RRPP multi-instance

Smart Link tree topology and Smart Link multi-instance, providing the millisecond-level protection switchover

SEP

ERPS (G.8032) (supported by the S5700-LI/S5700-SI/S5700-EI/S5700-HI series)

STP, RSTP, and MSTP

BPDU protection, root protection, and loop protection

BPDU Tunnel

Reliability

Ethernet OAM (IEEE 802.3ah and 802.1ag)

ITU-Y.1731

DLDP

LACP

E-Trunk (supported by the S5700-SI/S5700-EI/S5700-HI series)

BFD for OSPF, BFD for IS-IS, BFD for VRRP, and BFD for PIM (supported by the S5700-EI/S5700-HI series)

MPLS features

MPLS L3VPN

MPLS L2VPN(VPWS/VPLS)

MPLS-TE

MPLS QoS

Notes: supported by S5710-EI, S5700-HI and S5710-HI

IP routing

Static routing

RIPv1, RIPv2 and RIPng, ECMP (supported by the S5700-SI/S5700-EI/S5700-HI series)

OSPF, OSPFv3, IS-IS, IS-ISv6, BGP and BGP4+ (supported by the S5700-EI/S5700-HI series)

IPv6 features

Neighbor Discovery (ND)

Path MTU (PMTU)

IPv6 ping, IPv6 tracert, and IPv6 Telnet

ACLs based on the source IPv6 address, destination IPv6 address, Layer 4 ports, or protocol type

MLD v1/v2 snooping

6to4 tunnel, ISATAP tunnel, and manually configured tunnel(supported by the S5700-SI/S5700-EI/S5700-HI series)

Multicast

IGMP v1/v2/v3 snooping and IGMP fast leave

Multicast forwarding in a VLAN and multicast replication between VLANs

Multicast load balancing among member ports of a trunk

Controllable multicast

Port-based multicast traffic statistics

IGMP v1/v2/v3, PIM-SM, PIM-DM, PIM-SSM, MSDP (supported by the S5700-EI/S5700-HI series)

QoS/ACL

Rate limiting on packets sent and received by an interface

Packet redirection

Port-based traffic policing and two-rate three-color CAR

Eight queues on each port

WRR, DRR, SP, WRR+SP, and DRR+SP queue scheduling algorithms

WRED (supported by the S5710-EI and S5700-HI)

Re-marking of the 802.1p priority and DSCP priority

Packet filtering at Layers 2 through 4, filtering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination IP address, TCP/UDP port number, protocol type, and VLAN ID

Rate limiting in each queue and traffic shaping on ports

Security

User privilege management and password protection

DoS attack defense, ARP attack defense, and ICMP attack defense

Binding of the IP address, MAC address, interface, and VLAN

Port isolation, port security, and sticky MAC

MFF

Blackhole MAC address entries

Limit on the number of learned MAC addresses

802.1x authentication and limit on the number of users on an interface

AAA authentication, RADIUS authentication, HWTACACS authentication, and NAC

SSH v2.0

Hypertext Transfer Protocol Secure (HTTPS)

CPU defense

Blacklist and whitelist

Access Security

DHCP Relay, DHCP Server, DHCP Snooping, DHCP Security

Management and maintenance

Virtual cable test

Port mirroring and RSPAN (remote port mirroring)

Remote configuration and maintenance using Telnet

SNMP v1/v2c/v3

RMON

Web NMS

HGMP

System logs and alarms of different levels

802.3az EEE (supported by the S5700(S)-LI, S5710-EI, S5700-HI and S5710-HI)

Dying gasp (supported by the S5700-HI, S5710-HI and S5700(S)-LI (except battery LAN switches)

NetStream (supported by the S5710-EI, S5700-HI and S5710-HI)

sFlow (supported by the S5700(S)-LI/S5700-EI/S5700-HI series)

Interoperability

Supports VBST (Compatible with PVST/PVST+/RPVST)

Supports LNP (Similar to DTP)

Supports VCMP (Similar to VTP)

Operating environment

Operating temperature: 0–50
Relative humidity: 10%90% (non-condensing)

Input voltage

AC:
Rated voltage range: 100 V to 240 V AC, 50/60 Hz
Maximum voltage range: 90 V to 264 V AC, 47/63 Hz
DC:
Rated voltage range: –48 V to –60 V, DC
Maximum voltage range: –36 V to –72 V DC
Note: PoE-support switches do not use DC power supplies.
