S-SFP-GE-LH40-SM1310 (02317346)
  • S-SFP-GE-LH40-SM1310 (02317346)

Genuine New S-SFP-GE-LH40-SM1310 (02317346) Huawei 1000BASE-LH40 SFP 1310nm 40km DOM Duplex LC SMF Transceiver Module

78
4.9
4.9/5.0
Q/A
29 Sold/Mon
Detail: Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 40km, LC)
Model: S-SFP-GE-LH40-SM1310 (02317346)
Condition: Factory Sealed New
Related: Genuine New​ S-SFP-GE-LH40-SM1550 (02317347) Huawei 1000BASE-LH40 SFP 1550nm 40km DOM Duplex LC SMF Transceiver Module Huawei Switch S3700-28TP-EI-AC (02352344) Huawei Switch S2700-26TP-EI-AC (02352302)
Warranty:
3 Years-Warranty
100% Money-back
Free After-Sales Service
Shipping:
Air Shipping to United States
, Most Customers Receive during 5-7 Days
?
If you finish the payment today,
your order will arrive within the
estimated delivery time.
Ships to:
0.3
2-7 Days US$
Payment:
  • Pay by wire transfer.
  • Pay with your paypal.
  • Pay with your Visa credit card.
  • Pay with your Mastercard credit card.
  • Pay with your Discover Card.
  • Pay by Western Union.
More
Quantity
- +
add to Cart quick quote
add to Cart quick quote
  • Description
  • Specification
  • Reviews
  • Q&A
  • Warranty
  • Download

Genuine New S-SFP-GE-LH40-SM1310 (02317346) Huawei 1000BASE-LH40 SFP 1310nm 40km DOM Duplex LC SMF Transceiver Module


Optical Transceiver,eSFP,GE,Single-mode Module(1310nm,40km,LC)



Quick Specification


Table 1 show the quick specification.

Model

S-SFP-GE-LH40-SM1310

Part Number

02317346

Description

Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 40km, LC)

Level-1 category

GE eSFP Optical Modules

Transceiver form factor

eSFP

Transmission speed

1 Gbit/s

Center wavelength (nm)

1310

Standard compliance

1000base-LX/LH

Connector type

LC

Applicable cable and maximum transmission distance

Single-mode fiber: 40 km

Transmit power (dBm)

-5.0 to 0

Maximum receiver sensitivity (dBm)

-23

Overload power (dBm)

-3.0

Extinction ratio (dB)

9

Operating temperature

0°C to 70°C (32°F to 158°F)

Net Dimension (D x W x H mm)

110 x 70 x 37

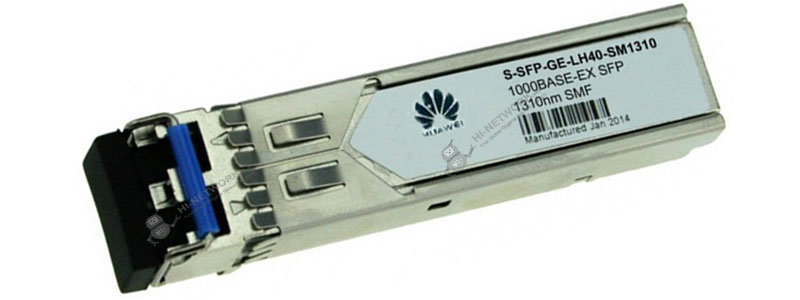

Figure 1 shows the appearance.

huawei-s-sfp-ge-lh40-sm1310-main-datasheet



Product Details


The Supported Switches


Table 2 shows the Huawei hot switches which support S-SFP-GE-LH40-SM1310.

Model

Description

S5700-28P-LI-AC

24 x Ethernet 10/100/1000 ports, 4 Gig SFP, AC 110/220V

S5700-28TP-LI-AC

24 x Ethernet 10/100/1000ports,2 Gig SFP and 2 dual-purpose 10/100/1000 or SFP, AC  110/220V

S5700S-52P-LI-AC

48 x Ethernet 10/100/1000 ports, 4 Gig SFP, AC 110/220V

S5700-28P-PWR-LI-AC

24 x Ethernet 10/100/1000 PoE+ ports, 4 Gig SFP, AC 110/220V

S5700-10P-PWR-LI-AC

8 x Ethernet 10/100/1000 PoE+ ports, 2 Gig SFP, AC 110/220V

S5720-36C-EI-AC

28 x Ethernet 10/100/1000 ports,4 of which are dual-purpose 10/100/1000 or SFP,4 10 Gig SFP+, 1 interface slot, with 150W AC

S5700-28C-EI-AC

24 x Ethernet 10/100/1000 ports, with 1 interface slot, with 150W AC power supply

S5720-56C-HI-AC

48 x Ethernet 10/100/1000 ports, 4 10 Gig SFP+, with 2 interface slots, with 600W AC power supply

S5720-56PC-EI-AC

48 x Ethernet 10/100/1000 ports,4 Gig SFP, with 1 interface slot, with 150W AC power supply

S5720-56C-PWR-HI-AC

48 x Ethernet 10/100/1000 POE+ ports,4 10 Gig SFP+, with 2 interface slots, with 1150W AC power supply


Compare to Similar Items


Table 3 shows the comparison of S-SFP-GE-LH40-SM1310 and S-SFP-GE-LH40-SM1550.

Model

S-SFP-GE-LH40-SM1310

S-SFP-GE-LH40-SM1550

Transceiver form factor

eSFP

eSFP

Transmission speed

1 Gbit/s

1 Gbit/s

Center wavelength (nm)

1310

1550

Standard compliance

1000base-LX/LH

1000base-LX/LH

Connector type

LC

LC

Applicable cable and maximum transmission distance

Single-mode fiber: 40 km

Single-mode fiber: 40 km

Transmit power (dBm)

-5.0 to 0

-5.0 to 0

Maximum receiver sensitivity (dBm)

-23

-22

Overload power (dBm)

-3.0

-3.0

Extinction ratio (dB)

9

8.5

Operating temperature

0°C to 70°C (32°F to 158°F)

0°C to 70°C (32°F to 158°F)

Net Dimension (D x W x H mm)

110 x 70 x 37

110 x 70 x 37


Get More Information


Do you have any question about the S-SFP-GE-LH40-SM1310 (02317346)?

Contact us now via [email protected].


Specific Data Sheet:

S-SFP-GE-LH40-SM1310 Specification

Basic Information

Model

S-SFP-GE-LH40-SM1310

Part Number

02317346

Description

Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 40km, LC)

Level-1 category

GE eSFP Optical Modules

Technical Specifications

Connector type

LC

Optical fiber type

SMF

Form factor

eSFP

Transmission rate [bit/s]

1G

Target transmission distance [km]

Single-mode fiber (G.652) (with diameter of 9 μm): 40 km

Application standard/Type

1000BASE-EX

Working case temperature [°C(°F)]

0°C to 70°C (32°F to 158°F)

Type of the end face of the fiber ceramic ferrule

PC or UPC

Center wavelength [nm]

1310

Overload power (AVG) [dBm]

-3.0

Maximum Tx optical power (AVG) [dBm]

0

Minimum Tx optical power (AVG) [dBm]

-5.0

Minimum extinction ratio [dB]

9

Rx sensitivity (OMA) [dBm]

-23
