Genuine New S-SFP-GE-LH40-SM1550 (02317347) Huawei 1000BASE-LH40 SFP 1550nm 40km DOM Duplex LC SMF Transceiver Module

USD

4.7 4.7/5.0 Reviews Q/A 26 Sold/Mon
Detail:	Optical Transceiver, eSFP, GE, Single-mode Module (1550nm, 40km, LC)
Model:	S-SFP-GE-LH40-SM1550 (02317347)
Condition:	Factory Sealed New
Related:	OEM S-SFP-FE-LH40-SM1310 (02317344) Huawei Compatible 100BASE-EX SFP 1310nm 40km DOM Duplex LC SMF Transceiver Module Genuine New S-SFP-GE-LH80-SM1550 (02317348) Huawei 1000BASE-ZX SFP 1550nm 80km DOM Duplex LC SMF Transceiver Module Huawei Switch S5732-H48UM2CC (02353HUB -002, 02353SJT -001 -003 -004 -010 -011 -013 -014 -020 -021 -023 -024) Huawei Switch S5720S-52P-LI-AC (98010601)
Warranty:	3 Years-Warranty 100% Money-back Free After-Sales Service
Shipping:	Air Shipping to United States , Most Customers Receive during 5-7 Days ? If you finish the payment today, your order will arrive within the estimated delivery time.
Ships to: 0.3	2-7 Days US$
Payment:	Pay by wire transfer. Pay with your paypal. Pay with your Visa credit card. Pay with your Mastercard credit card. Pay with your Discover Card. Pay by Western Union. More

Description
Specification
Reviews
Q&A
Warranty
Download

Genuine New S-SFP-GE-LH40-SM1550 (02317347) Huawei 1000BASE-LH40 SFP 1550nm 40km DOM Duplex LC SMF Transceiver Module

Optical Transceiver, eSFP, GE, BIDI Single-mode Module (TX1490/RX1310, 40km, LC)

Quick Specification

Table 1 show the quick specification

Model	LE2MGSC40ED0
Part Number	02310KVU
Description	Optical Transceiver, eSFP, GE, BIDI Single-mode Module (TX1490/RX1310, 40km, LC)
Level-1 category	GE eSFP Optical Modules
Module name	LE2MGSC40ED0
Form factor	eSFP
Application standard	1000BASE-BX
Connector type	LC
Optical fiber type	SMF
Working case temperature [°C(°F)]	0°C to 70°C (32°F to 158°F)
Transmission rate [bit/s]	1 Gbit/s
Target transmission distance [km]	Single-mode fiber: 40 km
Center wavelength [nm]	1310 nm (RX) 1490 nm (TX)
Maximum Tx optical power [dBm]	3.0
Minimum Tx optical power [dBm]	-2.0
Minimum extinction ratio [dB]	9
Rx sensitivity [dBm]	-23
Overload power [dBm]	-3.0
Note	Supports the single-fiber bidirectional function. Single-fiber bidirectional (BIDI) optical modules must be used in pairs. For example, LE2MGSC40ED0 must be used with LE2MGSC40DE0.

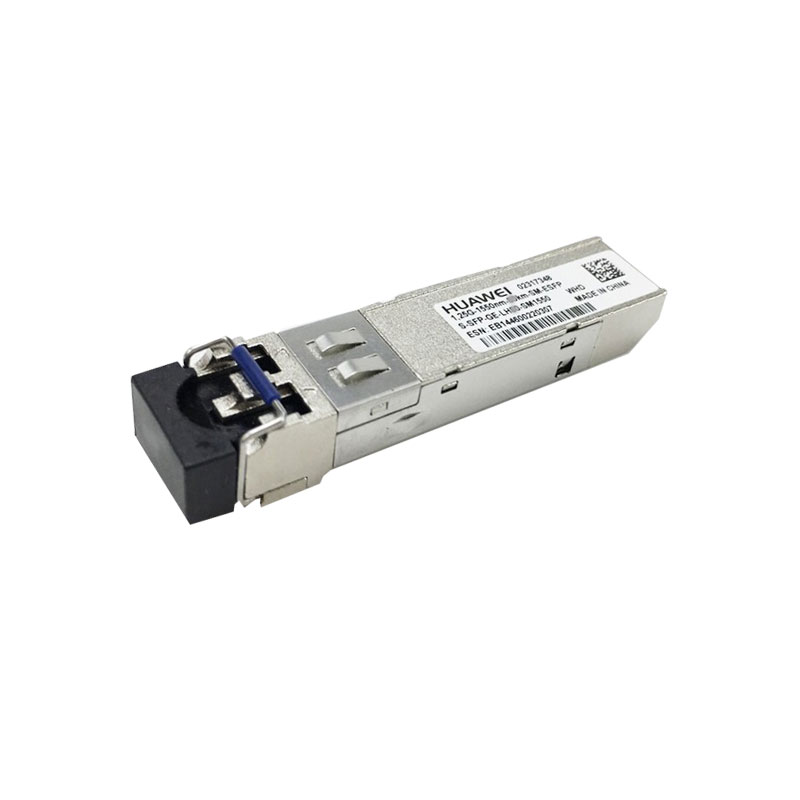

Figure 1 shows the appearance.

huawei-s-sfp-ge-lh40-sm1550(main)

Product Details

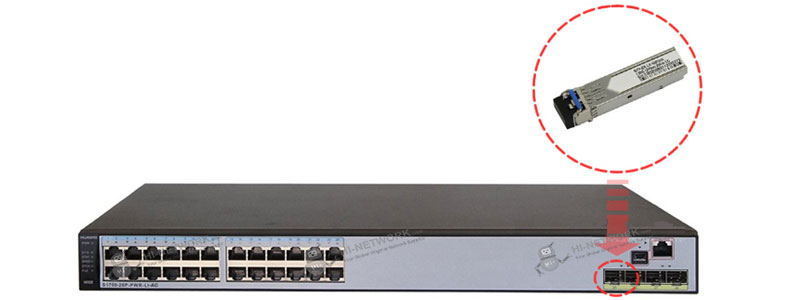

The Supported Switches

Table 2 shows the Huawei hot switches which support S-SFP-GE-LH40-SM1550.

Model	Description
S5700-28P-LI-AC	24 x Ethernet 10/100/1000 ports, 4 Gig SFP, AC 110/220V
S5700-28TP-LI-AC	24 x Ethernet 10/100/1000ports,2 Gig SFP and 2 dual-purpose 10/100/1000 or SFP, AC 110/220V
S5700S-52P-LI-AC	48 x Ethernet 10/100/1000 ports, 4 Gig SFP, AC 110/220V
S5700-28P-PWR-LI-AC	24 x Ethernet 10/100/1000 PoE+ ports, 4 Gig SFP, AC 110/220V
S5700-10P-PWR-LI-AC	8 x Ethernet 10/100/1000 PoE+ ports, 2 Gig SFP, AC 110/220V
S5720-36C-EI-AC	28 x Ethernet 10/100/1000 ports,4 of which are dual-purpose 10/100/1000 or SFP,4 10 Gig SFP+, 1 interface slot, with 150W AC
S5700-28C-EI-AC	24 x Ethernet 10/100/1000 ports, with 1 interface slot, with 150W AC power supply
S5720-56C-HI-AC	48 x Ethernet 10/100/1000 ports, 4 10 Gig SFP+, with 2 interface slots, with 600W AC power supply
S5720-56PC-EI-AC	48 x Ethernet 10/100/1000 ports,4 Gig SFP, with 1 interface slot, with 150W AC power supply
S5720-56C-PWR-HI-AC	48 x Ethernet 10/100/1000 POE+ ports,4 10 Gig SFP+, with 2 interface slots, with 1150W AC power supply

Compare to Similar Items

Table 3 shows the comparison of S-SFP-GE-LH40-SM1310 and S-SFP-GE-LH40-SM1550.

Model	S-SFP-GE-LH40-SM1310	S-SFP-GE-LH40-SM1550
Transceiver form factor	eSFP	eSFP
Transmission speed	1 Gbit/s	1 Gbit/s
Center wavelength (nm)	1310	1550
Standard compliance	1000base-LX/LH	1000base-LX/LH
Connector type	LC	LC
Applicable cable and maximum transmission distance	Single-mode fiber: 40 km	Single-mode fiber: 40 km
Transmit power (dBm)	-5.0 to 0	-5.0 to 0
Maximum receiver sensitivity (dBm)	-23	-22
Overload power (dBm)	-3	-3
Extinction ratio (dB)	9	8.5
Operating temperature	0°C to 70°C (32°F to 158°F)	0°C to 70°C (32°F to 158°F)
Net Dimension (D x W x H mm)	110 x 70 x 37	110 x 70 x 37

Get More Information

Do you have any question about theS-SFP-GE-LH40-SM1550 (02317347)?

Specific Data Sheet:

S-SFP-GE-LH40-SM1550 Specification
Basic Information
Model	S-SFP-GE-LH40-SM1550
Part Number	02317347
Description	Optical Transceiver, eSFP, GE, Single-mode Module (1550nm, 40km, LC)
Level-1 category	GE eSFP Optical Modules
Technical Specifications
Connector type	LC
Optical fiber type	SMF
Form factor	eSFP
Transmission rate [bit/s]	1 Gbit/s
Target transmission distance [km]	Single-mode fiber: 40 km
Application standard	Non-standard
Working case temperature [°C(°F)]	0°C to 70°C (32°F to 158°F)
Center wavelength [nm]	1550
Maximum Tx optical power [dBm]	0
Minimum Tx optical power [dBm]	-5.0
Overload power [dBm]	-3.0
Minimum extinction ratio [dB]	9
Rx sensitivity [dBm]	-22
