Huawei Switch S5700-26X-SI-12S-AC (02354039)

USD

1944

4.5 4.5/5.0 Reviews Q/A 0 sold/Mon
Detail:	12 Ethernet 10/100/1000 ports, 12 Gig SFP, 2 10 Gig SFP+, AC 110/220V, 1 extension slot
Model:	S5700-26X-SI-12S-AC (02354039)
Condition:	Factory Sealed New
Related:	OEM SFP-FE-SX-MM1310 (02315233) Huawei Compatible OC-3/STM-1 SR-0 SFP 1310nm 2km DOM LC MMF Transceiver Module Genuine New S-SFP-GE-LH40-SM1550 (02317347) Huawei 1000BASE-LH40 SFP 1550nm 40km DOM Duplex LC SMF Transceiver Module Huawei Switch S5700-28C-SI (02352341) Huawei Switch S5700-24TP-SI-AC (02352360)
Warranty:	3 Years-Warranty 100% Money-back Free After-Sales Service
Shipping:	Air Shipping to United States , Most Customers Receive during 5-7 Days ? If you finish the payment today, your order will arrive within the estimated delivery time.
Ships to: 5.5	2-7 Days US$
Payment:	Pay by wire transfer. Pay with your paypal. Pay with your Visa credit card. Pay with your Mastercard credit card. Pay with your Discover Card. Pay by Western Union. More

Description
Specification
Reviews
Q&A
Warranty
Download

Huawei Switch S5700-24TP-SI-AC (02352360)

The S5700-26X-SI-12S-AC is gigabit Layer 3 Ethernet switch based on new generation of high-performance hardware and Huawei Versatile Routing Platform (VRP). With twelve Ethernet 10/100/1,000 ports, twelve 100/1,000 Base-X ports and two 10 GE SFP+ ports, it provides a large switching capacity, high-density GE interfaces for users, applicable to various scenarios. The S5700-26X-SI-12S-AC integrates many advanced technologies in terms of reliability, security, and energy conservation in order to help enterprise customers build a next-generation IT network.

Quick Specification

Table 1 shows the quick specification.

Model	S5700-26X-SI-12S-AC
Part Number	02354039
Description	12 Ethernet 10/100/1000 ports, 12 Gig SFP, 2 10 Gig SFP+, AC 110/220V, 1 extension slot
Ports	12 Ethernet 10/100/1,000 ports, 12 100/1,000 Base-X ports, 2 10 GE SFP+ ports
Memory (RAM)	256 MB
Flash	200 MB
MAC Address Table Size	16 MAC
Voltage Required	AC: Rated voltage range: 100V to 240V, 50/60 Hz Maximum voltage range: 90V to 264V, 50/60 Hz
Power Device	An AC power supply
Power Consumption Operational	< 42.3W
Forwarding performance	66 Mpps
Switching capacity	256 Gbit/s
Dimensions (W x D x H)	442 mm x 310 mm x 43.6 mm
Weight	6.6 kg

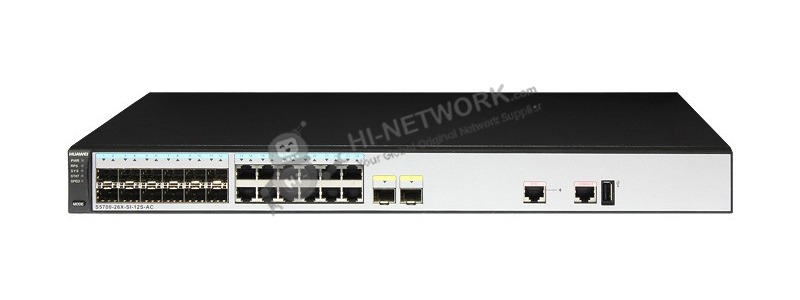

Figure 1 shows the appearance of S5700-26X-SI-12S-AC.

front-s5700-26x-si-12s-ac-datasheet

Product Details

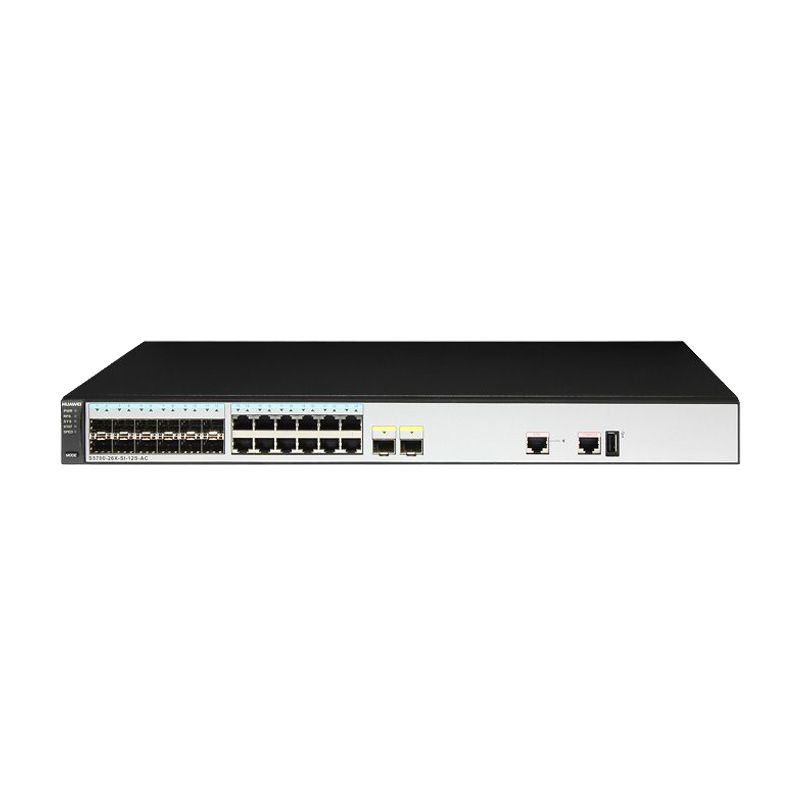

Figure 2 shows the front panel of S5700-26X-SI-12S-AC.

front-panel-s5700-26x-si-12s-ac-datasheet

Note:

(1)	Twelve 100/1000BASE-X ports	(4)	Twelve 10/100/1000BASE-T ports
(2)	Two 10GE SFP+ ports	(5)	ETH management port
(3)	One console port	(6)	USB port

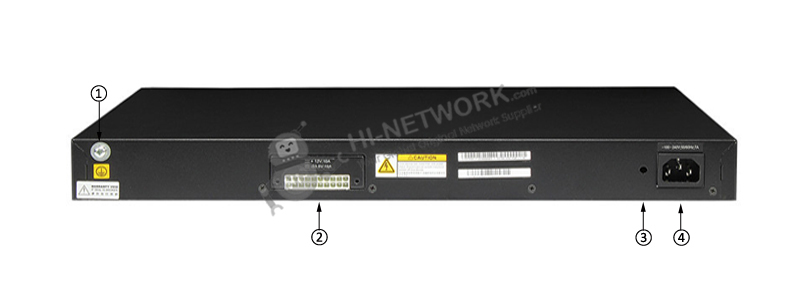

Figure 3 shows the back panel of S5700-26X-SI-12S-AC.

back-panel-s5700-26x-si-12s-ac-datasheet

Note:

(1)	Ground screw	(3)	Jack for AC terminal locking latch
(2)	RPS socket	(4)	AC socket

* The ground screw is used with a ground cable.

* RPS socket is used with an RPS cable, which is not hot swappable.

* The AC terminal locking latch is not delivered with the switch.

* AC socket is used with an AC power cable.

Recommended Modules

Table 2 shows the recommended modules.

Model	Description
10G-SFP+ Optical Transceiver
SFP-10G-USR	10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module (850nm, 0.1km, LC)
OMXD30000	Optical Transceiver, SFP+, 10G, Multi-mode Module (850nm, 0.3km, LC)
OSX010000	Optical Transceiver, SFP+, 10G, Single-mode Module (1310nm, 10km, LC)
FE-SFP Optical Transceiver
SFP-FE-SX-MM1310	Optical Transceiver, SFP, 100M/155M, Multi-mode Module (1310nm, 2km, LC)
S-SFP-FE-LH40-SM1310	Optical Transceiver, eSFP, FE, Single-mode Module (1310nm, 40km, LC)
eSFP-FE-LX-SM1310	Optical Transceiver, eSFP, 100M/155M, Single-mode Module (1310nm, 15km, LC)
GE-SFP Optical Transceiver
eSFP-GE-SX-MM850	Optical Transceiver, eSFP, GE, Multi-mode Module (850nm, 0.55km, LC)
SFP-GE-LX-SM1310	Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC)
S-SFP-GE-LH40-SM1310	Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 40km, LC)
S-SFP-GE-LH40-SM1550	Optical Transceiver, eSFP, GE, Single-mode Module (1550nm, 40km, LC)

Compare to Similar Items

Table 3 shows the comparison of Huawei S5700-28C-SI, S5700-24TP-SI-AC and S5700-26X-SI-12S-AC.

Models	S5700-28C-SI	S5700-24TP-SI-AC	S5700-26X-SI-12S-AC
Fixed Ports	24 × 10/100/1,000 Base-T ports, 4 of which are dual-purpose 10/100/1,000 or SFP	24 × 10/100/1,000 Base-T ports, 4 of which are dual-purpose 10/100/1,000 or SFP	12 × 10/100/1,000 Base-T, 12 × 100/1,000 Base-X, 2 × 10 GE SFP+
Power Supply	Double hot swappable AC/DC power supplies	AC model	AC power supply, supporting Redundant Power Supply (RPS)
Forwarding Performance	96 Mpps	36 Mpps	66 Mpps
Switching Capacity	256 Gbit/s	256 Gbit/s	256 Gbit/s
Power Consumption	< 40W	< 56W	< 42.3W

Get more information

Do you have any question about the S5700-26X-SI-12S-AC (02354039)?

Specific Data Sheet:

S5700-26X-SI-12S-AC Specification
MAC address table	IEEE 802.1d compliance
	MAC address learning and aging
	Static, dynamic, and blackhole MAC address entries
	Packet filtering based on source MAC addresses
	MAC address entries:
	S5700S-LI series: 8K, S5700-LI/S5700-SI series: 16K, S5700-EI series: 32K, S5720-EI series: 64K, S5700-HI series: S5700-HI: 32K, S5710-HI: 456K, S5720-HI: 128K
VLAN	4K VLANs
	Guest VLAN and voice VLAN
	GVRP
	MUX VLAN
	VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports
	1:1 and N:1 VLAN Mapping
	SuperVLAN (supported by the S5700-SI/S5700-EI/S5700-HI series)
Ring protection	RRPP ring topology and RRPP multi-instance
	Smart Link tree topology and Smart Link multi-instance, providing the millisecond-level protection switchover
	SEP
	ERPS (G.8032) (supported by the S5700-LI/S5700-SI/S5700-EI/S5700-HI series)
	STP, RSTP, and MSTP
	BPDU protection, root protection, and loop protection
	BPDU Tunnel
Reliability	Ethernet OAM (IEEE 802.3ah and 802.1ag)
	ITU-Y.1731
	DLDP
	LACP
	E-Trunk (supported by the S5700-SI/S5700-EI/S5700-HI series)
	BFD for OSPF, BFD for IS-IS, BFD for VRRP, and BFD for PIM (supported by the S5700-EI/S5700-HI series)
MPLS features	MPLS L3VPN
	MPLS L2VPN(VPWS/VPLS)
	MPLS-TE
	MPLS QoS
	Notes: supported by S5710-EI, S5700-HI and S5710-HI
IP routing	Static routing
	RIPv1, RIPv2 and RIPng, ECMP (supported by the S5700-SI/S5700-EI/S5700-HI series)
	OSPF, OSPFv3, IS-IS, IS-ISv6, BGP and BGP4+ (supported by the S5700-EI/S5700-HI series)
IPv6 features	Neighbor Discovery (ND)
	Path MTU (PMTU)
	IPv6 ping, IPv6 tracert, and IPv6 Telnet
	ACLs based on the source IPv6 address, destination IPv6 address, Layer 4 ports, or protocol type
	MLD v1/v2 snooping
	6to4 tunnel, ISATAP tunnel, and manually configured tunnel (supported by the S5700-SI/S5700-EI/S5700-HI series)
Multicast	IGMP v1/v2/v3 snooping and IGMP fast leave
	Multicast forwarding in a VLAN and multicast replication between VLANs
	Multicast load balancing among member ports of a trunk
	Controllable multicast
	Port-based multicast traffic statistics
	IGMP v1/v2/v3, PIM-SM, PIM-DM, PIM-SSM, MSDP (supported by the S5700-EI/S5700-HI series)
QoS/ACL	Rate limiting on packets sent and received by an interface
	Packet redirection
	Port-based traffic policing and two-rate three-color CAR
	Eight queues on each port
	WRR, DRR, SP, WRR+SP, and DRR+SP queue scheduling algorithms
	WRED (supported by the S5710-EI and S5700-HI)
	Re-marking of the 802.1p priority and DSCP priority
	Packet filtering at Layers 2 through 4, filtering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination IP address, TCP/UDP port number, protocol type, and VLAN ID
	Rate limiting in each queue and traffic shaping on ports
Security	User privilege management and password protection
	DoS attack defense, ARP attack defense, and ICMP attack defense
	Binding of the IP address, MAC address, interface, and VLAN
	Port isolation, port security, and sticky MAC
	MFF
	Blackhole MAC address entries
	Limit on the number of learned MAC addresses
	802.1x authentication and limit on the number of users on an interface
	AAA authentication, RADIUS authentication, HWTACACS authentication, and NAC
	SSH v2.0
	Hypertext Transfer Protocol Secure (HTTPS)
	CPU defense
	Blacklist and whitelist
Access Security	DHCP Relay, DHCP Server, DHCP Snooping, DHCP Security
Management and maintenance	Virtual cable test
	Port mirroring and RSPAN (remote port mirroring)
	Remote configuration and maintenance using Telnet
	SNMP v1/v2c/v3
	RMON
	Web NMS
	HGMP
	System logs and alarms of different levels
	802.3az EEE (supported by the S5700(S)-LI, S5710-EI, S5700-HI and S5710-HI)
	Dying gasp (supported by the S5700-HI, S5710-HI and S5700(S)-LI (except battery LAN switches)
	NetStream (supported by the S5710-EI, S5700-HI and S5710-HI)
	sFlow(supported by the S5700(S)-LI/S5700-EI/S5700-HI series)
Interoperability	Supports VBST (Compatible with PVST/PVST+/RPVST)
	Supports LNP (Similar to DTP)
	Supports VCMP (Similar to VTP)
Operating environment	Operating temperature: 0℃–50℃ Relative humidity: 10%–90% (non-condensing)
Input voltage	AC: Rated voltage range: 100 V to 240 V AC, 50/60 Hz Maximum voltage range: 90 V to 264 V AC, 47/63 Hz DC: Rated voltage range: –48 V to –60 V, DC Maximum voltage range: –36 V to –72 V DC Note: PoE-support switches do not use DC power supplies.
