Huawei Switch CE6850-48S4Q-EI-F (02350EXD)

USD

4.7 4.7/5.0 Reviews Q/A 0 sold/Mon
Detail:	48-Port 10G SFP+, 4-Port 40G QSFP+, 2*FAN Box, Port-side exhaust, Without Power Module
Model:	CE6850-48S4Q-EI-F (02350EXD)
Condition:	Factory Sealed New
Related:	Genuine New S-SFP-GE-LH40-SM1310 (02317346) Huawei 1000BASE-LH40 SFP 1310nm 40km DOM Duplex LC SMF Transceiver Module Genuine New SFP-10G-USR (02313URN 02310MNW) Huawei 850nm,0.1KM DOM Duplex LC MMF 10GBase-USR SFP+ Optical Transceiver Huawei Switch CE6850-48S4Q-EI (02355264) Huawei Switch CE6850-48S4Q-EI-B (02350EXE)
Warranty:	3 Years-Warranty 100% Money-back Free After-Sales Service
Shipping:	Air Shipping to United States , Most Customers Receive during 5-7 Days ? If you finish the payment today, your order will arrive within the estimated delivery time.
Ships to: 25	2-7 Days US$
Payment:	Pay by wire transfer. Pay with your paypal. Pay with your Visa credit card. Pay with your Mastercard credit card. Pay with your Discover Card. Pay by Western Union. More

Description
Specification
Reviews
Q&A
Warranty
Download

Huawei Switch CE6850-48S4Q-EI-F (02350EXD)

CE6850-48S4Q-EI-F is Huawei CE6850-48S4Q-EI Switch (48-Port 10G SFP+, 4-Port 40G QSFP+, 2*FAN Box, Port-side exhaust, Without Power Module). Support for Fiber Channel over Ethernet (FCoE) allows a single network to carry storage, data, and computing services, reducing network construction and maintenance costs The industry.

Quick Specification

Table 1 shows the Quick Specification.

Model	CE6850-48S4Q-EI-F
Part Number	02350EXD
Description	48-Port 10G SFP+, 4-Port 40G QSFP+, 2*FAN Box, Port-side exhaust, Without Power Module
10G Base-T Ports	0
SFP+ Ports	48
FC Ports	0
QSFP+ Ports	4
Switching Capacity	1.28 Tbit/s
Forwarding Rate	960 Mpps
Airflow Design	Front-to-back or back-to-front
Power Supply	350WDC,350WAC
Maximum power consumption	272 W
Typical power consumption	180 W
Dimensions (W x D x H)	442 mm x 600 mm x 43.6 mm
Weight (fully loaded)	11 kg (24.2 lb)

Figure 1 shows the appearance of CE6850-48S4Q-EI-F.

front-ce6850-48s4q-ei-f-datasheet

Product Details

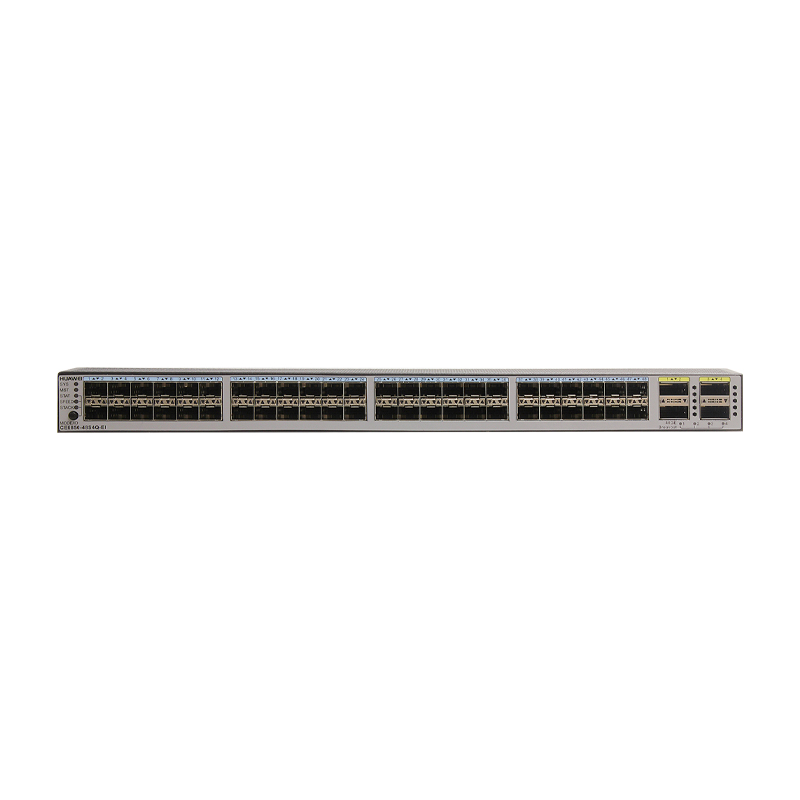

Figure 2 shows the front (port side) panel of CE6850-48S4Q-EI-F.

front-panel-ce6850-48s4q-ei-f-datasheet

Note:

(1)	Forty-eight 10GE SFP+ Ethernet optical ports
(2)	Four 40GE QSFP+ Ethernet optical ports

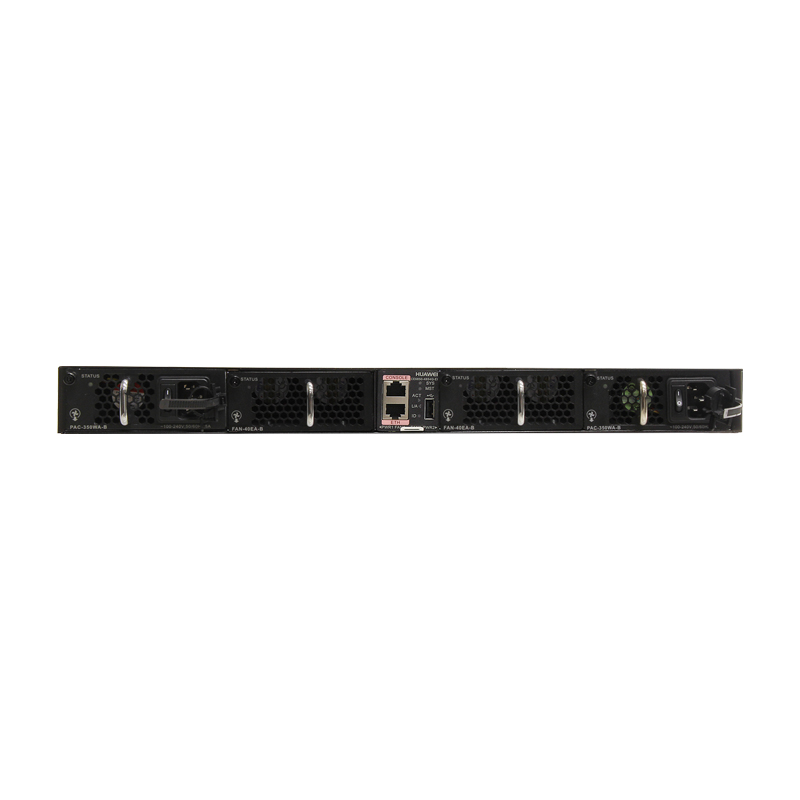

Figure 3 shows the rear (power supply side) panel of CE6850-48S4Q-EI-F.

back-panel-ce6850-48s4q-ei-f-datasheet

Note:

(1)	Power supply slot 1	(5)	Fan slot 2
(2)	Fan slot 1	(6)	Power supply slot 2
(3)	Console port	(7)	USB port
(4)	Bar code label	(8)	ETH management port

The Modules

Table 2 shows the recommended elements for the CE6850-48S4Q-EI-F.

Model	Description
GE-SFP Optical Transceiver
eSFP-GE-SX-MM850	Optical Transceiver, eSFP, GE, Multi-mode Module (850nm, 0.55km, LC)
SFP-GE-LX-SM1310	Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC)
S-SFP-GE-LH40-SM1310	Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 40km, LC)
S-SFP-GE-LH40-SM1550	Optical Transceiver, eSFP, GE, Single-mode Module (1550nm, 40km, LC)
10G-SFP+ Optical Transceiver
SFP-10G-USR	10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module (850nm, 0.1km, LC)
OMXD30000	Optical Transceiver, SFP+, 10G, Multi-mode Module (850nm, 0.3km, LC)
40GE QSFP+ optical transceiver
QSFP-40G-iSR4	40GBase-iSR4 Optical Transceiver, QSFP+,40G, Multi-mode (850nm,0.15km, MPO) (Connect to four SFP+ Optical Transceiver)
QSFP-40G-LR4	40GBase-LR4 Optical Transceiver, QSFP+,40GE, Single-mode Module (1310nm, 10km, LC)
GE Copper Transceiver
SFP-1000BaseT	Electrical Transceiver, SFP, GE, Electrical Interface Module (100m, RJ45)
FAN-40EA
FAN-40EA-F	Fan box (EA, Front to Back, FAN panel side intake)
FAN-40EA-B	Fan box (EA, Back to Front, FAN panel side exhaust)

Compare to Similar Items

Table 3 shows the comparison of CE6850-48S4Q-EI-F and CE6850-EI-B01.

Model	CE6850-48S4Q-EI-F	CE6850-EI-B01
10G Base-T Ports	0	48
SFP+ Ports	48	0
FC Ports	0	0
QSFP+ Ports	4	4
Switching Capacity	1.28 Tbit/s	1.28 Tbit/s
Forwarding Rate	960 Mpps	960 Mpps
Airflow Design	Front-to-back or back-to-front	Front-to-back or back-to-front
Power Supply	350WDC, 350WAC	350W AC, 600W AC
Maximum power consumption	272 W	380 W
Typical power consumption	180 W	305 W

Get More Information

Do you have any question about the CE6850-48S4Q-EI-F (02350EXD)?

Specific Data Sheet:

CE6850-48S4Q-EI-F Specifications
Model	CE6850-48S4Q-EI-F
Part Number	02350EXD
Description	48-Port 10G SFP+, 4-Port 40G QSFP+, 2*FAN Box, Port-side exhaust, Without Power Module
10G Base-T Ports	0
SFP+ Ports	48
FC Ports	0
QSFP+ Ports	4
Switching Capacity	1.28 Tbit/s
Forwarding Rate	960 Mpps
Airflow Design	Front-to-back or back-to-front
Device Virtualization	iStack Super Virtual Fabric (SVF)
Network Virtualization	M-LAG TRILL BGP-EVPN (CE6800HI)
VM Awareness	Agile Controller
Network Convergence	FCoE DCBX, PFC, and ETS
Programmability	OpenFlow OPS Puppet, and OVSDB plugins released on open-source websites Linux container for open source and customization programming
Traffic Analysis	NetStream sFlow
VLAN	Adding access, trunk, and hybrid interfaces to VLANs Default VLAN QinQ MUX VLAN GVRP
ACL	Ingress: 2,250 Egress: 1,000
MAC Address Table	Maximum: 128k Dynamic learning and aging of MAC addresses Static, dynamic, and blackhole MAC address entries Packet filtering based on source MAC addresses MAC address limiting based on ports and VLANs
ARP (maximum)	16k
IPv4 FIB (maximum)	16k
IP Routing	IPv4 routing protocols, such as RIP, OSPF, BGP, and IS-IS IPv6 routing protocols, such as RIPng, OSPFv3, IS-ISv6, and BGP4+
IPv6 FIB (maximum)	8k
IPv6	IPv6 Neighbor Discovery (ND) Path MTU Discovery (PMTU) TCP6, ping IPv6, tracert IPv6, socket IPv6, UDP6, and Raw IP6
Multicast FIB (maximum)	4k
Multicast	IGMP, PIM-SM, PIM-DM, MSDP, and MBGP IGMP snooping IGMP proxy Fast leave of multicast member interfaces Multicast traffic suppression Multicast VLAN
MPLS	MPLS (CE6800HI)
Reliability	LACP STP, RSTP, VBST, and MSTP BPDU protection, root protection, and loop protection Smart Link and multi-instance DLDP ERPS (G.8032) VRRP, VRRP load balancing, and BFD for VRRP BFD for BGP/IS-IS/OSPF/Static route
QoS	Traffic classification based on Layer 2 headers, Layer 3 protocols, Layer 4 protocols, and 802.1p priority Actions of ACL, CAR, re-marking, and scheduling Queue scheduling algorithms, including PQ, WRR, DRR, PQ + WRR, and PQ + DRR Congestion avoidance mechanisms, including WRED and tail drop Traffic shaping
Configuration and Maintenance	Console, Telnet, and SSH terminals Network management protocols, such as SNMPv1/v2c/v3 File upload and download through FTP and TFTP BootROM upgrade and remote upgrade 802.3az Energy Efficient Ethernet (EEE) Hot patches User operation logs ZTP
Security and Management	802.1x authentication Command line authority control based on user levels, preventing unauthorized users from using commands DoS, ARP, and ICMP attack defenses Port isolation, port security, and sticky MAC Binding of the IP address, MAC address, interface number, and VLAN ID Authentication methods, including AAA, RADIUS, and HWTACACS Remote Network Monitoring (RMON)
Dimensions (W x D x H)	442 mm x 600 mm x 43.6 mm
Weight (fully loaded)	11 kg (24.2 lb)
Environmental Parameters	Operating temperature: 0°C to 40°C (32°F to 104°F) (0m to 1,800m) Storage temperature: -40°C to 70°C (-40°F to 158°F) Relative humidity: 5% RH to 95% RH, non-condensing
Operating Voltage	AC: 90V to 290V DC: -38.4V to -72V
Max. Power Consumption	272W
