Huawei Interface Card LSS7G48VX6E0 (03034DGN, 03034DGN-001, 03034DGN-003) for S7703/S7706/S7712

The LSS7G48VX6E0 is a Huawei 48-port 100/1000BASE-T interface card (X6E, RJ45, PoE++).

Quick Specification

Table 1 shows the quick specification.

Description	LSS7G48VX6E0
Part Number	03034DGN, 03034DGN-001, 03034DGN-003
Model	48-port 100/1000BASE-T interface card (X6E,RJ45,PoE++)
Dimensions without packaging (H x W x D) [mm(in.)]	35.1 mm x 397.2 mm x 430.4 mm (1.38 in. x 15.64 in. x 16.95 in.)
Dimensions with packaging (H x W x D) [mm(in.)]	160 mm x 510 mm x 570 mm (6.3 in. x 20.1 in. x 22.44 in.)
Weight without packaging [kg(lb)]	4.00 kg (8.82 lb)
Weight with packaging [kg(lb)]	6.00 kg (13.23 lb)
Maximum power consumption [W]	144

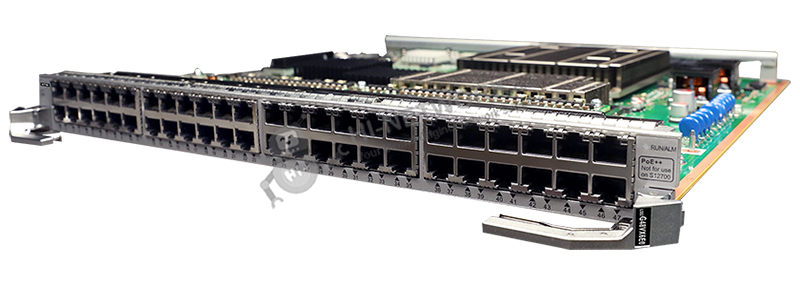

Figure 1 shows the appearance of LSS7G48VX6E0.

front-lss7g48vx6e0-datasheet

Product Details

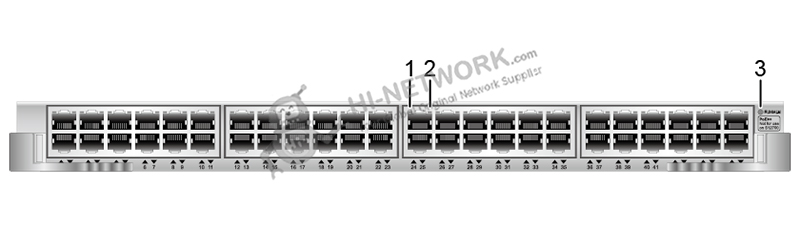

Figure 2 show the indicators on the LSS7G48VX6E0 panel.

indicators-lss7g48vx6e0-datasheet

Note:

(1)	LINK/ACT indicator of an upper electrical port
(2)	LINK/ACT indicator of a lower electrical port
(3)	RUN/ALM: running status indicator

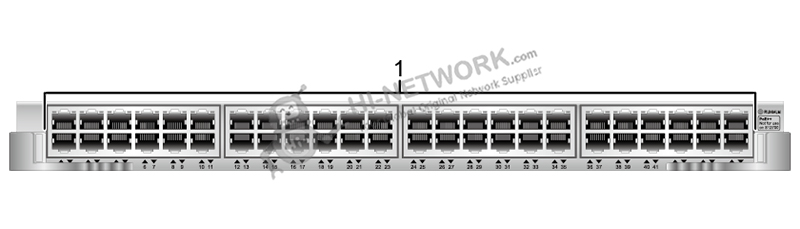

Figure 3 show the ports on the LSS7G48VX6E0 panel.

ports-lss7g48vx6e0-datasheet

Note:

(1)	Forty-eight 100/1000BASE-T PoE++ electrical ports

Get more information

Do you have any question about the LSS7G48VX6E0 (03034DGN, 03034DGN-001, 03034DGN-003)?

Specific Data Sheet:

LSS7G48VX6E0 Specification
Basic Information
Model	LSS7G48VX6E0
Part Number	03034DGN, 03034DGN-001, 03034DGN-003
Description	48-port 100/1000BASE-T interface card (X6E,RJ45,PoE++)
Level-1 category	Interface card
Technical Specifications
Dimensions without packaging (H x W x D) [mm(in.)]	35.1 mm x 397.2 mm x 430.4 mm (1.38 in. x 15.64 in. x 16.95 in.)
Dimensions with packaging (H x W x D) [mm(in.)]	160 mm x 510 mm x 570 mm (6.3 in. x 20.1 in. x 22.44 in.)
Weight without packaging [kg(lb)]	4.00 kg (8.82 lb)
Weight with packaging [kg(lb)]	6.00 kg (13.23 lb)
Typical power consumption [W]	140
Typical heat dissipation [BTU/hour]	477.69
Maximum power consumption [W]	144
Maximum heat dissipation [BTU/hour]	491.34
Memory	1 GB
