Part Number

03030PGP

Description

16-Port 10GBASE-X Interface Card (FC, SFP+)

Dimensions without packaging (H x W x D) [mm(in.)]

35.1 mm x 397.2 mm x 430.4 mm (1.38 in. x 15.64 in. x 16.95 in.)

Weight without packaging [kg(lb)]

2.6

Maximum power consumption [W]

150

Memory

256 MB

Basic function

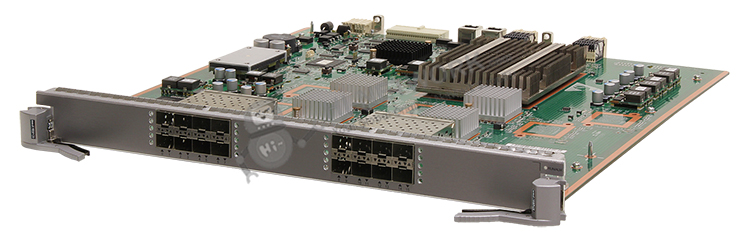

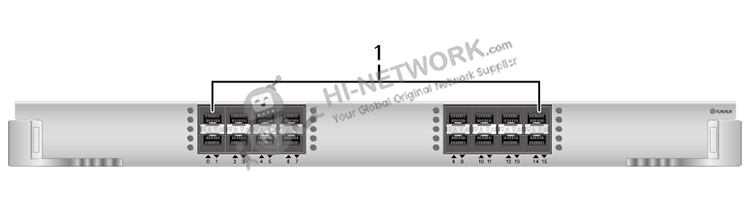

Provides sixteen 10GE BASE-X optical ports for data transmission and switching.

Distributed forwarding

Performs concurrent data forwarding using a distributed data plane.

Hot swapping

The ES1D2X16SFC0 is hot swappable.

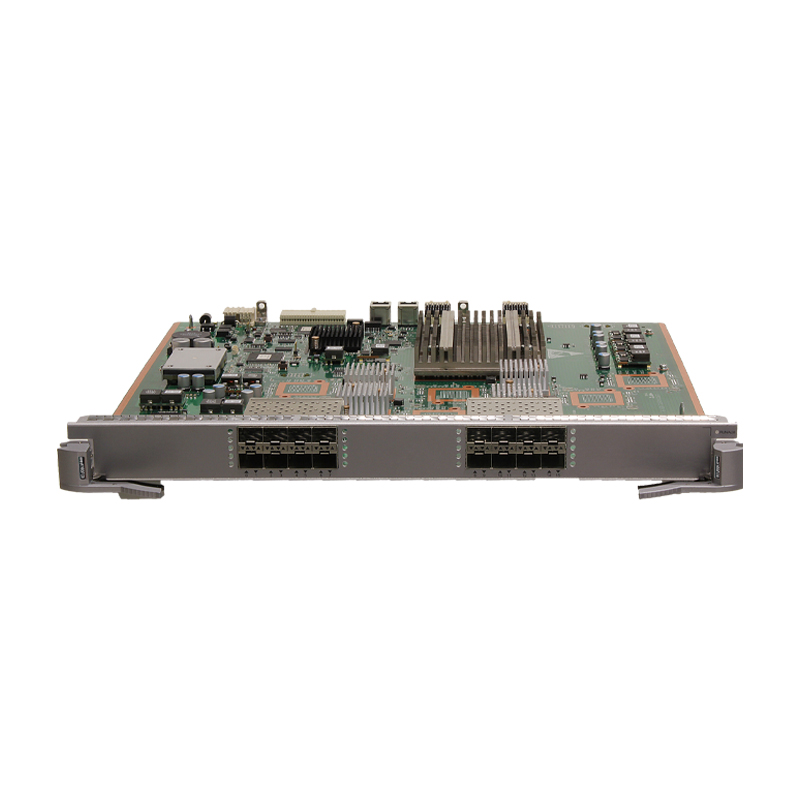

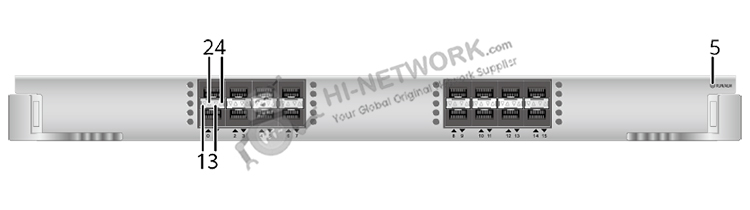

(1)

ACT indicator of a lower optical port

Yellow

Blinking: The port is transmitting and receiving data.

(2)

ACT indicator of an upper optical port

(3)

LINK indicator of a lower optical port

Green

Steady on: A link has been established on the port.

(4)

LINK indicator of an upper optical port

(5)

RUN/ALM: running status indicator

Green

Steady on: The card is powered on. If the indicator is steady green for no more than 30 seconds, the CPU is being started. If the indicator is steady green for more than 30 seconds, the software is not running.
Slow blinking: The card software is running properly.
Fast blinking: The card software is starting.

Red

Steady on: The card has failed and the fault requires manual intervention.

Yellow

Steady on: The card is powered off. (For example, the card has been forcibly powered off using the power off command or is about to start.)
