Huawei Centralized Monitoring Unit EH1D200CMU00 (03030NWB) for S7706/S7712

Centralized Monitoring Board

Quick Specification

Table 1 shows the quick specification.

Model	EH1D200CMU00
Part Number	03030NWB
Description	Centralized Monitoring Board
Attributes	Hardware
Category	Hardware
Product Line	Networking
Product Family	Switch
Product Category	Monitoring Board
Sub Product Family	Campus Switch
Product Series	S7700
EAN	6920702733423
UOM	PCS
Pack Weight (kg)	1.5
Pack Volume (m^3)	0.00993
Pack Dimension (DWH mm)	485195105
Net Dimension (DWH mm)	41211219
Typic Power (W)	0.8

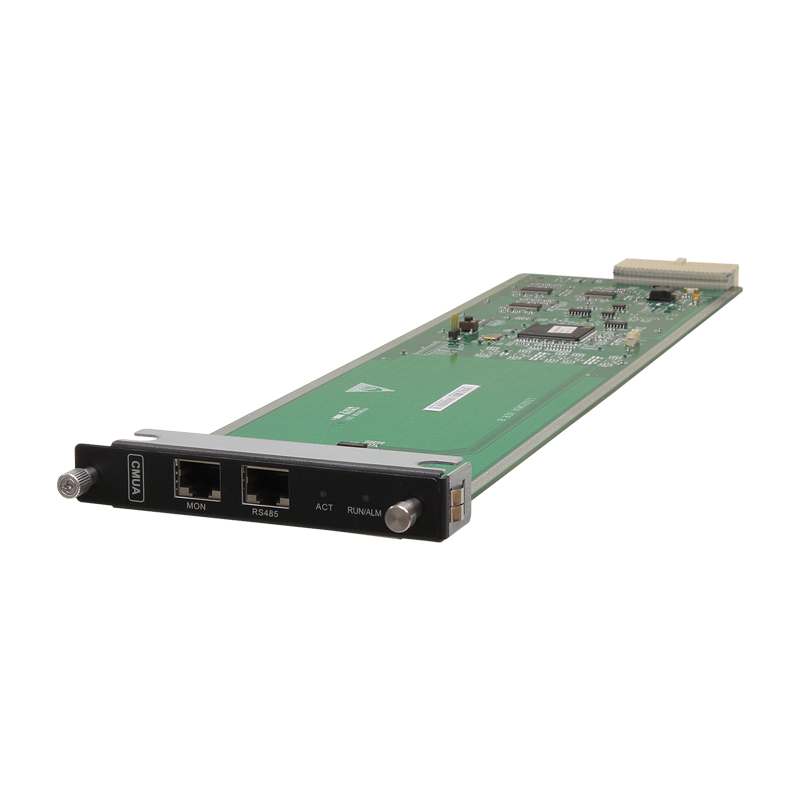

Figure 1 shows the appearance ofEH1D200CMU00.

front-eh1d200cmu00-datasheet

Product Details

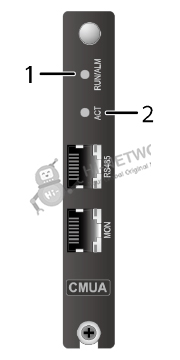

Figure 2 show the indicators on the EH1D200CMU00 panel.

indicators-eh1d200cmu00-datasheet

Note:

Number	Indicator	Color	Description
(1)	RUN/ALM: running status indicator	Green	Slow blinking: The card software is running properly. Fast blinking: The card software is unregistered.
(1)	RUN/ALM: running status indicator	Red	Steady on: The card has failed and the fault requires manual intervention. Slow blinking: The switch is reporting an alarm. For example, a CMU, fan module, or power module on the switch fails. Fast blinking: The input power is insufficient.
(2)	ACT: active/standby status indicator	Green	Steady on: The card is the active CMU. Off: The card is the standby CMU.

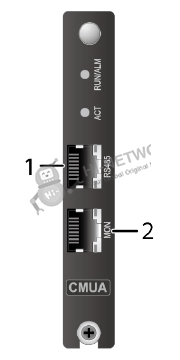

Figure 3 shows the ports on the EH1D200CMU00.

ports-eh1d200cmu00-datasheet

Note:

(1)

One RS485 port (reserved)

(2)

One MON port (reserved)

Get more information

Do you have any question about the EH1D200CMU00 (03030NWB)?

Specific Data Sheet:

EH1D200CMU00 Specification
Basic Information
Model	EH1D200CMU00
Part Number	03030NWB
Description	Centralized Monitoring Board
Level-1 category	CMU
Technical Specifications
Dimensions without packaging (H x W x D) [mm(in.)]	19.8 mm x 112.9 mm x 412.7 mm (0.78 in. x 4.44 in. x 16.25 in.)
Weight without packaging [kg(lb)]	0.22
Maximum power consumption [W]	1
Maximum heat dissipation [BTU/hour]	3.41
