| Detail: | Cisco ASA 5500-X Next Generation, ASA 5508-X, 8*GE ports, 1GE Mgmt, AC, 3DES/AES, AVC, FirePower, FireSIGHT, unlimited user nodes, 100 IPsec VPN, Active/Active, 80G SSD |
| Model: | ASA5508-K9 |
| Condition: | Sealed New; In Stock |
| Related: | ASA5506-K9 Unlimited Users Cisco Firewalls 100 200 300 etc ASA5515-K9 Cisco ASA 5500 Edition Bundle Firewalls ASA5512-K9 Cisco ASA 5500 Edition Bundle Firewalls ASA5525-K9 Cisco 8GE Edition Bundle Security Appliance |
| Warranty: |
3 Year-Warranty
100% Money-back
Free After-Sales Service
|
| Shipping: |
Air Shipping to
United States
, Most Customers Receive during 5-7 Days
?
If you finish the payment today,
your order will arrive within the estimated delivery time. |
| Ships to:
9.7
|
2-7 Days
US$
|
| Payment: |
More
|
(Note: Cisco discount and Stock always changed, we will try most effort to follow it but can not ensure every web was changed accordingly. So Our Products Service will contact you after order if meet such special condition.)

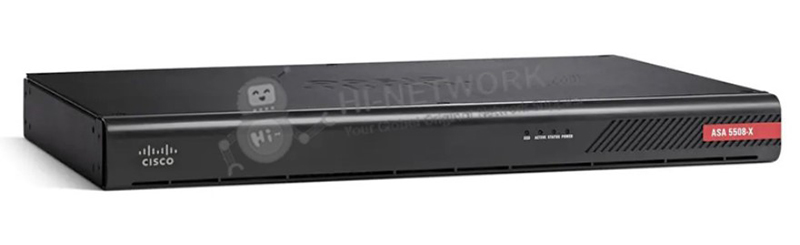

Cisco ASA 5508-X FirePower services Firewall is the entry-level next-generation firewall system. It is designed for small or mid-size enterprise or branch offices. It provides 8 Gigabit Ethernet interfaces,80GB SSD, supports up to 100 IPsec VPN peers, 50,000 concurrent connections and 1 Gbps throughput.
Product Code | ASA5508-K9 |
Interfaces | 8 x 1 Gigabit Ethernet interface, 1 management port |
Stateful inspection throughput (multiprotocol) | 500 Mbps |
Maximum 3DES/AES VPN throughput | 175 Mbps |
IPsec site-to-site VPN peers | 100 |
Virtual interfaces (VLANs) | 50 |
Memory | 8GB |
Flash | 8GB |
Power (AC or DC) | AC Only |
Height (rack units) | 1RU |
Dimensions (D x H x W) | 11.288 in x 1.72 in x 17.2 in |
Package Weight | 8.77 Kg |
Number | LED | Color | Description |
(1) | Power | Unlit | Power supply off |
Solid Green | Power supply on | ||
(2) | Status | Green | Normal system function. |
Amber | Critical alarm indicating one or more of the following: ·Major failure of a hardware or software component. ·Over-temperature condition. ·Power voltage outside the tolerance range. | ||
(3) | Active | Solid Green | Failover pair operating normally. |
Unlit | Failover is not operational. | ||
(4) | SSD | Unlit | No SSD present. |
Green | Activity on the drive. |

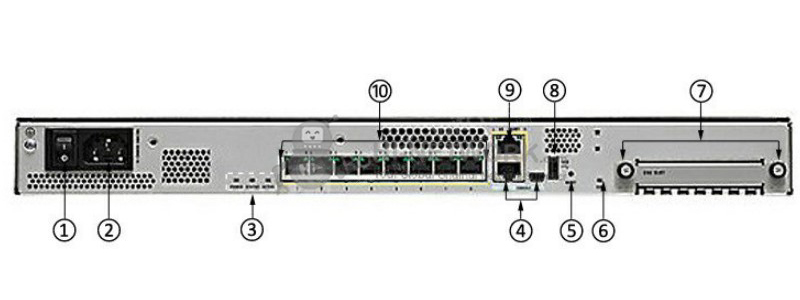

Note:
(1) | Power switch | (6) | SSD LED |
(2) | Power cord socket | (7) | SSD bay |
(3) | Status LEDs | (8) | USB port |
(4) | Console ports | (9) | Management port |
(5) | Reset button | (10) | Network data ports |
·Console ports are two serial ports, a mini–USB Type B, and a standard RJ-45 (8P8C).
·Management port connects with an RJ-45 cable.
·Network data ports include eight Gigabit Ethernet RJ-45 (8P8C) network I/O interfaces.
Licenses | Description |
L-ASA-SSL-25 | ASA 5500 SSL VPN 25 Premium User License |
Models | ASA5508-K9 | ||
Interfaces | 8 x 1 GE | 8 x 1 GE | 6 GE Copper |
Stateful Inspection Throughput (multiprotocol) | 300 Mbps | 500 Mbps | 1.2 Gbps |
Maximum 3DES/AES VPN Throughput | 100 Mbps | 175 Mbps | 250 Mbps |
Memory | 4GB | 8GB | 8GB |
Flash | 8GB | 8GB | 8GB |
Height (rack units) | Desk Top | 1 RU | 1 RU |
Do you have any question about the ASA5508-K9?
Contact us now via [email protected].
ASA5508-K9 Specification | |
Type | Cisco ASA 5508-X w/ FirePOWER Services |
Throughput: Application Control (AVC) | 450 Mbps |
Throughput: Application Control (AVC) and IPS | 250 Mbps |
Maximum concurrent sessions | 100,000 |
Maximum New Connections per second | 10,000 |
Supported applications | More than 3,000 |
URL categories | 80+ |
Number of URLs categorized | More than 280 million |
Centralized configuration, logging, monitoring, and reporting | Multi-device Cisco Security Manager (CSM) and Cisco Firepower Management Center |
On-Device Management | ASDM (version 7.3 or higher required) |
Feature | Cisco ASA 5508-X w/ FirePOWER Services |
Stateful inspection throughput (maximum) | 1 Gbps |
Stateful inspection throughput (multiprotocol) | 500 Mbps |
Triple Data Encryption Standard/ | 175 Mbps |
Advanced Encryption Standard (3DES/AES) VPN throughput | |
Users/nodes | Unlimited |
IPsec site-to-site VPN peers | 100 |
Cisco AnyConnect Plus/Apex VPN maximum simultaneous connections | 100 |
Virtual interfaces (VLANs) | 50 |
Security contexts (included; maximum) | 2; 5 |
High availability | Active/Active and Active/Standby |
Integrated Wireless Access Point (See Cisco AP 702 datasheet for WiFi technical details) | N/A |
Expansion slot | N/A |
User-accessible Flash slot | No |
USB 2.0 ports | USB port type ‘A’, High Speed 2.0 |
Integrated I/O | 8 x 1GE |
Expansion I/O | N/A |
Dedicated management port | Yes (To be shared with FirePOWER Services), 10/100/1000 |
Serial ports | 1 RJ-45 and Mini USB console |
Solid-state drive | 80 GB mSata |
Memory | 8 GB |
System flash | 8 GB |
System bus | Multibus architecture |
Temperature | 32 to 104°F (0 to 40 °C) |
Relative humidity | 10 to 90 percent noncondensing |
Altitude | Designed and tested for 0 to 10,000 ft (3048 m) |
Acoustic noise | 41.6 A-weighted decibels (dBA) type |
Temperature | -13 to 158ºF (-25 to 70ºC) |
Relative humidity | 10 to 90 percent noncondensing |
Altitude | Designed and tested for 0 to 15,000 ft (4572 m) |
AC range line voltage | External, 90 to 240 volts alternating current (VAC) |
AC normal line voltage | 91 to 240 VAC |
AC current | 0.25AC amps |
AC frequency | 50/60 Hz |
Dual-power supplies | None |
DC domestic line voltage | N/A |
DC international line voltage | N/A |
DC current | N/A |
Steady state | 12V @3.0A |
Maximum peak | 12V @ 5A |
Maximum heat dissipation | 123 Btu/hr |
Form factor | 1 rack unit (RU), 19-in. rack-mountable |
Dimensions (H x W x D) | 1.72 x 17.2 x 11.288 in. (4.369 x 43.688 x 28.672 cm) |
Weight (with AC power supply) | 8 lb (3 kg) |
