ASA5515-K9 Cisco ASA 5500 Edition Bundle Firewalls

(Note: Cisco discount and Stock always changed, we will try most effort to follow it but can not ensure every web was changed accordingly. So Our Products Service will contact you after order if meet such special condition.)

Cisco ASA 5515-X supports Active/Active and Active/Standby failover to enable the firewall redundancy. It delivers up to 1.2 Gbps stateful inspection throughput, 250 IPsec VPN peers, 250,000 concurrent connections and 1 expansion slot, which makes it ideally suited for the small, mid-size enterprises or branch offices.

Quick Specification

Table 1 shows the Quick Specs of the ASA5515-K9.

Product Code	ASA5515-K9
Interfaces	6 copper GE ports, 1 copper GE management port
Stateful inspection throughput (multiprotocol)	600 Mbps
Maximum 3DES/AES VPN throughput	250 Mbps
IPsec site-to-site VPN peers	250
Virtual interfaces (VLANs)	100
Memory	8 GB
Flash	8 GB
Height (rack units)	1 RU
Dimensions (D x H x W)	4.24 x 42.9 x 39.5 cm
Package Weight	13.1 Kg

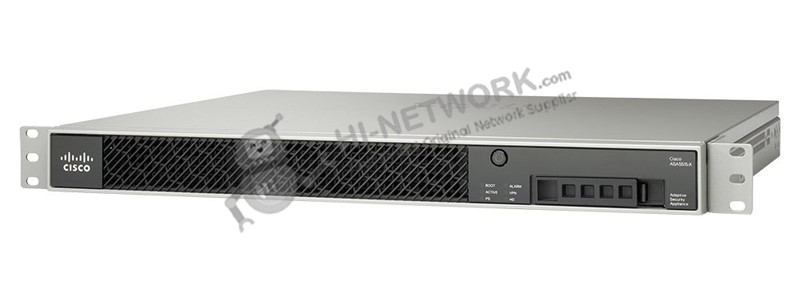

Figure 1 shows the front view of ASA5515-K9.

front-asa5515-k9-datasheet

Product Details

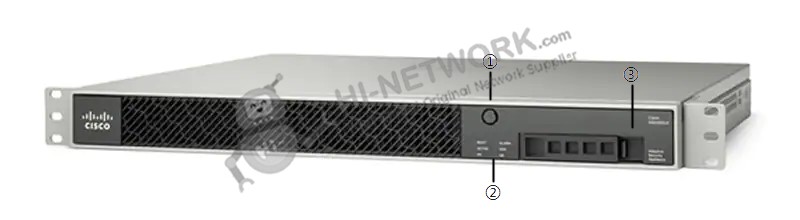

Figure 2 shows the front panel of ASA5515- K9.

front-panel-asa5515-k9-datasheet

Note:

(1)	Power button
(2)	Front Panel LED
(3)	Hard-disk release button

Table 2 shows the Front Panel LEDs’ descriptions.

LED	Color	Description
BOOT	Flashing green	Power-up diagnostics are running, or system is booting.
	Solid green	System has passed power-up diagnostics.
	Off	Power-up diagnostics are not operational.
ACTIVE	Solid green	Failover pair is operating normally.
ACTIVE	Off	Failover is not operational.
PS	-	Power supply status
ALARM	Off	Normal operating system function.
ALARM	Solid amber	Critical Alarm indicating one or more of the following: –a major failure of a hardware or software component. –an over-temperature condition. –power voltage is outside of the tolerance range.
VPN	Solid green	VPN tunnel is established.
VPN	Off	No VPN tunnel established.
HD	Flashing green	Proportioned to read/write activity.
	Solid amber	Hard-disk drive failure.
	Off	No hard-disk drive present.

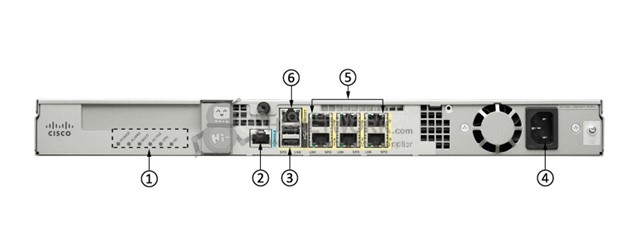

Figure 3 shows the back panel of ASA5515-K9.

back-panel-asa5515-k9-datasheet

Note:

(1)	Back Panel LED: Power, Alarm, Boot, Active, VPN, HD0, HD1	(4)	Power supply
(2)	Console port	(5)	GigabitEthernet data interfaces (0/0 through 0/5)
(3)	USB Ports	(6)	Management 0/0 interface

·The GigabitEthernet interface connects with an RJ-45 cable and must be restricted to management use only

The Licenses

Table 3 shows the recommended licenses for ASA5515-K9.

Licenses	Description
L-ASA-AC-E-5515=	AnyConnect Essentials VPN Licenses, AnyConnect Essentials VPN License - ASA 5515-X (250 Users) for Cisco ASA 5500 Series
L-ASA-AC-M-5515=	Cisco VPN Licenses, AnyConnect Mobile - ASA 5515-X (req. Essentials or Premium) VPN Licenses for Cisco
L-ASA5515-ME-K9=	Cisco ASA 5500 Series Unified Communications Licenses, ASA 5515-X Intercompany Media Engine K9 License (eDelivery)
L-ASA5515-IPS-SSP=	Cisco ASA 5500 Series IPS Security Services Processors, ASA 5515-X IPS SSP License for Cisco ASA 5500 Series
L-ASA-VPNP-5515=	Cisco VPN Licenses, Premium Shared VPN Participant License - ASA 5515-X VPN Licenses for Cisco
L-ASA-AC-PH-5515=	Cisco VPN Licenses, AnyConnect VPN Phone License - ASA 5515-X (req Premium lic) VPN Licenses for Cisco
L-ASA5515-BOT-1YR=	Cisco ASA 5500 Firewall License, ASA 5515-X Botnet Traffic Filter Lic. for 1 Yr (eDelivery) for Cisco 5500 Firewall

Compare to Similar Items

Table 4 shows the comparison of ASA5506-K9, ASA5508-K9 and ASA5515-K9.

Models	ASA5506-K9	ASA5508-K9	ASA5515-K9
Interfaces	8 x 1 GE	8 x 1 GE	6 GE Copper
Stateful Inspection Throughput (multiprotocol)	300 Mbps	500 Mbps	1.2 Gbps
Maximum 3DES/AES VPN Throughput	100 Mbps	175 Mbps	250 Mbps
Memory	4GB	8GB	8GB
Flash	8GB	8GB	8GB
Height (rack units)	Desk Top	1 RU	1 RU

Get More Information

Do you have any question about the ASA5515-K9?

Specific Data Sheet:

ASA5515-K9 Specifications
Type	Cisco ASA 5515-X w/ FirePOWER Services
Throughput: Application Control (AVC)	500 Mbps
Throughput: Application Control (AVC) and IPS	250 Mbps
Maximum concurrent sessions	250,000
Maximum New Connections per second	15,000
Supported applications	More than 3,000
URL categories	80+
Number of URLs categorized	More than 280 million
Centralized configuration, logging, monitoring, and reporting	Multi-device Cisco Security Manager (CSM) and Cisco Firepower Management Center
On-Device Management	ASDM
Feature	Cisco ASA 5515-X w/ FirePOWER Services
Stateful inspection throughput (maximum1)	1.2 Gbps
Stateful inspection throughput (multiprotocol2)	600 Mbps
Triple Data Encryption Standard/ Advanced Encryption Standard (3DES/AES) VPN throughput3	250 Mbps
Users/nodes	Unlimited
IPsec site-to-site VPN peers	250
Cisco AnyConnect Plus/Apex VPN maximum simultaneous connections5	250
Virtual interfaces (VLANs)	100
Security contexts5(included; maximum)	2.5
High availability	Active/Active and Active/Standby
Integrated Wireless Access Point (See Cisco AP 702 datasheet for WiFi technical details)	N/A
Expansion slot	1 interface card
User-accessible Flash slot	No
USB 2.0 ports	2
Integrated I/O	6 GE copper
Expansion I/O	6 GE copper or 6 GE SFP
Dedicated management port	Yes (1 GE)
Serial ports	1 RJ-45 console
Solid-state drive	1 slot, 120 GB MLC SED
Memory	8 GB
System flash	8 GB
System bus	Multibus architecture
Temperature	23 to 104°F (-5 to 40°C)
Relative humidity	10 to 90 percent noncondensing
Altitude	Designed and tested for 0 to 15,000 ft (4572 m)
Acoustic noise	64.2 dBA max
Temperature	-13 to 158ºF (-25 to 70ºC)
Relative humidity	10 to 90 percent noncondensing
Altitude	Designed and tested for 0 to 15,000 ft (4570 m)
AC range line voltage	100 to 240 VAC
AC normal line voltage	100 to 240 VAC
AC current	4.85A
AC frequency	50/60 Hz
Dual-power supplies	None
DC domestic line voltage	-40.5 to 56 VDC (-48 VDC nominal)
DC international line voltage	-55 to -72 VDC (-60 VDC nominal)
DC current	15A (maximum input)
Steady state	65W
Maximum peak	70W
Maximum heat dissipation	239 Btu/hr
Form factor	1RU, 19-in. rack-mountable
Dimensions (H x W x D)	1.67 x 16.7 x 15.6 in. (4.24 x 42.9 x 39.5 cm)
Weight (with AC power supply)	13.39 lb (6.07 kg)
