Detail: | Cisco ISR 4451 VSEC Bundle, PVDM4-64 w/UC, SEC LIC, CUBE-25 |
Model: | ISR4451-X-VSEC/K9 |
Condition: | Original New; In Stock |
Related: | Original New ISR4431-VSEC/K9 Cisco ISR Routers 4 x GE ports Security Bundle Sealed New ISR4321-VSEC/K9 UC Voice and SEC license Bundle Router Sealed New ISR4331-VSEC/K9 UC Voice and Security Bundle Router |
Warranty: |
3 Years-Warranty
100% Money-back
Free After-Sales Service
|
Shipping: |
Air Shipping to
United States
, Most Customers Receive during 5-7 Days
?
If you finish the payment today,
your order will arrive within the estimated delivery time. |
Ships to:
21.2
|
2-7 Days
US$
|
Payment: |
More
|
(Note: Cisco discount always changed, we will try most effort to follow it but can not ensure every web price was changed accordingly. So Our Products Service will contact you after order if meet such special condition.)

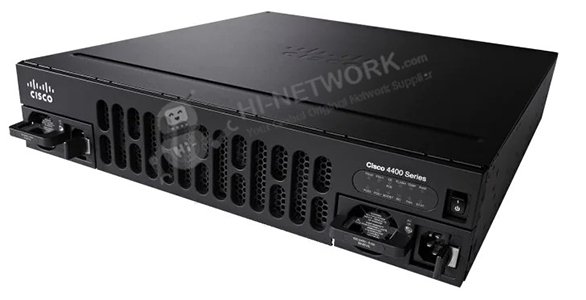

ISR4451-X-VSEC/K9 is the Cisco 4451 Integrated Services Router, with voice and security features Bundle. It supports 2 Enhanced service-module (SM-X) slots, delivers 1 Gbps to 2Gbps aggregate throughput. This router also supports two kinds of DDRM, data plane and control/services plane, which make administrator easy to manage the router.
Product Code | ISR4451-X-VSEC/K9 |
Bundle | w/SEC and voice licenses |
Aggregate Throughput | 1 Gbps to 2Gbps |
Total onboard WAN or LAN 10/100/1000 ports | 4 |
RJ-45-based ports | 4 |
SFP-based ports | 4 |
Enhanced service-module (SM-X) slot | 2 |
NIM (Network Interface Modules) slots | 3 |
Onboard ISC slot | 1 |
DDRM (data plane) | 2 GB (default) / 2 GB (maximum) |
DDRM (control/services plane) | 4 GB (default) / 16 GB (maximum) |
Flash Memory | 8 GB (default) / 32 GB (maximum) |
Power-supply options | Internal: AC, DC (roadmap) and PoE |
Rack height | 2 RU |
Dimensions (H x W x D) | 88.9 x 438.15 x 469.9 mm |
Note:

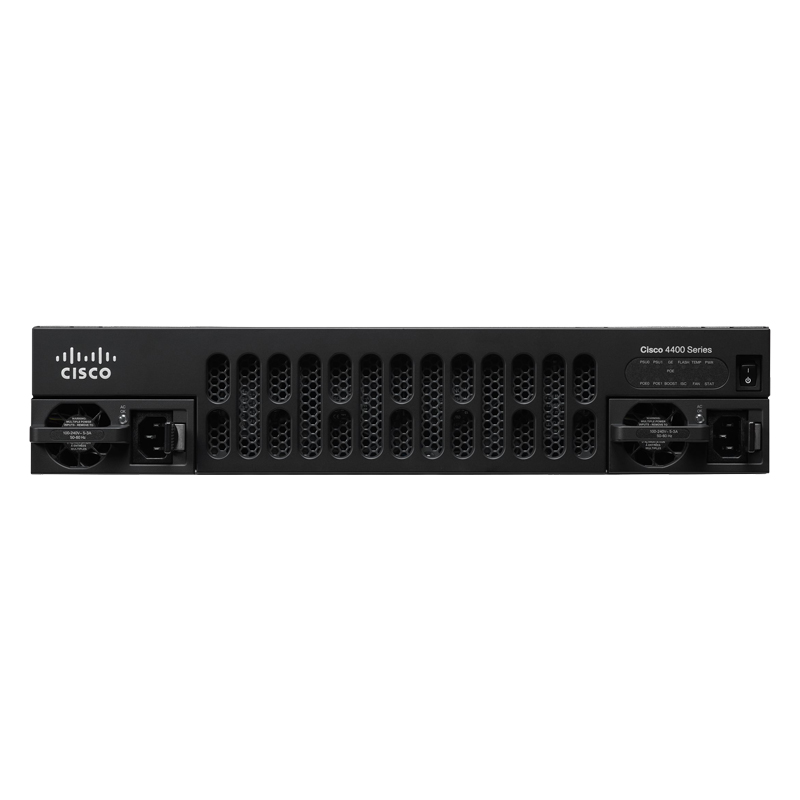

(1) | AC power supply unit (PSU0) | (4) | Router power On/Off switch |
(2) | Router fan tray | (5) | LEDs |
(3) | AC power supply unit (PSU1) |
· Router fan tray is hidden behind removable bezel.
· LEDs include 12 indicators.
Note:

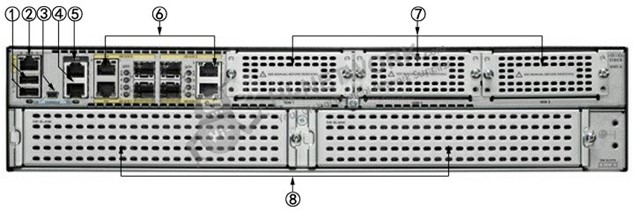

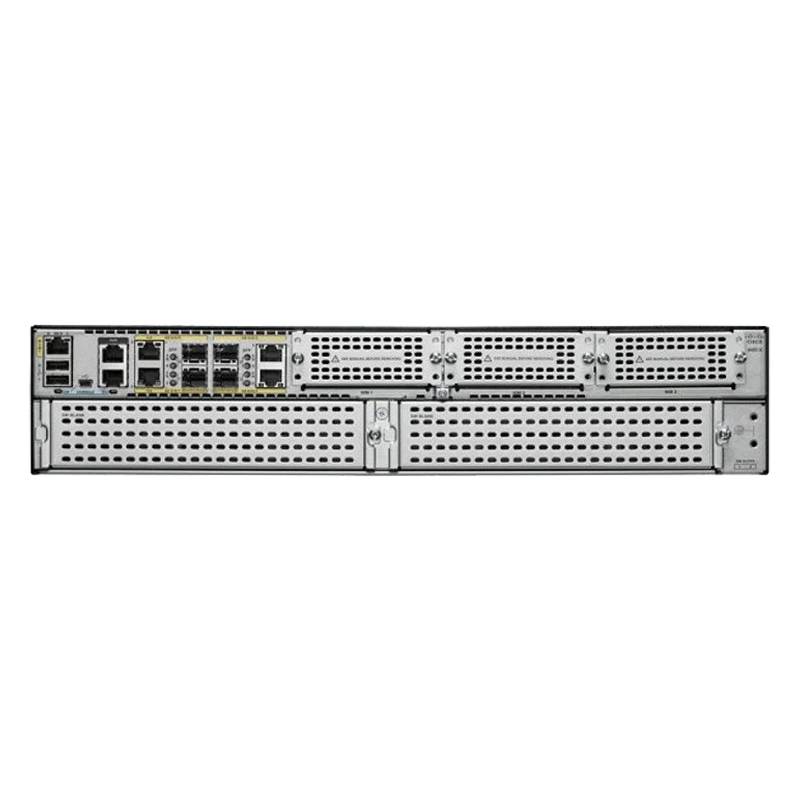

(1) | USB Type A port | (5) | Auxiliary port |
(2) | GE management port | (6) | GE Ports |
(3) | USB Type B mini port | (7) | NIM Slots |
(4) | Console port | (8) | SM-X Slot |
· The NIMs support 2 single-wide or 1 double-wide.
· The GE Ports include 4 RJ45 ports and 4 SFP ports.
Authentication and Encryption Features | • Media encryption of voice RTP streams using SRTP • Exchange of RTP Control Protocol (RTCP) information using secure RTCP • SRTP to RTP fallback for calls between secure and insecure endpoints • Secure calls supported in Cisco Unified Survivable Remote Site Telephony (SRST) mode during WAN failover • Compressed RTP (CRTP) supported with media encrypted calls using SRTP |
Authentication and Encryption Algorithm | • Supports AES-128 encryption algorithm • Supports the HMAC secure hash authentication algorithm (SHA 1) |
Signaling Authentication and Encryption Features | • Gateway to Cisco Unified Communications Manager signaling and encryption uses IPSec for Media Gateway Control Protocol (MGCP), H.323 and SIP gateways • IP phone to Cisco Unified Survivable Remote Site Telephony router signaling and encryption uses TLS (Transport Layer Security) |
Protocol Support | • MGCP 0.1 (supports MGCP gateways with Cisco Unified Communications Manager) • H.323 (supported on H.323 gateways and CUBE; Cisco Unified Communications Manager interoperability is optional) • Session Initiation Protocol (SIP) • SCCP (Cisco Unified IP Phone) in SRST mode |
Module Support | • Any module that has PVDM2, PVDM3 and/or built-in DSP |
Codec Support | • G.711, G.729A, and G.729 |
Items | Models | Descriptions |
Console and Auxillary Cables | CAB-AUX-RJ45 | Cisco CAB-AUX-RJ45 Auxiliary Cable 8ft with RJ45 and DB25M |
CAB-ETH-S-RJ45 | Cisco Router Cable CAB-ETH-S-RJ45 | |
CAB-CONSOLE-RJ45 | Cisco CAB-CONSOLE-RJ45 Console Cable 6ft with RJ45 and DB9F | |
CAB-CONSOLE-USB | Cisco CAB-CONSOLE-USB Console Cable 6 ft with USB Type A and mini-B | |
Licenses | L-SL-44-APP-K9= | Cisco ISR 4431/4451 AppX license L-SL-44-APP-K9= with WAAS/vWAAS 1300/2500 conns RTU |
FL-44-PERF-K9 | Increases the performance from base performance 1 Gbps to 2 Gbps | |
Voice Network Interface Modules | NIM-1MFT-T1/E1 | Cisco Fourth-Generation Multiflex Trunk Voice and WAN network interface module |
NIM-2CE1T1-PRI | Cisco Multiflex Trunk Voice and WAN network interface module | |
NIM-4E/M | Analog voice network interface card (ear and mouth) | |
NIM-2FXS | Cisco Analog voice network interface card NIM-2FXS | |
NIM-2FXS/4FXO | Cisco Analog voice network interface card NIM-2FXS/4FXO | |
NIM-8MFT-T1/E1 | Cisco Fourth-Generation Multiflex Trunk Voice and WAN network interface module | |
SFPs for On-Board GE Ports | Cisco GLC-SX-MMD 1000BASE-SX SFP transceiver module, MMF, 850nm, DOM | |
Cisco GLC-LH-SMD 1000BASE-LX/LH SFP transceiver module, MMF/SMF, 1310nm, DOM | ||
Cisco GLC-ZX-SMD 1000BASE-ZX SFP transceiver module, SMF, 1550nm, DOM |
Models | ISR4451-X-VSEC/K9 | |
Bundle | None | Cisco ISR 4451 VSEC Bundle, PVDM4-64 w/ UC, SEC LicenseCUBE- 25 |
Aggregate Throughput | 1 Gbps to 2 Gbps | 1 Gbps to 2 Gbps |
Total onboard WAN or LAN 10/100/1000 ports | 4 | 4 |
RJ-45-based ports | 4 | 4 |
SFP-based ports | 4 | 4 |
Enhanced service-module slots | 2 | 2 |
NIM slots | 3 | 3 |
Onboard ISC slot | 1 | 1 |
Rack height | 2 | 2 |
Do you have any question about the ISR4451-X-VSEC/K9?
Contact us now via [email protected].
ISR4451-X-VSEC/K9 Specification | |
Description | Cisco ISR 4451 VSEC Bundle, PVDM4-64 w/ UC, SEC License CUBE- 25 |
Aggregate Throughput | 1 Gbps to 2Gbps |
Total onboard WAN or LAN 10/100/1000 ports | 4 |
RJ-45-based ports | 4 |
SFP-based ports | 4 |
Enhanced service-module slots | 2 |
Doublewide service-module slots | 1 (assumes no singlewide SM-X modules installed) |
NIM slots | 3 |
OIR (all I/O modules) | Yes |
Onboard ISC slot | 1 |
Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM (Combined control/services/data planes) | NA |
Maximum memory DDR3 ECC DRAM (Combined control/services/data planes) | NA |
Default memory DDR3 ECC DRAM (data plane) | 2 GB |
Maximum memory DDR3 ECC DRAM (data plane) | 2 GB |
Default memory DDR3 ECC DRAM (control/services plane) | 4 GB |
Maximum memory DDR3 ECC DRAM (control/services plane) | 16 GB |
Default flash memory | 8 GB |
Maximum flash memory | 32 GB |
External USB 2.0 slots (type A) | 2 |
USB console port -type B mini (up to 115.2 kbps) | 1 |
Serial console port - RJ45 (up to 115.2 kbps) | 1 |
Serial auxiliary port - RJ45 (up to 115.2 kbps) | 1 |
Power-supply options | Internal: AC, DC and PoE |
Redundant power supply | Internal: AC, DC and PoE |
AC input voltage | 100 to 240 VAC autoranging |
AC input frequency | 47 to 63 Hz |
AC input current range, AC power supply (maximum) | 7.1 to 3.0A |
AC input surge current | <50 A |
Typical power (no modules) (watts) | 158 |
Maximum power with AC power supply (watts) | 450 (no PoE) |
Maximum power with PoE power supply (platform only) (watts) | 1000 with PoE redundant 1450 with PoE boost no redundancy |
Maximum endpoint PoE power available from PoE power supply (watts) | 500 W with optional redundancy |
Maximum endpoint PoE power capacity with PoE boost (watts) | 950 W no redundancy |
