Detail: | Cisco ISR 4431 Security router (4GE, 3NIM, 1SM, 8G FLASH, 4G DRAM, Advanced Security) |
Model: | ISR4431-SEC/K9 |
Condition: | Original New; In Stock |
Related: | Original New ISR4351-SEC/K9 Cisco ISR Routers 3 x GE ports Security Bundle Sealed New ISR4321-SEC/K9 Security License Router 50Mbps-100Mbps Sealed New ISR4331-SEC/K9 Security License Router 3 WAN Sealed New ISR4221-Sec/K9 Security License Router 35Mbps-75Mbps |
Warranty: |
3 Years-Warranty
100% Money-back
Free After-Sales Service
|
Shipping: |
Air Shipping to
United States
, Most Customers Receive during 5-7 Days
?
If you finish the payment today,
your order will arrive within the estimated delivery time. |
Ships to:
21
|
2-7 Days
US$
|
Payment: |
More
|
(Note: Cisco discount always changed, we will try most effort to follow it but can not ensure every web price was changed accordingly. So Our Products Service will contact you after order if meet such special condition.)

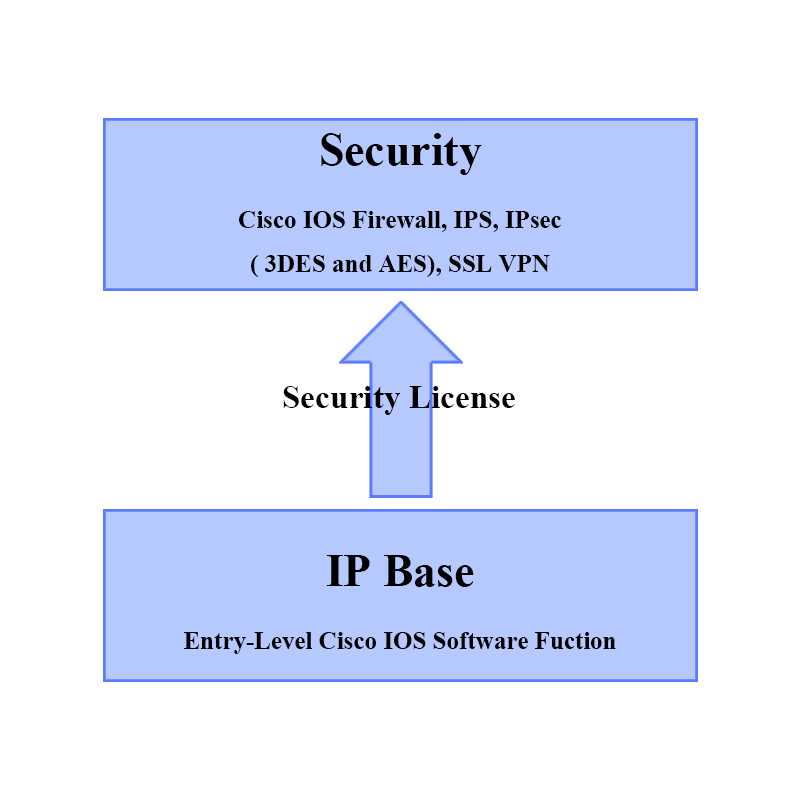

Cisco ISR4431-SEC/K9 is the Cisco ISR4431/k9 router with Security Bundle. Its other specifications are the same as ISR4431/k9.
Product Code | Cisco ISR4431-SEC/K9 |
Bundle | Security Bundle |
Aggregate Throughput | 500 Mbps to 1 Gbps |
Total onboard WAN or LAN 10/100/1000 ports | 4 |
RJ-45-based ports | 4 |
SFP-based ports | 4 |
Enhanced service-module (SM-X) slot | 0 |
NIM (Network Interface Modules) slots | 3 |
Onboard ISC slot | 1 |
DDRM (data plane) | 2 GB (default) / 2 GB (maximum) |
DDRM (control/services plane) | 4 GB (default) / 16 GB (maximum) |
Flash Memory | 8 GB (default) / 32 GB (maximum) |
Power-supply options | Internal: AC, DC, and PoE |
Rack height | 1 RU |
Dimensions (H x W x D) | 43.9 x 438.15 x 507.2 mm |
Note:
(1) | Power supply unit | (3) | Router power On/Off switch |
(2) | LEDs | (4) | Optional power supply unit |
· LEDs include 12 indicators: PSU0, PSU1, GE/POE, FLASH, TEMP, PWR, POE0, POE1, BOOST, ISC, FAN, and STAT.

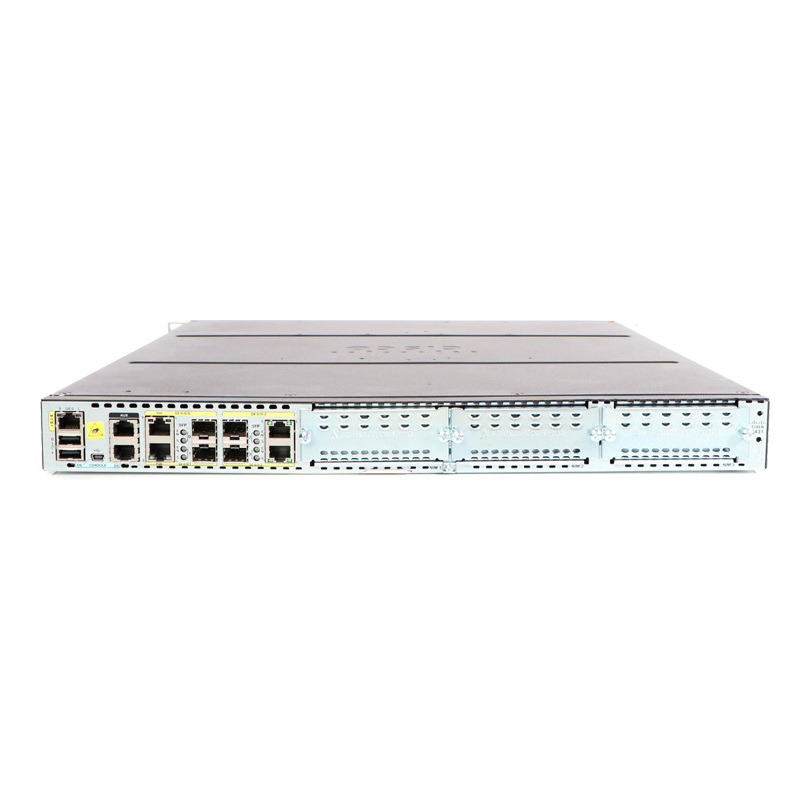

Note:
(1) | GE management port | (5) | Console port |
(2) | Auxiliary port | (6) | GE Ports |
(3) | USB Type A port | (7) | NIM Slots |
(4) | USB Type B mini port |
· The NIMs support 2 single-wide or 1 double-wide.
· The GE Ports include 4 RJ45 ports and 4 SFP ports.
Items | Models | Descriptions |
Console and Auxillary Cables | CAB-AUX-RJ45 | Cisco CAB-AUX-RJ45 Auxiliary Cable 8ft with RJ45 and DB25M |
CAB-ETH-S-RJ45 | Cisco Router Cable CAB-ETH-S-RJ45 | |
CAB-CONSOLE-RJ45 | Cisco CAB-CONSOLE-RJ45 Console Cable 6ft with RJ45 and DB9F | |
CAB-CONSOLE-USB | Cisco CAB-CONSOLE-USB Console Cable 6 ft with USB Type A and mini-B | |
Licenses | L-SL-44-APP-K9= | Cisco ISR 4431/4451 AppX license L-SL-44-APP-K9= with WAAS/vWAAS 1300/2500 conns RTU |
Network Interface Modules | NIM-1MFT-T1/E1 | Cisco Fourth-Generation Multiflex Trunk Voice and WAN network interface module |
NIM-2CE1T1-PRI | Cisco Multiflex Trunk Voice and WAN network interface module | |
NIM-4E/M | Analog voice network interface card (ear and mouth) | |
NIM-2FXS | Cisco Analog voice network interface card NIM-2FXS | |
NIM-2FXS/4FXO | Cisco Analog voice network interface card NIM-2FXS/4FXO | |
NIM-8MFT-T1/E1 | Cisco Fourth-Generation Multiflex Trunk Voice and WAN network interface module | |
SFPs for On-Board GE Ports | Cisco GLC-SX-MMD 1000BASE-SX SFP transceiver module, MMF, 850nm, DOM | |
Cisco GLC-LH-SMD 1000BASE-LX/LH SFP transceiver module, MMF/SMF, 1310nm, DOM | ||
Cisco GLC-ZX-SMD 1000BASE-ZX SFP transceiver module, SMF, 1550nm, DOM |
Models | ISR4431-SEC/K9 | |
Bundle | None | Security Bundle |
Aggregate Throughput | 500 Mbps to 1 Gbps | 500 Mbps to 1 Gbps |
Total onboard WAN or LAN 10/100/1000 ports | 4 | 4 |
RJ-45-based ports | 4 | 4 |
SFP-based ports | 4 | 4 |
Enhanced service-module slots | 0 | 0 |
NIM slots | 3 | 3 |
Onboard ISC slot | 1 | 1 |
Rack height | 1 | 1 |
Do you have any question about the Cisco ISR4431-SEC/K9?
Contact us now via [email protected].
Cisco ISR4431-SEC/K9 Specification | |
Type | Cisco ISR4431/K9 with Security Bundle |
Aggregate Throughput | 500Mbps to 1Gbps |
Total onboard WAN or LAN 10/100/1000 ports | 4 |
RJ-45-based ports | 4 |
SFP-based ports | 4 |
Enhanced service-module slots | 0 |
Doublewide service-module slots | 0 |
NIM slots | 3 |
OIR (all I/O modules) | Yes |
Onboard ISC slot | 1 |
Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM (Combined control/services/data planes) | NA |
Maximum memory DDR3 ECC DRAM (Combined control/services/data planes) | NA |
Default memory DDR3 ECC DRAM (data plane) | 2 GB |
Maximum memory DDR3 ECC DRAM (data plane) | 2 GB |
Default memory DDR3 ECC DRAM (control/services plane) | 4 GB |
Maximum memory DDR3 ECC DRAM (control/services plane) | 16 GB |
Default flash memory | 8 GB |
Maximum flash memory | 32 GB |
External USB 2.0 slots (type A) | 2 |
USB console port -type B mini (up to 115.2 kbps) | 1 |
Serial console port - RJ45 (up to 115.2 kbps) | 1 |
Serial auxiliary port - RJ45 (up to 115.2 kbps) | 1 |
Power-supply options | Internal: AC, DC, and PoE |
Redundant power supply | Internal: AC, DC, and PoE |
AC input voltage | 100 to 240 VAC autoranging |
AC input frequency | 47 to 63 Hz |
AC input current range, AC power supply (maximum) | 3 to 1.3A |
AC input surge current | 60 A peak and less than 5 Arms per half cycle |
Typical power (no modules) (watts) | 65 |
Maximum power with AC power supply (watts) | 250 (no PoE) |
Maximum power with PoE power supply (platform only) (watts) | 500 with PoE redundant |
Maximum endpoint PoE power available from PoE power supply (watts) | 250 W with optional redundancy |
