C3945E-VSEC/K9 C3945E-VSEC/K9
  • C3945E-VSEC/K9
  • C3945E-VSEC/K9

New CISCO3945E-VSEC/K9 Cisco UC Voice and Security Bundle Router

3495 $27195 (87.1% OFF)
4.7
4.7/5.0
Q/A
18 Sold/Mon
Detail: Cisco Excess with Warranty - Cisco 3945E UC Sec. Bun, PVDM3-64,UC +SEC Lic
Model: C3945E-VSEC/K9
Condition: New, In stock
Related: New CISCO3945E/K9 Cisco 3945E 4GE 3EHIWC Router New CISCO3945-V/K9 UC Voice Bundle PVDM3 Router Cisco EHWIC-1GE-SFP-CU WAN Card Moudels for 1900 2900 3900 Router Cisco EHWIC-4ESG Four port Ethernet Switch Interface Card for 1900 2900 3900 Router
Warranty:
3 Years-Warranty
100% Money-back
Free After-Sales Service
Shipping:
Air Shipping to United States
, Most Customers Receive during 5-7 Days
?
If you finish the payment today,
your order will arrive within the
estimated delivery time.
Ships to:
27.8
2-7 Days US$
Payment:
  • Pay by wire transfer.
  • Pay with your paypal.
  • Pay with your Visa credit card.
  • Pay with your Mastercard credit card.
  • Pay with your Discover Card.
  • Pay by Western Union.
More
Quantity
- +
add to Cart quick quote
add to Cart quick quote
  • Description
  • Specification
  • Reviews
  • Q&A
  • Warranty
  • Download

New CISCO3945E-VSEC/K9 Cisco UC Voice and Security Bundle Router


(Note: Cisco discount and Stock always changed, we will try most effort to follow it but can not ensure every web was changed accordingly. So Our Products Service will contact you after order if meet such special condition.)


C3945E-VSEC/K9 is the Cisco 3945E router with Cisco 3945E Voice Sec. Bundle, including PVDM3-64, UC and SEC License.


Quick Specification


Table 1 shows the quick spec.

Product Code

C3945E-VSEC/K9

Bundle

VDM3-64, UC and SEC License.

Services Performance Engine module

w/SPE 250

Rack Units

3U

Interfaces

WAN : 4 x 10Base-T/100Base-TX/1000Base-T - RJ-45

Management: 1 x console - RJ-45

Management: 1 x console - mini-USB

Type B Serial: 1 x auxiliary - RJ-45

USB: 3 x 4 pin USB Type A

1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 2 x SFP (mini-GBIC)

Expansion Slot(s)

3 (total) / 3 (free) x EHWIC

3 (total) / 2 (free) x PVDM

2 (total) / 1 (free) x CompactFlash Card

4 (total) / 3 (free) x service module (SM)

RAM

1 GB (installed) / 2 GB (max)

Flash Memory

256 MB (installed) / 8 GB (max)

Dimensions

18.7 in x 17.2 in x 5.2 in

Net Weight

39 lbs

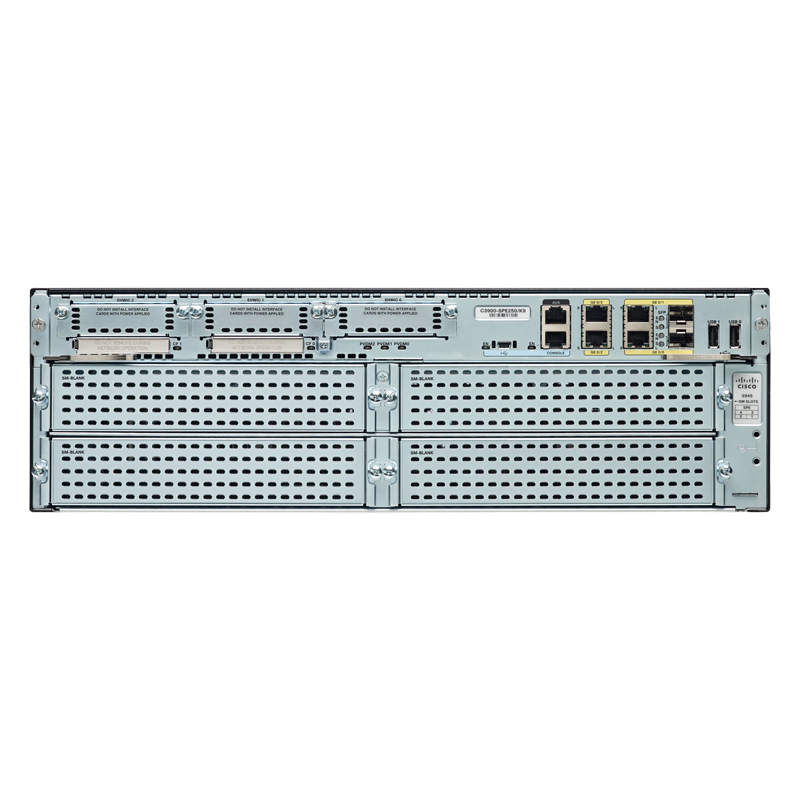

Figure 1 shows the appearance of C3945E-VSEC/K9.

front-c3945e-vsec-k9-datasheet


Product Details


Figure 2 shows the front panel of the C3945E-VSEC/K9.


front-panel-c3945e-vsec-k9-datasheet


Note:

(1)

(2)

(3)

On/Off switch

Power connector

LEDs area

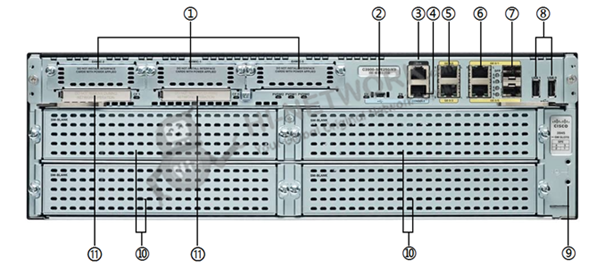

Figure 3 shows the back panel of the C3945E-VSEC/K9 with slots and ports.

slots-and-ports-c3945e-vsec-k9-datasheet

Note:

(1)

EHWIC 0,1, and 2 (0, far right)

(7)

SFP 1 and SFP 2 (1, Top)

(2)

USB serial port

(8)

USB 0 and USB 1 (1, Left)

(3)

AUX port

(9)

Ground

(4)

RJ-45 serial console port

(10)

Service module slots

(5)

10/100/1000 Ethernet ports (GE 0/3, Top; GE 0/2, Bottom)

(11)

Compact flash 0 and 1 (0, right)

(6)

10/100/1000 Ethernet ports (GE 0/1, Top; GE 0/0, Bottom)


Table 2 shows Voice Security Bundle Features.

Authentication and Encryption Features

• Media encryption of voice RTP streams using SRTP

• Exchange of RTP Control Protocol (RTCP) information using secure RTCP

• SRTP to RTP fallback for calls between secure and insecure endpoints

• Secure calls supported in Cisco Unified Survivable Remote Site Telephony (SRST) mode during WAN failover

• Compressed RTP (CRTP) supported with media encrypted calls using SRTP

Authentication and Encryption Algorithm

• Supports AES-128 encryption algorithm

• Supports the HMAC secure hash authentication algorithm (SHA 1)

Signaling Authentication and Encryption Features

• Gateway to Cisco Unified Communications Manager signaling and encryption uses IPSec for Media Gateway Control Protocol (MGCP), H.323 and SIP gateways

• IP phone to Cisco Unified Survivable Remote Site Telephony router signaling and encryption uses TLS (Transport Layer Security)

Protocol Support

• MGCP 0.1 (supports MGCP gateways with Cisco Unified Communications Manager)

• H.323 (supported on H.323 gateways and CUBE; Cisco Unified Communications Manager interoperability is optional)

• Session Initiation Protocol (SIP)

• SCCP (Cisco Unified IP Phone) in SRST mode

Module Support

• Any module that has PVDM2, PVDM3 and/or built-in DSP

Codec Support

• G.711, G.729A, and G.729


Compare to Similar Items


Table 3 shows the comparison.

Model

C3945E-VSEC/K9

CISCO3945E/k9

SPE

w/SPE 250

w/SPE 250

Interface

4 integrated 10/100/1000 Ethernet ports with 2 SFP ports

4 integrated 10/100/1000 Ethernet ports with 2 SFP ports

Rack Unit

3U

3U

Bundle

Cisco 3945E Voice Sec. Bundle, PVDM3-64, UC and SEC License

None


Get More Information

Do you have any question about the C3945E-VSEC/K9?

Contact us now via [email protected].

Specific Data Sheet:


C3945E-VSEC/K9 Specification

Manufacturer

Cisco Systems, Inc

Manufacturer Part Number

C3945E-VSEC/K9

Product Type

Router

Form Factor

Desktop - modular - 3U

Connectivity Technology

Wired

Data Link Protocol

Ethernet, Fast Ethernet, Gigabit Ethernet

Capacity

Cisco Unified Communications Manager Express sessions: 250 Cisco Unified SRST sessions: 1500

Network / Transport Protocol

IPsec, PPPoE, L2TPv3

Routing Protocol

OSPF, IS-IS, BGP, EIGRP, DVMRP, PIM-SM, IGMPv3, GRE, PIM-SSM, static IPv4 routing, static IPv6 routing, policy-based routing (PBR)

Remote Management Protocol

SNMP, RMON

Encryption Algorithm

SSL

Features

Firewall protection, VPN support, MPLS support, Syslog support, content filtering, IPv6 support, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Quality of Service (QoS), Dynamic Multipoint VPN (DMVPN)

Compliant Standards

IEEE 802.3, IEEE 802.1Q, IEEE 802.1ah, IEEE 802.1ag

DRAM Memory

1 GB (installed) / 2 GB (max)

Flash Memory

256 MB (installed) / 8 GB (max)

LED Status Lights Indicators

Link activity, power

Communications

Type

Voice / fax module

Digital Ports Qty

64

IP Telephony

Voice Codecs

G.711, G.722, G.723.1, G.728, G.729, G.729a, G.729ab, G.726

Connectivity Slots

Router Interfaces

4 x 10Base-T/100Base-TX/1000Base-T - RJ-45

Management: 1 x console - RJ-45

Management: 1 x console - mini-USB

Type B Serial: 1 x auxiliary - RJ-45

USB: 2 x 4 pin USB Type A 2 x SFP (mini-GBIC)

Expansion Slot(s)

3 (total) / 3 (free) x EHWIC 3 (total) / 2 (free) x PVDM

2 (total) / 1 (free) x CompactFlash Card

Power Supply

Power Device

Power supply - internal

Voltage Required

AC 120/230 V (50/60 Hz)

Dimensions / Weight / Miscellaneous

Approximate Width

18.7 in

Depth

17.2 in

Height

5.2 in

Weight

39 lbs

Compliant Standards

CISPR 22 Class A, CISPR 24, EN55024, EN55022 Class A, EN50082-1, AS/NZS 60950-1, AS/NZ 3548 Class A, CAN/CSA-E60065-00, ICES-003 Class A, FCC CFR47 Part 15, EN300-386, UL 60950-1, IEC 60950-1, EN 60950-1, CSA C22.2 No. 60065, BSMI CNS 13438

System software

Software Included

Cisco IOS Unified Communications, Cisco IOS Security
