Bundle

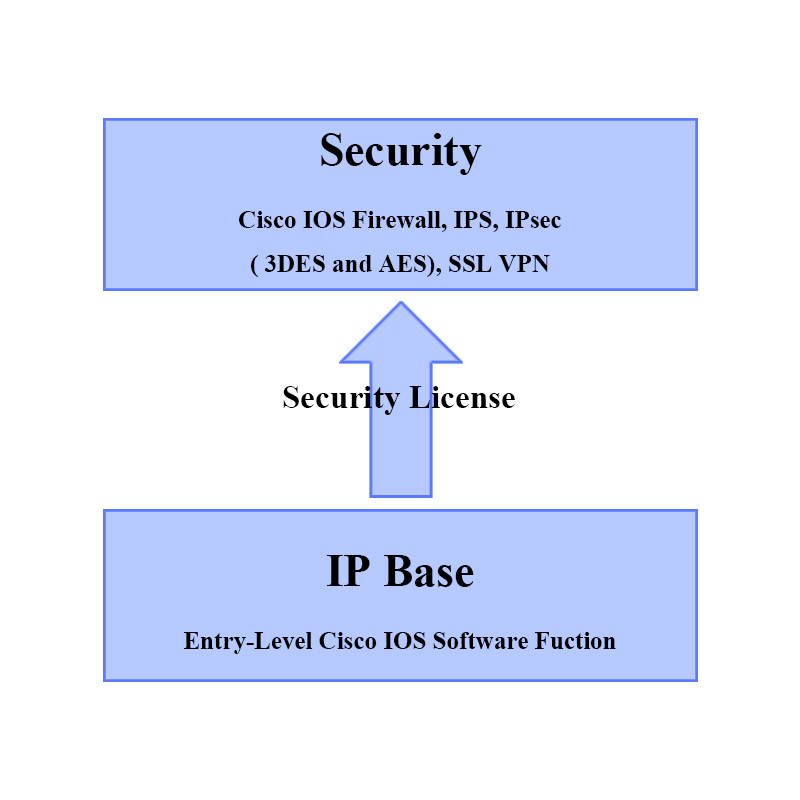

Security Bundle w/SEC license PAK

Main Specs

Manufacturer

Cisco Systems, Inc

Manufacturer Part Number

CISCO1941/K9

Product Type

Router

Form Factor

External - modular - 2U

Dimensions (WxDxH)

34.3 cm x 29.2 cm x 8.9 cm

Weight

5.8 kg

DRAM Memory

512 MB (installed) / 2 GB (max)

Flash Memory

256 MB (installed) / 8 GB (max)

Routing Protocol

OSPF, IS-IS, BGP, EIGRP, DVMRP, PIM-SM, IGMPv3,  GRE, PIM-SSM, static IPv4 routing, static IPv6 routing

Data Link Protocol

Ethernet, Fast Ethernet, Gigabit Ethernet

Network / Transport Protocol

IPsec

Remote Management Protocol

SNMP, RMON

Features

Cisco IOS IP Base, firewall protection, VPN support, MPLS support, Syslog support, IPv6 support, Class- Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED)

Compliant Standards

IEEE 802.3ah, IEEE 802.1ah, IEEE  802.1ag

Power

AC 120/230 V (50/60 Hz)

Services and Slot Density

Embedded hardware-based crypto acceleration (IPsec + SSL)

Yes

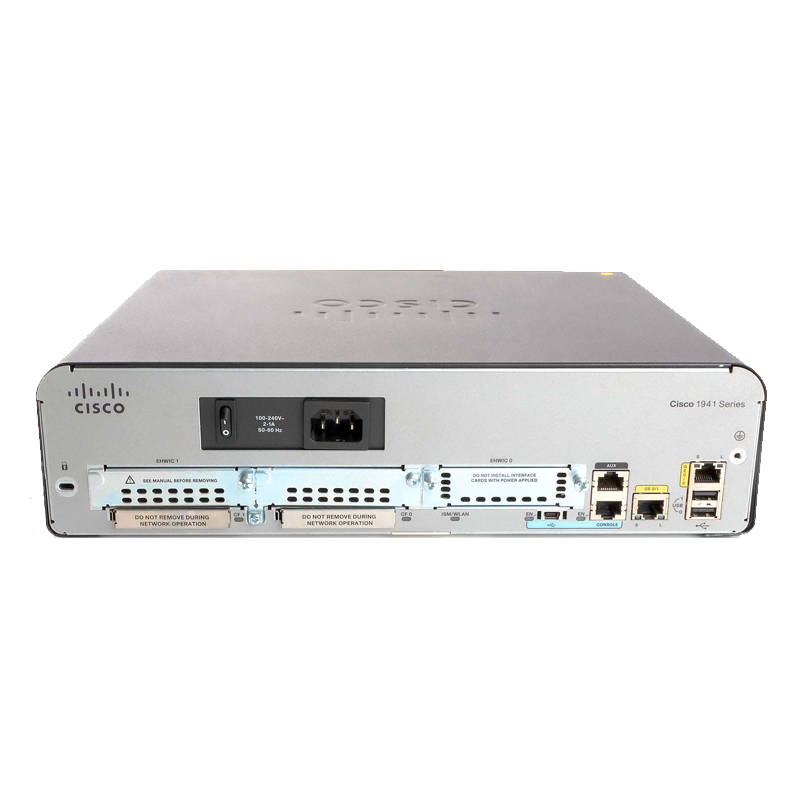

Total Onboard LAN  10/100/1000

2

RJ-45-Based Ports

2

SFP-Based Ports

0

SM Slots

0

Double-Wide SM Slots

0

EHWIC Slots

2

Double-Wide EHWIC slots (use of a double-wide EHWIC slot will consume two EHWIC slots)

1

ISM Slots

1 (0 on the Cisco 1941W)

Memory (DDR2 Error Correction Code [ECC] ECC DRAM) - Default

512 MB

Memory (DDR2 ECC DRAM) - Maximum

2.0 GB

Compact Flash (external) - Default

slot 0: 256 MB

slot 1: none

Compact Flash (external) - Maximum

slot 0: 4 GB

slot 1: 4 GB

External USB flash memory slots (Type A)

2

USB Console Port (Type B) (up to 115.2 kbps)

1

Serial Console Port (up to 115.2 kbps)

1

Serial Auxiliary Port (up to 115.2 kbps

1

Power Supply Options

AC, POE

Redundant Power Supply Support

No

Power Specifications

AC Input Voltage

100-240 V ~

AC Input Frequency

47-63 Hz

AC Input Current range AC Power Supply (Max) (Amps)

1.5-0.6

AC Input Surge Current

<50 A

Typical Power (No Modules)

35 W

Maximum Power capacity with AC power supply

110 W

Maximum Power capacity with PoE power supply (platform only)

110 W

Maximum PoE device power capacity with PoE power supply

80 W

Physical Specifications

Dimensions (H x W x D)

3.5 in x 13.5 in x 11.5 in (34.3 cm x 29.2 cm x 8.9 cm)

Rack Height

2 RU

Rack-mount 19in. (48.3 cm) EIA

Included

Wall-mount (refer to installation guide for approved orientation)

Yes

Package Weight

23.1 lbs (10.48 Kg)

Weight-with AC power supply (no modules)

12 lbs(5.44 Kg)

Weight-with POE power supply (no modules)

12.8 lbs (5.8 Kg)

Maximum Weight-Fully Configured

14 lbs (6.35 Kg)

Airflow

Front to Side

Environmental Specifications

Operating Condition

Temperature-5906 feet (1800 m) max.  altitude

0-40°C (32-104°F)

Temperature-9843 feet (3000 m) max.  altitude

0-25°C (32-77°F)

Altitude

3000 m (10000 ft)

Humidity

10 to 85% RH

Acoustic: Sound Pressure (Typ/Max)

26/46 dBA

Acoustic: Sound Power (Typ/Max)

36/55 dBA

Transportation/Storage Condition

Temperature

-40 - 70°C (-40 - 158°F)

Humidity

5 to 95%RH

Altitude

4570m (15000 ft)

Regulatory Compliance

Safety

UL 60950-1
CAN/CSA C22.2 No. 60950-1 EN 60950-1
AS/NZS 60950-1
IEC 60950-1

EMC

47 CFR, Part 15 ICES-003 Class A
EN55022 Class A CISPR22 Class A AS/NZS 3548 Class A VCCI V-3
CNS 13438
EN 300-386
EN 61000 (Immunity)
EN 55024, CISPR 24 EN50082-1

Telecom

TIA/EIA/IS-968 CS-03
ANSI T1.101
ITU-T G.823, G.824 IEEE 802.3
RTTE Directive
