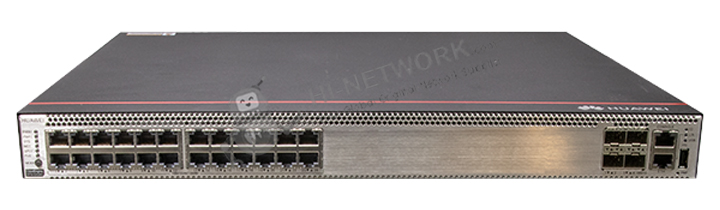

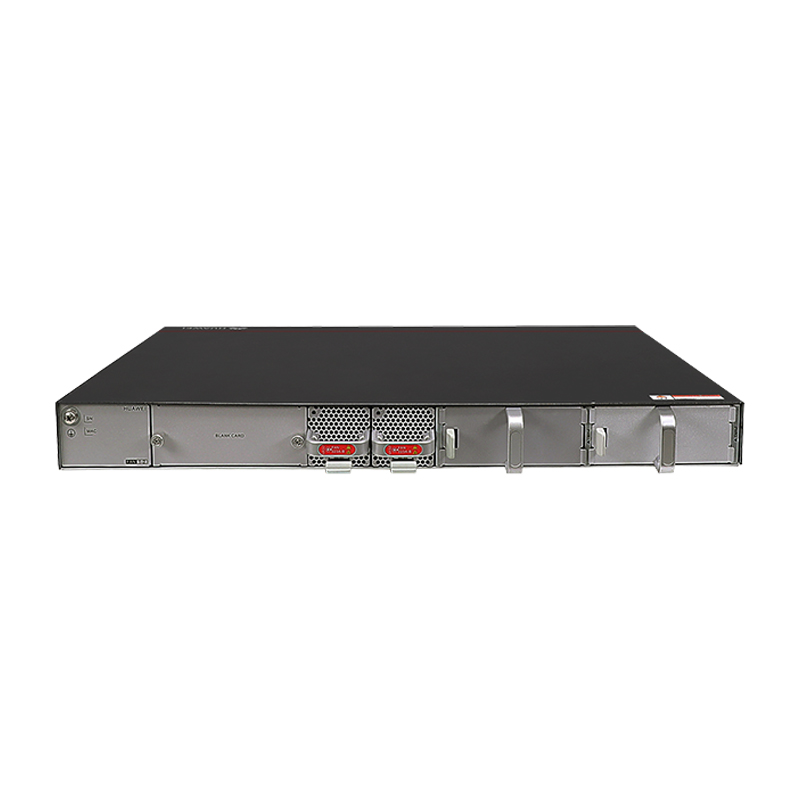

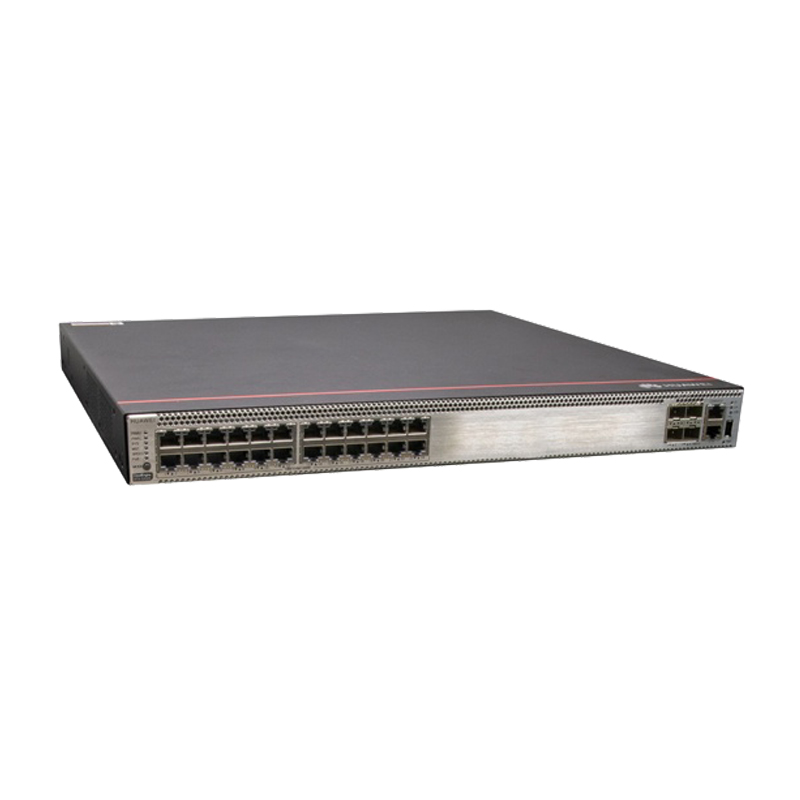

Model

S5736-S24U4XC

Part Number

98011165

Description

S5736-S24U4XC (24 10/100 / 1000Base-T Ethernet port, 4 10 Gigabits SFP +, single sub-card slot, PoE ++, no power supply)

Fixed port

24 x 10/100/1000Base-T ports (PoE++), 4 x 10 GE SFP+ ports

Extended slot

One extended slot, support 4 x 40GE QSFP+, 2 x 40GE QSFP+ and 8 x 10GE SFP+ cards

Dimensions (H x W x D)

43.6 mm x 442 mm x 420 mm

Chassis height

1 U

Chassis weight (including packaging)

8.1kg

Power supply type

● 1000 W AC PoE

● 1000 W DC PoE

● 600 W AC PoE

Rated voltage range

● AC input: 100 V AC to 130 V AC, 200 V AC to 240 V AC, 50/60 Hz

● High-voltage DC input: 240 V DC

● DC input: -48 V DC～-60 V DC

Maximum voltage range

● AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz

● High-voltage DC input: 190 V DC to 290 V DC (meeting 240 V high-voltage DC certification)

● DC input: -38.4V DC～-72V DC

Maximum power consumption

● 102W (without PD)

● 1919W (with PD, PD power consumption of 1817 W)

Noise

● Under normal temperature (sound power): 70dB (A)

● Under high temperature (sound power): 82.6dB (A)

● Under normal temperature (sound pressure): 58dB (A)

Long-term operating temperature

● 0-1800 m altitude: -5°C to +45°C

● 1800-5000 m altitude: The operating temperature reduces by 1ºC every time the altitude increases by 220 m.

Short-term operating temperature

-5°C to +50°C

Storage temperature

-40°C to +70°C

Relative humidity

5% to 95% (non-condensing)

Surge protection specification (service port)

±6 kV in common mode

Surge protection specification (power port)

● AC power port: ±6 kV in differential mode, ±6 kV in common mode

● DC power port: ±2 kV in differential mode, ±4 kV in common mode

Heat dissipation

Air-cooled heat dissipation and intelligent speed adjustment

Forwarding Performance

240 Mpps

Switching Capacity

448 Gbit/s/1.28 Tbit/s

PoE

Supported

Extended Card Slots

One extended card slot, supporting a 2-port 25GE card, 8-port 10GE optical card, 2-port 40GE optical, or 4-port 40GE optical card

MAC Features

IEEE 802.1d compliance

Automatic MAC address learning and aging

Static, dynamic, and blackhole MAC address entries

Packet filtering based on source MAC addresses

VLAN Features

4K VLANs

Guest VLAN and voice VLAN

GVRP

MUX VLAN

VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports

1:1 and N:1 VLAN mapping

IP Routing

Static route, RIPv1/v2, RIPng, OSPF, OSPFv3, ECMP, IS-IS, IS-ISv6, BGP, and BGP4+

Super Virtual Fabric (SVF)

Plug-and-play SVF clients

Automatic software package and patch loading to SVF clients

One-click and automatic delivery of service configurations

Independent SVF client operation

Interoperability

VBST (compatible with PVST/PVST+/RPVST)

LNP (similar to DTP)

VCMP (similar to VTP)

For detailed interoperability certifications and test reports, click HERE.
