Part Number

98010960

First supported version

V200R019C10SPC500

Description

S5735-S24T4X-I (24*10/100/1000BASE-T ports, 4*10GE SFP+ ports, without power module)

Dimensions without packaging (H x W x D) [mm(in.)]

Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.)

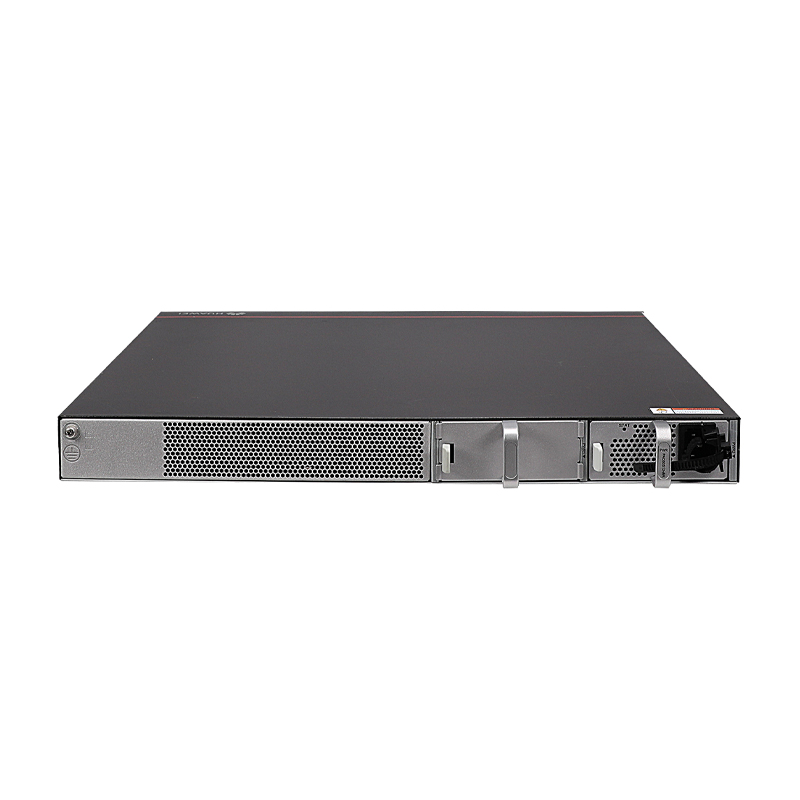

Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 43.6 mm x 442.0 mm x 444.2 mm (1.72 in. x 17.4 in. x 17.49 in.)

Chassis height [U]

1

Weight with packaging [kg(lb)]

7.02

Typical power consumption [W]

36.8

Typical heat dissipation [BTU/hour]

125.57

Maximum power consumption [W]

55.2

Maximum heat dissipation [BTU/hour]

188.35

MTBF [year]

62.88

MTTR [hour]

2

Availability

>0.99999

Noise at normal temperature (acoustic power) [dB(A)]

49.5

Noise at normal temperature (acoustic pressure) [dB(A)]

34.5

Number of card slots

0

Number of power slots

2

Number of fans modules

3

Redundant power supply

1+1
AC and DC power can be used together.

Long-term operating temperature [°C(°F)]

-40°C to +65°C (-40°F to +149°F) at an altitude of 0-1800 m (0-5906 ft.)

Short-term operating temperature [°C(°F)]

-40°C to +70°C (-40°F to 158°F) at an altitude of 0-1800 m (0-5906 ft.)

Restriction on the operating temperature variation rate [°C(°F)]

When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
The equipment can operate beyond the normal operating temperature range for a short-term period, but the following conditions must be met:- The equipment operates at a temperature of over 65°C (149°F) consecutively for at most 96 hours in one year.
- The equipment operates at a temperature of over 65°C (149°F) for a total of no more than 360 hours in one year.
- The equipment operates at a temperature of over 65°C (149°F) for no more in 15 times in one year.
The equipment may be damaged or experience unexpected exceptions if any of the preceding limits is exceeded.
The maximum distance of optical modules used in these conditions cannot exceed 10 km.

Storage temperature [°C(°F)]

-40°C to +75°C (-40°F to +167°F)

Long-term operating relative humidity [RH]

5% to 95%, noncondensing

Long-term operating altitude [m(ft.)]

0-5000 m (0-16404 ft.)

Storage altitude [m(ft.)]

0-5000 m (0-16404 ft.)

Power supply mode

Pluggable power supply

Rated input voltage [V]

- AC input: 100 V AC to 240 V AC, 50/60 Hz
- High-Voltage DC input: 240 V DC

Input voltage range [V]

- AC input: 90 V AC to 264 V AC, 47 Hz to 63 Hz
- High-Voltage DC input: 190 V DC to 290 V DC

Memory

1 GB

Flash memory

512 MB in total. To view the available flash memory size, run the display version command.

Console port

RJ45

Eth Management port

RJ45

USB

Supported

RTC

Supported

RPS input

Not supported

Service port surge protection [kV]

Common mode: ±7 kV

Power supply surge protection [kV]

±6 kV in differential mode, ±6 kV in common mode

Types of fans

Built-in

Heat dissipation mode

Heat dissipation with fan, intelligent fan speed adjustment

Airflow direction

Air intake from left,front and right, air exhaustion from behind

PoE

Not supported

Certification

EMC certification
Safety certification
Manufacturing certification
